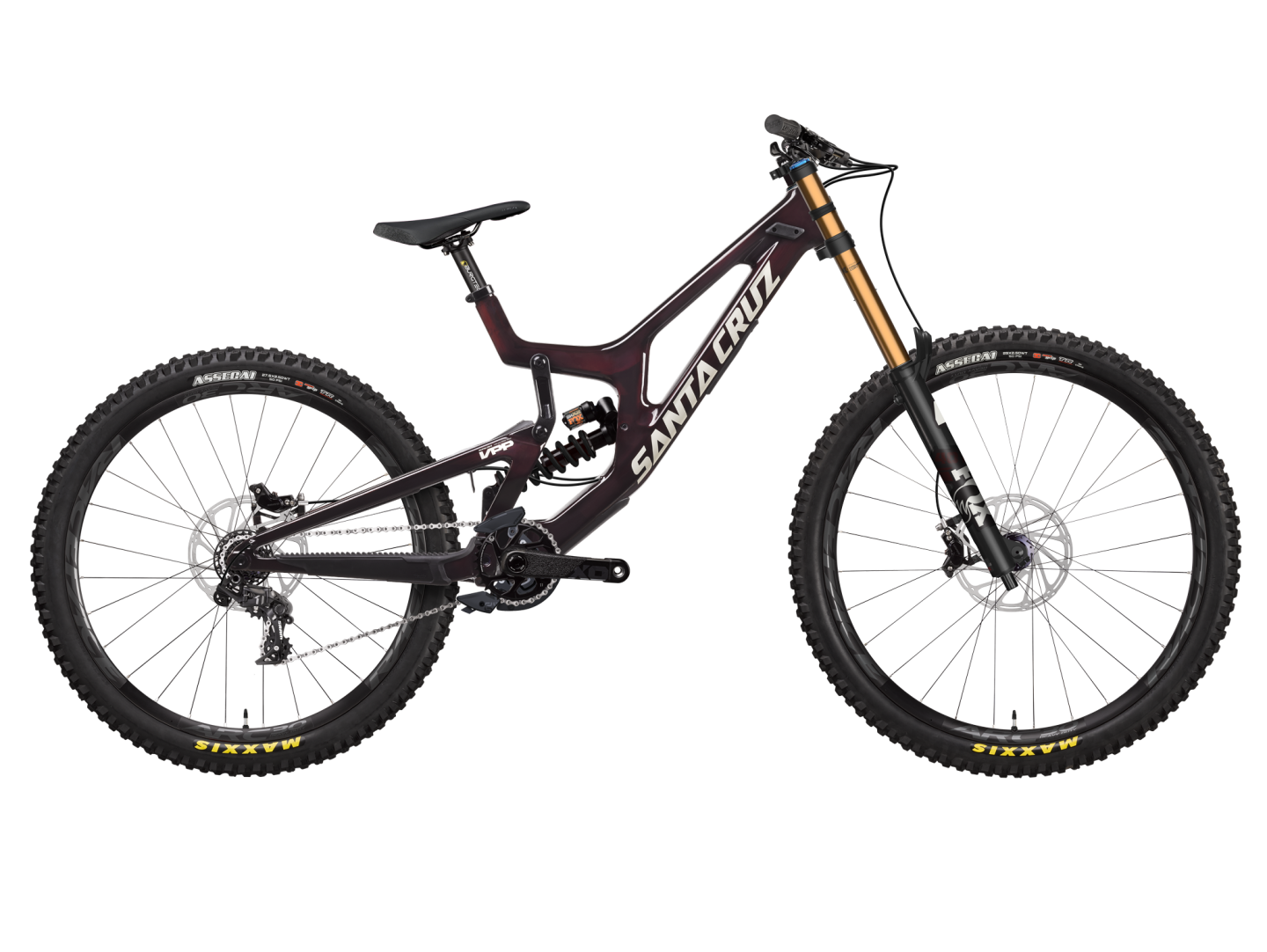

V10 7 Carbon MX
| Model Version | 7 Carbon MX |
|---|---|
| Production Start | 2018 |
| Production End | - |
| Suspension/Pivot System | VPP - Virtual Pivot Point |
| Material | Carbon Fiber |
| Rear Wheel Travel | 215mm |
| Size Range | M, L |
Rahmen-Spezifikationen
| Compatible Forks | 203mm |
|---|---|
| Headtube/Headset | ZS49 upper/ EC49 lower |
| Seat Post | 31.6mm - Minimum Insertion 100mm |
| Front Derailleur | N/A - Single Front Chainring Only |
| Max Chainring Size | 34t |
| BB Shell Width | 83mm - Threaded - ISO |
| Chainline Spec | 55mm |
| Recommended Max Tire Size | 2.5 - may vary by tire and rim model |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 157mm x 12mm Through Axle |
| Seatpost Clamp | 36.4mm |
Dämpfer-Maße
| Rear Shock Eye-to-Eye | 250mm |
|---|---|
| Stroke | 75m |
| Mounting Bushing Width Front | 25x8 |
| Mounting Bushing Width Rear | 30x8 |
Geometrie
Shock Position
Alle Einheiten in Millimeter oder Grad
| m | l | |
|---|---|---|
| Reach | 437 | 462 |
| Stack | 632 | 637 |
| Head tube angle | 63.7° | 63.7° |
| Sitzrohrlänge | 445 | 455 |
| Front Center | 806 | 833 |
| Tretlagerhöhe | 356 | 356 |
| Tretlagerabsenkung | 16.4/-2 | 16.4/-2 |
| Radstand | 1251 | 1278 |
| Hinterbaulänge | 445-455 | 445-455 |
| Steuerrohrlänge | 100 | 105 |
| Überstandshöhe | 718 | 719 |
| m | l | |
|---|---|---|
| Reach | 435 | 460 |
| Stack | 631 | 635 |
| Head tube angle | 63.3° | 63.3° |
| Sitzrohrlänge | 445 | 455 |
| Front Center | 806 | 833 |
| Tretlagerhöhe | 351 | 351 |
| Tretlagerabsenkung | 21.6/3. | 21.6/3. |
| Radstand | 1252 | 1279 |
| Hinterbaulänge | 446-456 | 446-456 |
| Steuerrohrlänge | 100 | 105 |
| Überstandshöhe | 713 | 714 |

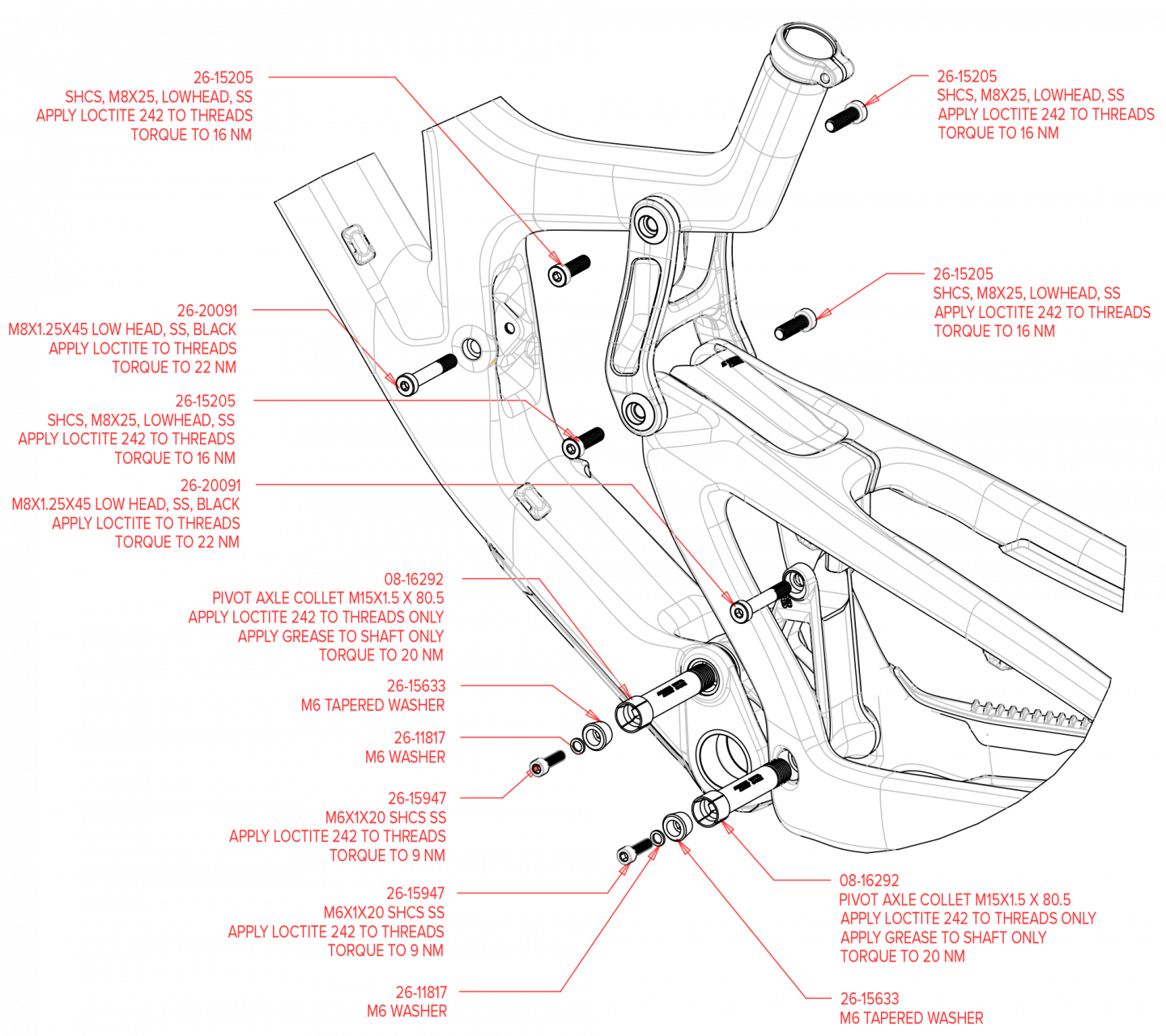

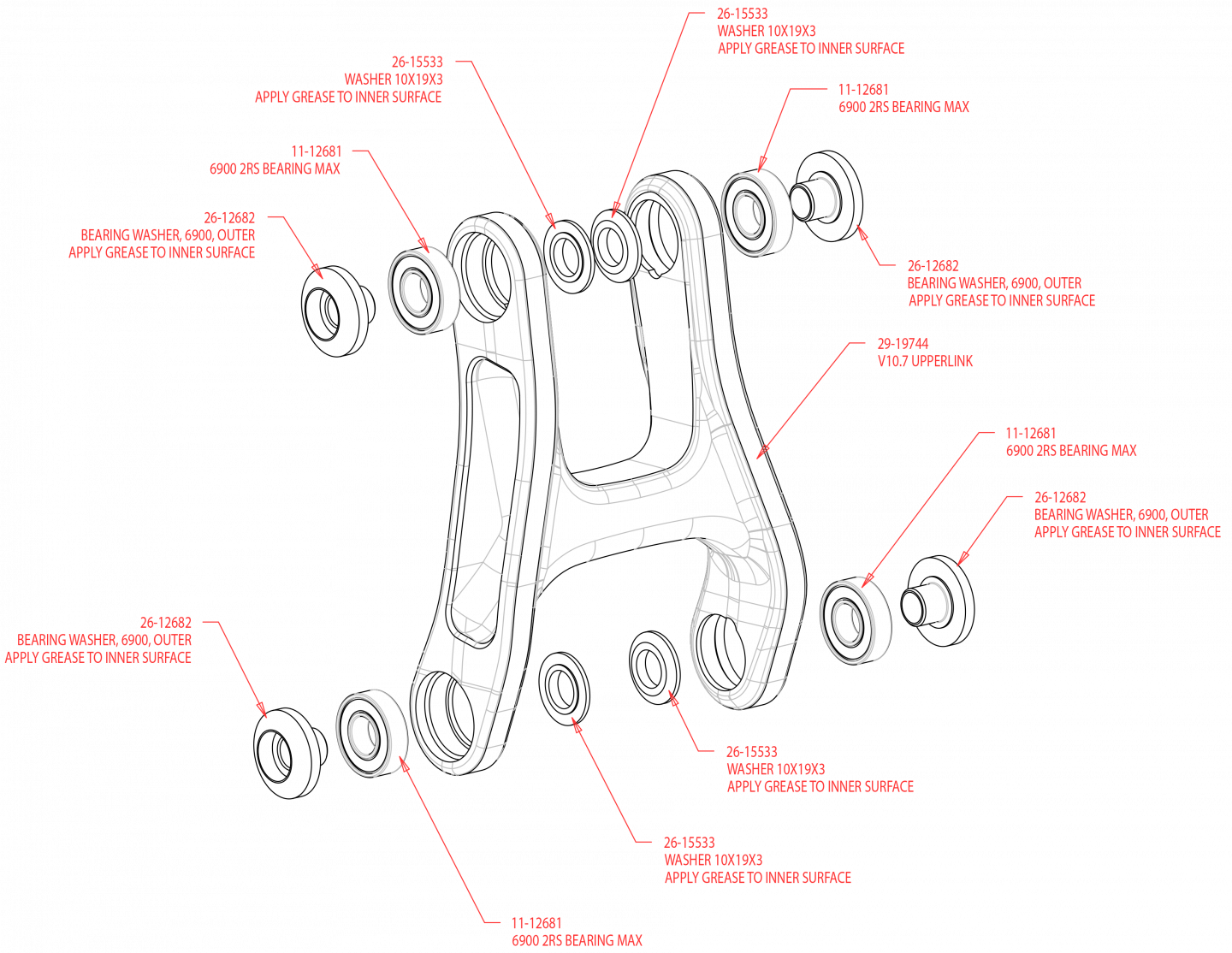

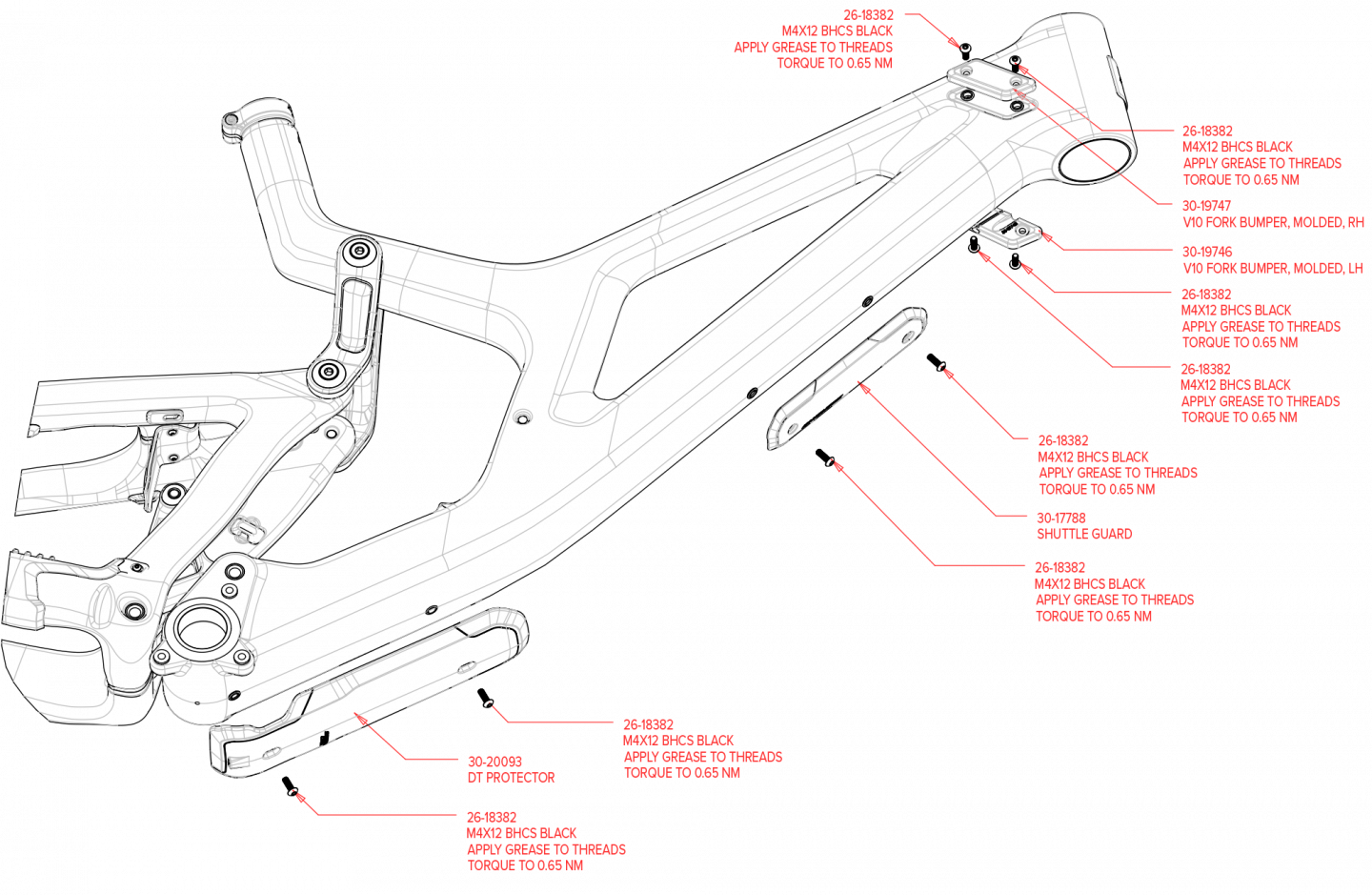

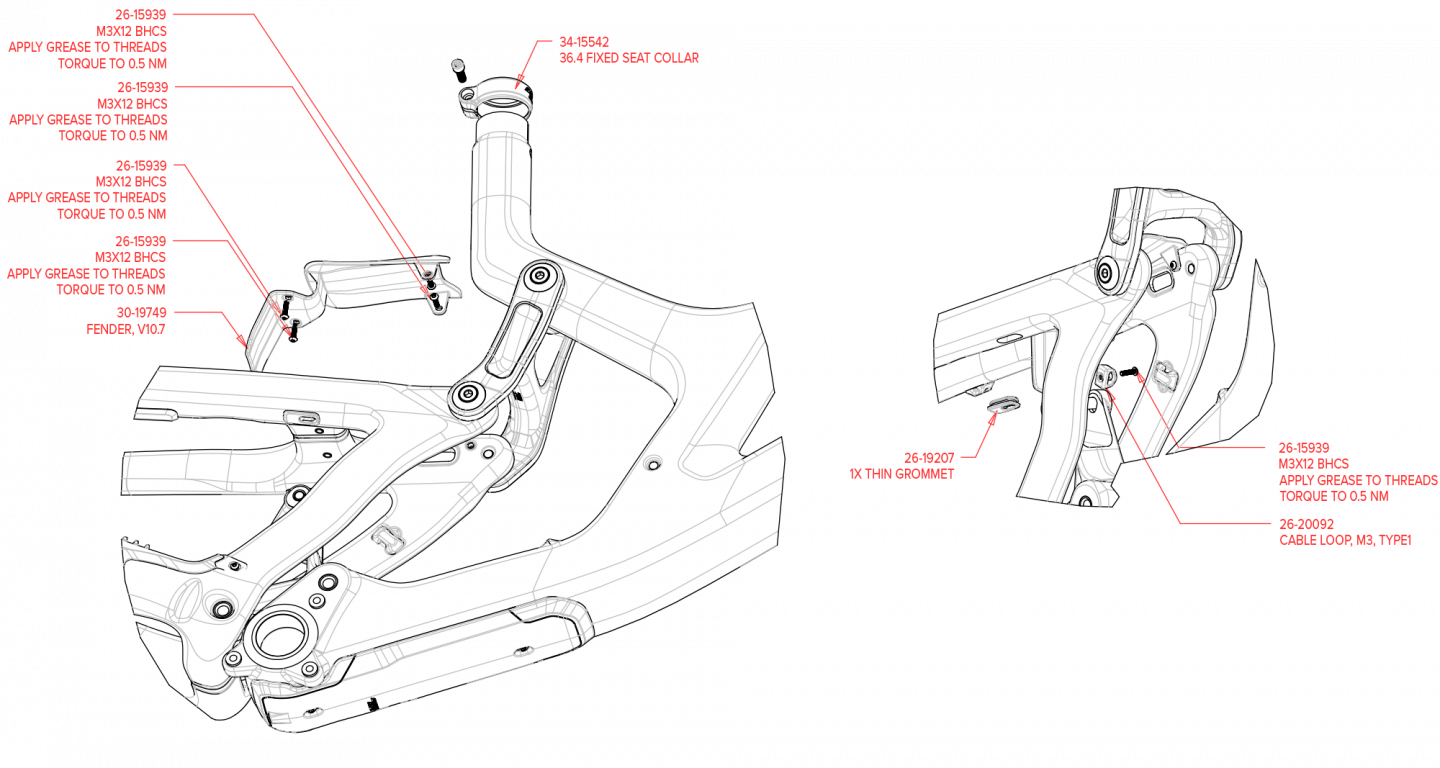

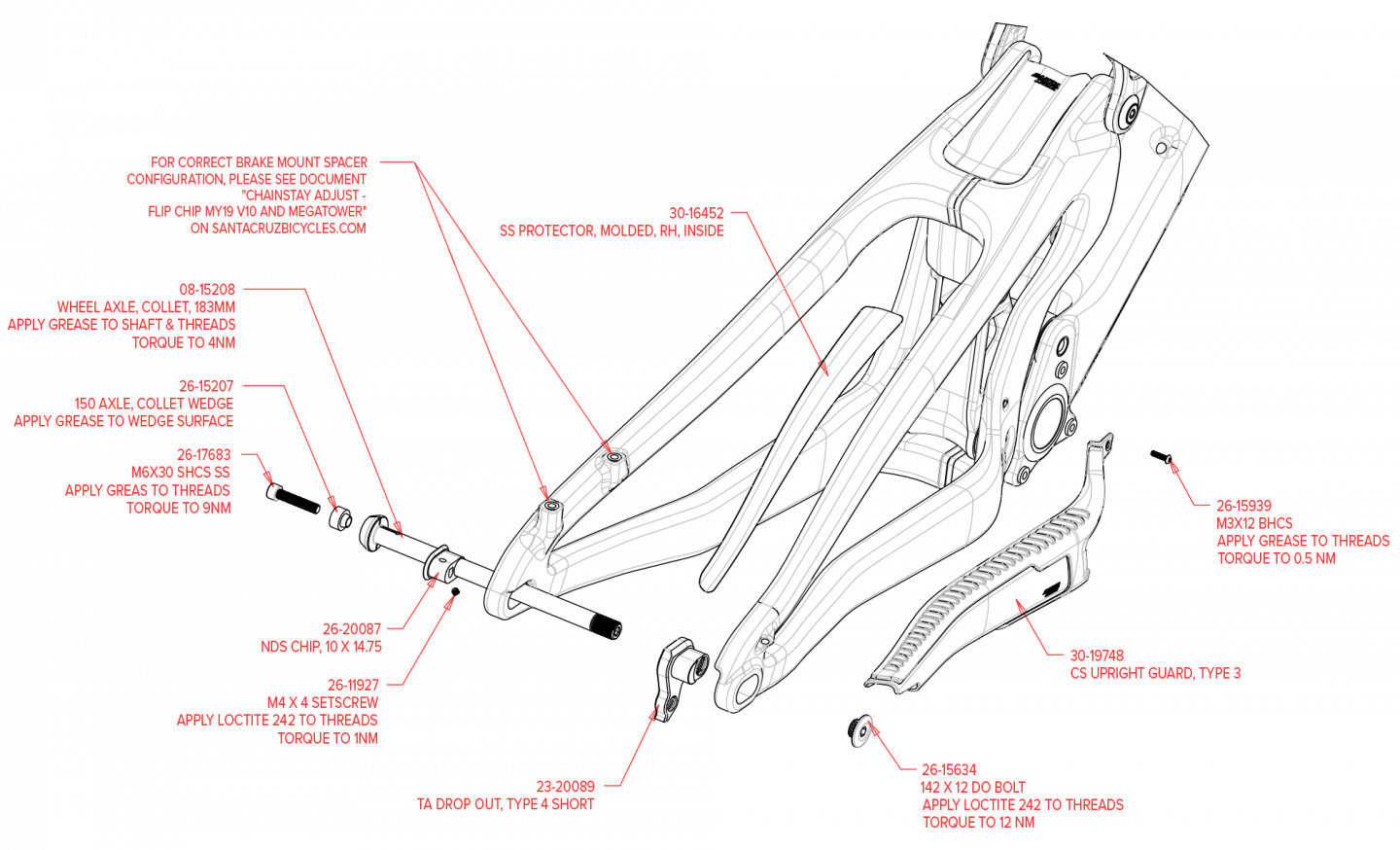

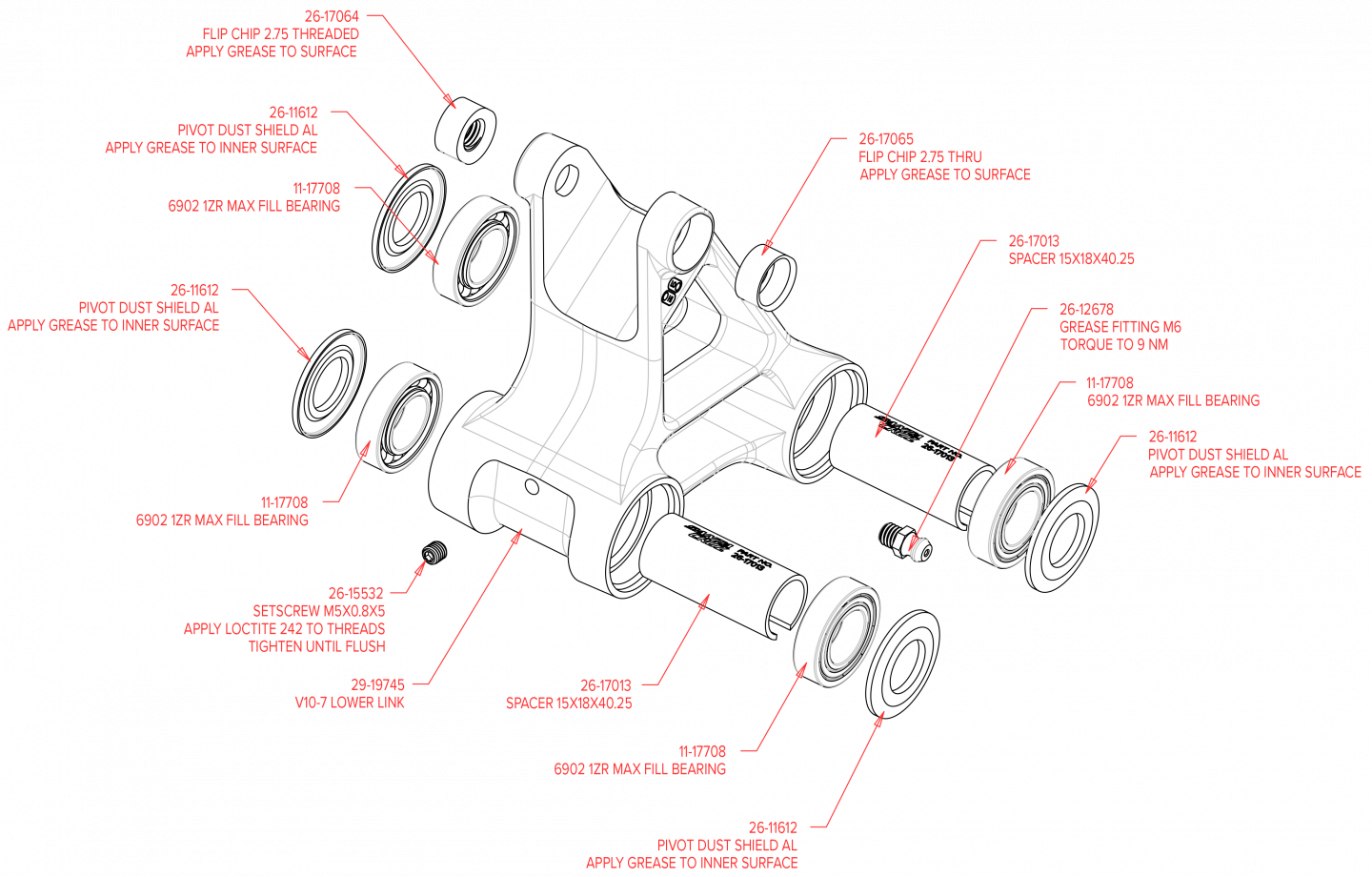

Explosionszeichnungen
Laden
Laden
Laden
Laden
Laden
Laden
Dateien
Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
