Nomad

Federweg vorne (mm) 170

Federweg hinten (mm) 170

Laufradgröße MX

STOMPING GAPS AND STAMPING PASSPORTS

Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, and drive to the bike park for laps on laps. Hell, you could even roll up to the start line of the world’s wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. All it needs is a rider willing to press send.

See The Bikes

MEGADESCENTS RACING DOWN EUROPE’S BIGGEST PEAKS

BOLDEST MOVES

ALL THE TRAVEL AND MX WHEELS

A bigger wheel up front, optimized geometry for good times, Glovebox storage, and the biggest-hitting VPP™ suspension come together to create a bike that inspires confidence in going wherever, whenever, and tackling whatever’s in your way.

STEEP AND DEEP

SINGLE-CROWN, DOUBLE BLACK

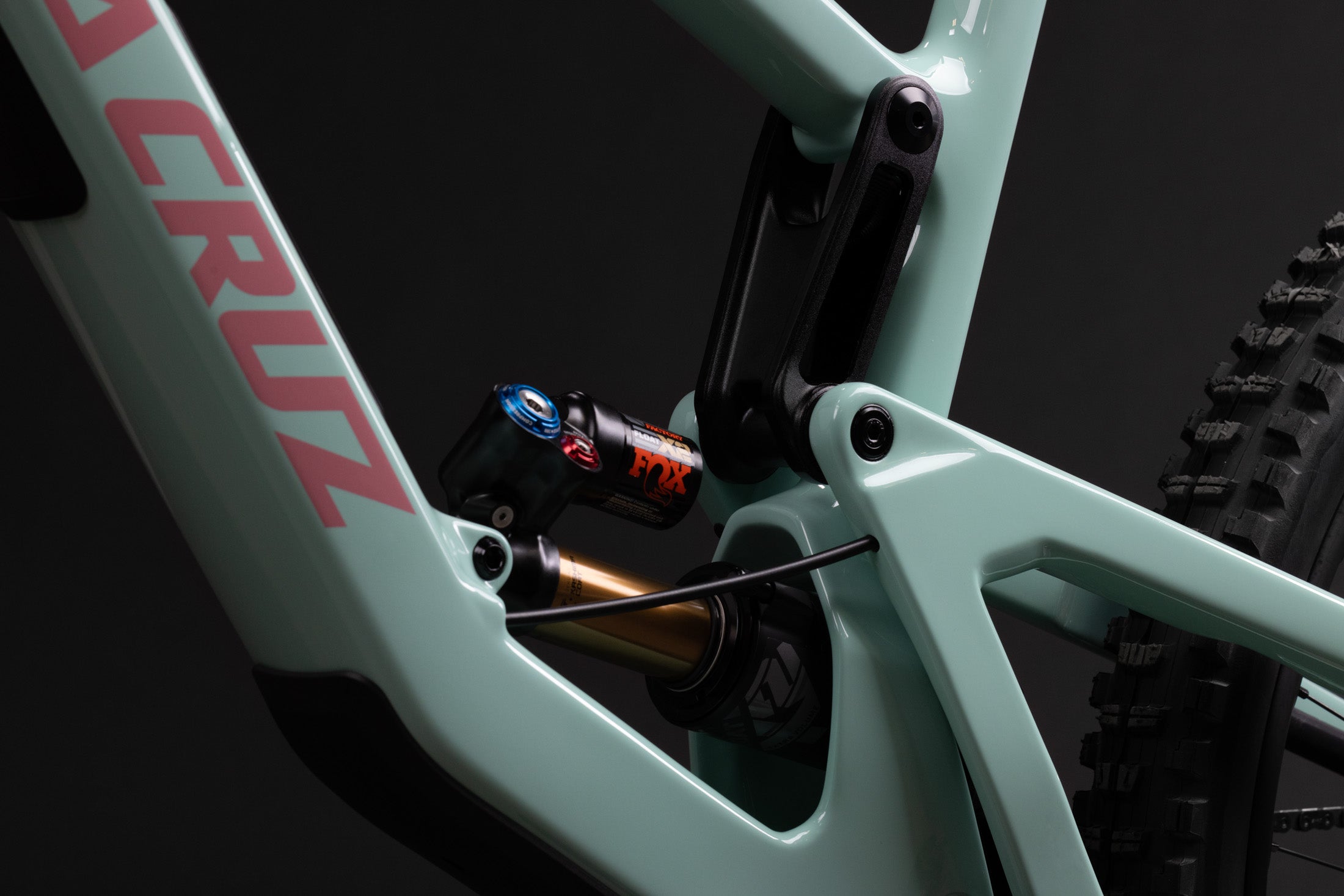

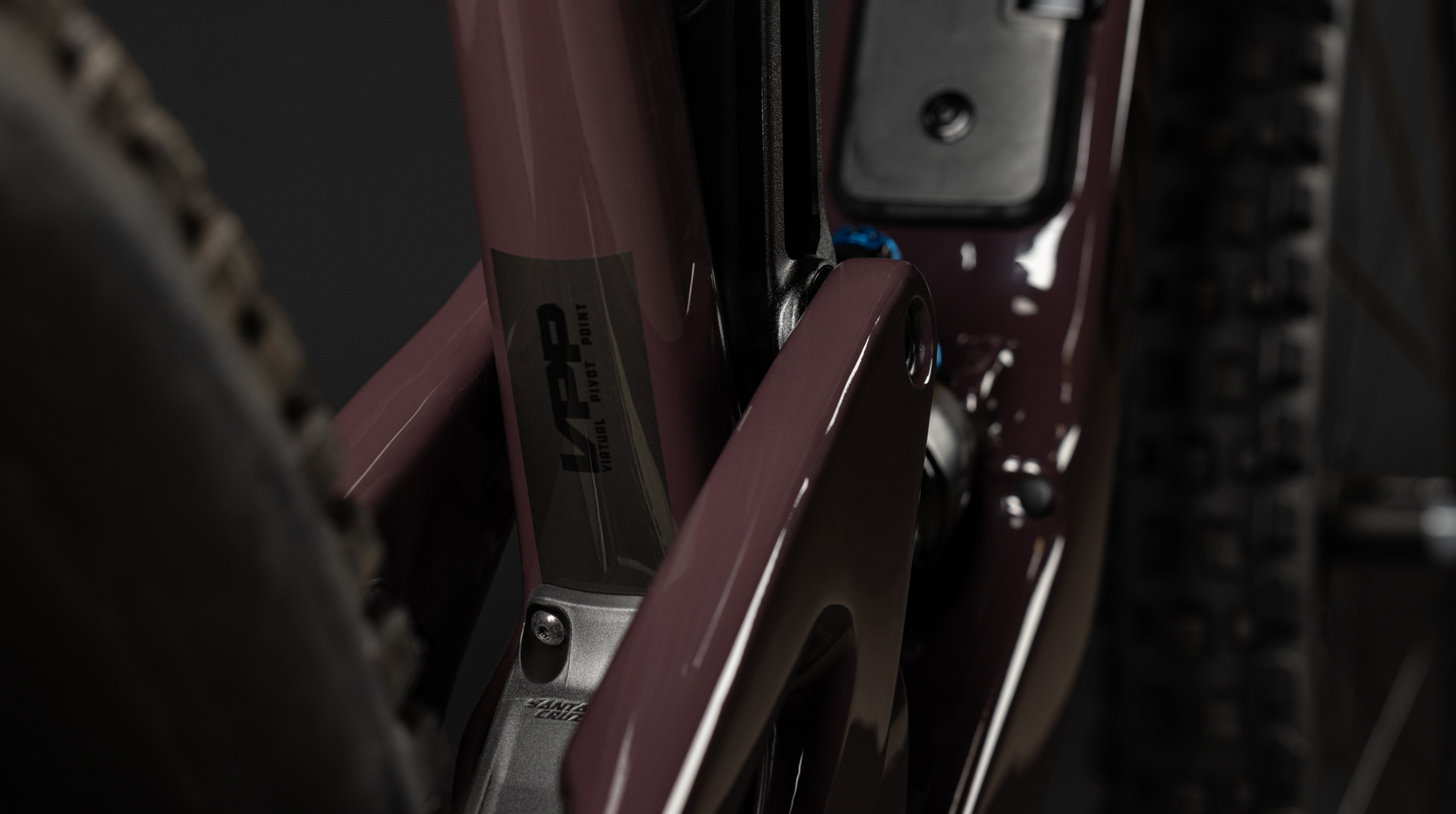

VPP™ suspension strikes the ideal balance between pedaling efficiency and bump-chomping prowess. The Nomad excels at absorbing the biggest hits, allowing riders to charge harder and with greater confidence in the toughest terrain. Plus, its efficiency means reaching the highest, best trails is never a chore.

Filter:

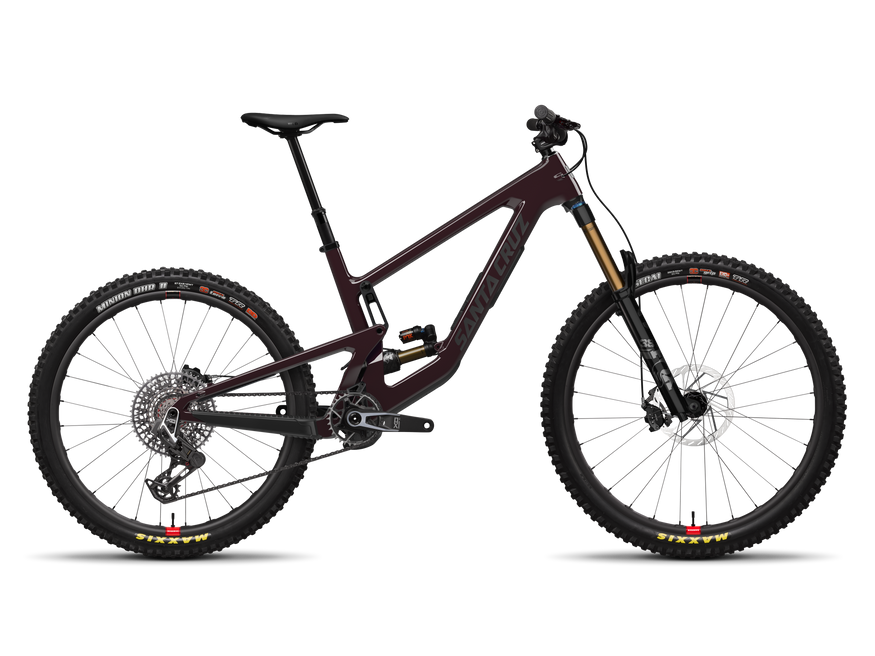

MY25 Nomad CC X0 AXS RSV GlossStormbringerPurple F0e42090 A7be 43df 8f40 46b6acd50e2d

Nomad X0 AXS RSV

Carbon CC

CC Carbon-Rahmen, elektronischer SRAM X0 Transmission-Antrieb, Highend Fahrwerk, starke SRAM Maven Silver Stealth Bremsen. Und die legendären RESERVE Carbon-Felgen mit Industry Nine Naben.

$9,749

Vergleichen

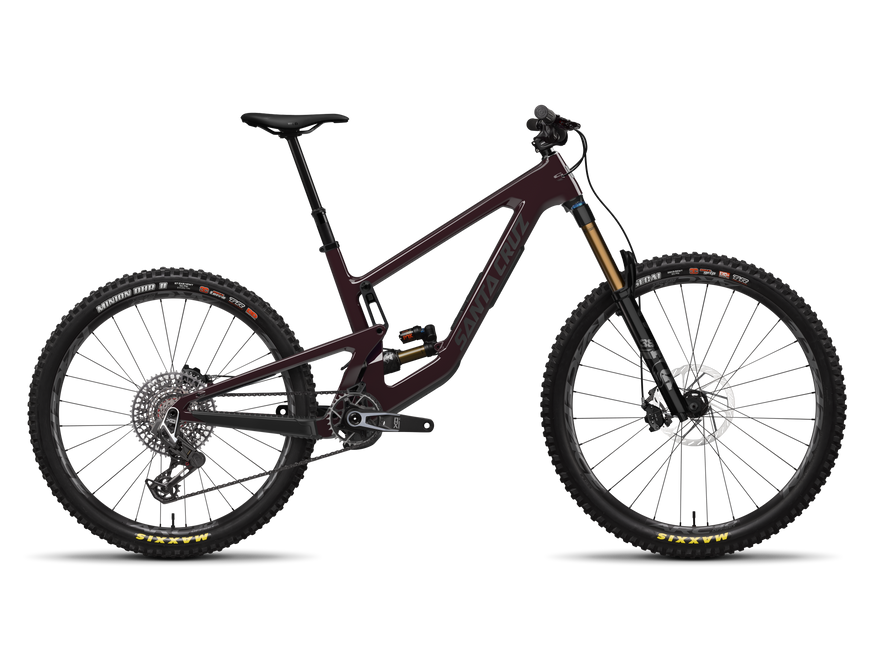

MY25 Nomad CC X0 AXS GlossStormbringerPurple 1a0ea24b 5d3f 4f37 92a4 4d03bfc3b179

Nomad X0 AXS

Carbon CC

CC Carbon-Rahmen, elektronischer SRAM X0 Transmission-Antrieb, Highend Fahrwerk, Industry Nine Naben und starke SRAM Maven Silver Stealth Bremsen

$8,699

Vergleichen

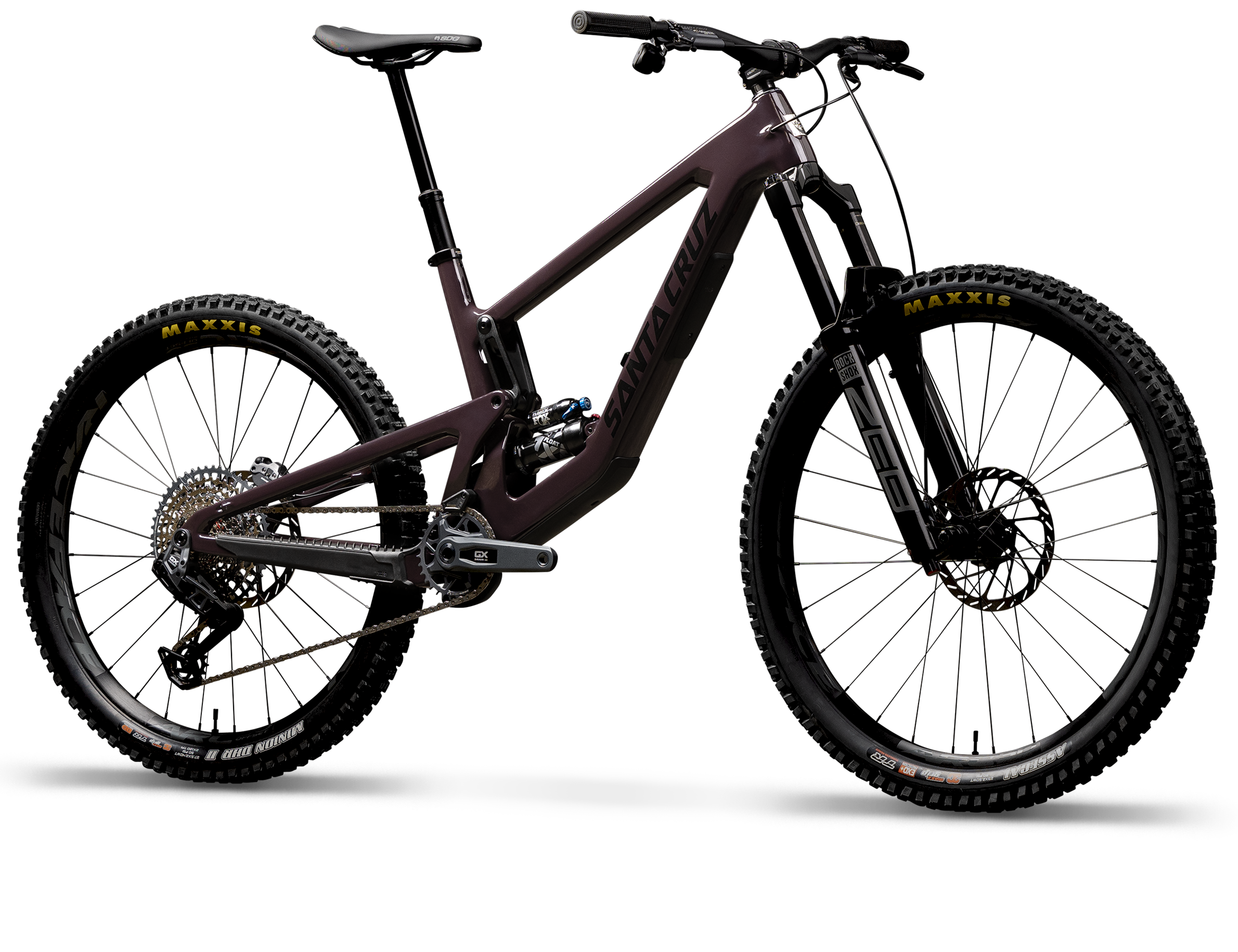

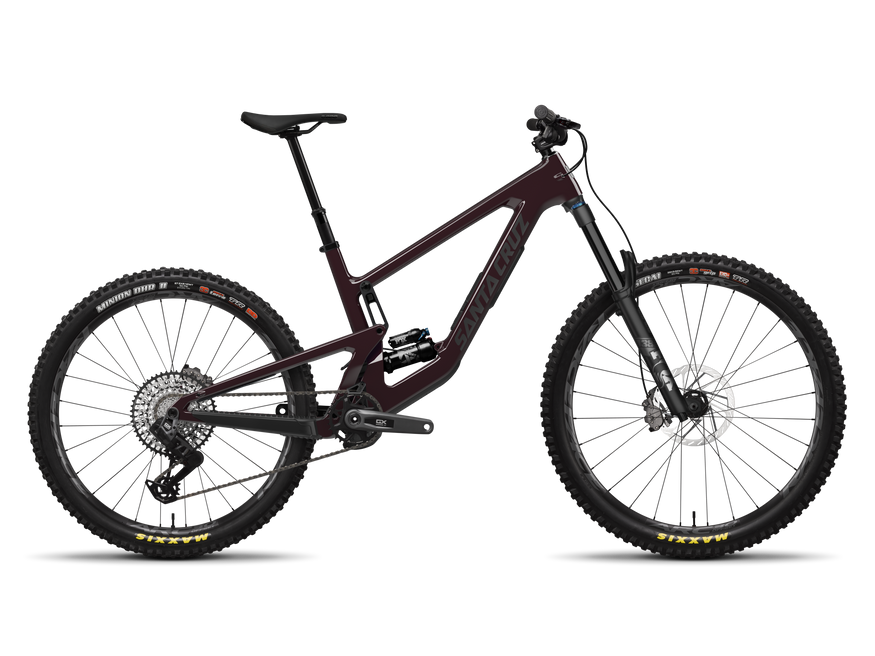

MY25 Nomad C GX AXS GlossStormbringerPurple 8c518802 2c34 445d 9c8a Ad86f74282bb

Nomad GX AXS

Carbon C

Elektronische SRAM GX Transmission, super starke SRAM Maven Bremsen.

$7,249

Vergleichen

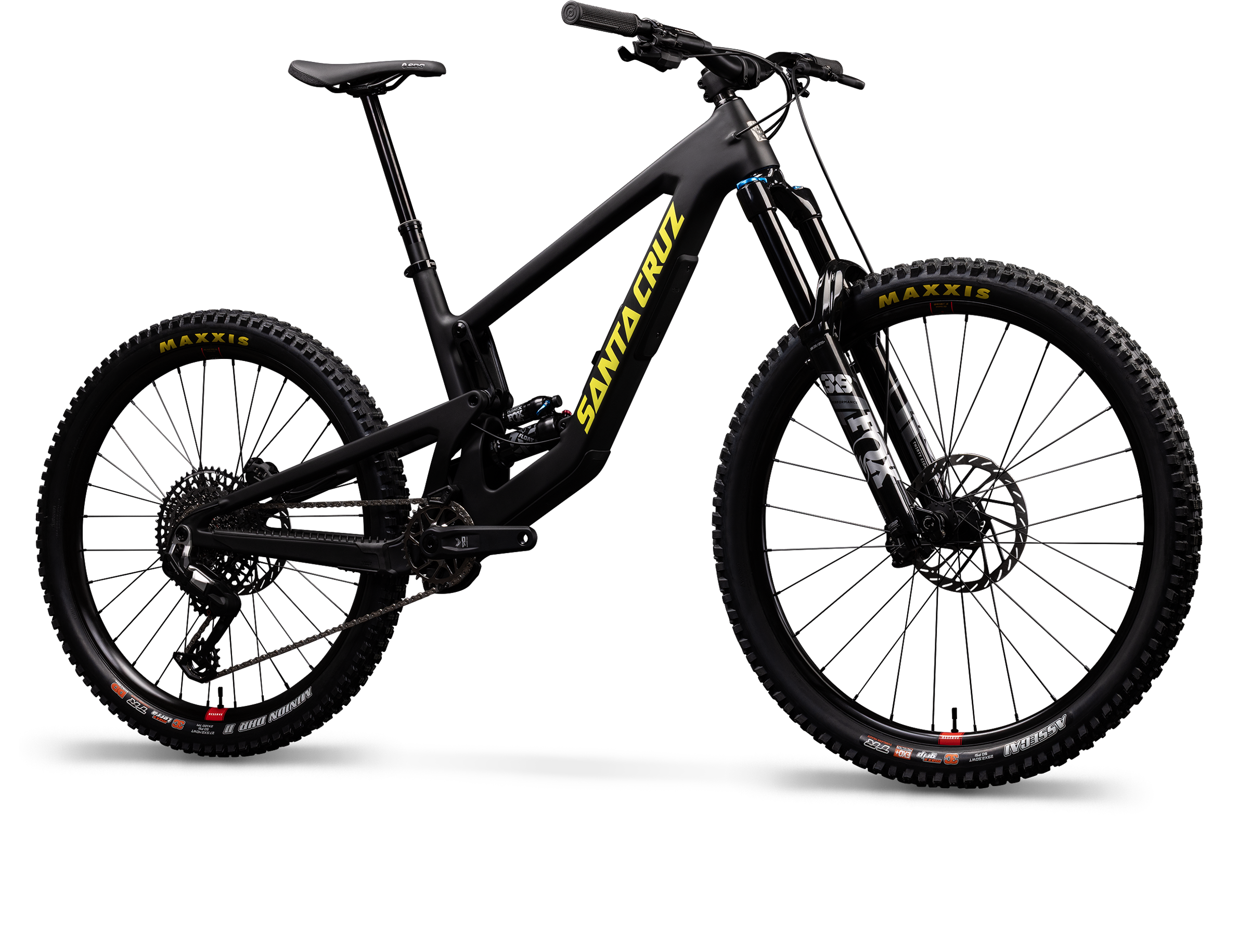

MY26 Nomad C MatteBlack 613fe767 E124 42b4 Be2c Bca6747e96b1

MY26 Nomad C GlossCoral A2d5b527 416b Bc6a E3a8498f7187

Nomad 90

Carbon C

Ein solides Upgrade ... Hochwertigere Naben, Steuersatz und Sattelstütze. FOX FLOAT X Dämpfer, mechanischer SRAM 90 TRANSMISSION Antrieb, SRAM MAVEN Bremsen und RESERVE AL Felgen.

$6,099

new

Vergleichen

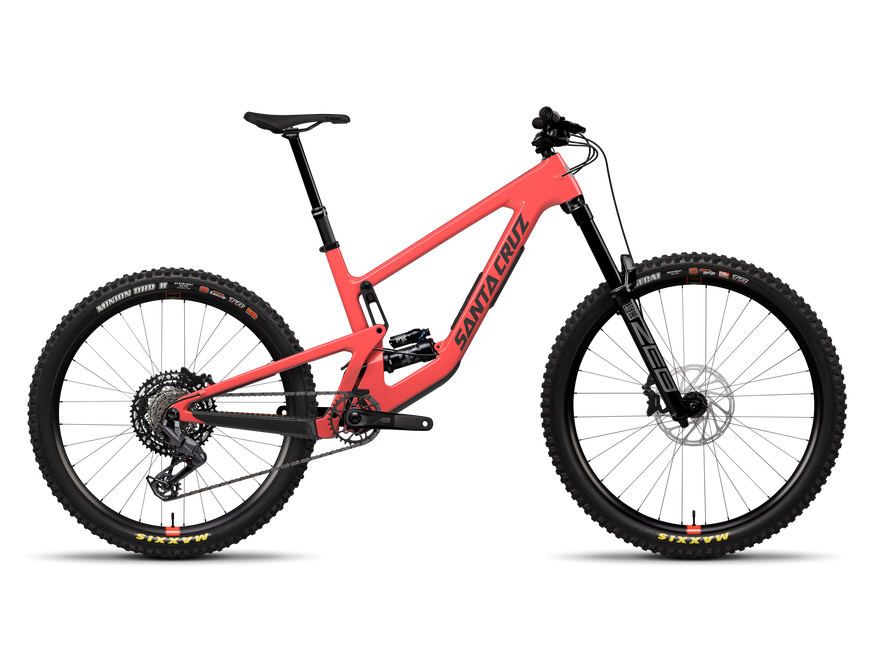

MY26 Nomad C GlossCoral 0c5aee45 2c52 40fb B652 1760de6e5d0e

MY26 Nomad C MatteBlack A840bbb3 30f6 47c5 829c Ed86c88b2aee

Nomad 70

Carbon C

Basismodell mit denselben Reifen und großen Bremsscheiben wie alle NOMAD-Modelle. Mechanische SRAM 70 TRANSMISSION Schaltung, FOX FLOAT X Dämpfer und RESERVE AL Felgen.

$5,149

new

Vergleichen

MY25 Nomad CC FloatX2 Frame GlossLightTeal

Nomad Rahmenset

Carbon CC

$4,199

Vergleichen

Deals On Nomads

Current Offers

Sorry, es gibt keine passenden Produkte.

Design Details

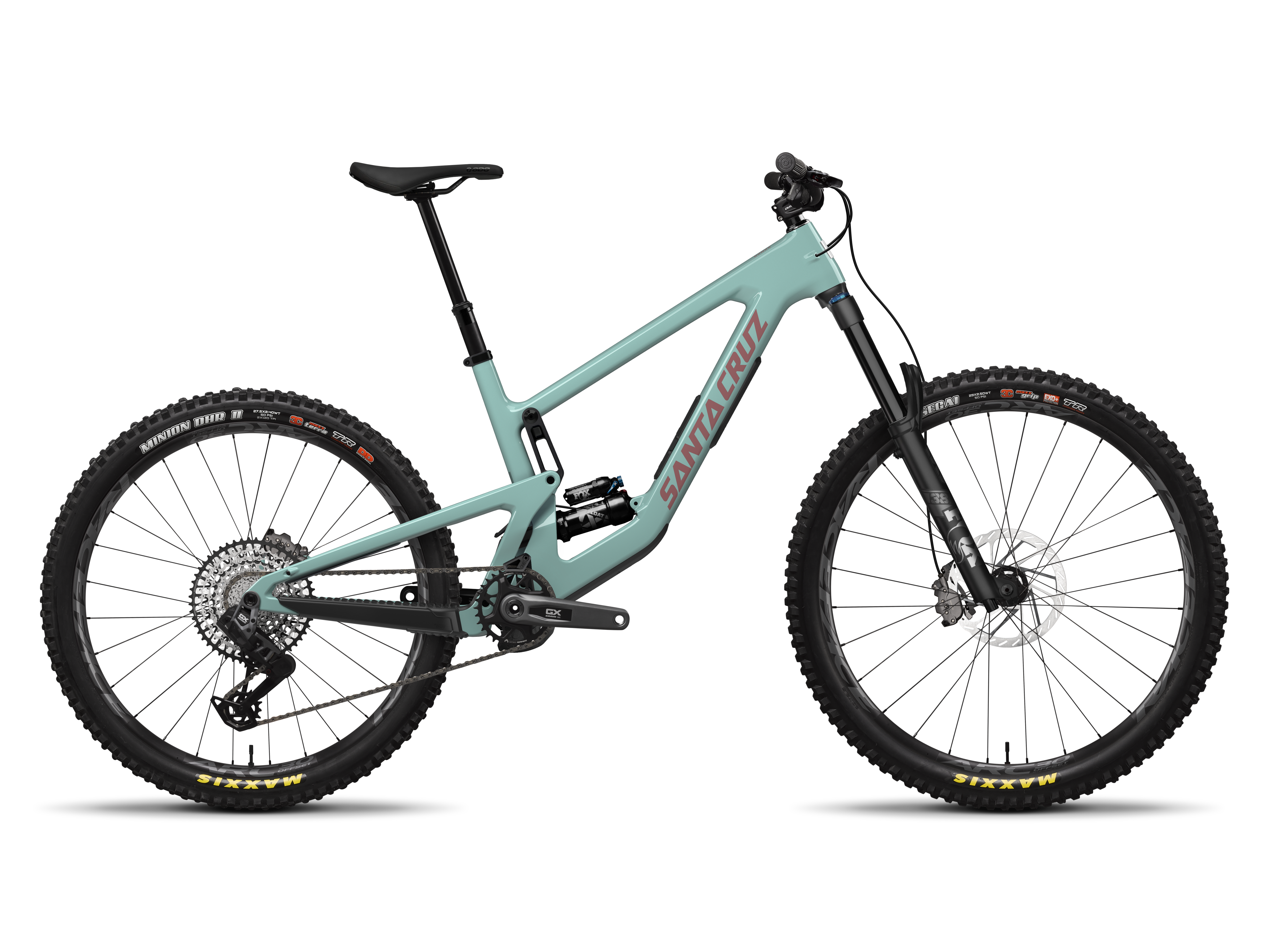

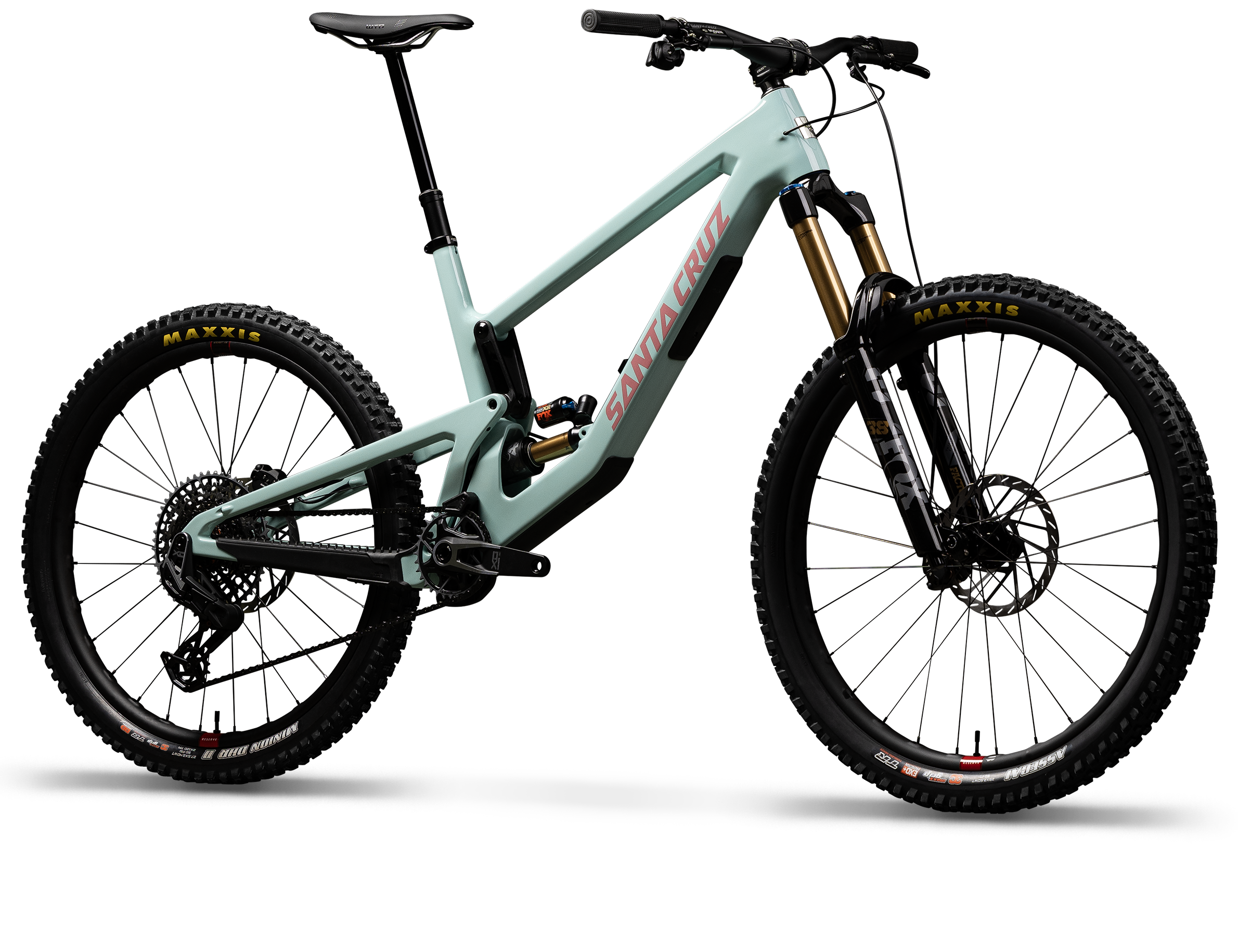

MY25 Nomad C GX AXS GlossLightTeal 9b9f160a Cca1 4ea0 Bfd3 10ca671b35f0

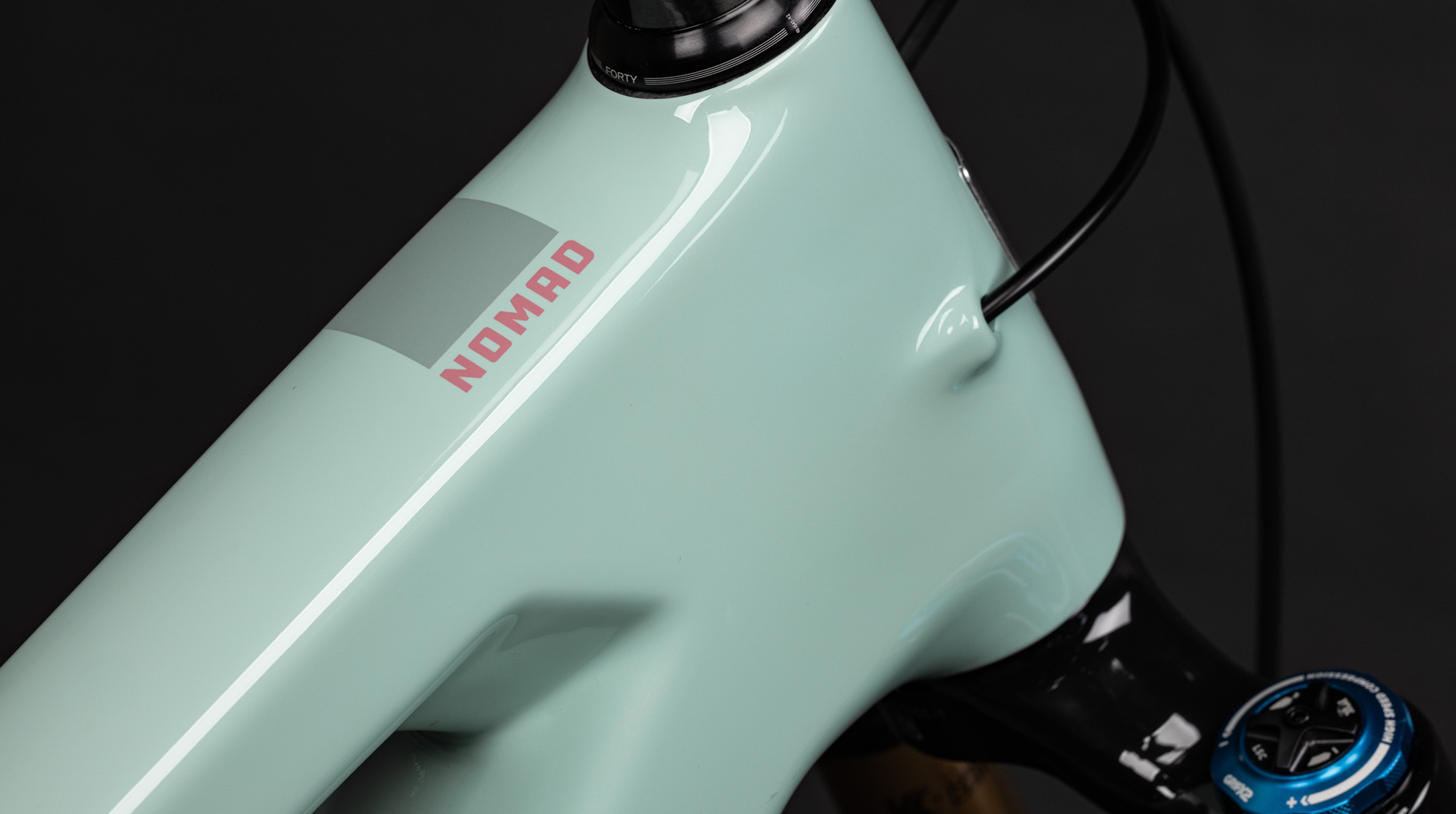

Carbon Kompetenz

Wähle zwischen unserem hochwertigen CC Carbon-Rahmen oder dem etwas preisbewussteren C Carbon-Rahmen. Beide kommen mit lebenslanger Garantie

Mehr Infos

Design details of Design Details Built2Last HT BR NO MT TB HKSL HK BL HB

GEBAUT UM ZU HALTEN

Bikes sind keine Wegwerfartikel, aber wir werfen sie gerne quer über den Trail. Unsere Bikes sind gebaut, um zu halten.

Mehr Infos

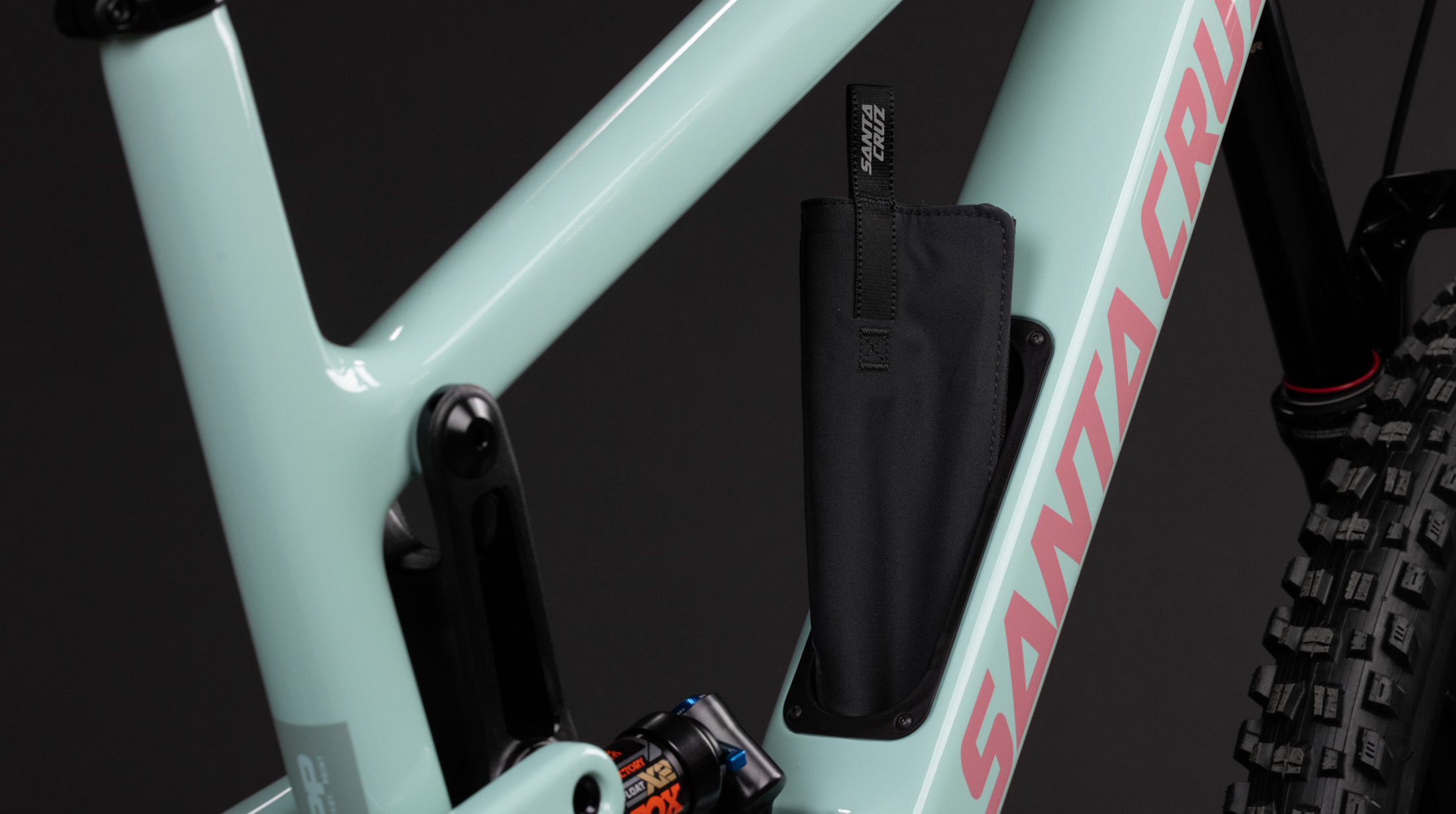

Glovebox

Das Bike kommt serienmäßig mit "Tool Wallet" und "Tube Purse". So hast Du alles schnell zur Hand.

Mehr Infos

Design details of Design Details LongTrav NO MT BU Fae5a5f1 B6c2 429c B154 B4fe57e96d71

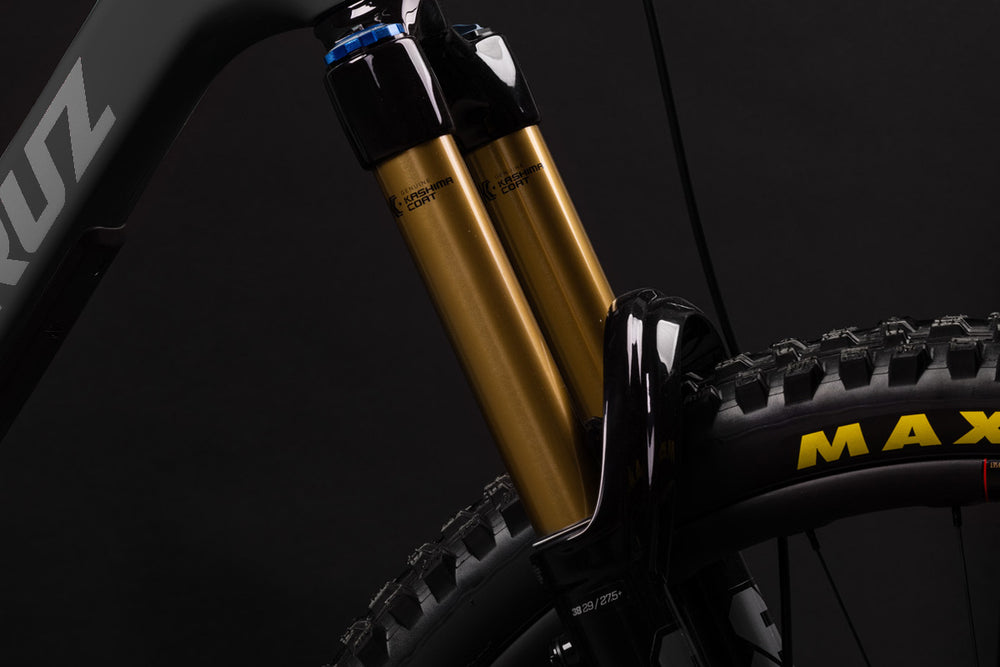

VIEL FEDERWEG

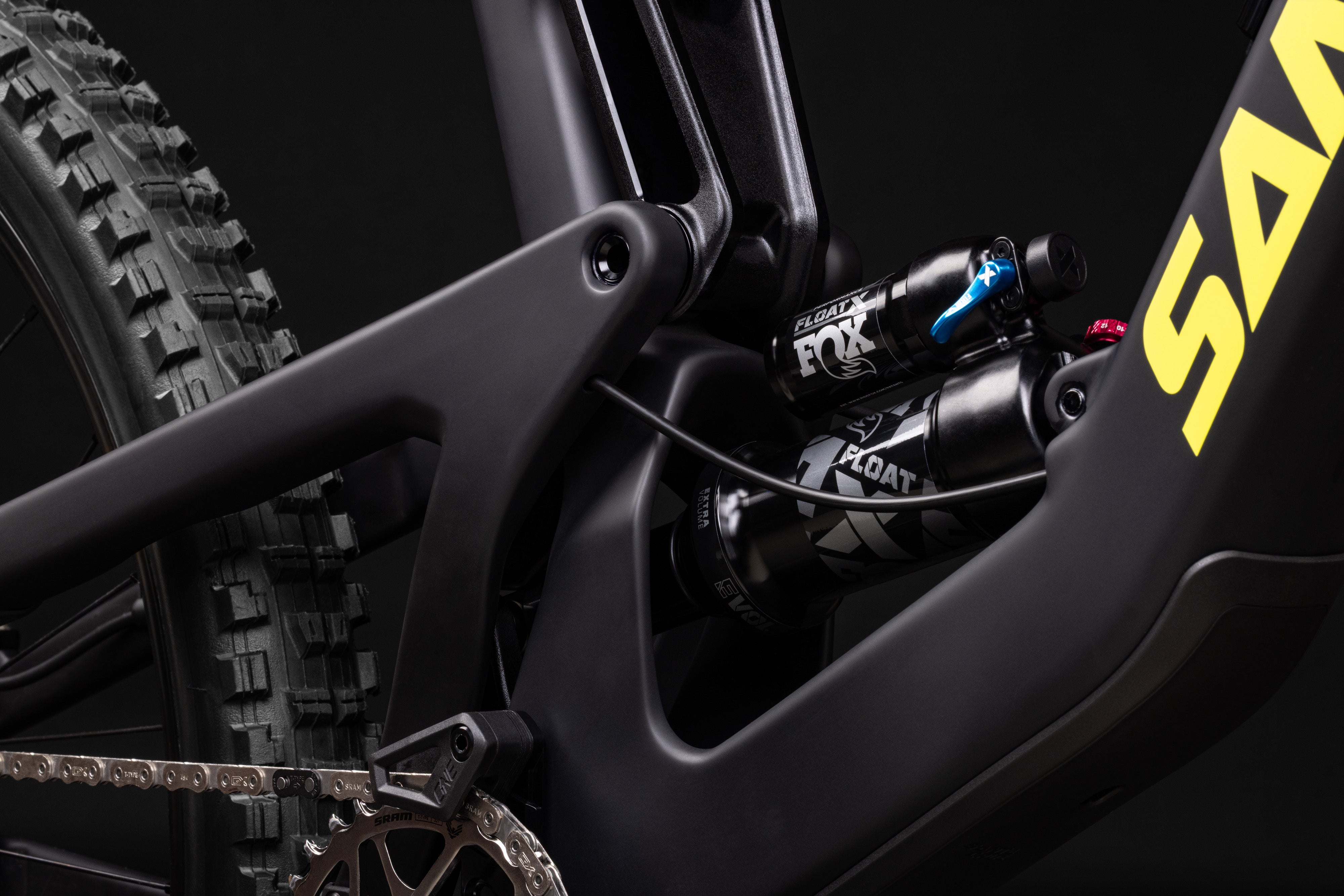

Vorne eine 38er Gabel, hinten 170mm VPP™-Federweg, der mit Stahlfeder- oder Luftdämpfern kompatibel ist, für volle Kontrolle in jedem Gelände.

Mehr Infos

Sweat the details

	s	m	l	xl	xxl
Reach (Hi/Lo)	430/427	455/452	475/472	495/492	520/517
Stack (Hi/Lo)	616/618	625/627	638/640	656/658	670/672
C. Lenkwinkel (Hi/Lo)	63.8/63.5	63.8/63.5	63.8/63.5	63.8/63.5	63.8/63.5
D. Sitzwinkel (Hi/Lo)	77.2/77	77.4/77.2	77.9/77.6	77.8/77.5	77.7/77.5
E. Radstand (Hi/Lo)	1209/1209	1239/1240	1269/1270	1301/1302	1336/1337
Front Center (Hi/Lo)	770/770	799/799	826/826	855/855	886/886
G. Hinterbaulänge (Hi/Lo)	439/440	440/441	443/444	446/447	450/451
H. Tretlagerhöhe (Hi/Lo)	346/343	346/343	346/343	346/343	346/343
BB Drop Front (Hi/Lo)	27/30	27/30	27/30	27/30	27/30
BB Drop Rear (Hi/Lo)	8/11	8/11	8/11	8/11	8/11
J. Überstandshöhe (Hi/Lo)	709/705	716/713	723/719	722/717	725/720
Steuerrohrlänge	90/90	100/100	115/115	135/135	150/150
Sitzrohrlänge	380/380	405/405	430/430	460/460	500/500
M. Oberrohrlänge (Hi/Lo)	570/571	594/594	612/613	637/638	666/667

label	part_number	quantity	name	blurb
A	29-23753	1	Upper Link
B	11-12681	2	6900-2RS Bearing
C	26-15533	2	M10x3 Washer	Apply grease to inner surface
D	26-11612	2	Bearing Dust Shield	Apply grease to inner surface
E	11-12218	2	6902-2RS Max Bearing
F	26-17013	1	15x40.25 Bearing Spacer

label	part_number	quantity	name	blurb	torque
A	29-23751	1	Lower Link
B	11-17708	4	6902-1ZR Bearing
C	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
D	26-19126	1	15x28 Bearing spacer
E	26-17013	1	15x40.25 Bearing Spacer
F	26-12678	1	M6 Grease Fitting		9 Nm
G	26-15532	1	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush

label	part_number	quantity	name	torque	blurb
A	26-22843	1	Glovebox lid
B	26-25333	1	Glovebox bezel
C	26-23284	4	M3x8 BHCS	0.5 Nm	Apply Loctite 242 to threads
D	30-23225	2	Glovebox nut
E	26-22358	1	M3x6	0.6 Nm	Apply Loctite 242 to threads
F	30-22620	1	Storage Bulkhead		Install inside Downtube

label	part_number	quantity	name	blurb	torque
A	08-22208	1	Rear axle 12x168.5	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	30-20361	1	Chainstay Protector
E	26-15939	1	M3x12 BHCS	Apply grease to treads	0.5 Nm
F	30-21453	1	Seatstay Protector
G	49-21567	1	Lower Link Fender
H	26-18382	2	M4x12 BHC	Apply grease to treads	0.65 Nm

label	part_number	quantity	torque	name	blurb
A	26-20122	2	16 Nm	M10x23 Screw	Apply Loctite 242 to threads only, apply grease to shaft only
B	26-22461	2	20 Nm	M8x45 Shock Bolt	Apply Loctite 242 to threads

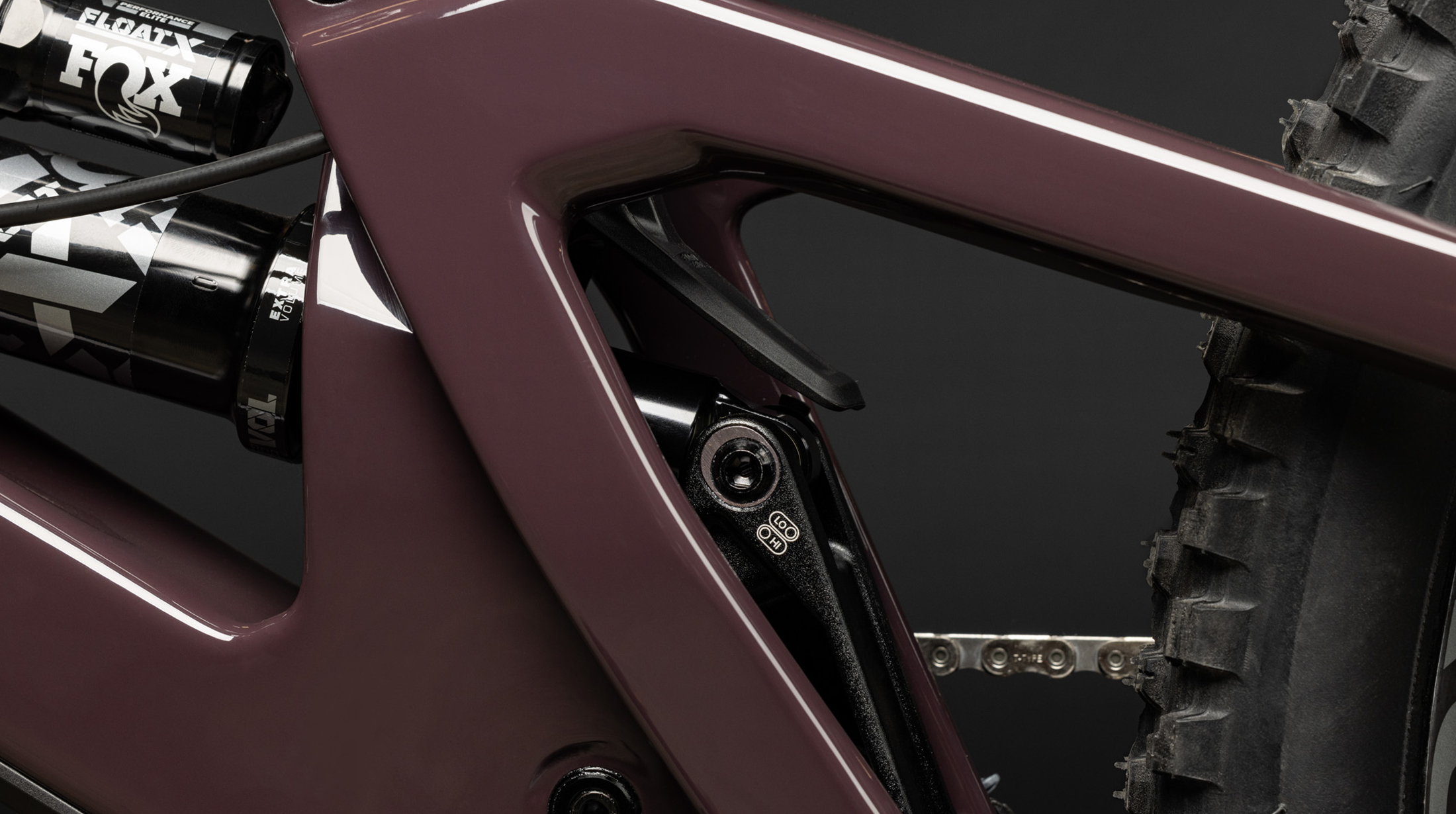

C	26-21452	1		M8x2 Flip Chip NDS	Apply grease to surface
D	26-21451	1		M8x2 Flip Chip DS	Apply grease to surface
E	26-15947	2	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
F	26-11817	2		M6 Washer
G	26-15633	2		M6 Tapered Washer	Apply grease to surface
H	08-22343	1	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
I	08-16292	1	20 Nm	Pivot axle M15x80.5	Apply Loctite 242 to threads only, apply grease to shaft only
J	08-16291	1	20 Nm	Pivot axle M15x68.5	Apply Loctite 242 to threads only, apply grease to shaft only

label	part_number	quantity	name	blurb	torque
A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	30-23750	1	Shuttle Guard Mount
C	30-22560	1	Shuttle Guard
D	26-21249	2	M4x8 BHCS	Apply grease to threads	0.65 Nm
E	30-23718	1	Downtube Protector
F	26-18382	2	M4x12 BHC	Apply grease to treads	0.65 Nm
G	34-20201	1	36.4 Seat Collar

Frame Size	Flip Chip	Setup Key	Setup Cog	30T	32T	34T	36T
Small	High	B	7	116	116	118	118
Medium	High	B	7	116	116	118	118
Large	High	B	7	116	118	118	120
XLarge	High	B	7	116	118	118	120
XXLarge	High	B	7	118	118	120	120
Small	Low	B	7	116	116	118	118
Medium	Low	B	7	116	118	118	120
Large	Low	B	7	116	118	118	120
XLarge	Low	B	7	118	118	120	120
XXLarge	Low	B	7	118	118	120	120
