Skitch 1 MY24

Rahmen-Spezifikationen

Maximale Reifenfreiheit 50mm
Fork Axle to Crown 430mm
Gabel-Offset 45mm
Einbaubreite hinten 148mm
UDH kompatibel Yes
Steuersatz IS 41 /IS52
Maximale Kettenblattgröße 46t
Hintere Bremsaufnahme Flatmount 160mm Direct
Max Rotor Size 180mm

Ausstattungsvarianten

Wähle eine Ausstattungsvariante

Gewicht 30.14 lbs / 13.67 kg
Material Carbon CC
Laufradgröße 700C
Gabel Carbon
Schaltwerk SRAM Apex Eagle, 12spd
Right Shifter SRAM Apex
Kassette SRAM XG1275 Eagle, 12spd, 10-50t
Kette SRAM SX Eagle, 12spd
Steuersatz Cane Creek 40 IS Integrated Headset
Hinterreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Vorderreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Nabe vorne DT Swiss 370, 12x100, Centerlock, 28h
Felge vorne WTB EZR i23p 700c
Nabe hinten DT Swiss 370, 12x148, XD, Centerlock, 28h
Felge hinten WTB EZR i23p 700c
Bremsscheibe vorne Avid Centerline, Centerlock, 160mm
Bremsscheibe hinten Avid Centerline, Centerlock, 160mm
Bremsen SRAM Apex
Kurbelgarnitur Praxis eTor AL
Lenker Zipp Service Course 70 XPLR AL Bar
Vorbau Zipp Service Course Stem, 70mm
Sattel WTB Silverado Medium, CroMo
Sattelstütze Zipp Service Course, 27.2
Grips / Bar Tape Velo Bar Tape
Akku Fazua 430 Wh Integrated Battery
Motor Fazua Ride60
Ladegerät Fazua Charger
Gewicht 29.83 lbs / 13.53 kg
Material Carbon CC
Laufradgröße 700C
Gabel Carbon
Schaltwerk SRAM Apex Eagle, 12spd
Right Shifter SRAM NX Eagle, 12spd
Kassette SRAM XG1275 Eagle, 12spd, 10-50t
Kette SRAM SX Eagle, 12spd
Steuersatz Cane Creek 40 IS Integrated Headset
Hinterreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Vorderreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Nabe vorne DT Swiss 370, 12x100, Centerlock, 28h
Felge vorne WTB EZR i23p 700c
Nabe hinten DT Swiss 370, 12x148, XD, Centerlock, 28h
Felge hinten WTB EZR i23p 700c
Bremsscheibe vorne Avid Centerline, Centerlock, 160mm
Bremsscheibe hinten Avid Centerline, Centerlock, 160mm
Bremsen SRAM S-300
Kurbelgarnitur Praxis eTor AL
Lenker RaceFace Ride
Vorbau RaceFace Ride, 80mm
Sattel WTB Silverado Medium, CroMo
Sattelstütze RaceFace Ride, 27.2
Grips / Bar Tape ESI Chunky Grips
Akku Fazua 430 Wh Integrated Battery
Motor Fazua Ride60
Ladegerät Fazua Charger
Gewicht 30.03 lbs / 13.62 kg
Material Carbon CC
Laufradgröße 700C
Gabel Carbon
Schaltwerk SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM Rival AXS
Kassette SRAM GX Eagle T-Type, 10-52t
Kette SRAM GX Eagle T-Type, 12spd
Steuersatz Cane Creek 40 IS Integrated Headset
Hinterreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Vorderreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Nabe vorne DT Swiss 370, 12x100, Centerlock, 28h
Felge vorne Easton ARC Offset 25 700c
Nabe hinten DT Swiss 370, 12x148, XD, Centerlock, 28h
Felge hinten Easton ARC Offset 25 700c
Bremsscheibe vorne SRAM Paceline 160mm, Centerlock
Bremsscheibe hinten SRAM Paceline 160mm, Centerlock
Bremsen SRAM Rival AXS
Kurbelgarnitur Praxis eTor AL
Lenker Zipp Service Course 70 XPLR AL Bar
Vorbau Zipp Service Course Stem, 70mm
Sattel WTB Silverado Medium, CroMo
Sattelstütze Easton EC70, 27.2, Zero Offset, 350mm
Grips / Bar Tape Velo Bar Tape
Akku Fazua 430 Wh Integrated Battery
Motor Fazua Ride60
Ladegerät Fazua Charger
Gewicht 30.13 lbs / 13.67 kg
Material Carbon CC
Laufradgröße 700C
Gabel Carbon
Schaltwerk SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Bridge
Kassette SRAM GX Eagle T-Type, 10-52t
Kette SRAM GX Eagle T-Type, 12spd
Steuersatz Cane Creek 40 IS Integrated Headset
Hinterreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Vorderreifen Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Nabe vorne DT Swiss 370, 12x100, Centerlock, 28h
Felge vorne Easton ARC Offset 25 700c
Nabe hinten DT Swiss 370, 12x148, XD, Centerlock, 28h
Felge hinten Easton ARC Offset 25 700c
Bremsscheibe vorne SRAM Paceline 160mm, Centerlock
Bremsscheibe hinten SRAM Paceline 160mm, Centerlock
Bremsen SRAM Level Silver Stealth 2-Piston
Kurbelgarnitur Praxis eTor AL
Lenker SRAM Atmos Flat Bar, 31.8x760
Vorbau SRAM Atmos Stem, 80mm
Sattel WTB Silverado Medium, CroMo
Sattelstütze OneUp V2 Dropper Post, 27.2
Grips / Bar Tape ESI Chunky Grips
Akku Fazua 430 Wh Integrated Battery
Motor Fazua Ride60
Ladegerät Fazua Charger

Geometrie

Alle Einheiten in Millimeter oder Grad
s m l xl xxl
Reach 390 405 420 435 450
Stack 563 579 596 610 630
Head tube angle 69° 69° 69° 69° 69°
Steuerrohrlänge 105 125 145 160 180
Hinterbaulänge 430 430 430 430 430
Front Center 624 646 668 689 711
Tretlagerhöhe 279 281 281 283 283
Tretlagerabsenkung 78 76 76 74 74
Radstand 1047 1070 1092 1112 1135
Oberrohrlänge 551 571 591 610 630
Sitzrohrlänge 455 485 515 545 575
Überstandshöhe 728 753 778 804 830
Sitzwinkel 74° 74° 74° 74° 74°

Größen-Empfehlung

S
154cm 5'1" - 167cm 5'6" Reach: 390mm
M
162cm 5'4" - 177cm 5'10" Reach: 405mm
L
170cm 5'7" - 182cm 6'0" Reach: 420mm
XL
177cm 5'10" - 190cm 6'3" Reach: 435mm
XXL
185cm 6'1" - 198cm 6'6" Reach: 450mm

Fahrwerks-Setup

RS Rudy Base XPLR 40mm 700c
Fahrergewicht (lbs) Fahrergewicht (kg) Luftdruck (psi) Rebound (Klicks von geschlossen)
100 45 81 12
120 54 100 10
140 63 119 8
160 72 138 6
180 81 157 4
200 90 177 3
220 99 196 1
240 108 215 0

Schaltungs-Einstellung

Frame size Setup key Setup cog 34t 36t 38t 40t 42t 44t
Small A 7 116 118 118 120 120 122
Medium A 7 116 118 118 120 120 122
Large A 7 116 118 118 120 120 122
XLarge A 7 116 118 118 120 120 122

Explosionszeichnungen

Motor Wiring Harness
label part_number quantity name blurb
A 72-24792 1 Fazua Ride 60 DU Wide
B 26-27248 4 Adhesive foam strip Apply to connector
Exploded Diagram of Skitch

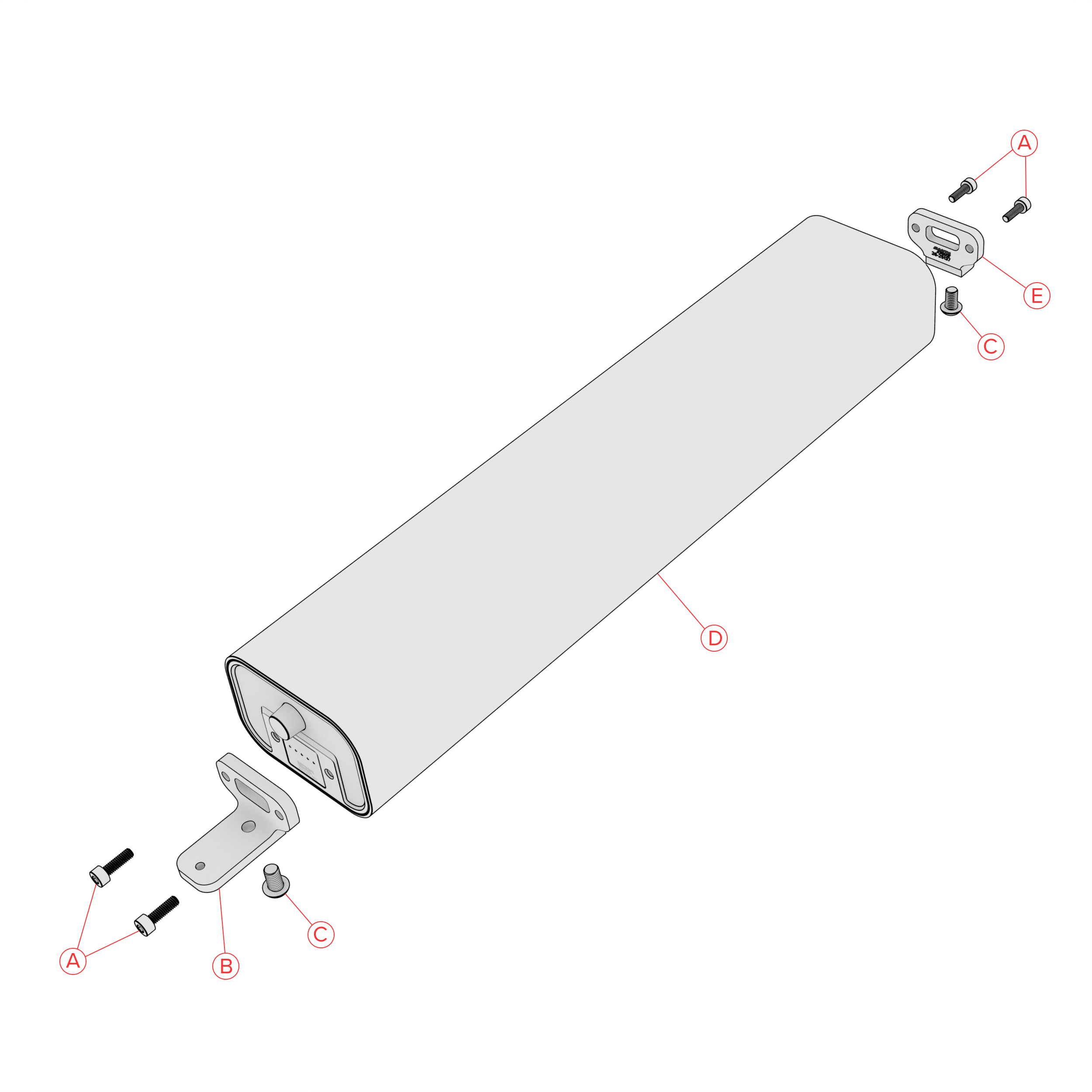

Battery Mounting Hardware
label part_number quantity torque name blurb
A 26-25295 4 1.2 Nm M4x12 SHCS Apply Loctite 242 to threads
B 26-25136 1 Fix 430 mount
C 26-25283 2 9 Nm M6x10 BHCS Apply Loctite 242 to threads
D 78-24791 1 Fazua Energy 430 Fix
E 26-25137 1 Fix 430 mount
Exploded Diagram of Skitch
Seat Collar, Fender Mounts, and Bottle Cage Hardware
label part_number quantity name
A 34-20202 1 31.8 Seat Collar
B 26-20195 2 Fender Mount
C 26-21360 4 Water Bottle Screw
D 26-25139 1 DT Plug
E 26-25138 1 DT Plug for Range Extender
Exploded Diagram of Skitch

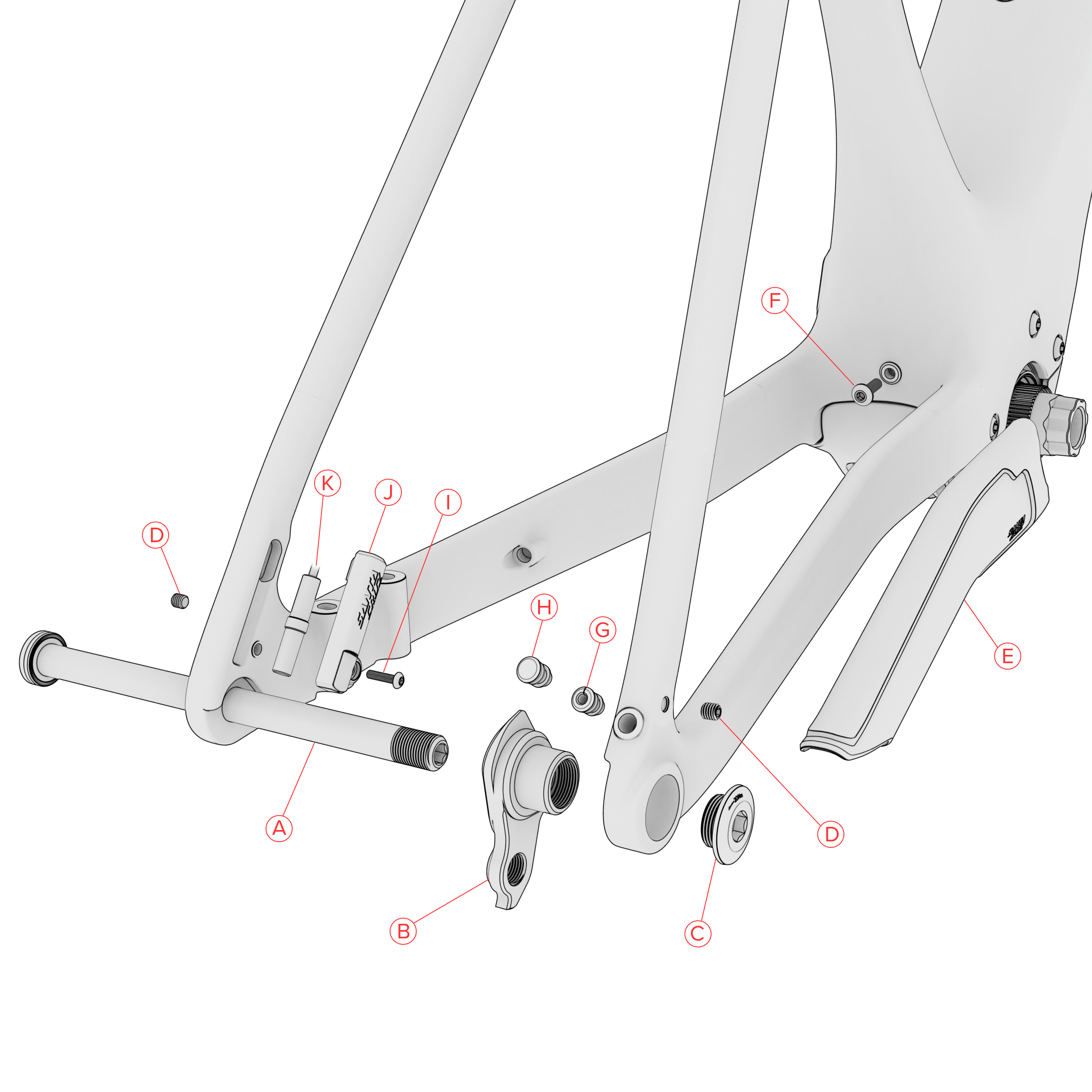

Rear Axle, Derailleur Hanger, and Chainstay Protector
label part_number quantity name blurb torque
A 08-22209 1 Rear axle 173.7 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20 Nm
D 26-15532 2 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
E 30-20192 1 CS Protector
F 26-20124 1 M5x16 Water Bottle screw Apply grease to threads
G 26-20864 1 Di2 Plug
H 26-20865 1 Wireless Plug
I 26-15939 1 M3x12 BHCS Apply grease to treads 0.5 Nm
J 26-25140 1 Speed Sensor Cover
K 72-24782 1 Fazua speed sensor, medium wire
Exploded Diagram of Skitch
Frame Mounting Hardware
label part_number quantity name torque blurb
A 26-25196 1 Fazua charge port mount
B 72-24768 1 Fazua charge port cap
C 72-24771 1 Fazua Charge port, short wire
D 26-15938 1 M3x10 FHCS 0.65 Nm Apply Loctite 242 to threads
E 26-27112 1 Fazua charge port cover Used with range extender only
Exploded Diagram of Skitch
Motor, Motor Mounts, and Downtube Protector
label part_number quantity torque name blurb
A 26-23102 3 0.65 Nm M4x16 BHCS Apply grease to threads
B 26-25285 5 14 Nm M6x25 BHCS Apply Loctite 242 to threads
C 26-25284 1 14 Nm M6x35 BHCS Apply Loctite 242 to threads
D 30-25193 1 Downtube protector
E 26-25141 1 DU spacer
F 30-25194 1 DU protector
Exploded Diagram of Skitch

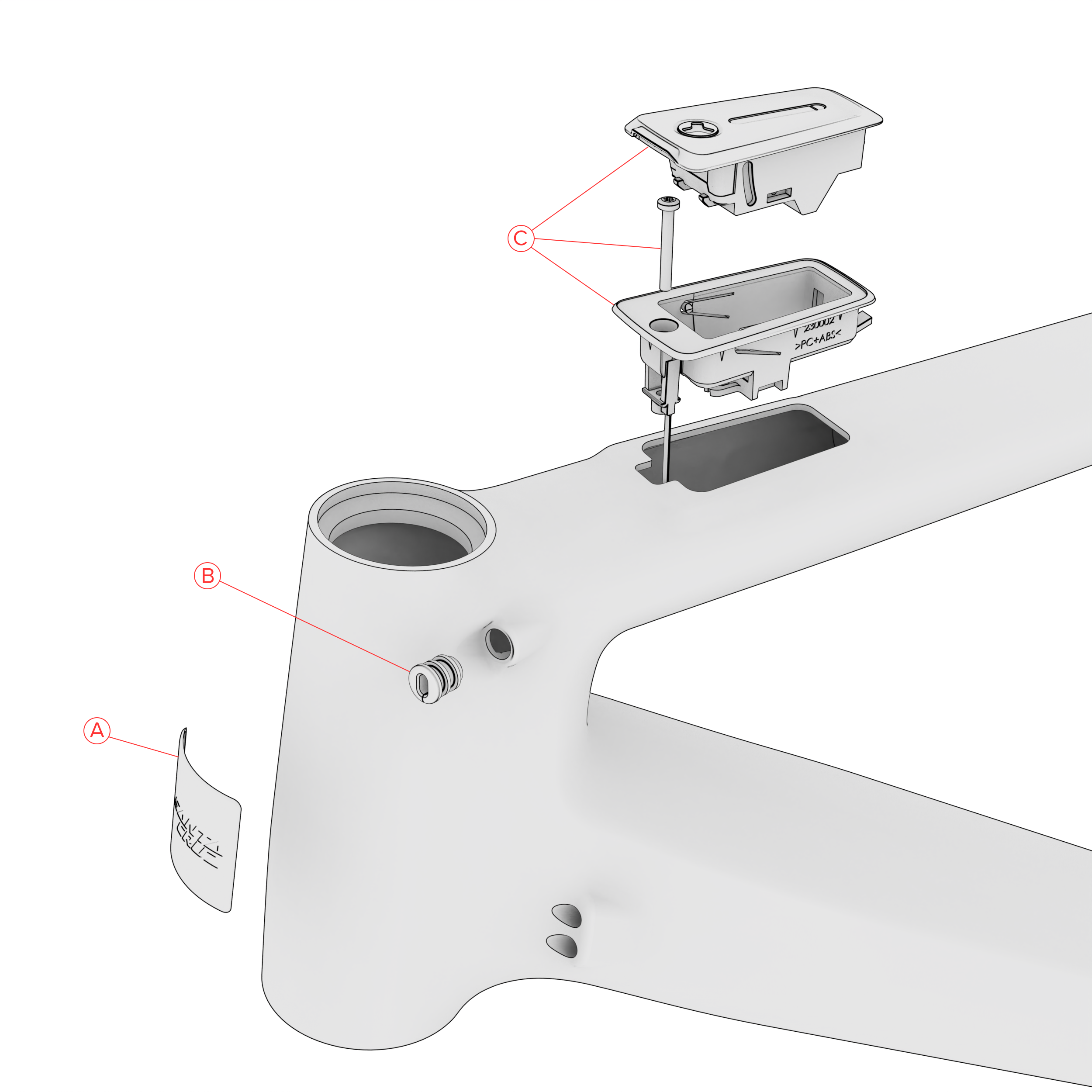

Head Badge and Control Unit
label part_number quantity name blurb
A 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
B 26-25195 1 Head Tube Grommet
C 72-24784 1 Fazua LED Hub, long wire Insert foam tube 26-17568 onto long wire
Exploded Diagram of Skitch
