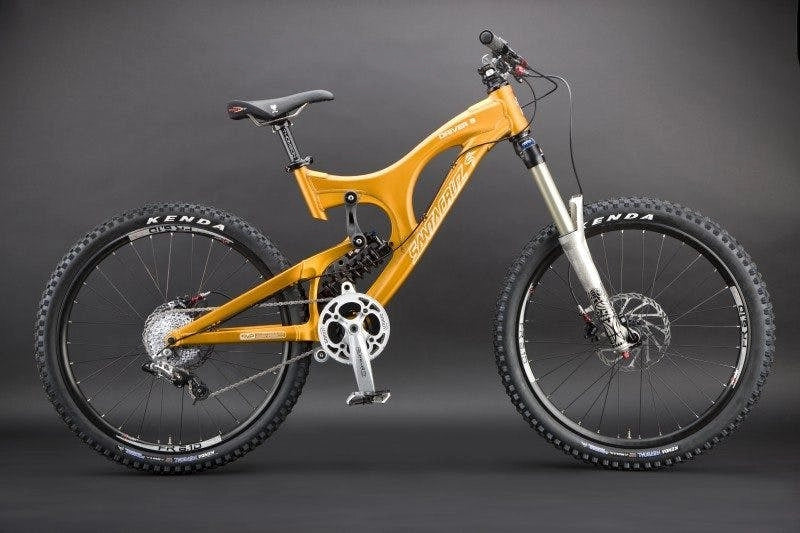

Driver 8 1
| Model Version | 1 |
|---|---|
| Production Start | 2009 |
| Production End | 2011 |
| Suspension/Pivot System | VPP - Virtual Pivot Point |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | 203mm |
| Size Range | S,M,L |
Rahmen-Spezifikationen
| Compatible Forks | 180mm to 200mm total travel - 200mm travel max |
|---|---|
| Headtube/Headset | 1.5" Straight - External Headset. S.H.I.S. EC49/38.1 EC49/40 |
| Seat Post | 30.9mm - Minimum insertion 100mm |
| BB Shell Width | 83mm - Threaded - ISO |
| Chainline Spec | 55mm |
| Recommended Max Tire Size | 2.7 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 150mm x 12mm Through-Axle |
| Seatpost Clamp | 34.9mm |
Dämpfer-Maße
| Rear Shock Eye-to-Eye | 8.75" |
|---|---|
| Stroke | 2.75" |
| Mounting Bushing Width Front | 22mm |
| Mounting Bushing Width Rear | 22mm |
| Mounting Bolt Diameter Front | 8mm |
| Mounting Bolt Diameter Rear | 8mm |
| Leverage Ratio | 2.9 : 1 |
Geometrie
Explosionszeichnungen
Laden
Laden
Laden
Laden
Laden
Laden
Laden
Laden
Dateien
Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
