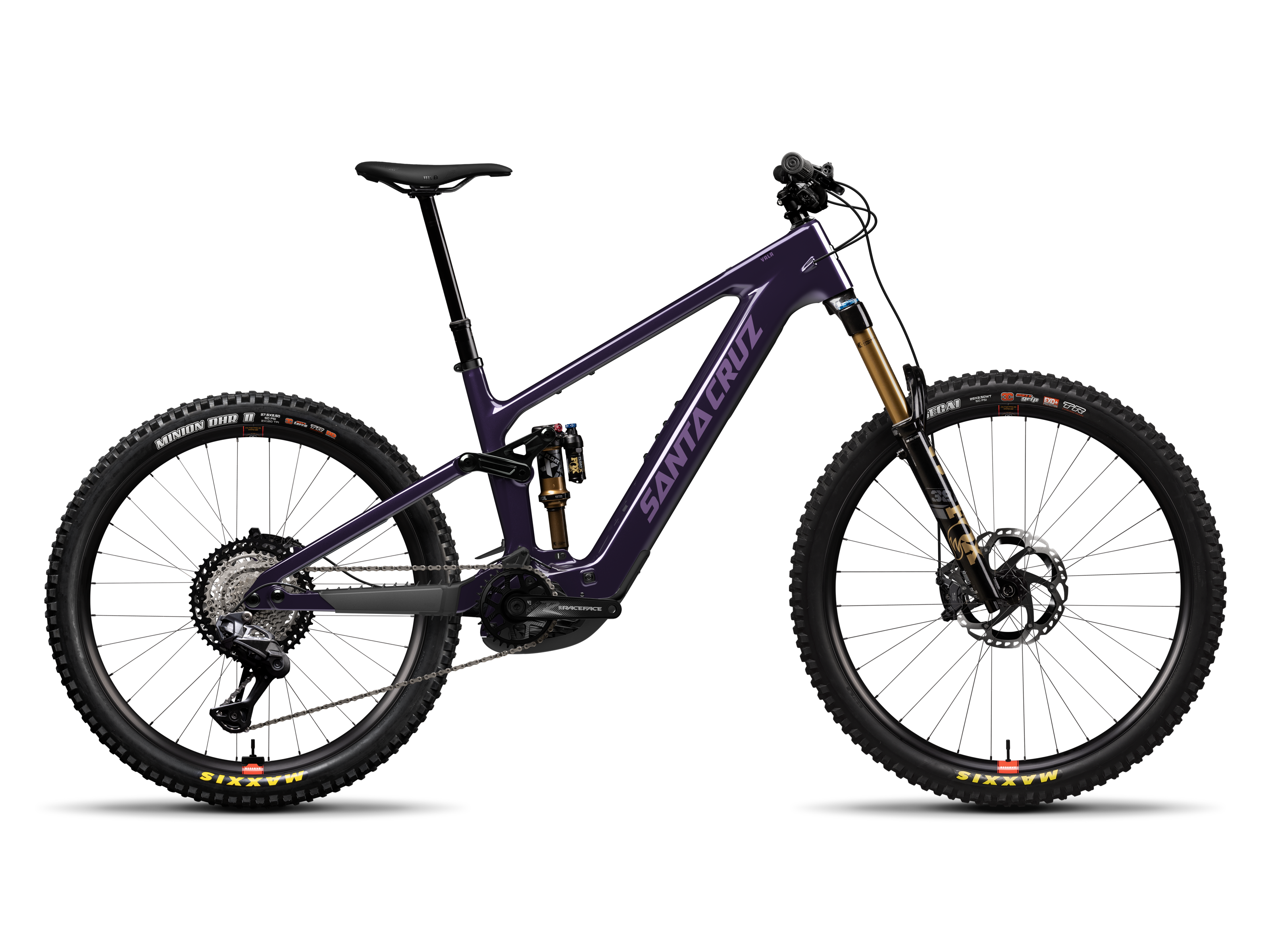

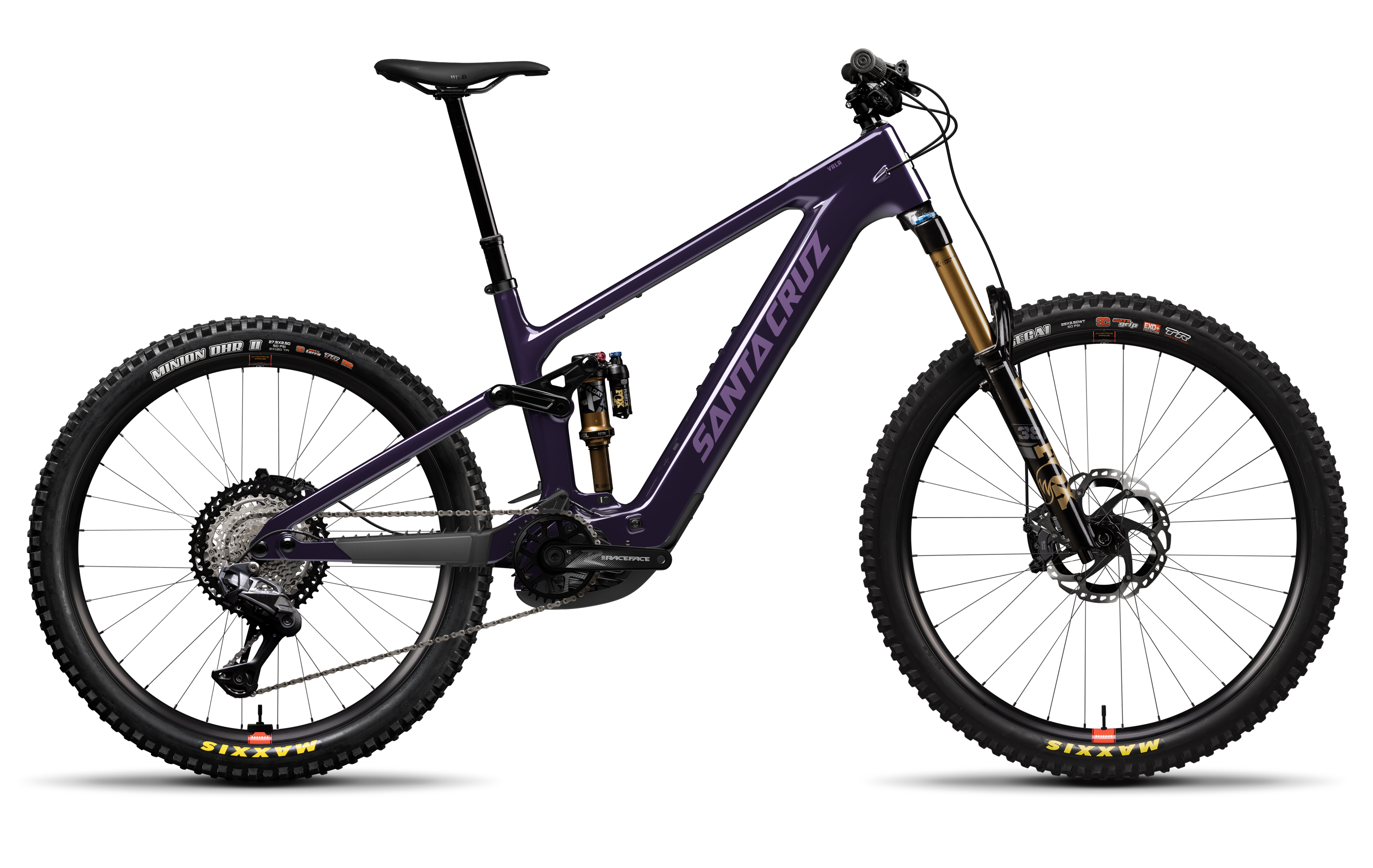

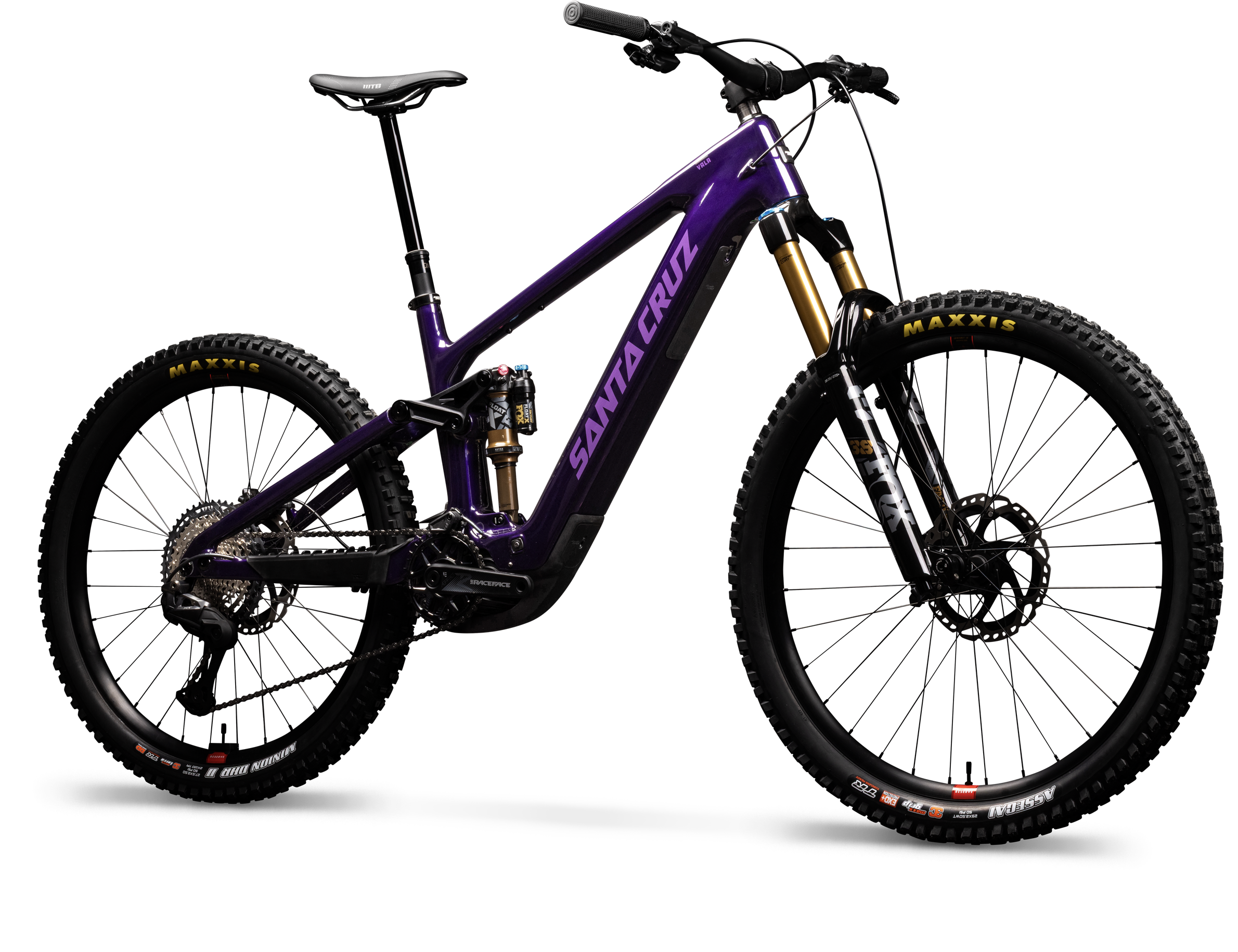

Vala XT Di2

Federweg hinten (mm) 150

Laufradgröße MX

Antrieb Bosch

Akku (WH) 600

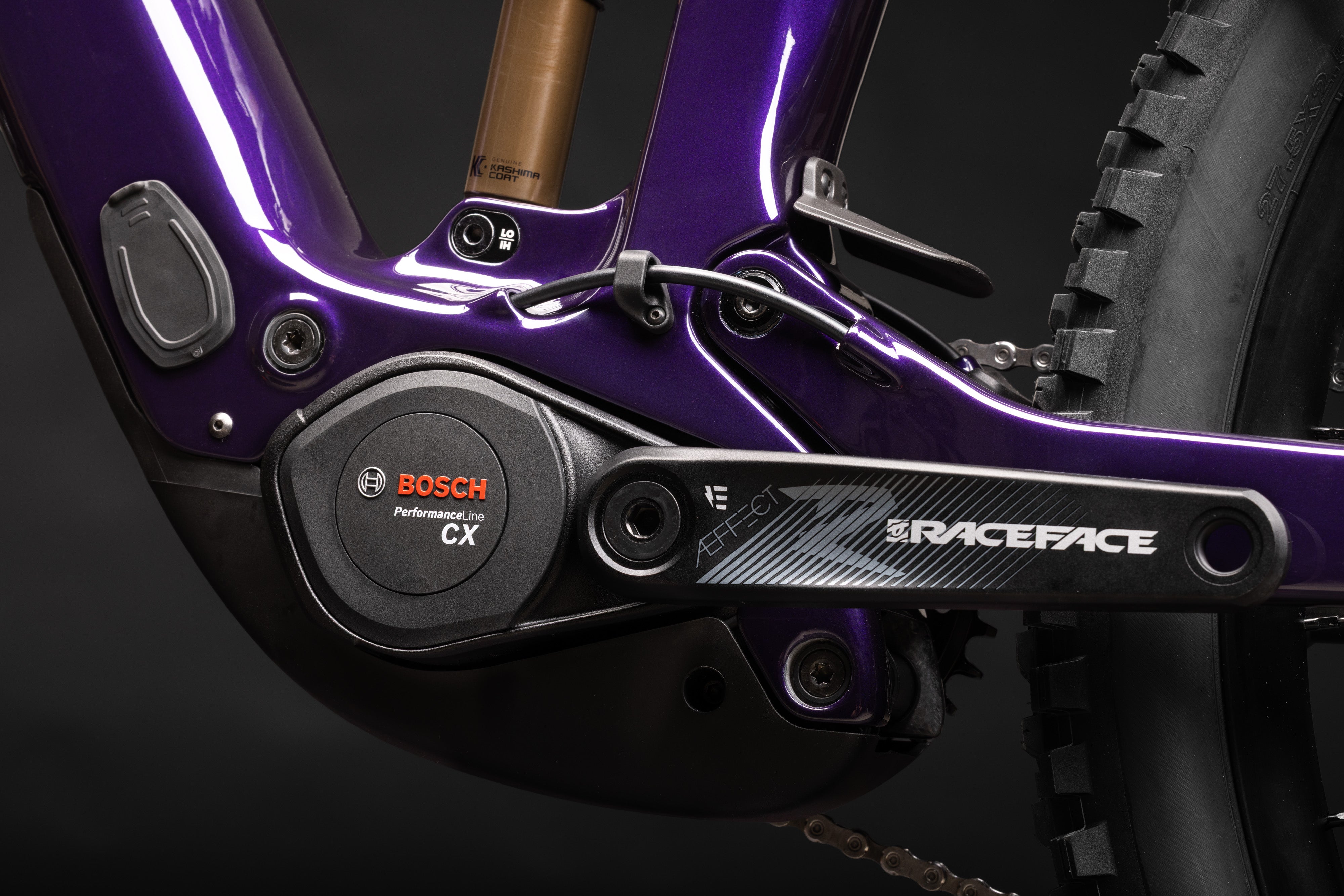

The Vala delivers precision and power—a true mountain biker's mountain bike. Santa Cruz's legendary ride quality paired with Shimano's flawless drivetrains and Bosch's Performance Line CX motor is a marriage made for the trailhead. Perfectly balanced, the Vala XT is the definitive EMTB.

THE HEAT MAP

Choose Your Build

Vala XT Di2

Carbon C

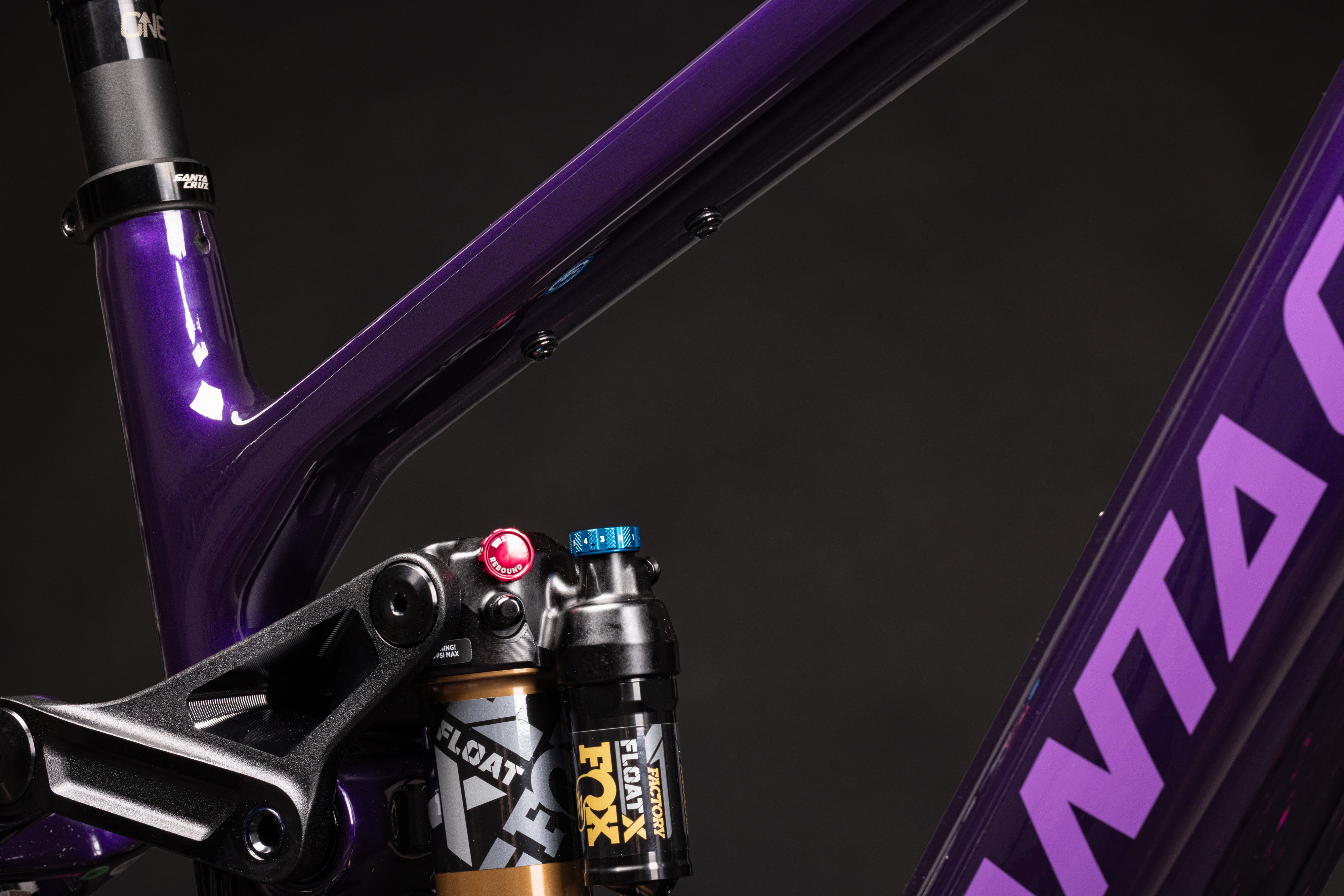

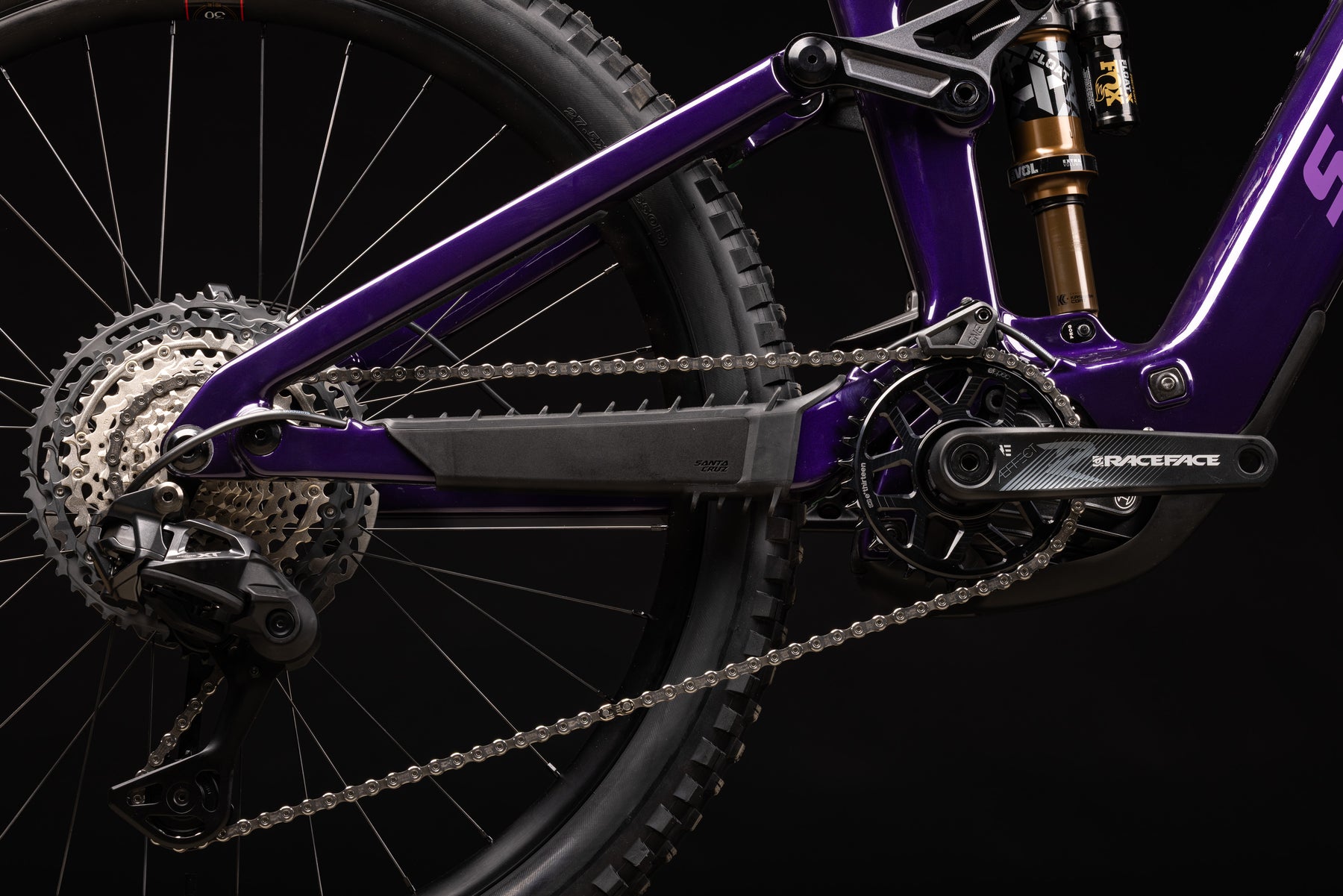

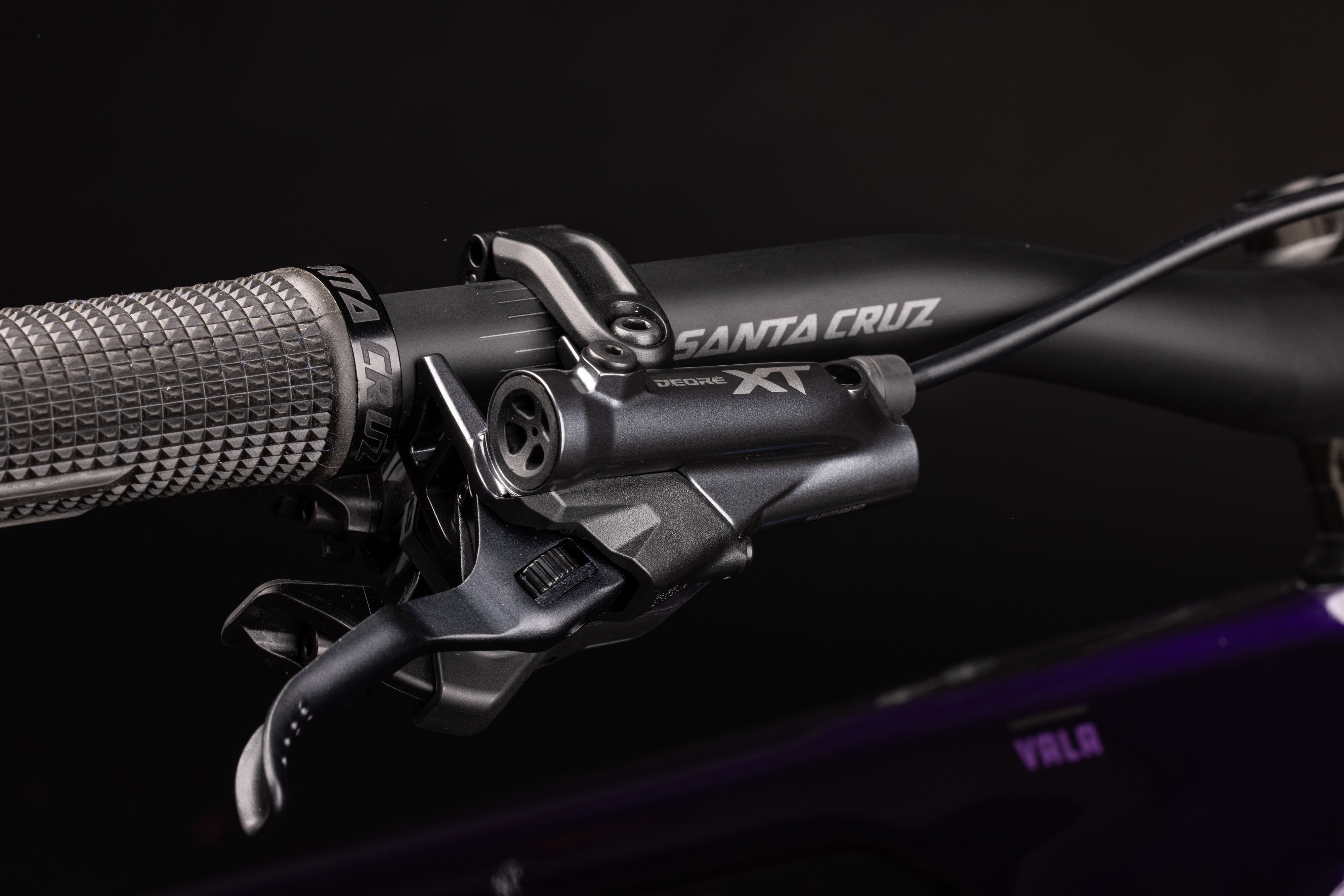

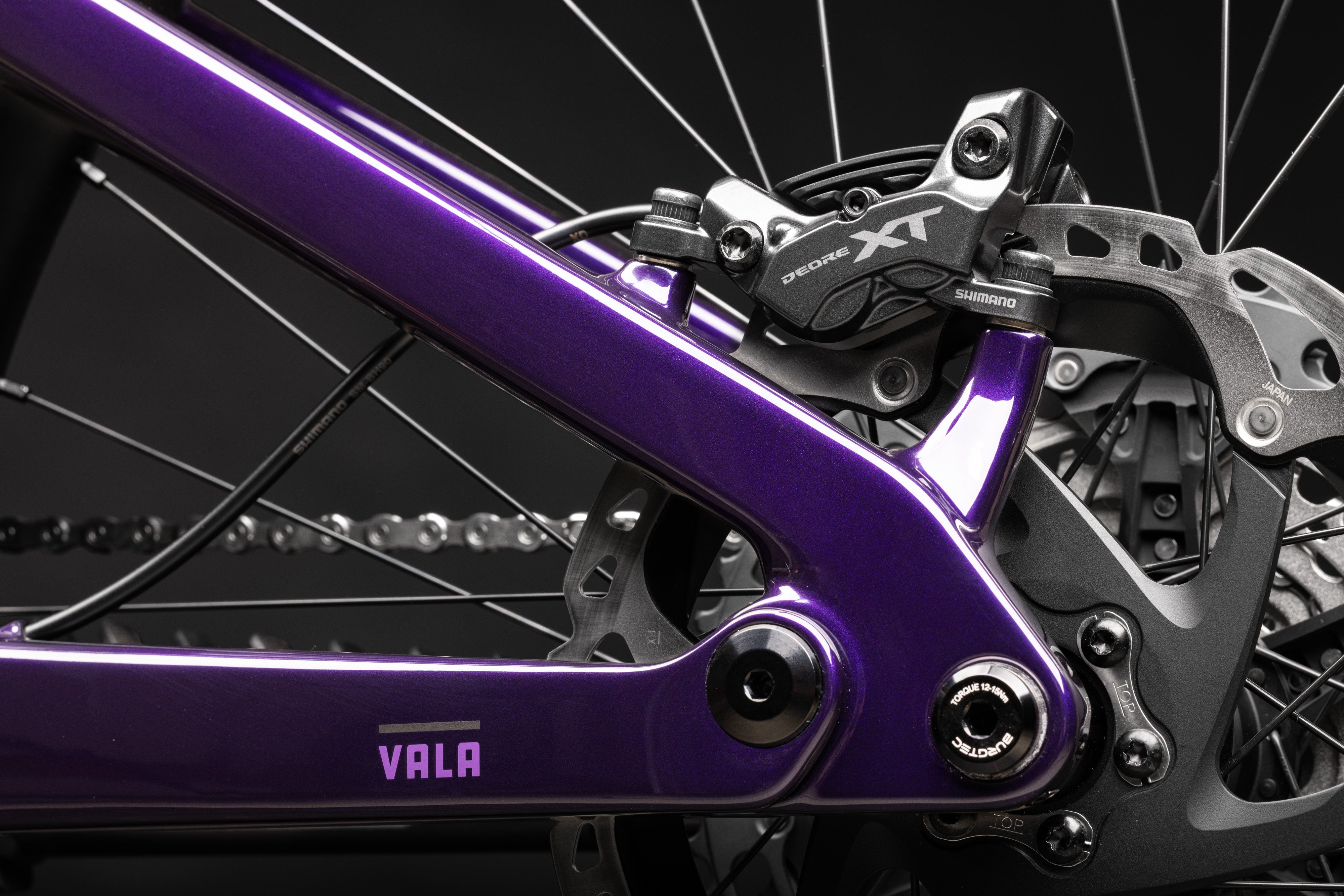

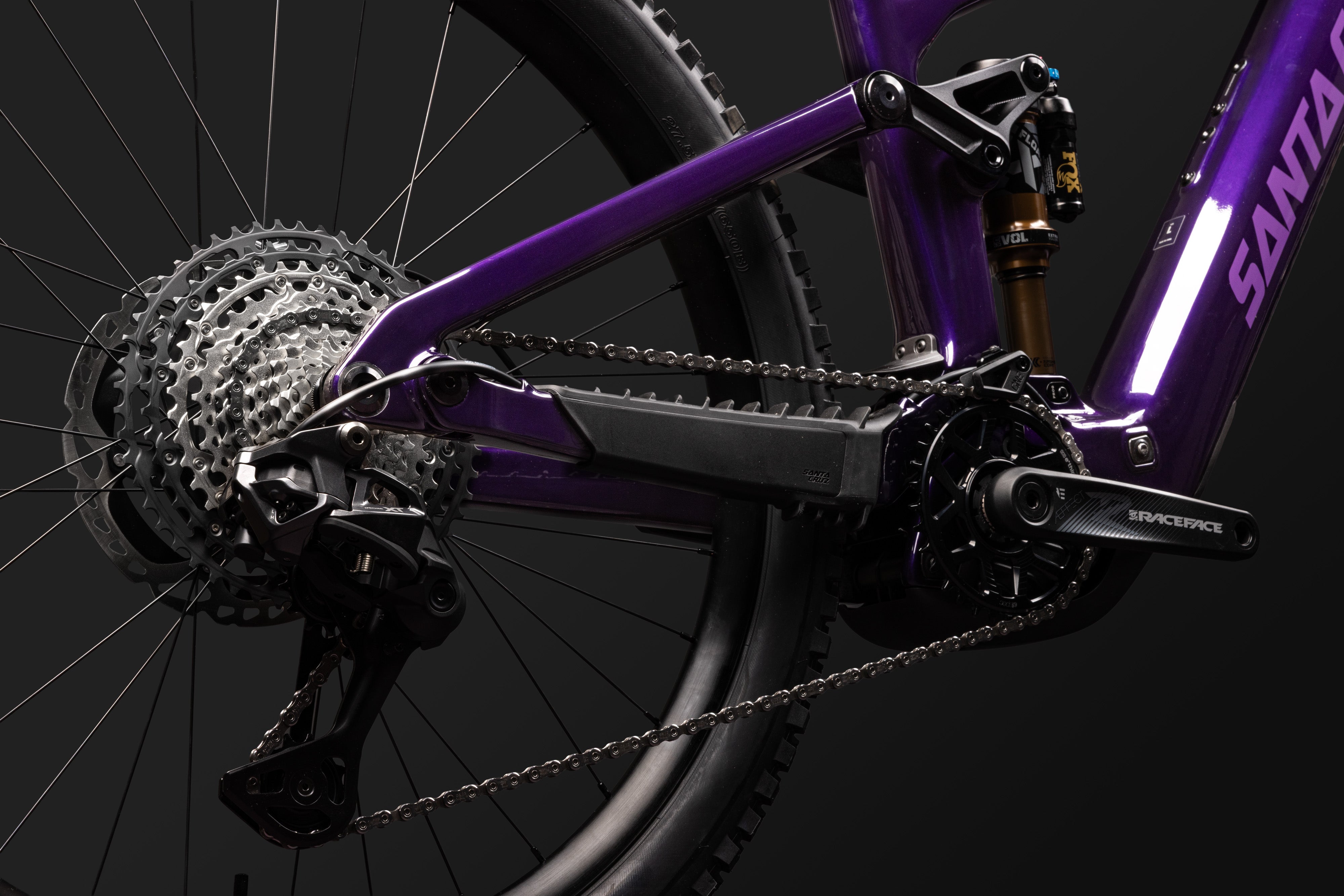

Shimano's new drivetrain, with the deralleur wired to the drive unit. Fox Factory suspension, big brakes, and Maxxis tires round out the build.

$11,099

new

Vergleichen

Vala XX AXS RSV

Carbon CC

The best of the best. No compromises anywhere.

$13,899

new

Vergleichen

Vala X0 AXS RSV

Carbon CC

High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.

$11,949

new

Vergleichen

LOOK IT OVER

	S	M	L	XL	XXL
Reach (Hi/Lo)	435/432	460/456	480/477	500/497	525/522
Stack (Hi/Lo)	623/625	632/635	641/643	655/657	668/670
C. Lenkwinkel (Hi/Lo)	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°
Steuerrohrlänge	110	120	130	145	160
Hinterbaulänge	439	440	443	446	450
Front Center	771	800	825	851	883
H. Tretlagerhöhe (Hi/Lo)	344/340	344/340	344/340	344/340	344/340
BB Drop Front (Hi/Lo)	28/32	28/32	28/32	28/32	28/32
BB Drop Rear (Hi/Lo)	11/15	11/15	11/15	11/15	11/15
Radstand	1210	1240	1268	1297	1333
Oberrohrlänge	573	601	622	645	673
Sitzrohrlänge	380	400	420	460	500
D. Sitzwinkel (Hi/Lo)	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°
J. Überstandshöhe (Hi/Lo)	741/undefined	735/undefined	734/undefined	734/undefined	728/undefined

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Sag	Rebound (Klicks von geschlossen)	Compression (Klicks von geschlossen)
100	45	125	30%, 18mm	8	5-10
120	54	145	30%, 18mm	7	5-10
140	64	165	30%, 18mm	7	5-10
160	73	180	30%, 18mm	6	5-10
180	82	200	30%, 18mm	5	5-10
200	91	220	30%, 18mm	4	5-10
220	100	240	30%, 18mm	4	5-10
240	109	255	30%, 18mm	3	5-10
260	118	275	30%, 18mm	3	5-10

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (L/H - Klicks von geschlossen)	Compression (L/H - Klicks von geschlossen)
120	54	79	9,8	5,5
130	59	83	8,7	5,5
140	64	87	7,6	5,5
150	68	91	7,6	5,5
160	73	96	6,5	5,5
170	77	100	6,5	5,5
180	82	104	5,4	5,5
190	86	109	4,3	5,5
200	91	113	4,3	5,5
210	95	117	3,2	5,5
220	100	121	2,1	5,5
230	104	126	2,1	5,5
240	109	130	1,0	5,5

label	part_number	quantity	name	blurb	torque
A	20-27756	1	Head Tube Badge	Clean frame surface, center on headtube
B	26-27915	4	M5x10 BHCS	Apply Loctite 242 to threads	9 Nm
C	30-27825	1	Shuttle guard	Line up with battery screws
D	72-25239	1	Bosch DU Performance CX	Bosch part number EB11.100.00E
E	26-23102	3	M4x16 BHCS	Apply grease to threads	0.65 Nm
F	30-27496	1	DU protector	Use 30-27495 for size S & M
G	26-21224	2	M6x10 BHCS	Apply loctite to threads	3 Nm
H	26-27862	2	Bosch DU mount nut	Bosch part number EB11.200.03C
I	26-27479	1	M8x7 Flip Chip	Apply grease to outside surface
J	34-20201	1	36.4 Seat Collar
K	26-28150	1	M4x26 Bosch Screw
L	72-25240	1	Bosch TT System Controller	Bosch part number EB13.100.000
M	26-27857	1	Bosch TT adapter	Bosch part number EB13.200.0AE

label	part_number	quantity	torque	name	blurb
A	26-15532	2	0.5 Nm	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush
B	26-20124	4		M5x16 Water Bottle screw	Apply grease to threads
C	08-22343	1	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
D	26-15633	2		M6 Tapered Washer	Apply grease to surface
E	26-11817	2		M6 Washer
F	26-15947	2	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
G	26-27480	1		M8x7 Flip Chip	Apply grease to outside surface
H	26-20091	1	15.6 Nm	M8x45 Lowhead SHCS	Apply Loctite 242 to threads
I	26-27867	1		Bosch charge socket holder	Bosch part number EB12.120.01A
J	26-27869	2		Bosch MCx14 Screw	Bosch part number F04N.002.663
K	26-27868	1		Bosch COB O-ring	Bosch part number EB12.120.019
L	72-25237	1		Bosch charge socket	Bosch part number EB12.120.048
M	26-27866	1		Bosch charger port cover	Bosch part number EB12.120.01B
N	26-29334	2		Bosch DU mount insert sleeve	Bosch part number EB11.200.0GK
O	26-27864	1	30 Nm	Bosch DU mount bolt front	Bosch part number EB11.200.12M
P	26-27865	1	30 Nm	Bosch DU mount bolt rear	Bosch part number EB11.200.12H
Q	08-16292	1	20 Nm	Pivot axle M15x80.5	Apply Loctite 242 to threads only, apply grease to shaft only
R	26-18382	2	0.65 Nm	M4x12 BHCS	Apply grease to treads
S	30-27475	1		Fender
T	26-27481	2	16 Nm	M10x10 trunnion screw	Apply Loctite 242 to threads only, apply grease to shaft only
U	11-12681	2		6900-2RS Bearing
V	26-15533	2		M10x3 Washer	Apply grease to inner surface
W	26-27484	2	16 Nm	M10x20 bolt	Apply Loctite 242 to threads
X	11-12218	2		6902-2RS Max Bearing
Y	26-27483	2		Washer	Apply grease to inner surface
Z	26-27482	2		M10x2.6 Flip Chip	Apply grease to outside surface
AA	26-25329	1		Cable loop FT NDS
BB	26-15939	1	0.1 Nm	M3x12 BHCS	Apply Loctite 242 to threads

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	26-27487		M10x26 Bolt	Apply Loctite 242 to threads only, apply grease to shaft only	16 Nm
E	26-27488	2	Dust Shield	Apply grease to inner surface
F	11-27485		6802-2RS Bearing
G	26-27489	2	Bearing spacer	Apply grease to shaft
H	26-27486	2	M10x6 Nut	Apply grease to inner surface
I	30-27476		Chanistay protector
J	26-15939		M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
K	26-22938		M4x10 FHCS	Apply Loctite 242 to threads	0.65 Nm
L	19-22609		OneUp chainguide
M	26-27839		OneUp chainguide back plate
N	30-27838		Cable Loop Guide
O	26-22358		M3x6	Apply Loctite 242 to threads	0.6 Nm
P	26-22570		M5x12 HHS	Apply Loctite 242 to threads	2 Nm
Q	30-21453		Seatstay Protector

label	part_number	quantity	name	torque	blurb
A	26-27493	1	Battery mount rear PT600
B	26-28053	4	M4x10 SHCS	1.2 Nm	Apply Loctite 242 to threads
C	26-27870	1	Bosch H-Connector
D	78-25241	1	Bosch battery PT600		Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E	26-27494	1	Battery mount front PT600
F	26-27912	1	Battery mount rear PT600

label	part_number	quantity	name	blurb
A	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
B	11-12218	4	6902-2RS Max Bearing
C	26-17707	1	15x48 Bearing spacer
D	26-17013	1	15x40.25 Bearing Spacer

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
S - Carbon	High	A	7	116	118	118
M - Carbon	High	B	7	118	118	120
L - Carbon	High	A	7	118	120	120
XL - Carbon	High	A	7	118	120	120
XXL - Carbon	High	A	7	118	120	120
S - Carbon	Low	A	7	116	118	118
M - Carbon	Low	A	7	116	118	118
L - Carbon	Low	A	7	118	120	120
XL - Carbon	Low	A	7	118	120	120
XXL - Carbon	Low	A	7	118	120	120
