V10

Federweg vorne (mm) 203

Federweg hinten (mm) 208

Laufradgröße 29/MX

THERE’S NOTHING LIKE RIDING A DH BIKE. NOTHING.

The V10 is the bike ridden by the Syndicate to World Cup victories. Fully refined—not redefined—the eighth generation V10 is designed for riders looking to emulate their heroes or find the best lines in the bike park. It’s for those who understand there’s no substitute for a proper downhill bike. Lap after lap, day after day, nothing compares to riding a downhill bike. Nothing.

See The Bikes

THE EIGHTH DEVELOPING A WINNER

PARK TO PODIUM

SPEED IS YOUR FRIEND

DH bikes are thoroughbred, singularly focused machines designed for pure speed and thrills downhill.

TUNED

THE PIECES OF THE PUZZLE

Three points of 3-position adjustment allow fine-tuning for fit, terrain and preference: the rear axle flip chip (+5mm / 0 / -5mm) adjusts fore-aft weight balance; reach-adjust headset cups (-8mm / 0 / +8mm) customize fit, and the lower link flip chip calibrates BB height and head tube angle.

Filter:

MY25 V10 CC DH X01 GlossBlackSparkle A38d1f67 7d97 4f10 A1e2 9f58e45a7bcb

MY25 V10 CC DH X01 GlossKelpGreen 2052f080 94ce Bcce536d07d3

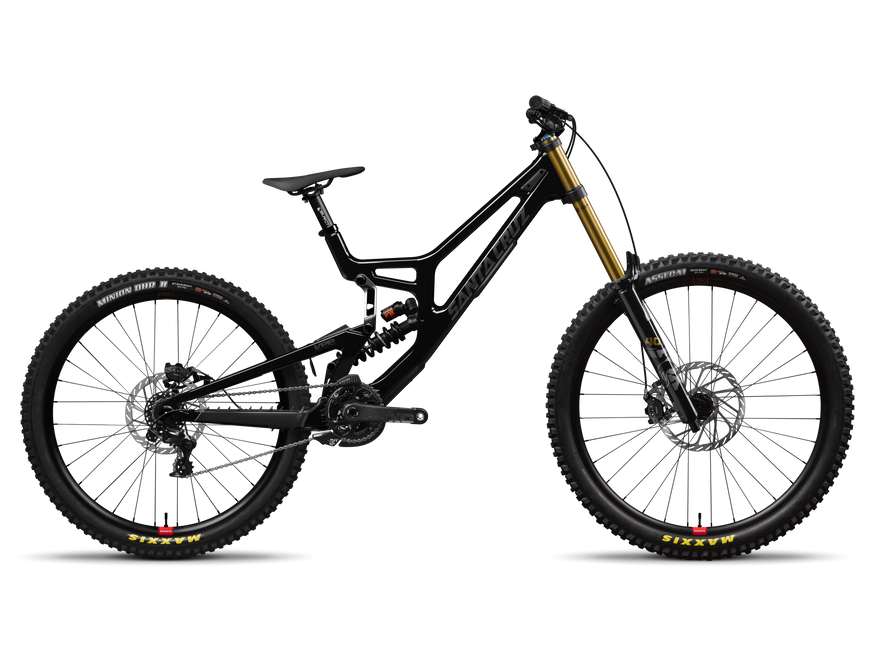

V10 DH X01

Carbon CC

$8,899

Vergleichen

MY25 V10 CC DH S GlossKelpGreen 92142ecf Bc8c 47a0 8f5e E507d9c94d8b

MY25 V10 CC DH S GlossBlackSparkle 134a48ed A9af 4dd8 Aa25 A0ee2525f66f

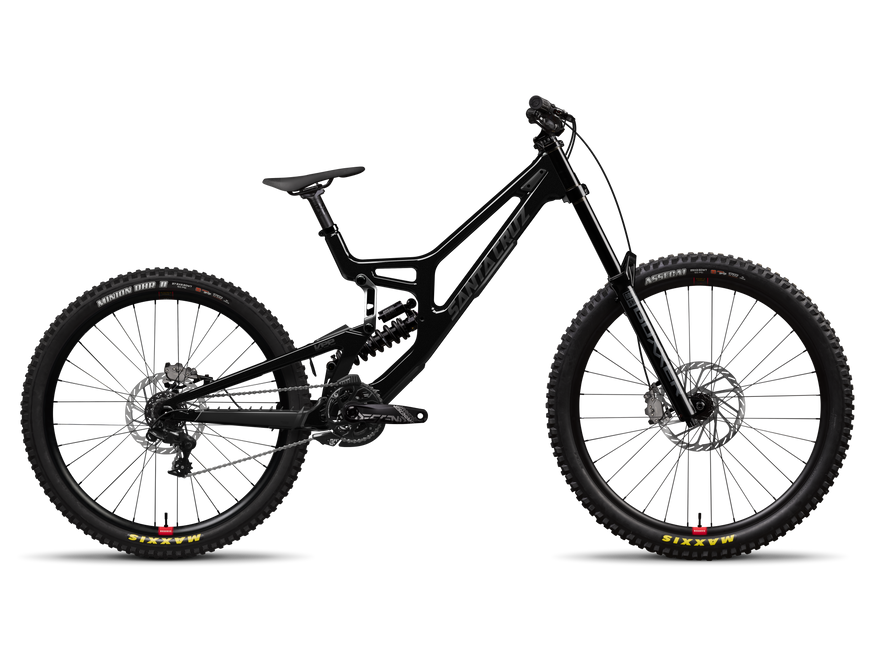

V10 DH S

Carbon CC

$7,049

Vergleichen

MY25 V10 CC Frame GlossBlackSparkle Ac3cde98 269b 55b11a8a71bd

MY25 V10 CC Frame GlossKelpGreen 3c80f8ed Bafa

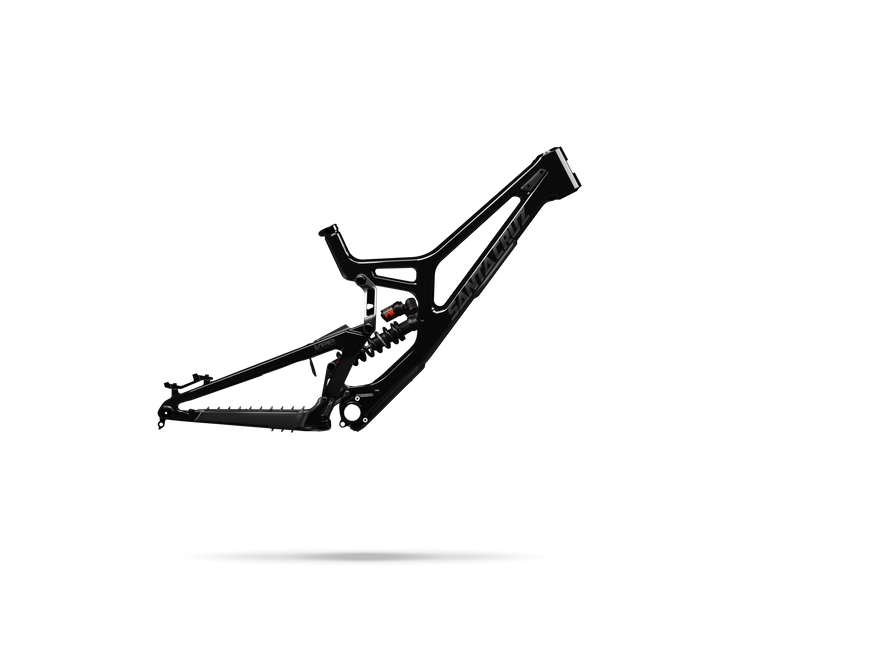

V10 Frame

Carbon CC

$3,949

Vergleichen

Sorry, es gibt keine passenden Produkte.

Design Details

ENTWICKLUNG EINER SPEZIES

Entwickelt, getestet, zertifiziert und montiert im eigenen Haus, hier in Santa Cruz - und bewährt bei UCI-Weltcups.

Mehr Infos

Design details of Design Details CC V10 BU ST SK

CC Carbon

Wenige beherrschen den Umgang mit Carbon wie Santa Cruz. Unsere Rahmen werden in der eigenen Fabrik hergestellt und haben lebenslange Garantie.

Mehr Infos

Design details of Design Details Built2Last HT BR NO MT TB HKSL HK BL HB

GEBAUT UM ZU HALTEN

Bikes sind keine Wegwerfartikel, aber wir werfen sie gerne quer über den Trail. Unsere Bikes sind gebaut, um zu halten.

Mehr Infos

Design details of Design Details HomHero V10

EINE RENOMMIERTE REFERENZ

Jedes unserer Bikes - vom V10 durch die gesamte Modellpalette - durchläuft denselben strengen Entwicklungsprozess und wird von denselben Ingenieuren entwickelt.

Mehr Infos

Design details of Design Details VPP V10 95bcc99d D9d7 Aa28 Fefbf968dffa

VPP™

VPP™ - 208mm perfekt optimierter VPP™-Federweg, mit dem Fokus auf einfache Abstimmung und Wartungsfreundlichkeit.

Mehr Infos

Sweat the details

	s	m	l	xl(29)
Reach short mid long	412-420-428	447-455-463	467-475-483	492-500-508
Stack	624	633	637	642
Head tube angle	63	63	63	63
Steuerrohrlänge	100	110	115	120
G. Hinterbaulänge (Long/Mid/Short)	440-445-450	445-450-455	450-455-460	455-460-465
Front Center	785	825	847	874
Tretlagerhöhe	356	356	356	356
BB Drop Front	17	17	17	17
BB Drop Rear	-1	-1	-1	17
Radstand	1230	1275	1302	1334
Sitzrohrlänge	435	445	455	465
Sitzwinkel	77.9	77.4	77.3	77
Überstandshöhe	729	730	731	731

	s	m	l	xl
Reach short mid long	411-419-427	446-454-462	466-474-482	491-499-507
Stack	625	634	638	643
Head tube angle	62.9	62.9	62.9	62.9
Steuerrohrlänge	100	110	115	120
G. Hinterbaulänge (Long/Mid/Short)	440-445-451	446-451-456	451-456-461	456-461-466
Front Center	785	825	847	874
Tretlagerhöhe	353	353	353	353
BB Drop Front	19	19	19	19
BB Drop Rear	1	1	1	19
Radstand	1231	1275	1303	1335
Sitzrohrlänge	435	445	455	465
Sitzwinkel	77.8	77.3	77.2	76.9
Überstandshöhe	726	728	729	729

	s	m	l	xl
Reach short mid long	409-417-425	444-452-460	464-472-480	489-497-505
Stack	626	635	639	644
Head tube angle	62.7	62.7	62.7	62.7
Steuerrohrlänge	100	110	115	120
G. Hinterbaulänge (Long/Mid/Short)	440-445-452	446-451-456	451-456-461	456-461-466
Front Center	785	825	847	874
Tretlagerhöhe	351	351	351	351
BB Drop Front	21	21	21	21
BB Drop Rear	3	3	3	21
Radstand	1231	1276	1303	1335
Sitzrohrlänge	435	445	455	465
Sitzwinkel	77.6	77.1	77	76.7
Überstandshöhe	724	726	726	726

label	part_number	quantity	name	blurb	torque
A	29-26981	1	Lower Link
B	11-17708	4	6902-1ZR Bearing
C	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
D	26-19126	1	15x28 Bearing spacer
E	26-20880	1	15x32 Bearing Spacer	Apply grease to inner surface
F	26-15532	1	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush
G	26-12678	1	M6 Grease Fitting		9 Nm

label	part_number	quantity	name	blurb
A	29-26982	1	Upper Link
B	11-12681	4	6900-2RS Bearing
C	26-15533	4	M10x3 Washer	Apply grease to inner surface

label	part_number	quantity	name	torque	blurb
A	30-26670	1	CS Protector
B	26-15634	1	RD Hanger Bolt	12 Nm	Apply Loctite 242 to threads
C	23-20089	1	V10 RD Hanger Short
D	23-24890	1	V10 RD Hanger Neutral
E	23-20090	1	V10 RD Hanger Long
F	26-11927	1	M4x4 Set Screw	1 Nm	Apply Loctite 242 to threads
G	26-20087	1	V10 NDS DO chip offset
H	23-24889	1	V10 NDS DO Chip Neutral
I	08-24951	1	V10 Rear axle 12x182		Apply grease to shaft and threads
J	26-24963	1	V10 Brake adapter 200
K	26-24962	1	V10 Brake adapter 220
L	26-15947	2	M6x20 SHCS	9 Nm	Apply Loctite 242 to threads
M	26-11817	2	M6 Washer
N	26-25330	1	Cable loop FT DS
O	26-25332	1	Cable loop SA DS
P	26-15939	4	M3x12 BHCS	0.5 Nm	Apply grease to treads
Q	30-21453	1	Seatstay Protector

label	part_number	quantity	torque	name	blurb
A	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads
B	26-27009	4	16 Nm	M8x22 Lowhead SHCS	Apply Loctite 242 to threads
C	26-12682	4		V10 Outer Bearing Washer	Apply grease to inner surface
D	26-22461	1	20 Nm	M8x45 Shock Bolt	Apply Loctite 242 to threads
E	26-27123	1		Flip Chip Neutral DS	Apply grease to surface
F	26-17065	1		Flip Chip Offset NDS	Apply grease to surface
G	26-17064	1		Flip Chip Offset DS	Apply grease to surface
H	26-27122	1		Flip Chip Neutral NDS	Apply grease to surface
I	08-16291	1	20 Nm	Pivot axle M15x68.5	Apply Loctite 242 to threads only, apply grease to shaft only
J	26-15633	2		M6 Tapered Washer	Apply grease to surface
K	26-11817	2		M6 Washer
L	26-15947	2	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
M	08-20879	1	20 Nm	Pivot Axle M15x72	Apply Loctite 242 to threads only, apply grease to shaft only
N	26-25329	1		Cable loop FT NDS
O	26-25331	1		Cable loop SA NDS
P	26-15939	3	0.5 Nm	M3x12 BHCS	Apply grease to treads

label	part_number	quantity	name	blurb	torque
A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	26-24897	1	RAHS Upper Offset	Apply grease at frame inerface
C	26-24896	1	RAHS Upper Neutral	Apply grease at frame inerface
D	26-24894	1	RAHS Lower Neutral	Apply grease at frame inerface
E	26-24895	1	RAHS Lower Offset	Apply grease at frame inerface
F	30-25026	1	Fork Bumper DS
G	30-25025	1	Fork Bumper NDS
H	26-23102	4	M4x16 BHCS	Apply grease to threads	0.65 Nm
I	30-22560	1	Shuttle Guard
J	26-18382	4	M4x12 BHC	Apply grease to treads	0.65 Nm
K	30-25335	1	Rear Fender
L	30-20093	1	DT Protector
M	26-15939	4	M3x12 BHCS	Apply grease to treads	0.5 Nm
N	34-20201	1	36.4 Seat Collar

Alle Details

Sizing and support for the V10.

Geometrie
& Größe

Design details of MY26 V10 Details 2e5fca6a 95cb Bfcc D951222be986

Setup
& Support

Design details of MY26 V10 Details B9bbb998 A00c 41f7 Bdb1 Fdafb45c487d

ROLLER DOOR

SO WHAT'S THE V10 ALL ABOUT?

Sit down with our engineers and Syndicate for a deep dive into the development story.

Listen Now
