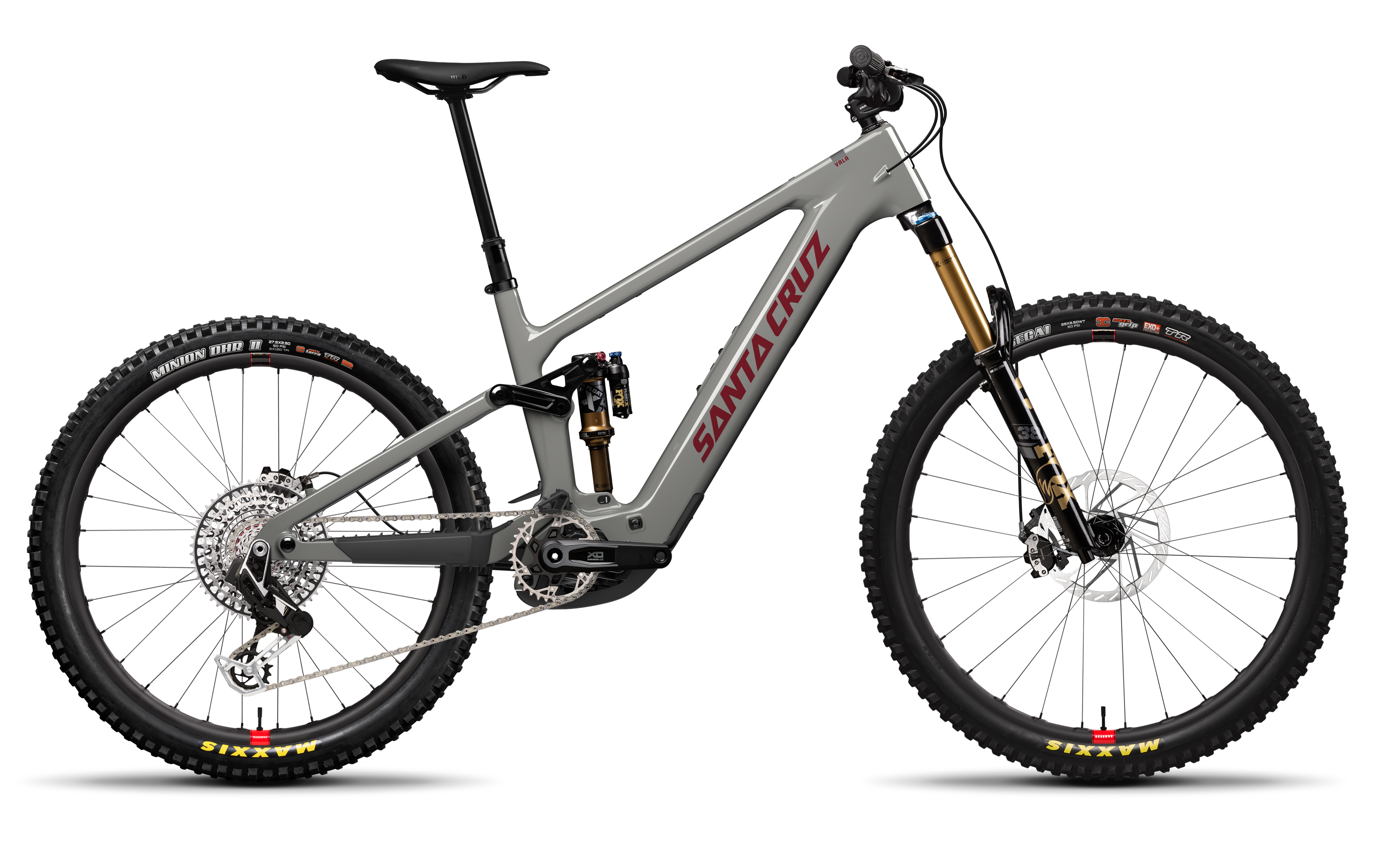

Vala XX AXS RSV
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Range Extender | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Front Spacing | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Vala XX AXS RSV
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large (Carbon Only)
154cm
5'1"
-
165cm
5'5"
Reach: 435mm
165cm
5'5"
-
175cm
5'9"
Reach: 460mm
175cm
5'9"
-
185cm
6'1"
Reach: 480mm
182cm
6'0"
-
193cm
6'4"
Reach: 500mm
193cm
6'4"
-
200cm
6'7"
Reach: 525mm
Flip Chip
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 432 | 456 | 477 | 497 | 522 |
| Stack | 625 | 635 | 643 | 657 | 670 |
| Head tube angle | 63.9° | 63.9° | 63.9° | 63.9° | 63.9° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop Front | 32 | 32 | 32 | 32 | 32 |
| BB Drop Rear | 15 | 15 | 15 | 15 | 15 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.2° | 77.2° | 77.2° | 77.2° | 77.2° |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 | 458 | 478 | 498 |
| Stack | 625 | 634 | 643 | 656 |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Head Tube Length | 110 | 120 | 130 | 145 |
| Rear Center | 440 | 440 | 445 | 445 |
| Front Center | 771 | 800 | 825 | 851 |
| BB Height | 342 | 342 | 342 | 342 |
| BB Drop Front | 30 | 30 | 30 | 30 |
| BB Drop Rear | 13 | 13 | 13 | 13 |
| Wheelbase | 1211 | 1241 | 1270 | 1297 |
| Top Tube Length | 578 | 606 | 628 | 652 |
| Seat Tube Length | 380 | 400 | 420 | 460 |
| Seat Tube Angle | 76.9° | 76.9° | 76.8° | 76.8° |
Vala XX AXS RSV
Setup & Support
Whether you’re the proud owner of a Vala or are just digging deep into the details you’ll find it all here.
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Carbon - Pivot Bearings
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface |
| B | 11-12218 | 4 | 6902-2RS Max Bearing | |
| C | 26-17707 | 1 | 15x48 Bearing spacer | |
| D | 26-17013 | 1 | 15x40.25 Bearing Spacer |
Loading
Carbon - Controller, Motor, Downtube Protector, and Shuttle Guard
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 20-27756 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 26-27915 | 4 | M5x10 BHCS | Apply Loctite 242 to threads | 9 Nm |
| C | 30-27825 | 1 | Shuttle guard | Line up with battery screws | |
| D | 72-25239 | 1 | Bosch DU Performance CX | Bosch part number EB11.100.00E | |
| E | 26-23102 | 3 | M4x16 BHCS | Apply grease to threads | 0.65 Nm |
| F | 30-27496 | 1 | DU protector | Use 30-27495 for size S & M | |
| G | 26-21224 | 2 | M6x10 BHCS | Apply loctite to threads | 3 Nm |
| H | 26-27862 | 2 | Bosch DU mount nut | Bosch part number EB11.200.03C | |
| I | 26-27479 | 1 | M8x7 Flip Chip | Apply grease to outside surface | |
| J | 34-20201 | 1 | 36.4 Seat Collar | ||
| K | 26-28150 | 1 | M4x26 Bosch Screw | ||
| L | 72-25240 | 1 | Bosch TT System Controller | Bosch part number EB13.100.000 | |
| M | 26-27857 | 1 | Bosch TT adapter | Bosch part number EB13.200.0AE |
Loading
Carbon - Linkage Hardware
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-15532 | 2 | 0.5 Nm | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush |
| B | 26-20124 | 4 | M5x16 Water Bottle screw | Apply grease to threads | |
| C | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| D | 26-15633 | 2 | M6 Tapered Washer | Apply grease to surface | |
| E | 26-11817 | 2 | M6 Washer | ||
| F | 26-15947 | 2 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| G | 26-27480 | 1 | M8x7 Flip Chip | Apply grease to outside surface | |
| H | 26-20091 | 1 | 15.6 Nm | M8x45 Lowhead SHCS | Apply Loctite 242 to threads |
| I | 26-27867 | 1 | Bosch charge socket holder | Bosch part number EB12.120.01A | |
| J | 26-27869 | 2 | Bosch MCx14 Screw | Bosch part number F04N.002.663 | |
| K | 26-27868 | 1 | Bosch COB O-ring | Bosch part number EB12.120.019 | |
| L | 72-25237 | 1 | Bosch charge socket | Bosch part number EB12.120.048 | |
| M | 26-27866 | 1 | Bosch charger port cover | Bosch part number EB12.120.01B | |
| N | 26-29334 | 2 | Bosch DU mount insert sleeve | Bosch part number EB11.200.0GK | |
| O | 26-27864 | 1 | 30 Nm | Bosch DU mount bolt front | Bosch part number EB11.200.12M |
| P | 26-27865 | 1 | 30 Nm | Bosch DU mount bolt rear | Bosch part number EB11.200.12H |
| Q | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| R | 26-18382 | 2 | 0.65 Nm | M4x12 BHCS | Apply grease to treads |
| S | 30-27475 | 1 | Fender | ||
| T | 26-27481 | 2 | 16 Nm | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| U | 11-12681 | 2 | 6900-2RS Bearing | ||
| V | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface | |
| W | 26-27484 | 2 | 16 Nm | M10x20 bolt | Apply Loctite 242 to threads |
| X | 11-12218 | 2 | 6902-2RS Max Bearing | ||
| Y | 26-27483 | 2 | Washer | Apply grease to inner surface | |
| Z | 26-27482 | 2 | M10x2.6 Flip Chip | Apply grease to outside surface | |
| AA | 26-25329 | 1 | Cable loop FT NDS | ||
| BB | 26-15939 | 1 | 0.1 Nm | M3x12 BHCS | Apply Loctite 242 to threads |
Loading
Carbon - Rear Triangle Hardware, Chainguide, and Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 26-27487 | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm | |
| E | 26-27488 | 2 | Dust Shield | Apply grease to inner surface | |
| F | 11-27485 | 6802-2RS Bearing | |||
| G | 26-27489 | 2 | Bearing spacer | Apply grease to shaft | |
| H | 26-27486 | 2 | M10x6 Nut | Apply grease to inner surface | |
| I | 30-27476 | Chanistay protector | |||
| J | 26-15939 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm | |
| K | 26-22938 | M4x10 FHCS | Apply Loctite 242 to threads | 0.65 Nm | |
| L | 19-22609 | OneUp chainguide | |||
| M | 26-27839 | OneUp chainguide back plate | |||
| N | 30-27838 | Cable Loop Guide | |||
| O | 26-22358 | M3x6 | Apply Loctite 242 to threads | 0.6 Nm | |
| P | 26-22570 | M5x12 HHS | Apply Loctite 242 to threads | 2 Nm | |
| Q | 30-21453 | Seatstay Protector |
Loading
Carbon - Battery
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-27493 | 1 | Battery mount rear PT600 | ||
| B | 26-28053 | 4 | M4x10 SHCS | 1.2 Nm | Apply Loctite 242 to threads |
| C | 26-27870 | 1 | Bosch H-Connector | ||
| D | 78-25241 | 1 | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | |
| E | 26-27494 | 1 | Battery mount front PT600 | ||
| F | 26-27912 | 1 | Battery mount rear PT600 |
Loading
Aluminum - Motor, Shuttle Guard, and Remote
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 4 | 26-27915 | M5x10 BHCS | Apply Loctite 242 to threads | 9 Nm |
| B | 1 | 30-27825 | Shuttle guard | Line up with battery screws | |
| C | 1 | 72-25239 | Bosch DU Performance CX | Bosch part number EB11.100.00E | |
| D | 1 | 30-28663 | DU Protector | ||
| E | 4 | 26-23102 | M4x16 BHCS | Apply grease to threads | 0.65 Nm |
| F | 2 | 26-21224 | M6x10 BHCS | Apply loctite 242 to threads | 3 Nm |
| G | 2 | 26-27862 | Bosch DU mount nut | Bosch part number EB11.200.03C | |
| H | 2 | 26-20124 | M5x16 Water Bottle screw | Apply grease to threads | |
| I | 1 | 34-20201 | 36.4 Seat Collar | ||
| J | 1 | 72-25240 | Bosch TT System Controller | Bosch part number EB13.100.000 | |
| K | 1 | 26-18382 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
Loading
Aluminum - Motor Mounting Hardware
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 2 | 26-21360 | Water Bottle Screw | ||
| B | 2 | 26-18382 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| C | 2 | 26-15532 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 0.5 Nm |
| D | 1 | 30-28124 | PowerMore wire clip | Use with Bosch range extender | |
| E | 1 | 26-20091 | M8x45 Lowhead SHCS | Apply Loctite 242 to threads | 22 Nm |
| F | 1 | 26-27867 | Bosch charge socket holder | Bosch part number EB12.120.01A | |
| G | 1 | 26-27868 | Bosch COB O-ring | Bosch part number EB12.120.019 | |
| H | 1 | 72-25237 | Bosch charge socket | Bosch part number EB12.120.048 | |
| I | 2 | 26-27869 | Bosch MCx14 Screw | Bosch part number F04N.002.663 | |
| J | 1 | 26-27866 | Bosch charger port cover | Bosch part number EB12.120.01B | |
| K | 1 | 26-29606 | Bosch DU screw wide V2 | Bosch part number EB11.200.15J | 30 Nm |
| L | 1 | 26-29605 | Bosch insert socket long V2 | Bosch part number EB11.200.15H | |
| M | 1 | 26-25329 | Cable loop FT NDS | ||
| N | 1 | 26-23284 | M3x8 BHCS | Apply Loctite 242 to threads | 0.5 Nm |
| O | 1 | 26-29607 | Bosch insert socket short V2 | Bosch part number EB11.200.12F | |
| P | 1 | 26-29608 | Bosch DU screw V2 | Bosch part number EB11.200.12G | 30 Nm |
| Q | 1 | 30-27475 | Fender | ||
| R | 2 | 26-18382 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
Loading
Aluminum - Linkage Hardware
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 08-22343 | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 20 Nm |
| B | 1 | 26-15633 | M6 Tapered Washer | Apply grease to surface | |
| C | 1 | 26-11817 | M6 Washer | ||
| D | 1 | 26-15947 | M6x20 SHCS | Apply Loctite 242 to threads | 9 Nm |
| E | 2 | 26-15533 | M10x3 Washer | Apply grease to inner surface | |
| F | 2 | 11-12681 | 6900-2RS Bearing | ||
| G | 2 | 26-27481 | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm |
| H | 2 | 26-28683 | SSE Reducer | Apply grease to inner surface | |
| I | 2 | 11-12218 | 6902-2RS Max Bearing | ||
| J | 2 | 26-27484 | M10x20 bolt | Apply Loctite 242 to threads | 16 Nm |
Loading
Aluminum - Rear Triangle Hardware
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 08-22209 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 1 | 23-23491 | SCB UDH | Interchangeable with Sram UDH | |
| C | 1 | 26-23492 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 2 | 26-27487 | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm |
| E | 4 | 26-27488 | Dust Shield | Apply grease to inner surface | |
| F | 4 | 11-27485 | 6802-2RS Bearing | ||
| G | 2 | 26-27489 | Bearing spacer | Apply grease to shaft | |
| H | 1 | 30-28664 | Chainstay Protector | ||
| I | 1 | 26-23284 | M3x8 BHCS | Apply Loctite 242 to threads | 0.5 Nm |
| J | 1 | 30-27838 | Cable Loop Guide | ||
| K | 1 | 26-27839 | OneUp chainguide back plate | ||
| L | 2 | 26-22938 | M4x10 FHCS | Apply Loctite 242 to threads | 0.65 Nm |
| M | 1 | 19-22609 | OneUp chainguide | ||
| N | 1 | 26-22570 | M5x12 HHS | Apply Loctite 242 to threads | 2 Nm |
| O | 2 | 26-22358 | M3x6 | Apply Loctite 242 to threads | 0.6 Nm |
| P | 1 | 30-21453 | Seatstay Protector | ||
| Q | 1 | 26-19207 | Hose Grommet |
Loading
Aluminum - Front Triangle Hardware
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 4 | 11-12218 | 6902-2RS Max Bearing | ||
| B | 4 | 26-11612 | Bearing Dust Shield | Apply grease to inner surface | |
| C | 1 | 26-17707 | 15x48 Bearing spacer | ||
| D | 1 | 08-22343 | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 20 Nm |
| E | 1 | 26-17013 | 15x40.25 Bearing Spacer | ||
| F | 1 | 08-16292 | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 20 Nm |
| G | 2 | 26-15633 | M6 Tapered Washer | Apply grease to surface | |
| H | 2 | 26-11817 | M6 Washer | ||
| I | 2 | 26-15947 | M6x20 SHCS | Apply Loctite 242 to threads | 9 Nm |
Loading
Aluminum - Battery
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 8 | 26-28053 | M4x10 SHCS | Apply Loctite 242 to threads | 1.2 Nm |
| B | 1 | 26-27494 | Battery mount front PT600 | ||
| C | 1 | 78-25241 | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | |
| D | 1 | 30-28682 | Cable Tray | ||
| E | 1 | 26-27870 | Bosch H-Connector | ||
| F | 1 | 26-27912 | Battery mount rear PT600 | ||
| G | 1 | 26-28681 | Battery Mount Rear PT600 Type 2 |
Loading
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| S - Carbon | High | A | 7 | 116 | 118 | 118 |
| M - Carbon | High | B | 7 | 118 | 118 | 120 |
| L - Carbon | High | A | 7 | 118 | 120 | 120 |
| XL - Carbon | High | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | High | A | 7 | 118 | 120 | 120 |
| S - Carbon | Low | A | 7 | 116 | 118 | 118 |
| M - Carbon | Low | A | 7 | 116 | 118 | 118 |
| L - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| S - AL | None | B | 7 | 118 | 118 | 120 |
| M - AL | None | B | 7 | 118 | 118 | 120 |
| L - AL | None | B | 7 | 118 | 118 | 120 |
| XL - AL | None | B | 7 | 118 | 118 | 120 |
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
Vala XX AXS RSV
$13,899.00
USD
Regular price
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
Material
CC
Front (MM)
160
Rear (MM)
150
Wheel Size
MX
46.6
21.13
Weight (lbs)
46.6
Weight (kg)
21.13
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
Standout Features
Explore the trail taming highlights that make the Vala so special.
01
NEW Bosch Performance Line CX
02
CC Carbon Frame
03
Reserve Carbon Wheels
04
Four-bar Suspension
05
Independent Geo and Shock Rate Flip Chips
06
600 Wh Battery
Dig Deep
Specs, sizing and support for the Vala XX AXS RSV
Build kit& Specs
Geometry& Sizing
Setup& Support
Other Builds
Vala 70
Base model with Maxxis tires, SRAM 70 cable actuated T-Type Transmission, FOX Float X rear shock, and Reserve AL rims.
$7,649
Vala 90
Core score upgrade. Upgraded hubs, headset, and dropper post. Maxxis tires, FOX Float X suspension shock, SRAM 90 cable-operated T-Type Transmission, SRAM Maven brakes, and Reserve AL rims.
$8,899
Vala AL 70
SRAM's mechanical Transmission drivetrain paired with no-nonsense suspension from Rock Shox. Big rotors for reliable stopping power, and Maxxis tires wrapped around Reserve's aluminum wheels—complete with lifetime warranty.
$6,849
Vala AL Deore
Base model with a reliable Shimano drivetrain and solid suspension spec from Rock Shox. WTB rims wrapped in Maxxis tires and an SDG dropper round out the build.
$5,999
Vala GX AXS
High-tech entry. Full SRAM GX Eagle electronic Transmission, SRAM Maven brakes and aluminum wheels.
$9,849
Vala GX AXS
High-tech entry. Full SRAM GX Eagle electronic Transmission, SRAM Maven brakes and aluminum wheels.
$9,849
Vala R
Base model with same drive unit, tires, and big rotors as all Valas. Quality parts, no black label throwaway items.
$7,299
Vala S
Sweet spot for a sweet price. Upgraded wheels, headset, dropper post, and suspension with more adjustment.
$8,499
Vala X0 AXS RSV
High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.
$11,949
Vala X0 AXS RSV
High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.
$11,949
Vala XX AXS RSV
High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.
$13,299
