Vala
Rear (MM)
150
Wheel Size
MX

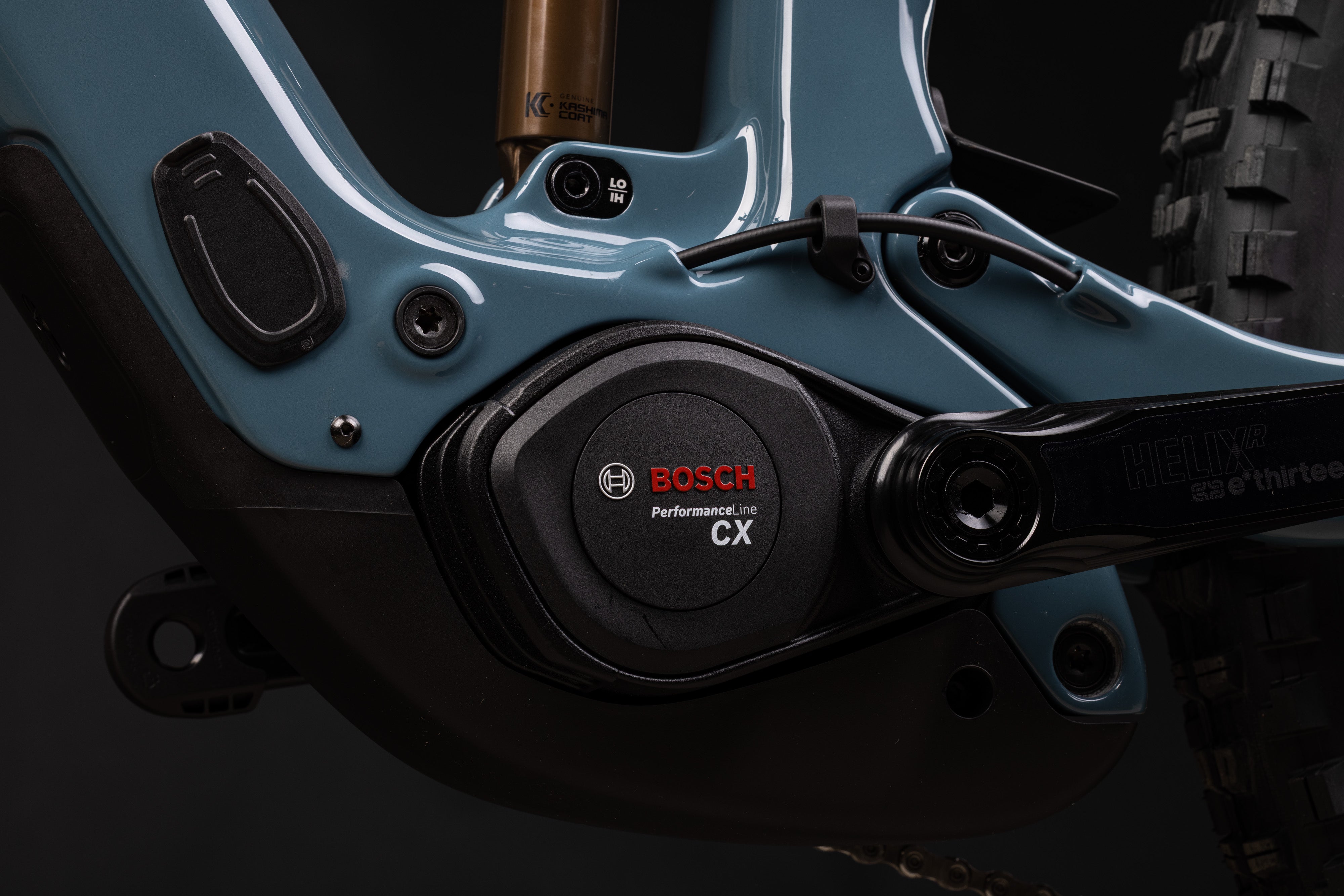

Drive Unit
Bosch
Battery (Wh)
600

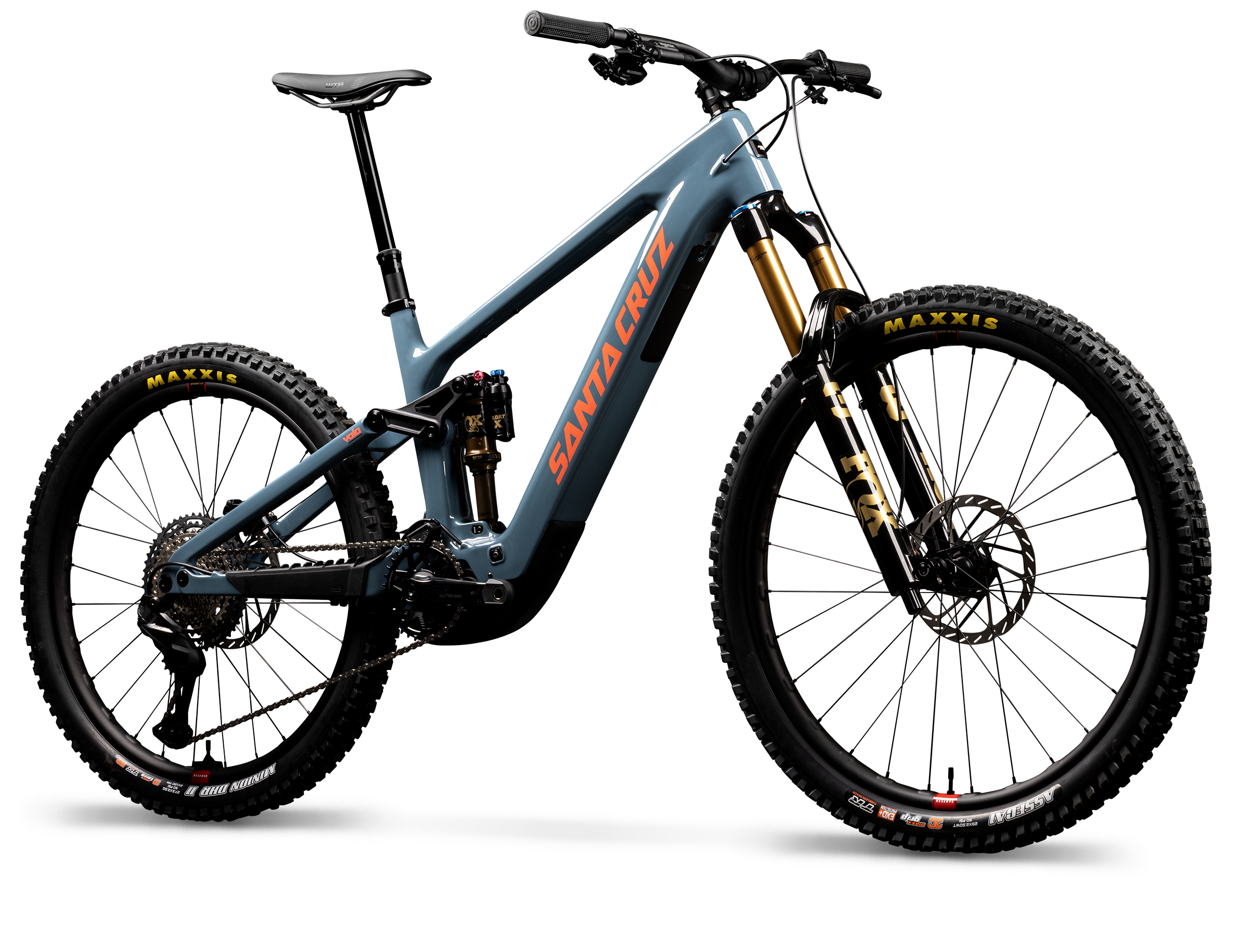

For Rides Of Exceptional Quality
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
QUALITY RIDE
CLASS-LEADING POWER AND HANDLING
All the legendary Santa Cruz dynamics—supreme handling, great suspension, and longevity—are paired with the class-leading new Bosch Performance Line CX motor and a versatile battery solution. The Vala is a full-power eMTB built for real trails, not tribulations.

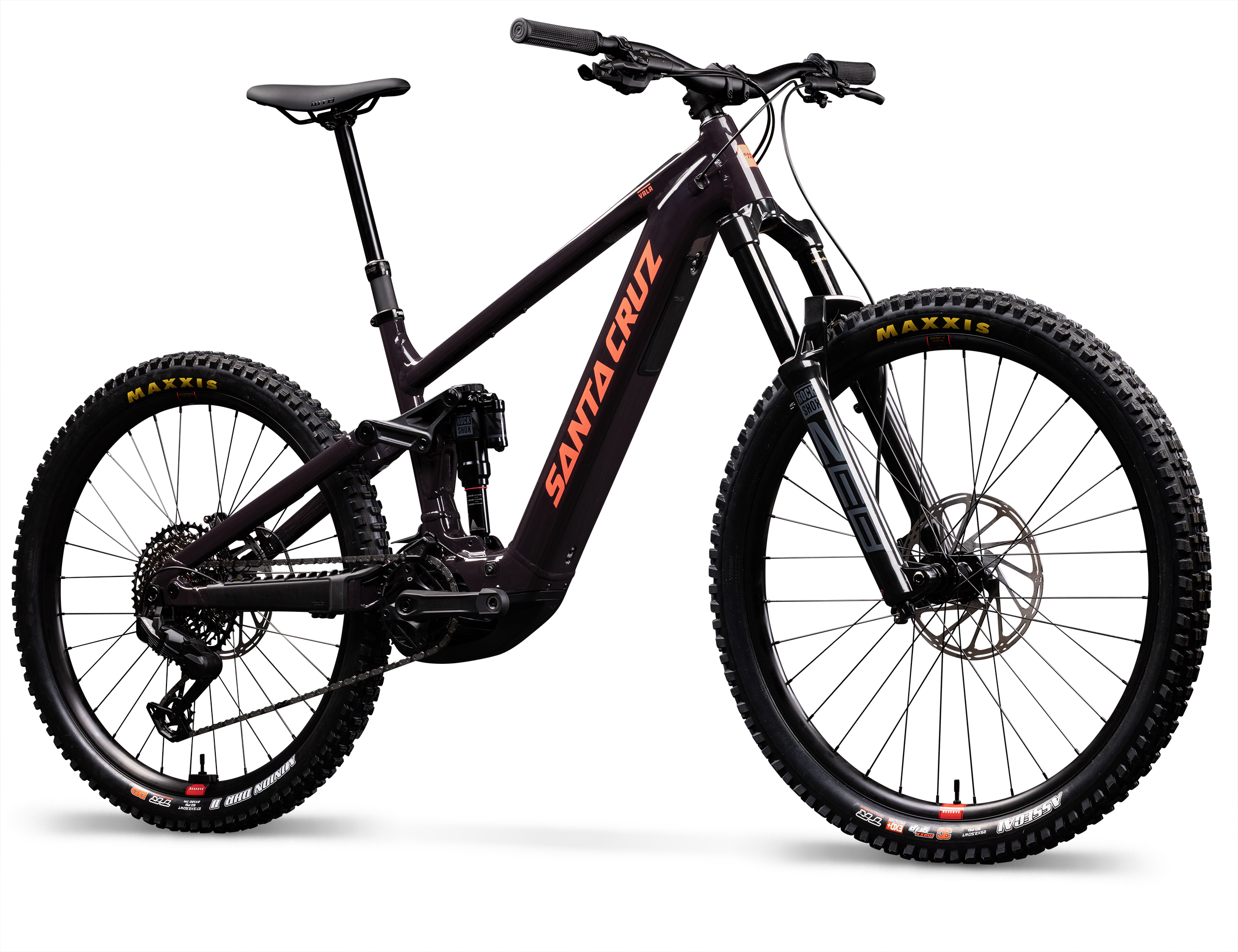

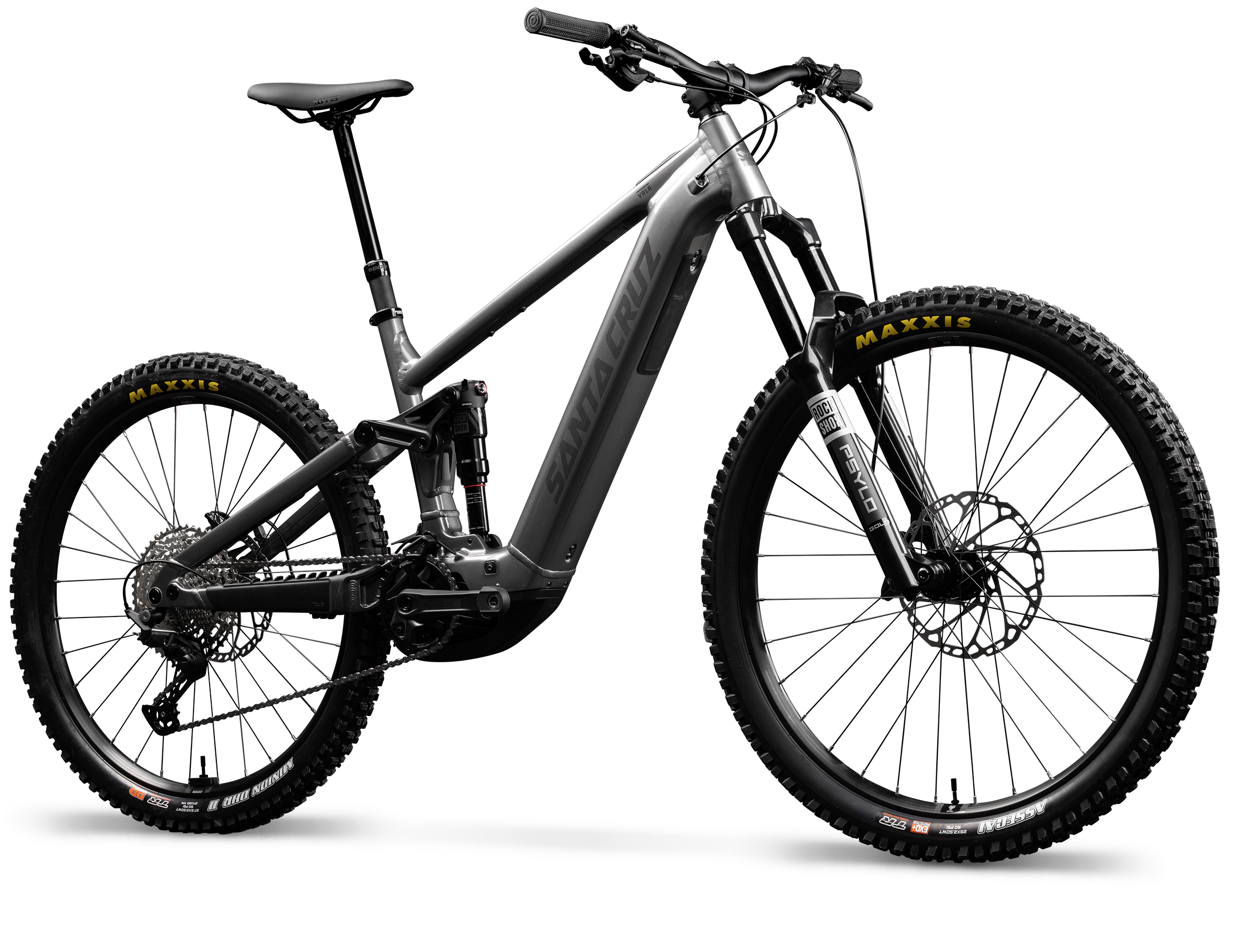

Vala - Now Available in Aluminum
RIDE A QUALITY EBIKE
Vala's rave reviews and enduring popularity have rapidly made it one of the most popular bikes we've ever created. Now the poise, confidence, durability, and reliability are available in a more economical, aluminum-framed package.
Filters:

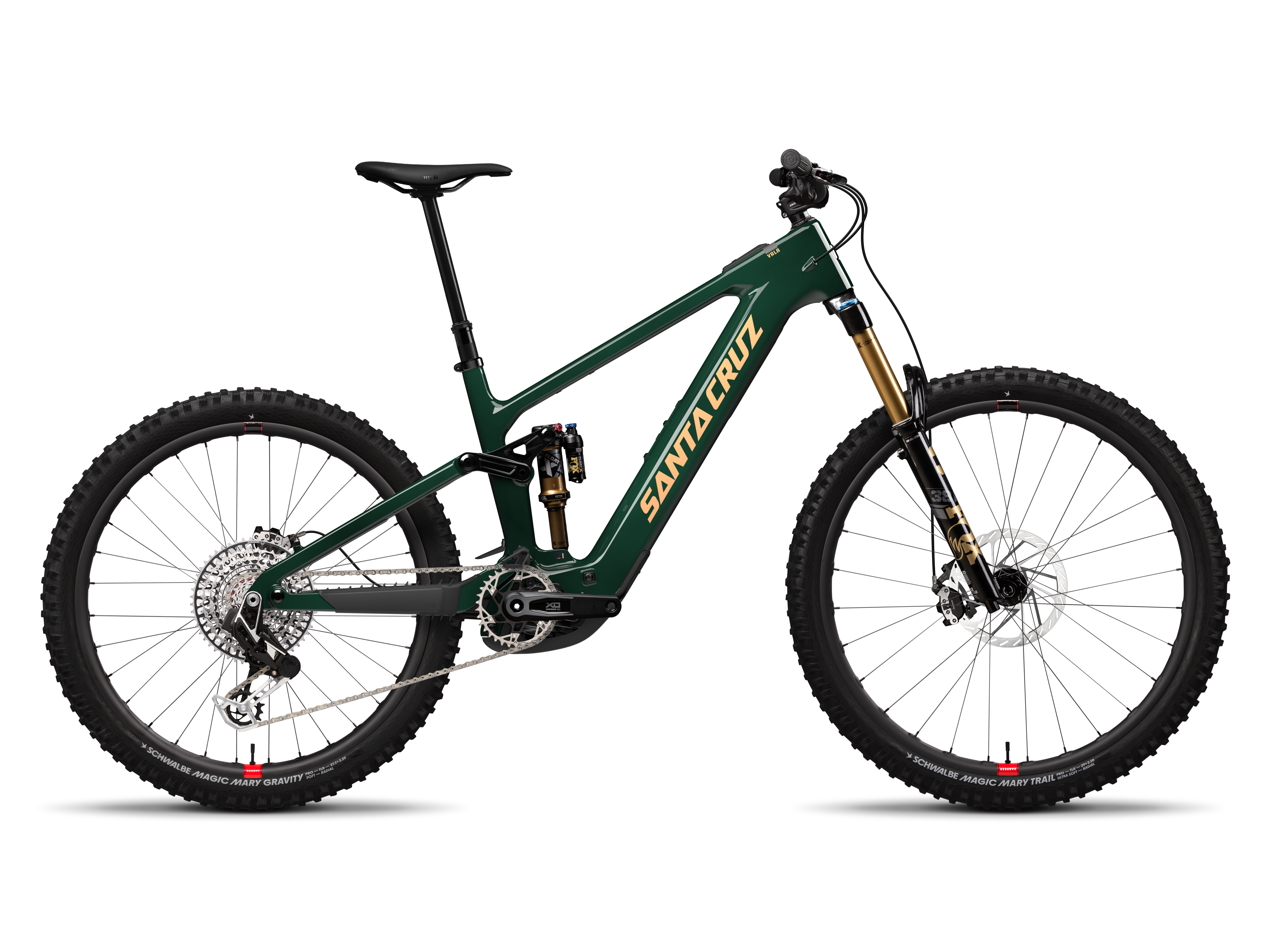

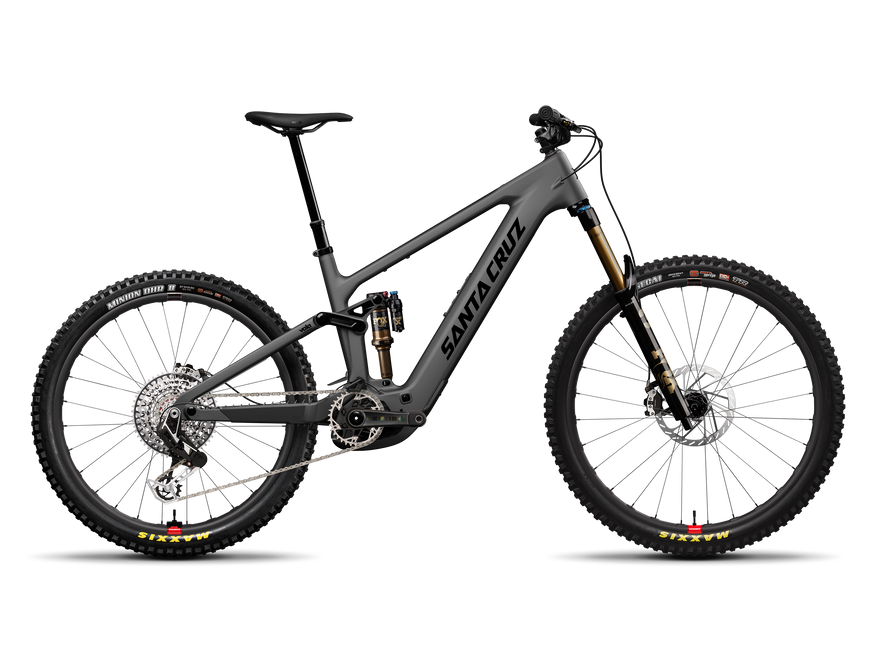

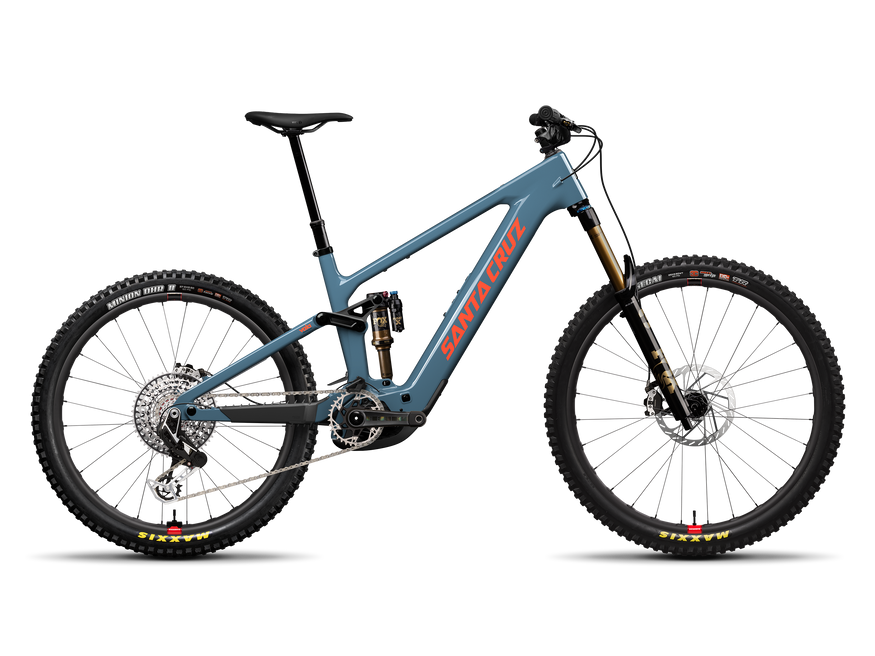

Vala XX AXS Lite RSV
Our new lightweight, full-power ebike build: SRAM's XX AXS drivetrain, a Fox 36 fork, and Reserve 30|HD Carbon wheels.
$13,999

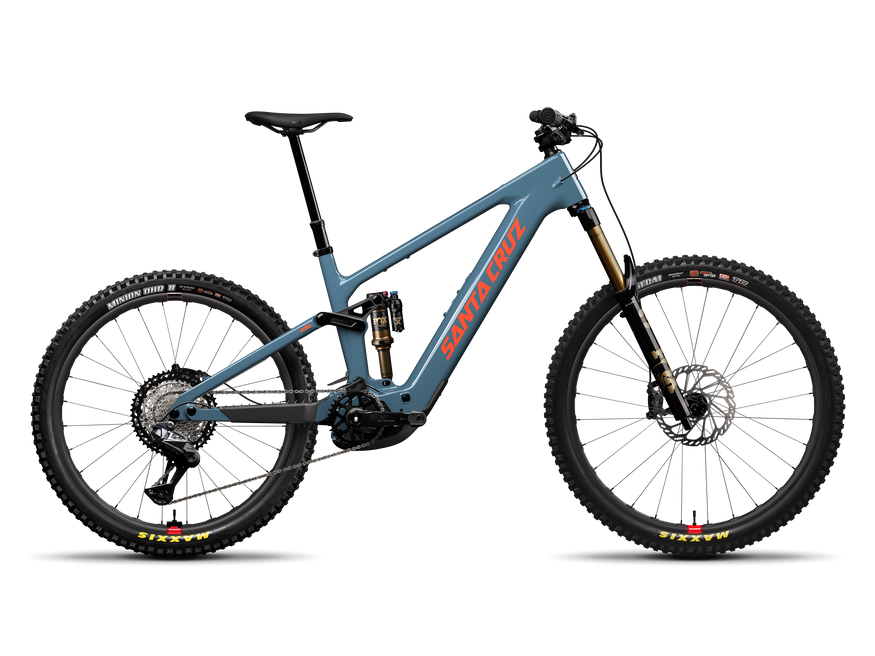

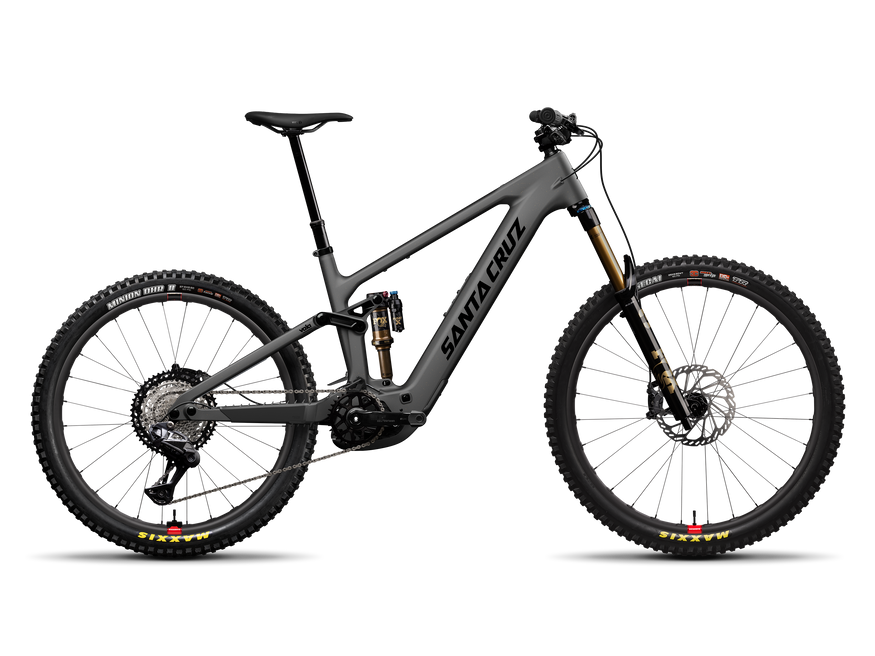

Vala XT Di2 Lite RSV
A weight-focused build with Shimano's XT Di2 drivetrain hard-wired into the system battery. Fox's 36 Factory fork, Reserve 30|HD carbon wheels, and OneUp cockpit round out the build.
$11,999

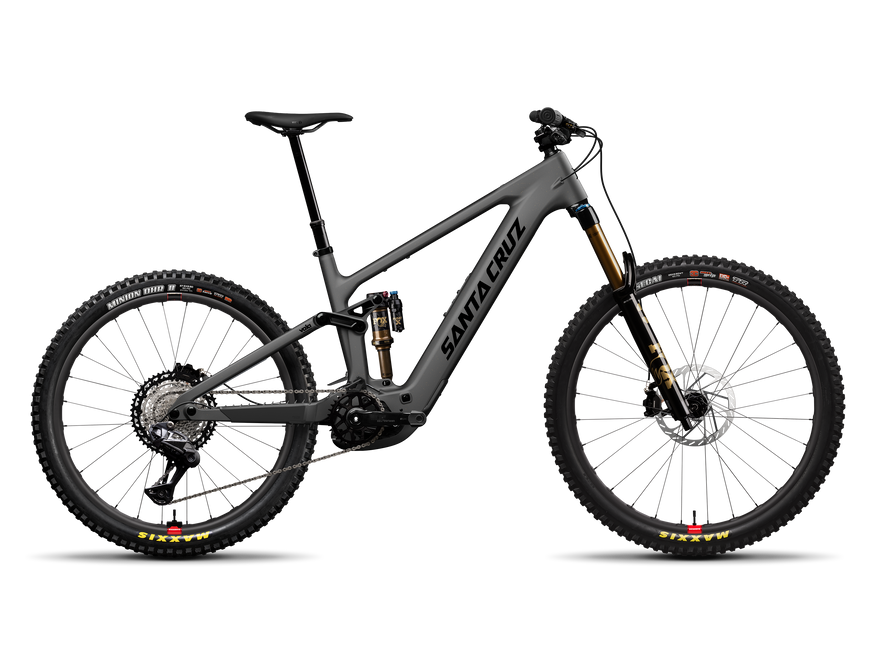

Vala XT Di2 RSV
Heavy duty, still refined. Shimano's XT Di2 electronic drivetrain, a Fox 38 fork, and heavy-duty tires for big days in rough terrain.
$11,999
Vala XT Di2
Shimano's new drivetrain, with the deralleur wired to the drive unit. Fox Factory suspension, big brakes, and Maxxis tires round out the build.
$11,299
Vala AL 70
SRAM's mechanical Transmission drivetrain paired with no-nonsense suspension from Rock Shox. Big rotors for reliable stopping power, and Maxxis tires wrapped around Reserve's aluminum wheels—complete with lifetime warranty.
$7,049
Vala AL Deore
Base model with a reliable Shimano drivetrain and solid suspension spec from Rock Shox. WTB rims wrapped in Maxxis tires and an SDG dropper round out the build.
$6,199

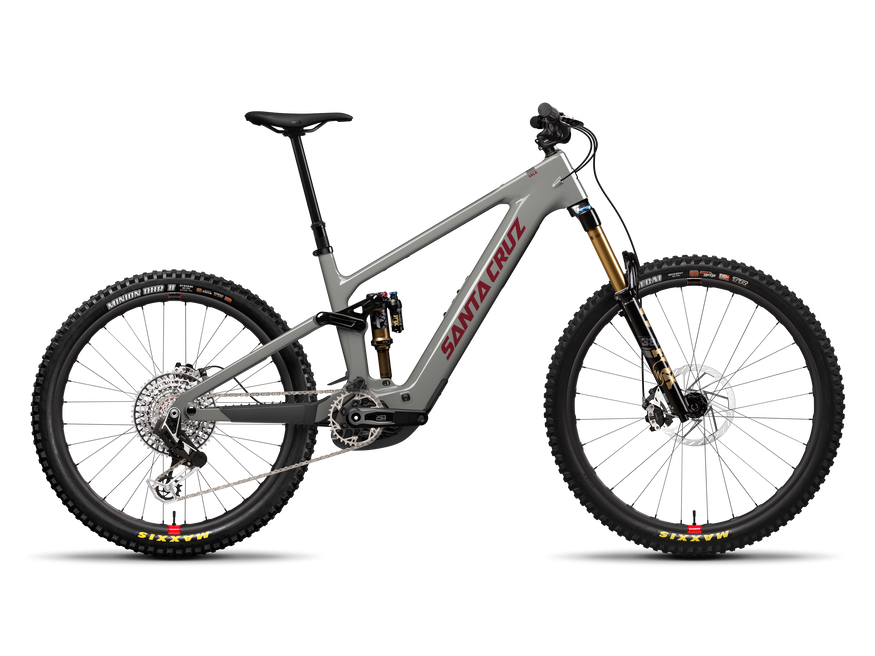

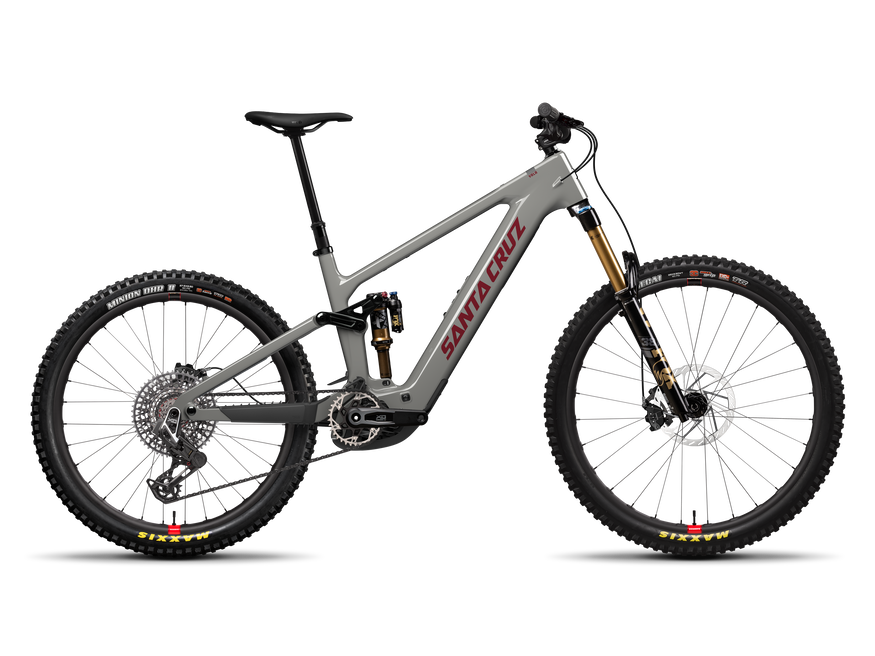

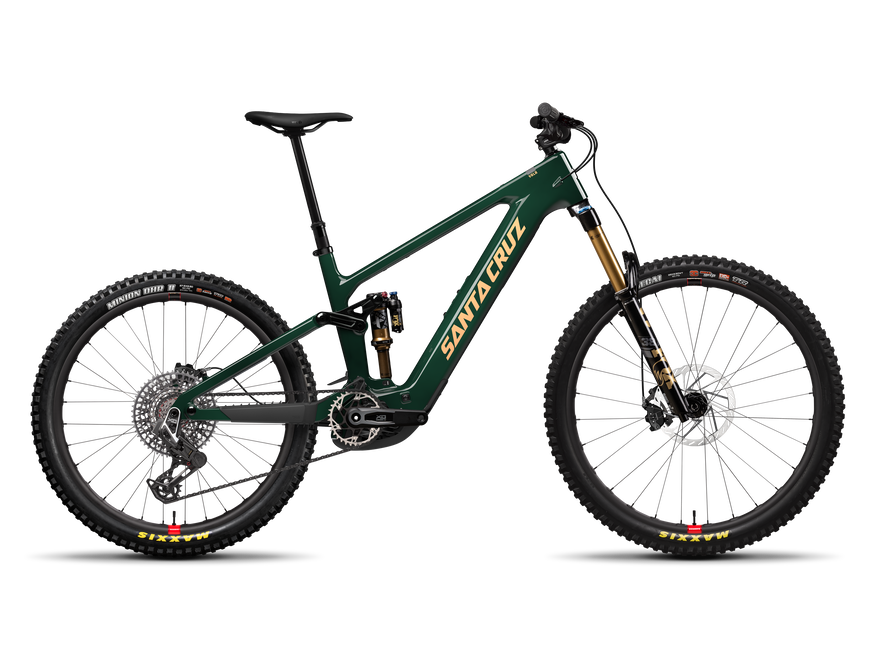

Vala X0 AXS RSV
High-tech, high performance. CC carbon frame, buttery Fox Factory suspension and powerful SRAM Maven brakes, plus legendary Reserve carbon wheels.
$12,149

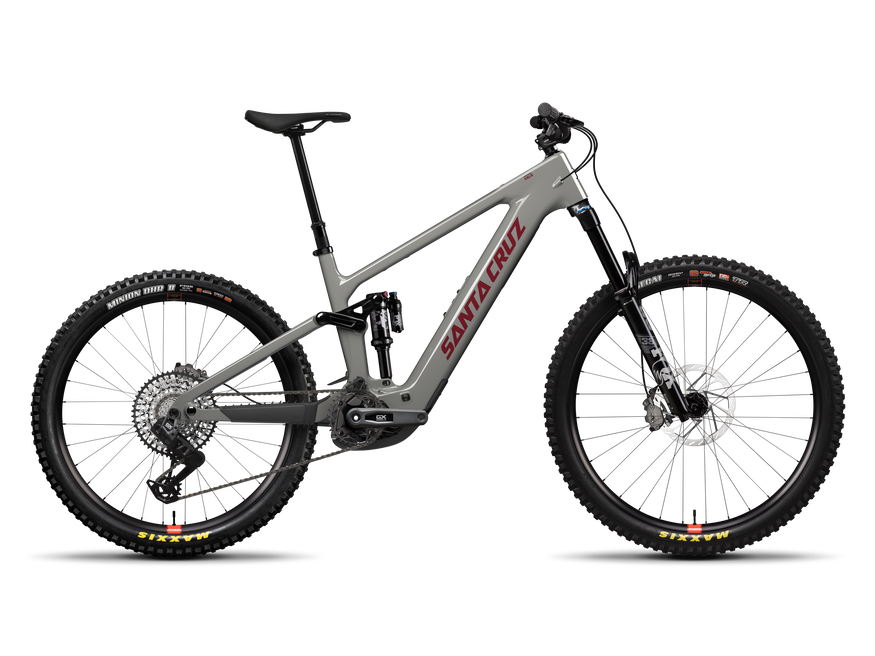

Vala GX AXS
High-tech entry. Full SRAM GX Eagle electronic Transmission, SRAM Maven brakes and aluminum wheels.
$10,049

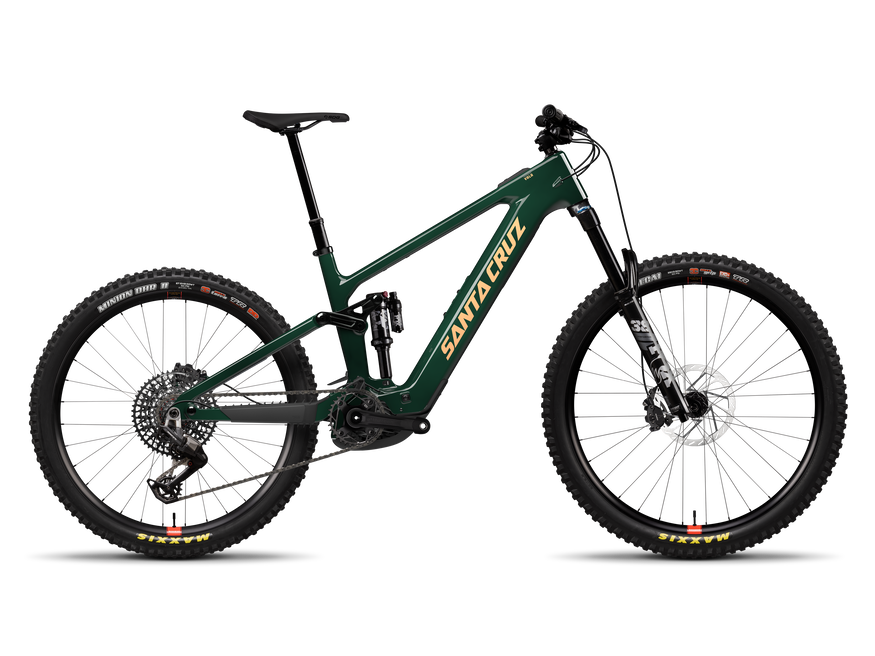

Vala 90
Core score upgrade. Upgraded hubs, headset, and dropper post. Maxxis tires, FOX Float X suspension shock, SRAM 90 cable-operated T-Type Transmission, SRAM Maven brakes, and Reserve AL rims.
$9,099
Vala 70
Base model with Maxxis tires, SRAM 70 cable actuated T-Type Transmission, FOX Float X rear shock, and Reserve AL rims.
$7,849
Sorry, there are no products that match.
Design Details

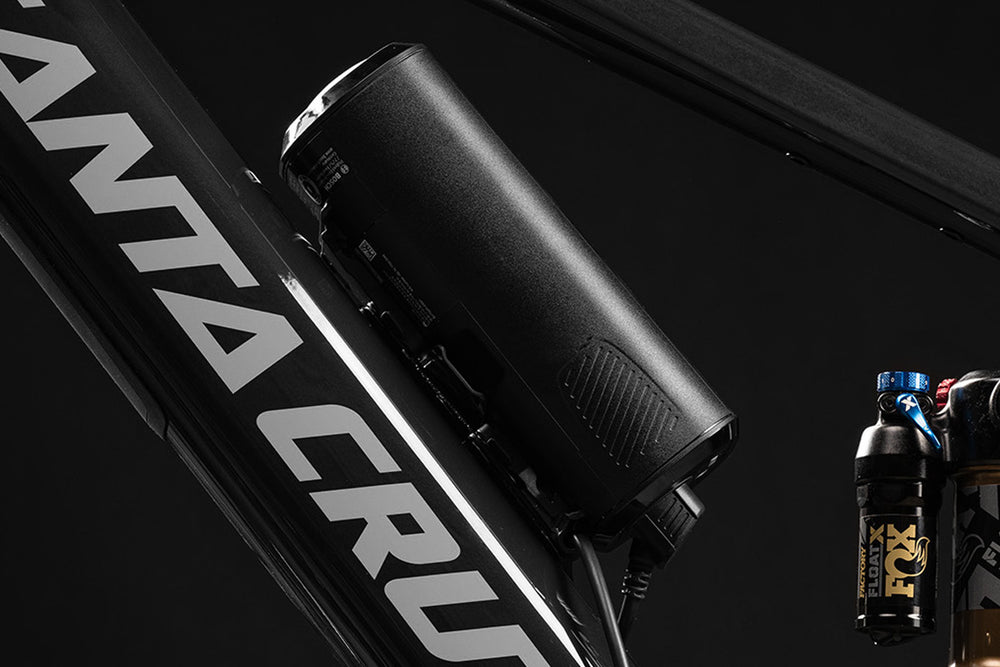

Range Extender
A 600 Wh battery is optimal for most rides, and its low mass enhances handling characteristics. The 250 Wh PowerMore extender adds range when needed.

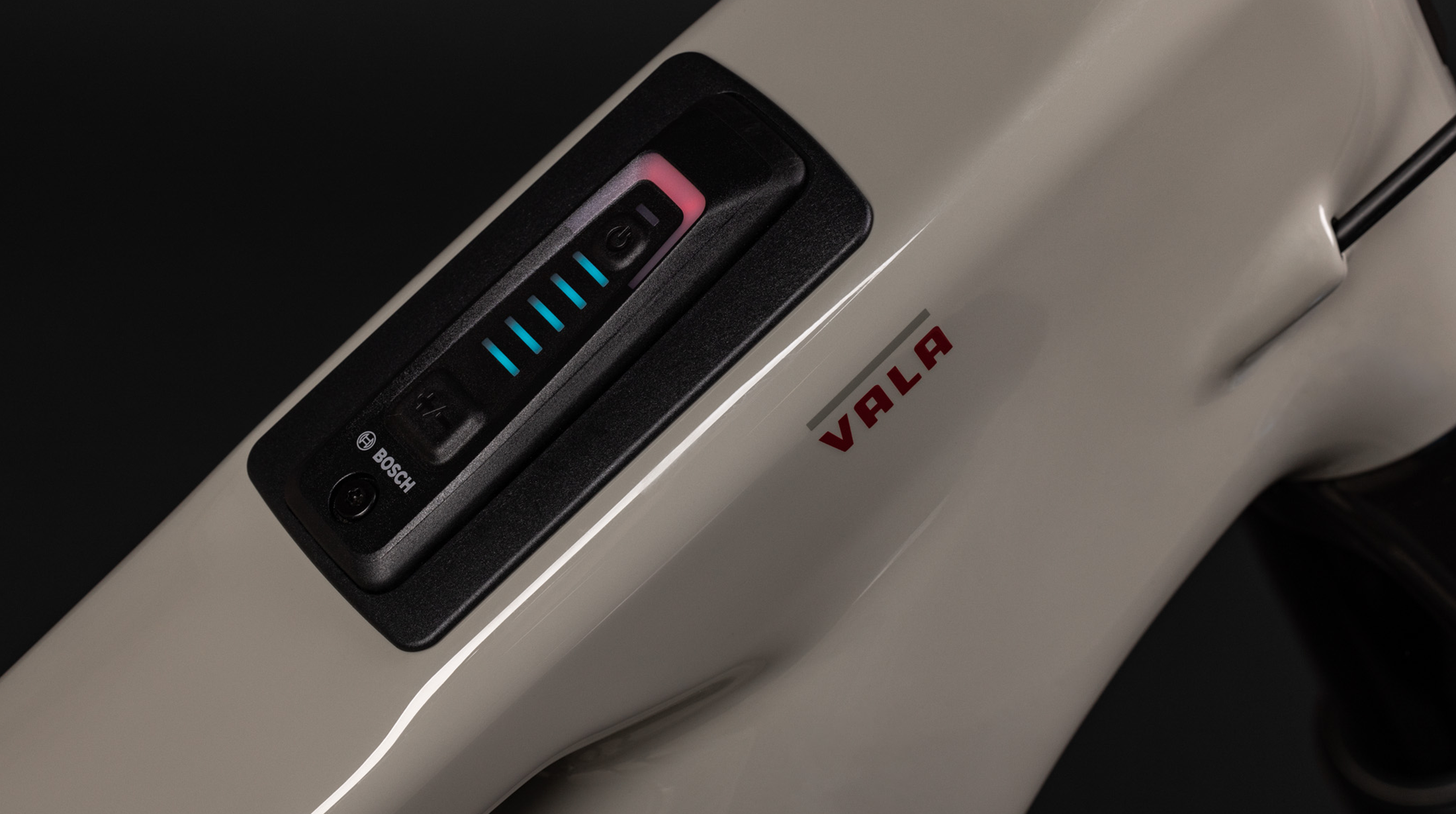

Bosch Flow App
Connect your bike experience. Customize modes, upload routes, track rides, and let the Range Control select modes for you.
MX Wheels
A 29-inch wheel up front provides traction and stability, while the 27.5-inch rear allows for late turning and lifting—a mix of both worlds.

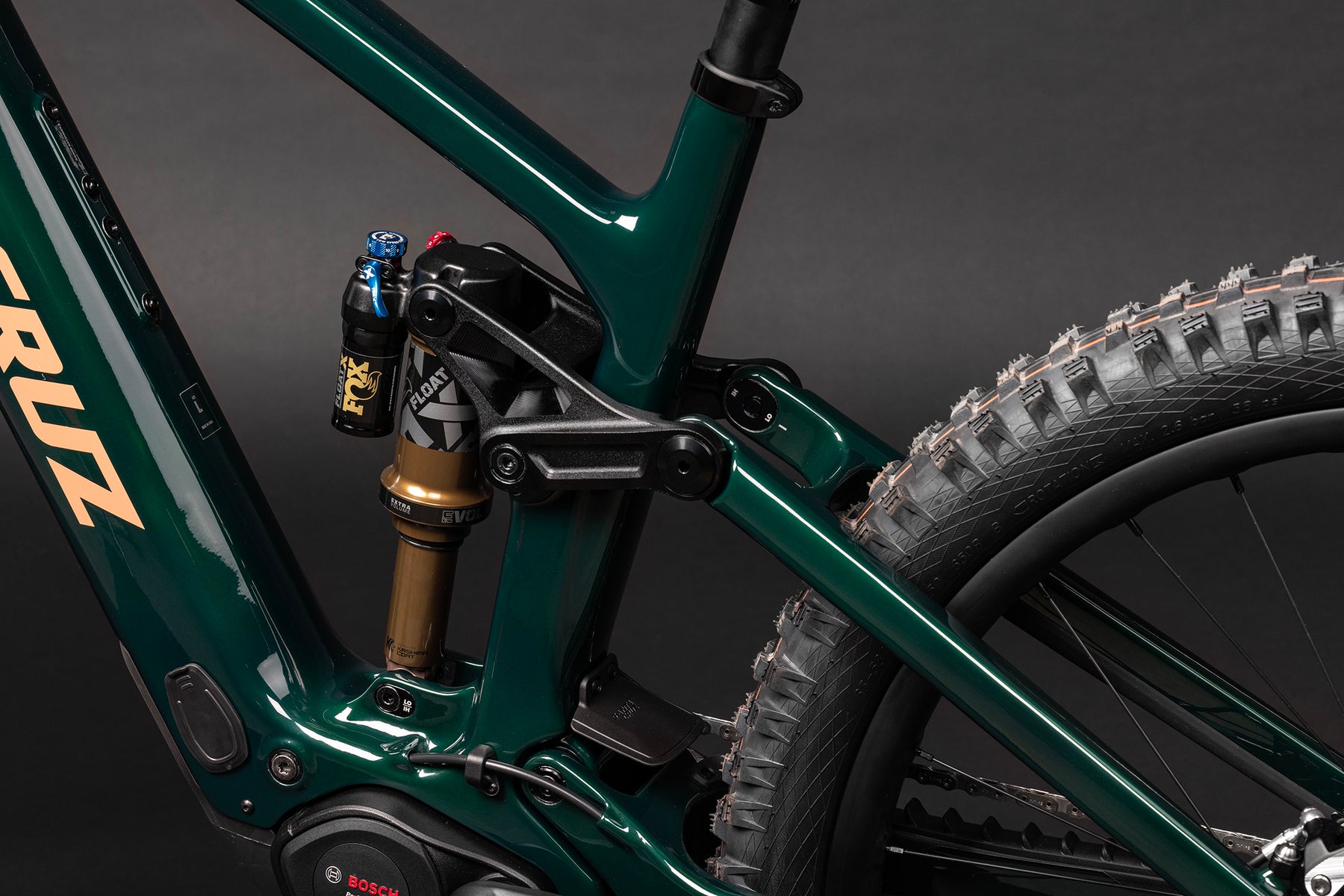

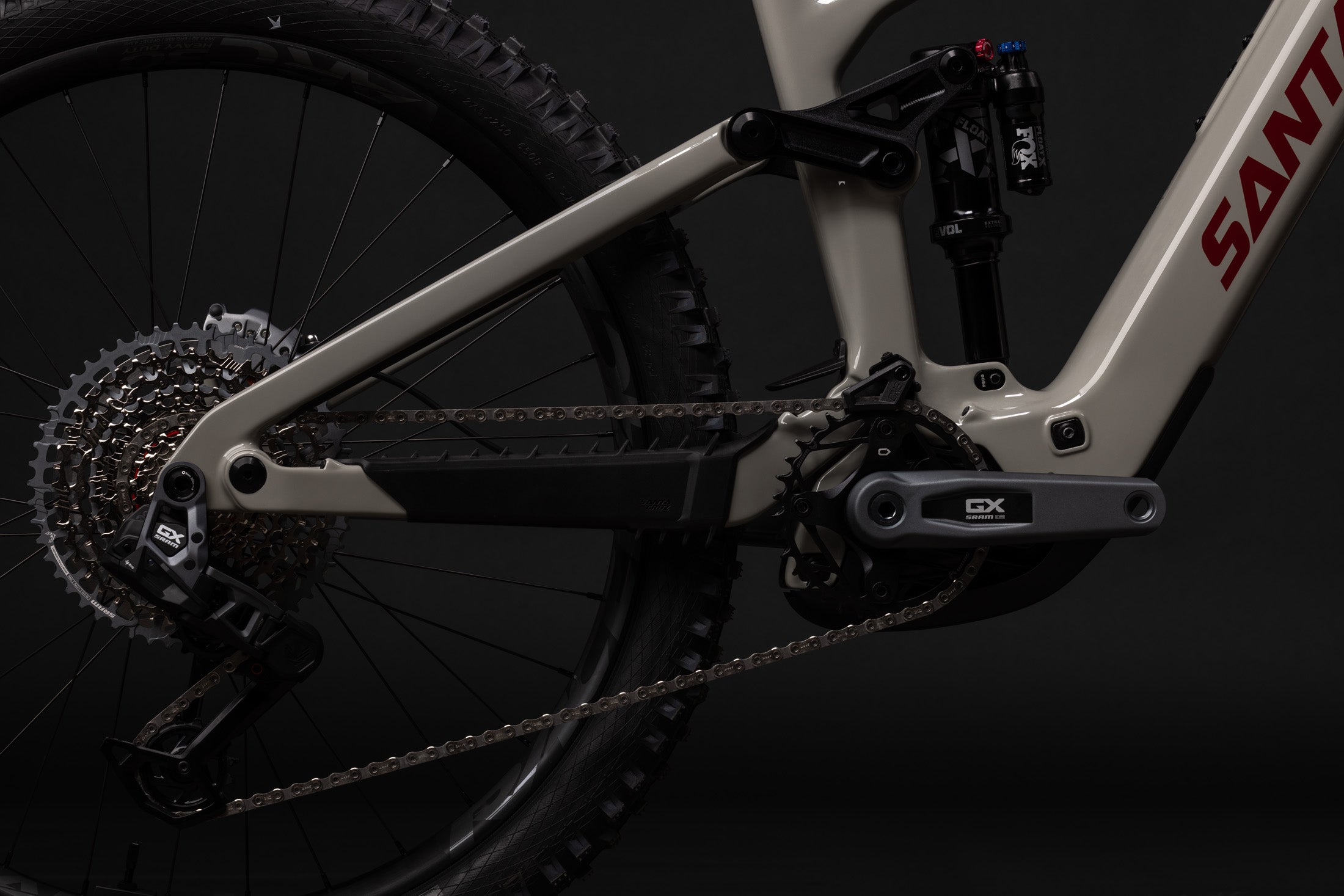

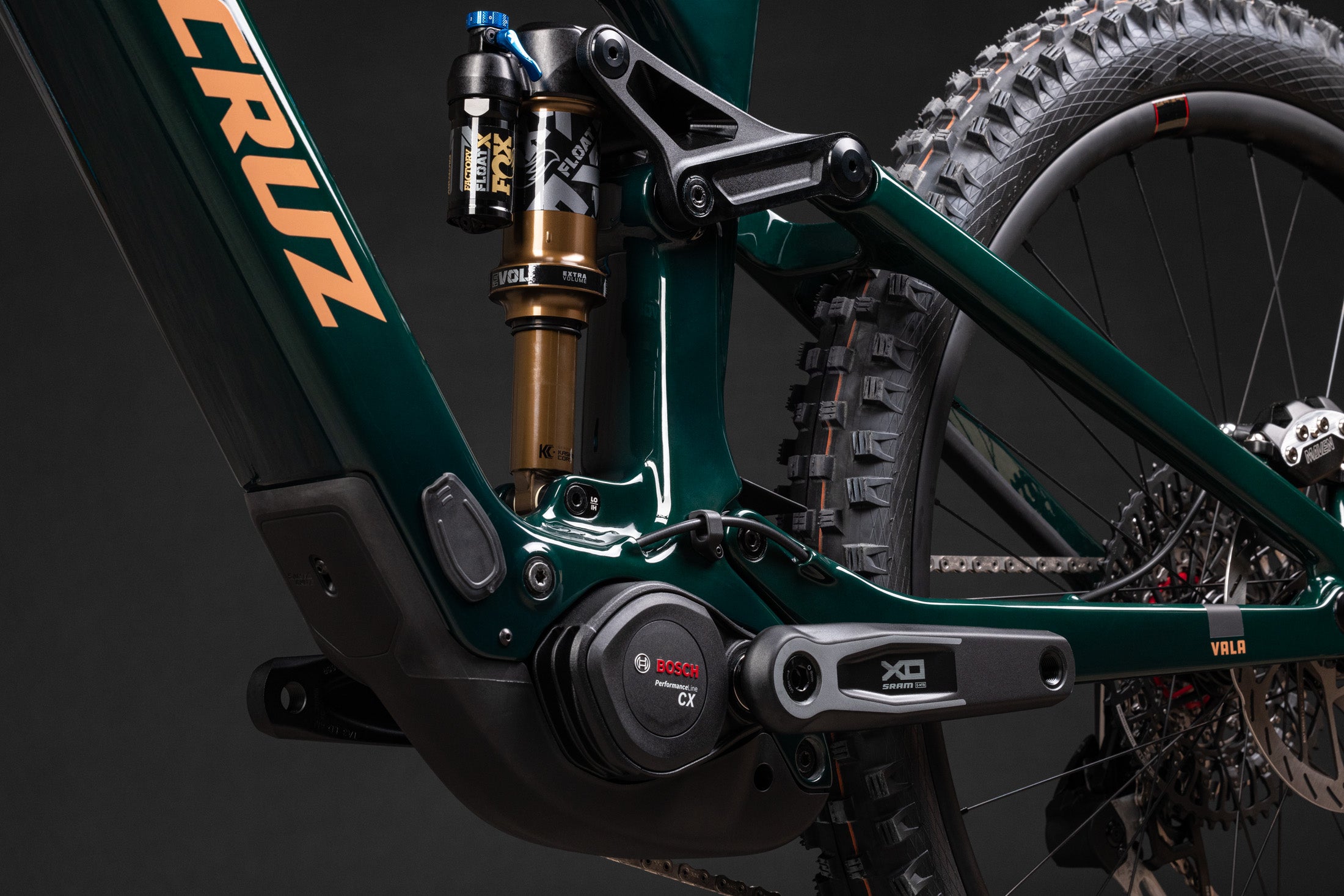

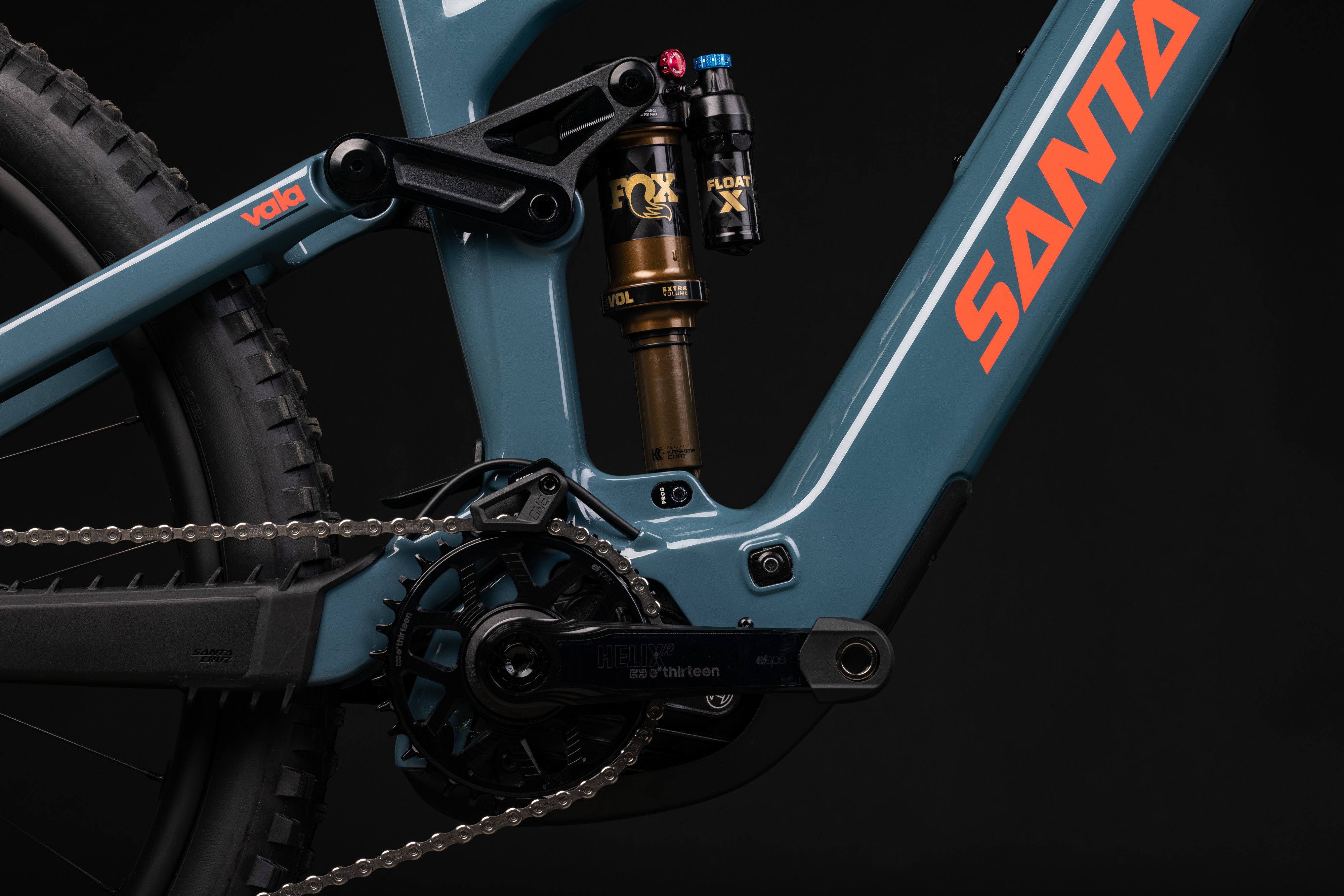

Hard-wearing hardware
Like all Santa Cruz bikes, the pivots and links are tough, reliable, and easy to maintain. Plus, owners get lifetime replacement bearings.

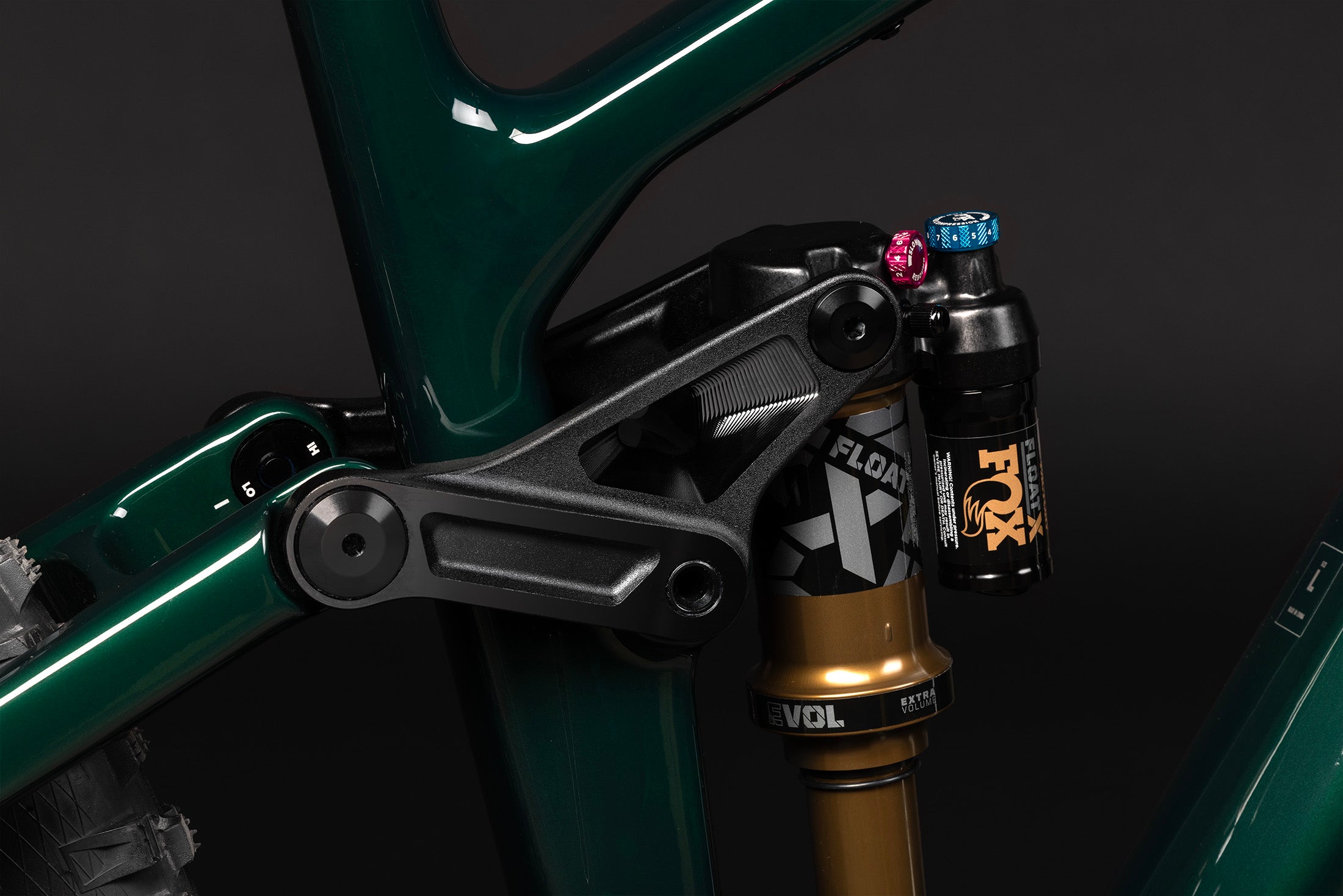

Independently Adjustable
The geo chip raises or lowers the BB 4mm, and adjusts the headtube angle 0.3-degrees. The progression chip changes the progression from 26-29%.

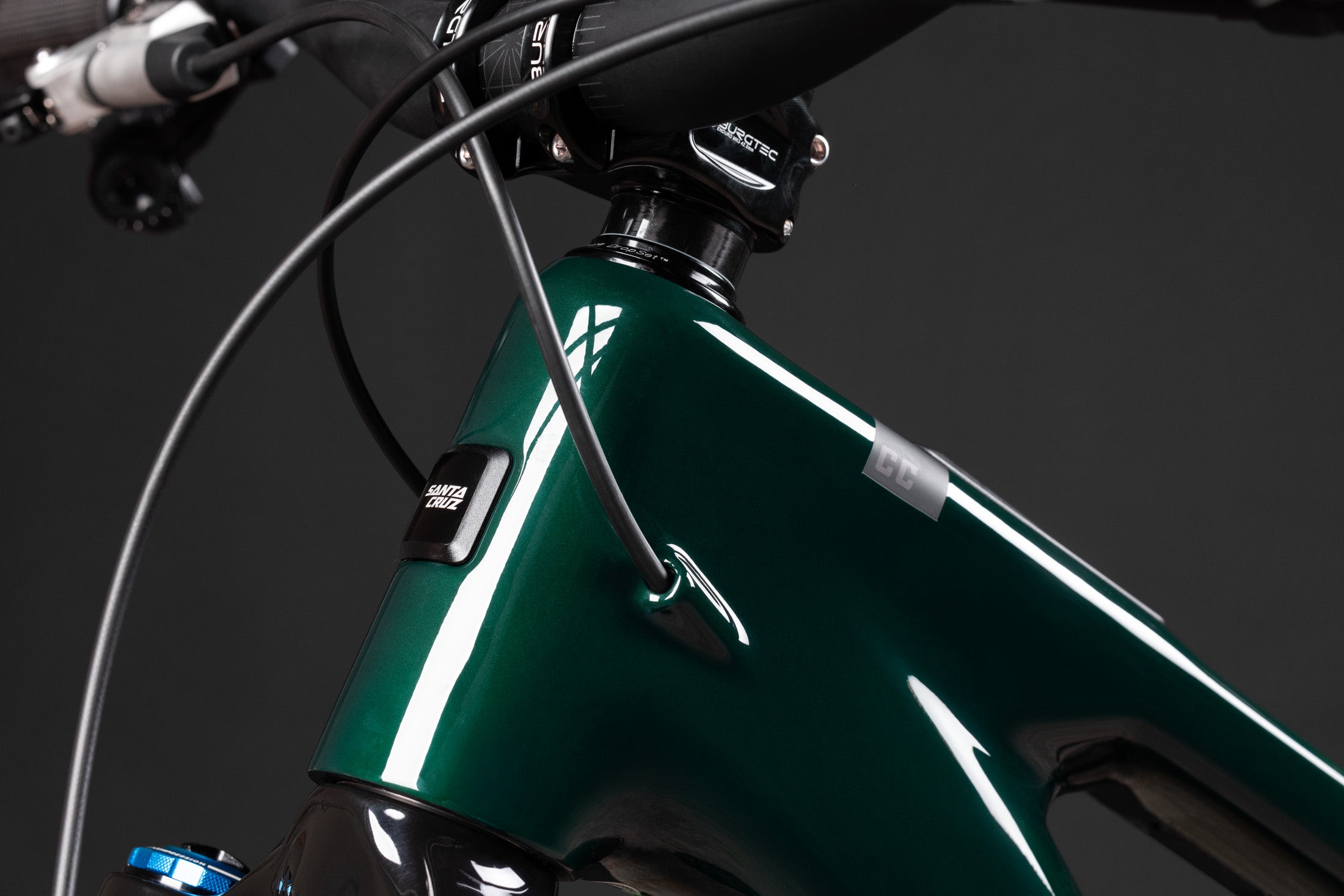

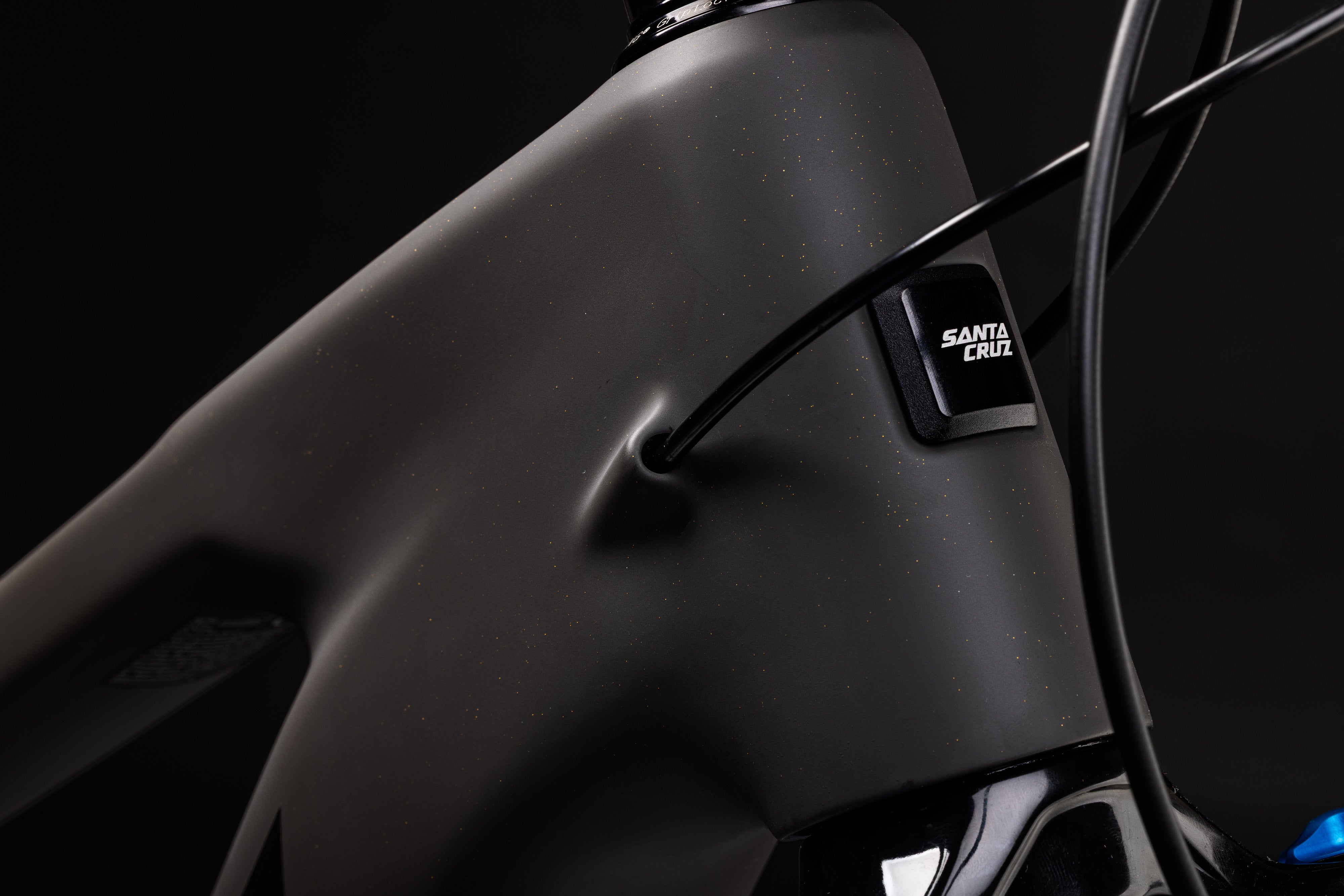

Sweat the details
Vala Gallery
Vala
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large (Carbon Only)
154cm
5'1"
-
165cm
5'5"
Reach: 435mm
165cm
5'5"
-
175cm
5'9"
Reach: 460mm
175cm
5'9"
-
185cm
6'1"
Reach: 480mm
182cm
6'0"
-
193cm
6'4"
Reach: 500mm
193cm
6'4"
-
200cm
6'7"
Reach: 525mm
Flip Chip
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 432 | 456 | 477 | 497 | 522 |
| Stack | 625 | 635 | 643 | 657 | 670 |
| Head tube angle | 63.9° | 63.9° | 63.9° | 63.9° | 63.9° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop Front | 32 | 32 | 32 | 32 | 32 |
| BB Drop Rear | 15 | 15 | 15 | 15 | 15 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.2° | 77.2° | 77.2° | 77.2° | 77.2° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 | 458 | 478 | 498 |
| Stack | 625 | 634 | 643 | 656 |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Head Tube Length | 110 | 120 | 130 | 145 |
| Rear Center | 440 | 440 | 445 | 445 |
| Front Center | 771 | 800 | 825 | 851 |
| BB Height | 342 | 342 | 342 | 342 |
| BB Drop Front | 30 | 30 | 30 | 30 |
| BB Drop Rear | 13 | 13 | 13 | 13 |
| Wheelbase | 1211 | 1241 | 1270 | 1297 |
| Top Tube Length | 578 | 606 | 628 | 652 |
| Seat Tube Length | 380 | 400 | 420 | 460 |
| Seat Tube Angle | 76.9° | 76.9° | 76.8° | 76.8° |
| Standover Height | 744 | 745 | 729 | 732 |
Vala
Setup & Support
Whether you’re the proud owner of a Vala or are just digging deep into the details you’ll find it all here.
Fox Float X Performance 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 |
| 120 | 54 | 145 | 30%, 18mm | 7 |
| 140 | 64 | 165 | 30%, 18mm | 7 |
| 160 | 73 | 180 | 30%, 18mm | 6 |
| 180 | 82 | 200 | 30%, 18mm | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 |
| 220 | 100 | 240 | 30%, 18mm | 4 |
| 240 | 109 | 255 | 30%, 18mm | 3 |
| 260 | 118 | 275 | 30%, 18mm | 3 |
Rockshox Zeb Base 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 47 | 13 |
| 120 | 54 | 56 | 12 |
| 140 | 64 | 64 | 11 |
| 160 | 73 | 72 | 11 |
| 180 | 82 | 80 | 10 |
| 200 | 91 | 88 | 9 |
| 220 | 100 | 96 | 8 |
| 240 | 109 | 102 | 7 |
Fox Float X Performance 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 |
| 120 | 54 | 145 | 30%, 18mm | 7 |
| 140 | 64 | 165 | 30%, 18mm | 7 |
| 160 | 73 | 180 | 30%, 18mm | 6 |
| 180 | 82 | 200 | 30%, 18mm | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 |
| 220 | 100 | 240 | 30%, 18mm | 4 |
| 240 | 109 | 255 | 30%, 18mm | 3 |
| 260 | 118 | 275 | 30%, 18mm | 3 |
Fox 38 Performance 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 120 | 54 | 79 | 13 |
| 130 | 59 | 83 | 12 |
| 140 | 64 | 87 | 11 |
| 150 | 68 | 91 | 10 |
| 160 | 73 | 96 | 9 |
| 170 | 77 | 100 | 8 |
| 180 | 82 | 104 | 7 |
| 190 | 86 | 109 | 6 |
| 200 | 91 | 113 | 5 |
| 210 | 95 | 117 | 4 |
| 220 | 100 | 121 | 3 |
| 230 | 104 | 126 | 2 |
| 240 | 109 | 130 | 1 |
Rockshox Super Deluxe Base
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 135 | 30%, 18mm | 8 |
| 120 | 54 | 155 | 30%, 18mm | 7 |
| 140 | 64 | 175 | 30%, 18mm | 7 |
| 160 | 73 | 190 | 30%, 18mm | 6 |
| 180 | 82 | 210 | 30%, 18mm | 5 |
| 200 | 91 | 230 | 30%, 18mm | 4 |
| 220 | 100 | 250 | 30%, 18mm | 4 |
| 240 | 109 | 265 | 30%, 18mm | 3 |
| 260 | 118 | 285 | 30%, 18mm | 3 |
Rockshox Zeb Base
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 54 | 11 |
| 120 | 54 | 62 | 10 |
| 140 | 64 | 70 | 10 |
| 160 | 73 | 78 | 9 |
| 180 | 82 | 86 | 8 |
| 200 | 91 | 94 | 7 |
| 220 | 100 | 102 | 7 |
| 240 | 109 | 110 | 6 |
Rockshox Deluxe Select
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 130 | 30%, 18mm | 7 |
| 120 | 54 | 150 | 30%, 18mm | 6 |
| 140 | 64 | 170 | 30%, 18mm | 5 |
| 160 | 73 | 185 | 30%, 18mm | 4 |
| 180 | 82 | 205 | 30%, 18mm | 4 |
| 200 | 91 | 225 | 30%, 18mm | 3 |
| 220 | 100 | 245 | 30%, 18mm | 3 |
| 240 | 109 | 260 | 30%, 18mm | 2 |
| 260 | 118 | 280 | 30%, 18mm | 2 |
Rockshox Psylo Gold RC 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 65 | 5 |
| 120 | 54 | 75 | 4 |
| 140 | 64 | 85 | 4 |
| 160 | 73 | 95 | 3 |
| 180 | 82 | 105 | 3 |
| 200 | 91 | 115 | 2 |
| 220 | 100 | 125 | 2 |
| 240 | 109 | 135 | 1 |
Fox Float X Performance 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 |
| 120 | 54 | 145 | 30%, 18mm | 7 |
| 140 | 64 | 165 | 30%, 18mm | 7 |
| 160 | 73 | 180 | 30%, 18mm | 6 |
| 180 | 82 | 200 | 30%, 18mm | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 |
| 220 | 100 | 240 | 30%, 18mm | 4 |
| 240 | 109 | 255 | 30%, 18mm | 3 |
| 260 | 118 | 275 | 30%, 18mm | 3 |
Rockshox Zeb Base 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 47 | 13 |
| 120 | 54 | 56 | 12 |
| 140 | 64 | 64 | 11 |
| 160 | 73 | 72 | 11 |
| 180 | 82 | 80 | 10 |
| 200 | 91 | 88 | 9 |
| 220 | 100 | 96 | 8 |
| 240 | 109 | 102 | 7 |
Fox Float X Perf. Elite 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Perf. Elite 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Fox 36 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 100 | 45 | 61 | 12/8 | 8/5 |
| 120 | 54 | 71 | 11/8 | 8/5 |
| 140 | 64 | 81 | 10/8 | 8/5 |
| 160 | 73 | 90 | 9/8 | 8/5 |
| 180 | 82 | 99 | 8/7 | 6/4 |
| 200 | 91 | 109 | 7/6 | 6/4 |
| 220 | 100 | 115 | 5/4 | 6/4 |
| 240 | 109 | 120 | 3/2 | 6/4 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 100 | 45 | 57 | 11/8 | 8/5 |
| 120 | 54 | 64 | 10/8 | 8/5 |
| 140 | 64 | 72 | 9/8 | 8/5 |
| 160 | 73 | 81 | 8/7 | 8/5 |
| 180 | 82 | 90 | 7/6 | 6/4 |
| 200 | 91 | 98 | 6/5 | 6/4 |
| 220 | 100 | 107 | 4/3 | 6/4 |
| 240 | 109 | 114 | 2/1 | 6/4 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5 |
Fox 36 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 100 | 45 | 61 | 12/8 | 8/5 |
| 120 | 54 | 71 | 11/8 | 8/5 |
| 140 | 64 | 81 | 10/8 | 8/5 |
| 160 | 73 | 90 | 9/8 | 8/5 |
| 180 | 82 | 99 | 8/7 | 6/4 |
| 200 | 91 | 109 | 7/6 | 6/4 |
| 220 | 100 | 115 | 5/4 | 6/4 |
| 240 | 109 | 120 | 3/2 | 6/4 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Fox Float X Factory 205x60
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5-10 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5-10 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5-10 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5-10 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5-10 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5-10 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5-10 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5-10 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5-10 |
Fox 38 Factory 160 29
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 120 | 54 | 79 | 9,8 | 5,5 |
| 130 | 59 | 83 | 8,7 | 5,5 |
| 140 | 64 | 87 | 7,6 | 5,5 |
| 150 | 68 | 91 | 7,6 | 5,5 |
| 160 | 73 | 96 | 6,5 | 5,5 |
| 170 | 77 | 100 | 6,5 | 5,5 |
| 180 | 82 | 104 | 5,4 | 5,5 |
| 190 | 86 | 109 | 4,3 | 5,5 |
| 200 | 91 | 113 | 4,3 | 5,5 |
| 210 | 95 | 117 | 3,2 | 5,5 |
| 220 | 100 | 121 | 2,1 | 5,5 |
| 230 | 104 | 126 | 2,1 | 5,5 |
| 240 | 109 | 130 | 1,0 | 5,5 |
Vala 1 C Small Parts
Shop Spare Parts
Carbon - Pivot Bearings
Loading
Carbon - Controller, Motor, Downtube Protector, and Shuttle Guard
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Head Tube Badge | Clean frame surface, center on headtube | 1 | 20-27756 | |
| B | M5x10 BHCS | Apply Loctite 242 to threads | 4 | 9 Nm | 26-27915 |
| C | Shuttle guard | Line up with battery screws | 1 | 30-27825 | |
| D | Bosch DU Performance CX | Bosch part number EB11.100.00E | 1 | 72-25239 | |
| E | M4x16 BHCS | Apply grease to threads | 3 | 0.65 Nm | 26-23102 |
| F | DU protector | Use 30-27495 for size S & M | 1 | 30-27496 | |
| G | M6x10 BHCS | Apply loctite to threads | 2 | 3 Nm | 26-21224 |
| H | Bosch DU mount nut | Bosch part number EB11.200.03C | 2 | 26-27862 | |
| I | M8x7 Flip Chip | Apply grease to outside surface | 1 | 26-27479 | |
| J | 36.4 Seat Collar | 1 | 34-20201 | ||
| K | M4x26 Bosch Screw | 1 | 26-28150 | ||

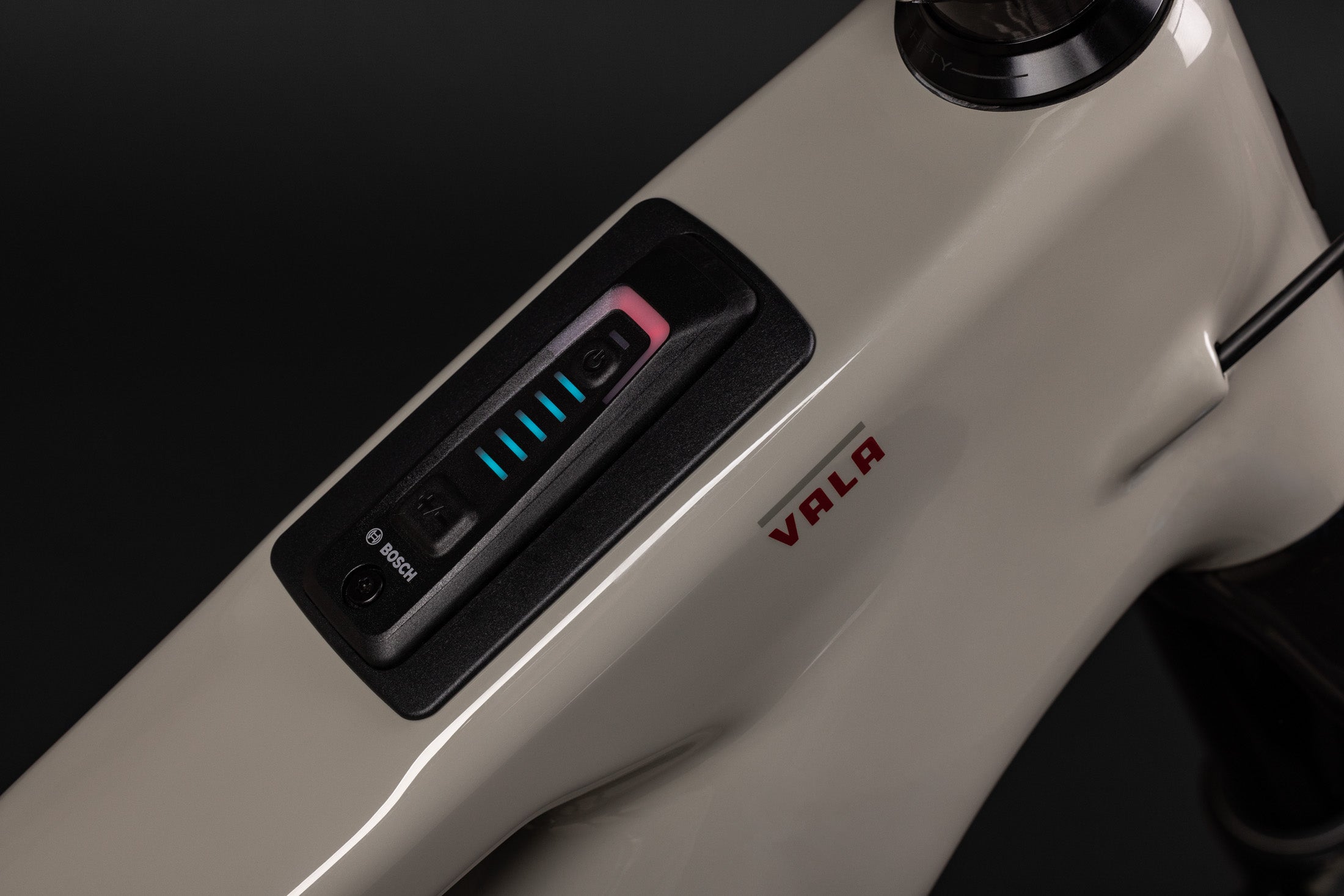

| L | Bosch TT System Controller | Bosch part number EB13.100.000 | 1 | 72-25240 | |
| M | Bosch TT adapter | Bosch part number EB13.200.0AE | 1 | 26-27857 |
Loading
Carbon - Linkage Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 2 | 0.5 Nm | 26-15532 |
| B | M5x16 Water Bottle screw | Apply grease to threads | 4 | 26-20124 | |
| C | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| D | M6 Tapered Washer | Apply grease to surface | 2 | 26-15633 | |
| E | M6 Washer | 2 | 26-11817 | ||
| F | M6x20 SHCS | Apply Loctite 242 to threads | 2 | 9 Nm | 26-15947 |
| G | M8x7 Flip Chip | Apply grease to outside surface | 1 | 26-27480 | |
| H | M8x45 Lowhead SHCS | Apply Loctite 242 to threads | 1 | 15.6 Nm | 26-20091 |
| I | Bosch charge socket holder | Bosch part number EB12.120.01A | 1 | 26-27867 | |
| J | Bosch MCx14 Screw | Bosch part number F04N.002.663 | 2 | 26-27869 | |
| K | Bosch COB O-ring | Bosch part number EB12.120.019 | 1 | 26-27868 | |
| L | Bosch charge socket | Bosch part number EB12.120.048 | 1 | 72-25237 | |
| M | Bosch charger port cover | Bosch part number EB12.120.01B | 1 | 26-27866 | |
| N | Bosch DU mount insert sleeve | Bosch part number EB11.200.0GK | 2 | 26-29334 | |
| O | Bosch DU mount bolt front | Bosch part number EB11.200.12M | 1 | 30 Nm | 26-27864 |
| P | Bosch DU mount bolt rear | Bosch part number EB11.200.12H | 1 | 30 Nm | 26-27865 |
| Q | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16292 |
| R | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
| S | Fender | 1 | 30-27475 | ||
| T | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27481 |
| U | 6900-2RS Bearing | 2 | 11-12681 | ||
| V | M10x3 Washer | Apply grease to inner surface | 2 | 26-15533 | |
| W | M10x20 bolt | Apply Loctite 242 to threads | 2 | 16 Nm | 26-27484 |
| X | 6902-2RS Max Bearing | 2 | 11-12218 | ||
| Y | Washer | Apply grease to inner surface | 2 | 26-27483 | |
| Z | M10x2.6 Flip Chip | Apply grease to outside surface | 2 | 26-27482 | |
| AA | Cable loop FT NDS | 1 | 26-25329 | ||
| BB | M3x12 BHCS | Apply Loctite 242 to threads | 1 | 0.1 Nm | 26-15939 |
Loading
Carbon - Rear Triangle Hardware, Chainguide, and Chainstay Protector
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm | 26-27487 | |
| E | Dust Shield | Apply grease to inner surface | 2 | 26-27488 | |
| F | 6802-2RS Bearing | 11-27485 | |||
| G | Bearing spacer | Apply grease to shaft | 2 | 26-27489 | |
| H | M10x6 Nut | Apply grease to inner surface | 2 | 26-27486 | |
| I | Chanistay protector | 30-27476 | |||
| J | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm | 26-15939 | |
| K | M4x10 FHCS | Apply Loctite 242 to threads | 0.65 Nm | 26-22938 | |
| L | OneUp chainguide | 19-22609 | |||
| M | OneUp chainguide back plate | 26-27839 | |||
| N | Cable Loop Guide | 30-27838 | |||
| O | M3x6 | Apply Loctite 242 to threads | 0.6 Nm | 26-22358 | |
| P | M5x12 HHS | Apply Loctite 242 to threads | 2 Nm | 26-22570 | |
| Q | Seatstay Protector | 30-21453 |
Loading
Carbon - Battery
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Battery mount rear PT600 | 1 | 26-27493 | ||
| B | M4x10 SHCS | Apply Loctite 242 to threads | 4 | 1.2 Nm | 26-28053 |
| C | Bosch H-Connector | 1 | 26-27870 | ||
| D | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | 1 | 78-25241 | |
| E | Battery mount front PT600 | 1 | 26-27494 | ||
| F | Battery mount rear PT600 | 1 | 26-27912 |
Loading
Aluminum - Motor, Shuttle Guard, and Remote
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M5x10 BHCS | Apply Loctite 242 to threads | 4 | 9 Nm | 26-27915 |
| B | Shuttle guard | Line up with battery screws | 1 | 30-27825 | |
| C | Bosch DU Performance CX | Bosch part number EB11.100.00E | 1 | 72-25239 | |
| D | DU Protector | 1 | 30-28663 | ||
| E | M4x16 BHCS | Apply grease to threads | 4 | 0.65 Nm | 26-23102 |
| F | M6x10 BHCS | Apply loctite 242 to threads | 2 | 3 Nm | 26-21224 |
| G | Bosch DU mount nut | Bosch part number EB11.200.03C | 2 | 26-27862 | |
| H | M5x16 Water Bottle screw | Apply grease to threads | 2 | 26-20124 | |
| I | 36.4 Seat Collar | 1 | 34-20201 | ||
| J | Bosch TT System Controller | Bosch part number EB13.100.000 | 1 | 72-25240 | |
| K | M4x12 BHCS | Apply grease to treads | 1 | 0.65 Nm | 26-18382 |
Loading
Aluminum - Motor Mounting Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Water Bottle Screw | 2 | 26-21360 | ||
| B | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
| C | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 2 | 0.5 Nm | 26-15532 |
| D | PowerMore wire clip | Use with Bosch range extender | 1 | 30-28124 | |
| E | M8x45 Lowhead SHCS | Apply Loctite 242 to threads | 1 | 22 Nm | 26-20091 |
| F | Bosch charge socket holder | Bosch part number EB12.120.01A | 1 | 26-27867 | |
| G | Bosch COB O-ring | Bosch part number EB12.120.019 | 1 | 26-27868 | |
| H | Bosch charge socket | Bosch part number EB12.120.048 | 1 | 72-25237 | |
| I | Bosch MCx14 Screw | Bosch part number F04N.002.663 | 2 | 26-27869 | |
| J | Bosch charger port cover | Bosch part number EB12.120.01B | 1 | 26-27866 | |
| K | Bosch DU screw wide V2 | Bosch part number EB11.200.15J | 1 | 30 Nm | 26-29606 |
| L | Bosch insert socket long V2 | Bosch part number EB11.200.15H | 1 | 26-29605 | |
| M | Cable loop FT NDS | 1 | 26-25329 | ||
| N | M3x8 BHCS | Apply Loctite 242 to threads | 1 | 0.5 Nm | 26-23284 |
| O | Bosch insert socket short V2 | Bosch part number EB11.200.12F | 1 | 26-29607 | |
| P | Bosch DU screw V2 | Bosch part number EB11.200.12G | 1 | 30 Nm | 26-29608 |
| Q | Fender | 1 | 30-27475 | ||
| R | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
Loading
Aluminum - Linkage Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| B | M6 Tapered Washer | Apply grease to surface | 1 | 26-15633 | |
| C | M6 Washer | 1 | 26-11817 | ||
| D | M6x20 SHCS | Apply Loctite 242 to threads | 1 | 9 Nm | 26-15947 |
| E | M10x3 Washer | Apply grease to inner surface | 2 | 26-15533 | |
| F | 6900-2RS Bearing | 2 | 11-12681 | ||
| G | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27481 |
| H | SSE Reducer | Apply grease to inner surface | 2 | 26-28683 | |
| I | 6902-2RS Max Bearing | 2 | 11-12218 | ||
| J | M10x20 bolt | Apply Loctite 242 to threads | 2 | 16 Nm | 26-27484 |
Loading
Aluminum - Rear Triangle Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27487 |
| E | Dust Shield | Apply grease to inner surface | 4 | 26-27488 | |
| F | 6802-2RS Bearing | 4 | 11-27485 | ||
| G | Bearing spacer | Apply grease to shaft | 2 | 26-27489 | |
| H | Chainstay Protector | 1 | 30-28664 | ||
| I | M3x8 BHCS | Apply Loctite 242 to threads | 1 | 0.5 Nm | 26-23284 |
| J | Cable Loop Guide | 1 | 30-27838 | ||
| K | OneUp chainguide back plate | 1 | 26-27839 | ||
| L | M4x10 FHCS | Apply Loctite 242 to threads | 2 | 0.65 Nm | 26-22938 |
| M | OneUp chainguide | 1 | 19-22609 | ||
| N | M5x12 HHS | Apply Loctite 242 to threads | 1 | 2 Nm | 26-22570 |
| O | M3x6 | Apply Loctite 242 to threads | 2 | 0.6 Nm | 26-22358 |
| P | Seatstay Protector | 1 | 30-21453 | ||
| Q | Hose Grommet | 1 | 26-19207 |
Loading
Aluminum - Front Triangle Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | 6902-2RS Max Bearing | 4 | 11-12218 | ||
| B | Bearing Dust Shield | Apply grease to inner surface | 4 | 26-11612 | |
| C | 15x48 Bearing spacer | 1 | 26-17707 | ||
| D | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| E | 15x40.25 Bearing Spacer | 1 | 26-17013 | ||
| F | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16292 |
| G | M6 Tapered Washer | Apply grease to surface | 2 | 26-15633 | |
| H | M6 Washer | 2 | 26-11817 | ||
| I | M6x20 SHCS | Apply Loctite 242 to threads | 2 | 9 Nm | 26-15947 |
Loading
Aluminum - Battery
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M4x10 SHCS | Apply Loctite 242 to threads | 8 | 1.2 Nm | 26-28053 |
| B | Battery mount front PT600 | 1 | 26-27494 | ||
| C | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | 1 | 78-25241 | |
| D | Cable Tray | 1 | 30-28682 | ||
| E | Bosch H-Connector | 1 | 26-27870 | ||
| F | Battery mount rear PT600 | 1 | 26-27912 | ||
| G | Battery Mount Rear PT600 Type 2 | 1 | 26-28681 |
Loading
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| S - Carbon | High | A | 7 | 116 | 118 | 118 |
| M - Carbon | High | B | 7 | 118 | 118 | 120 |
| L - Carbon | High | A | 7 | 118 | 120 | 120 |
| XL - Carbon | High | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | High | A | 7 | 118 | 120 | 120 |
| S - Carbon | Low | A | 7 | 116 | 118 | 118 |
| M - Carbon | Low | A | 7 | 116 | 118 | 118 |
| L - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| S - AL | None | B | 7 | 118 | 118 | 120 |
| M - AL | None | B | 7 | 118 | 118 | 120 |
| L - AL | None | B | 7 | 118 | 118 | 120 |
| XL - AL | None | B | 7 | 118 | 118 | 120 |
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
Dig Deep
Sizing and support for the Vala.
Geometry& Sizing
Setup& Support
“The best bike I’ve ever tested.”
“And there, already, we say to ourselves that it's won...I'd even go so far as to say that, at first glance and thanks to its versatility, the Vala strikes me as the most successful model since the brand's arrival on the electric market.”
“For my money, it’s right up there in terms of the best mid-travel e-MTBs and could well be the bike that others aspire to beat.”
“Its agile, playful character makes it particularly attractive for riders looking for maximum trail fun. Santa Cruz fans who already own their playful analogue trail ripper, the Nomad, and are looking for its electric counterpart, will find what they’re looking for in the Vala.”
SO WHAT'S THE VALA ALL ABOUT?
THE RUNDOWN
SO WHAT'S THE VALA ALL ABOUT?
CAN'T BE BOTHERED TO READ OR STILL LOOKING FOR ANSWERS ON THE VALA? WATCH AND LEARN
Also Consider...
Looking for something a little lighter
See the Heckler SL
