Bronson GX AXS
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Range Extender | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Front Spacing | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Bronson GX AXS
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/478 | 500/498 | 525/523 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 437 | 439 | 442 | 445 | 448 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 10/13 | 10/13 | 10/13 | 10/13 | 10/13 |
| Wheelbase (Hi/Lo) | 1208 | 1240 | 1267 | 1299 | 1331 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Bronson GX AXS
Setup & Support
Whether you’re the proud owner of a Bronson or are just digging deep into the details you’ll find it all here.
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 17-17.5mm | 8 | 3-5 |
| 120 | 54 | 145 | 30%, 17-17.5mm | 7 | 3-5 |
| 140 | 64 | 165 | 30%, 17-17.5mm | 7 | 3-5 |
| 160 | 73 | 180 | 30%, 17-17.5mm | 6 | 3-5 |
| 180 | 82 | 200 | 30%, 17-17.5mm | 5 | 3-5 |
| 200 | 91 | 220 | 30%, 17-17.5mm | 4 | 3-5 |
| 220 | 100 | 240 | 30%, 17-17.5mm | 4 | 3-5 |
| 240 | 109 | 255 | 30%, 17-17.5mm | 3 | 3-5 |
| 260 | 118 | 275 | 30%, 17-17.5mm | 3 | 3-5 |
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|---|
| 120 | 54 | 66 | 10/5 | 9/8 | 10/5 |
| 140 | 64 | 74 | 10/5 | 7/7 | 10/5 |
| 160 | 73 | 82 | 10/5 | 7/6 | 10/5 |
| 180 | 82 | 89 | 10/5 | 6/4 | 10/5 |
| 200 | 91 | 99 | 10/5 | 4/3 | 10/5 |
| 220 | 100 | 109 | 10/5 | 3/1 | 10/5 |
| 240 | 109 | 117 | 10/5 | 1/0 | 10/5 |
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 29-27474 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| E | 11-12218 | 2 | 6902-2RS Max Bearing |
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 29-27473 | 1 | Lower Link | ||
| B | 11-17708 | 4 | 6902-1ZR Bearing | ||
| C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 26-19126 | 1 | 15x28 Bearing spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-12678 | 1 | M6 Grease Fitting | 9 Nm | |
| G | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 0.5 Nm |
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-22843 | 1 | Glovebox lid | ||
| B | 26-25333 | 1 | Glovebox bezel | ||
| C | 26-23284 | 4 | M3x8 BHCS | 0.5 Nm | Apply Loctite 242 to threads |
| D | 30-23225 | 2 | Glovebox nut |
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-27472 | 1 | Chainstay Protector | ||
| E | 26-15939 | 1 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 30-23094 | 1 | Lower Link Fender | ||
| H | 26-18382 | 2 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| C | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| D | 26-11817 | 3 | M6 Washer | ||
| E | 26-15947 | 3 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| F | 08-16291 | 1 | 20 Nm | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| G | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| H | 26-15946 | 1 | 5.6 Nm | M5x20 SHCS | Apply Loctite 242 to threads |
| I | 26-12652 | 1 | M5 Washer | ||
| J | 26-27530 | 1 | M5 Tapered Washer | Apply grease to surface | |
| K | 08-27508 | 1 | 13.6Nm | Shock Mount Axle M10x63 | Apply Loctite 242 to threads only, apply grease to shaft only |
| L | 26-22461 | 1 | 20 Nm | M8x45 Shock Bolt | Apply Loctite 242 to threads |
| M | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| N | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface |
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 20-27756 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 30-23750 | 1 | Shuttle Guard Mount | ||
| C | 30-22560 | 1 | Shuttle Guard | ||
| D | 26-21249 | 2 | M4x8 BHCS | Apply grease to threads | 0.65 Nm |
| E | 30-27471 | 1 | Downtube Protector | ||
| F | 26-18382 | 2 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| G | 34-20201 | 1 | 36.4 Seat Collar |
| Frame Size | Flip Chip | Setup Key | Setup Cog | 30T | 32T | 34T |
|---|---|---|---|---|---|---|
| S | High | B | 7 | 116 | 116 | 118 |
| M | High | B | 7 | 116 | 116 | 118 |
| L | High | B | 7 | 116 | 118 | 118 |
| XL | High | B | 7 | 116 | 118 | 118 |
| XXL | High | B | 7 | 118 | 118 | 120 |
| S | Low | B | 7 | 116 | 116 | 118 |
| M | Low | B | 7 | 116 | 116 | 118 |
| L | Low | B | 7 | 116 | 118 | 118 |
| XL | Low | B | 7 | 116 | 118 | 118 |
| XXL | Low | B | 7 | 118 | 118 | 120 |
Bronson GX AXS
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.
Standout Features
Explore the trail taming highlights that make the Bronson so special.

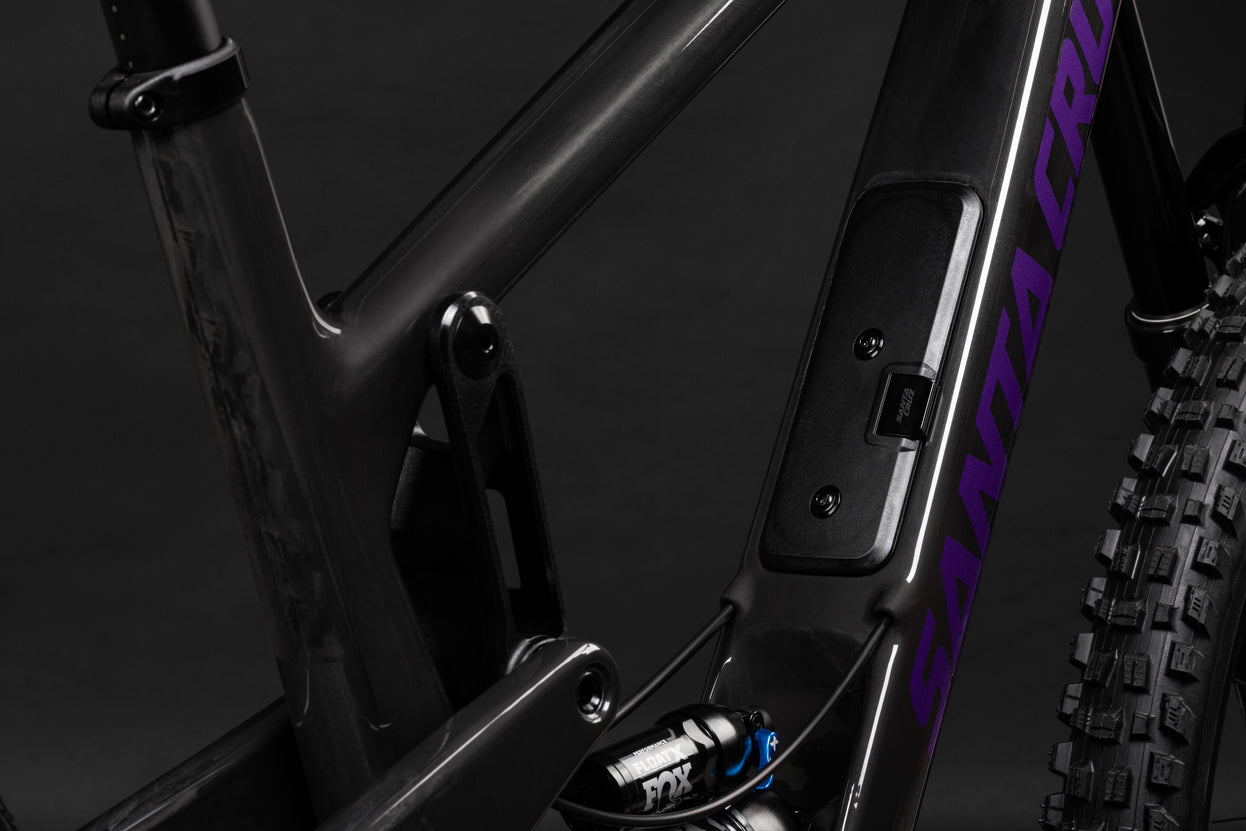

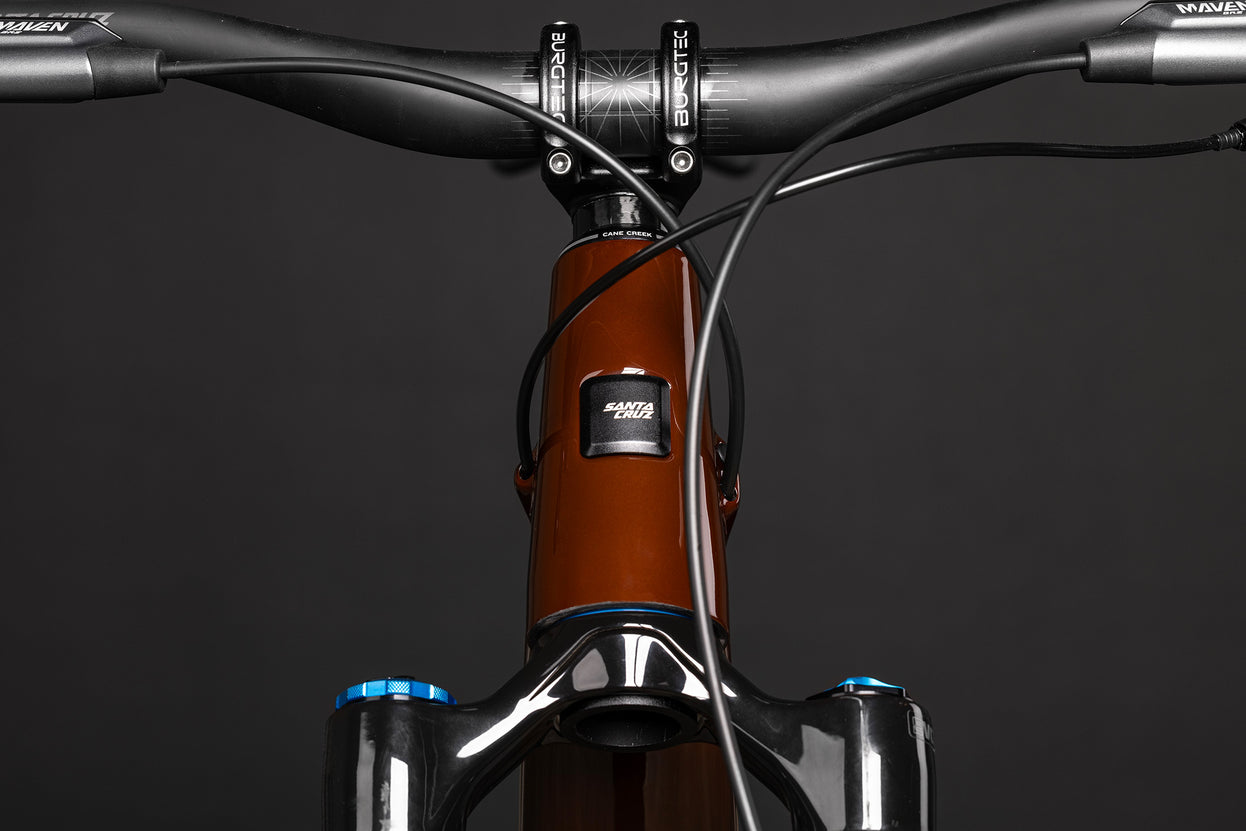

Glovebox

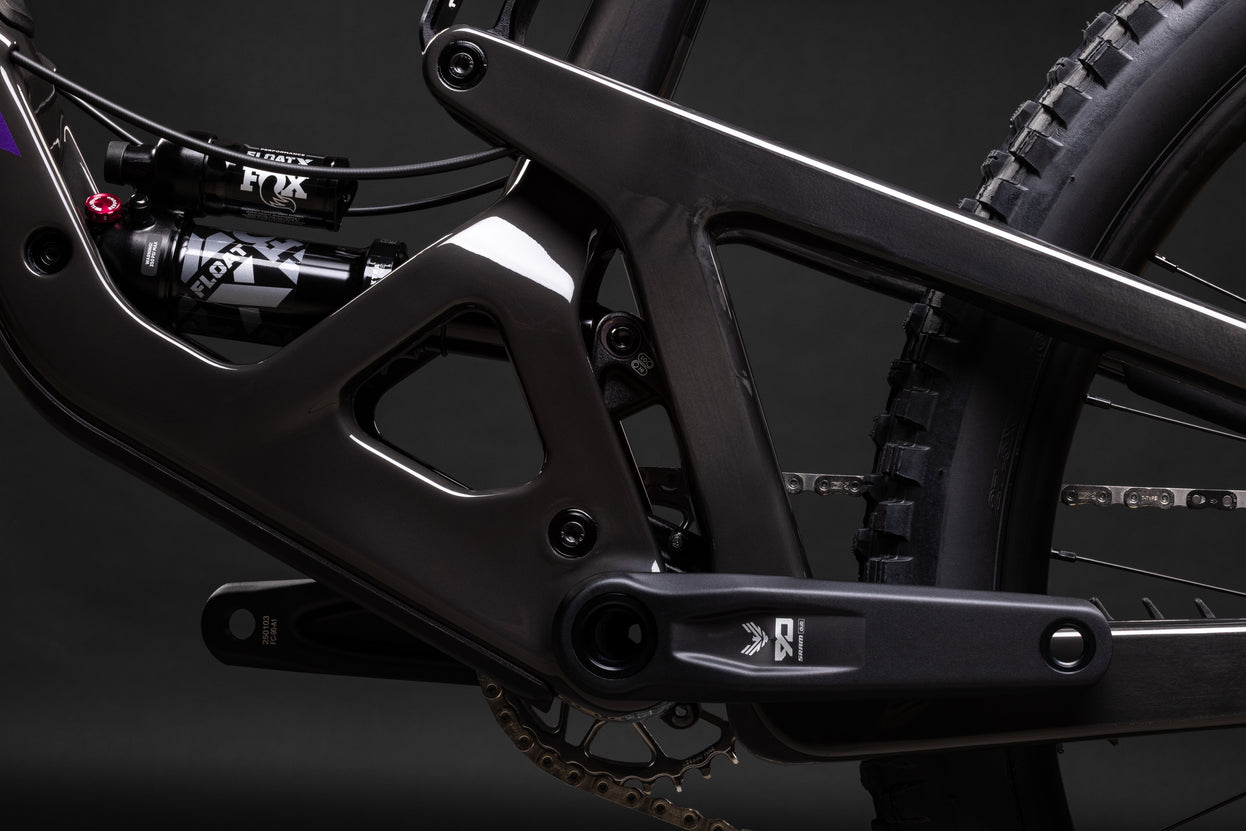

Flip Chip

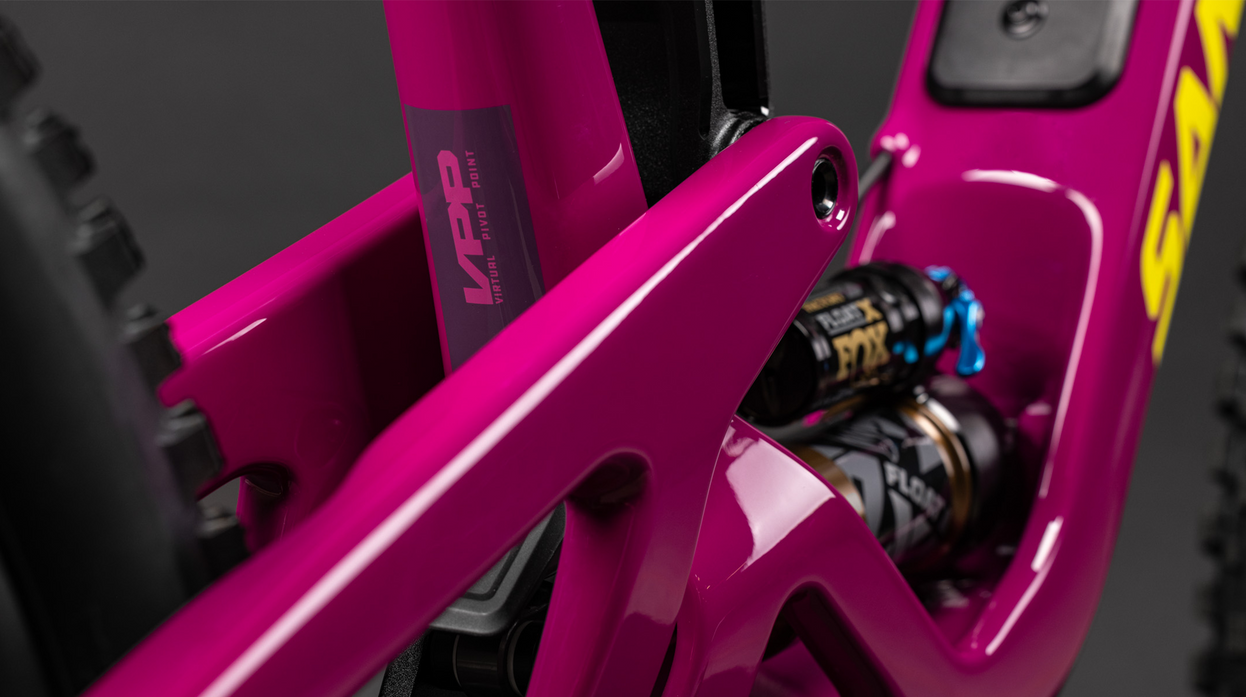

VPPâ„¢ Suspension

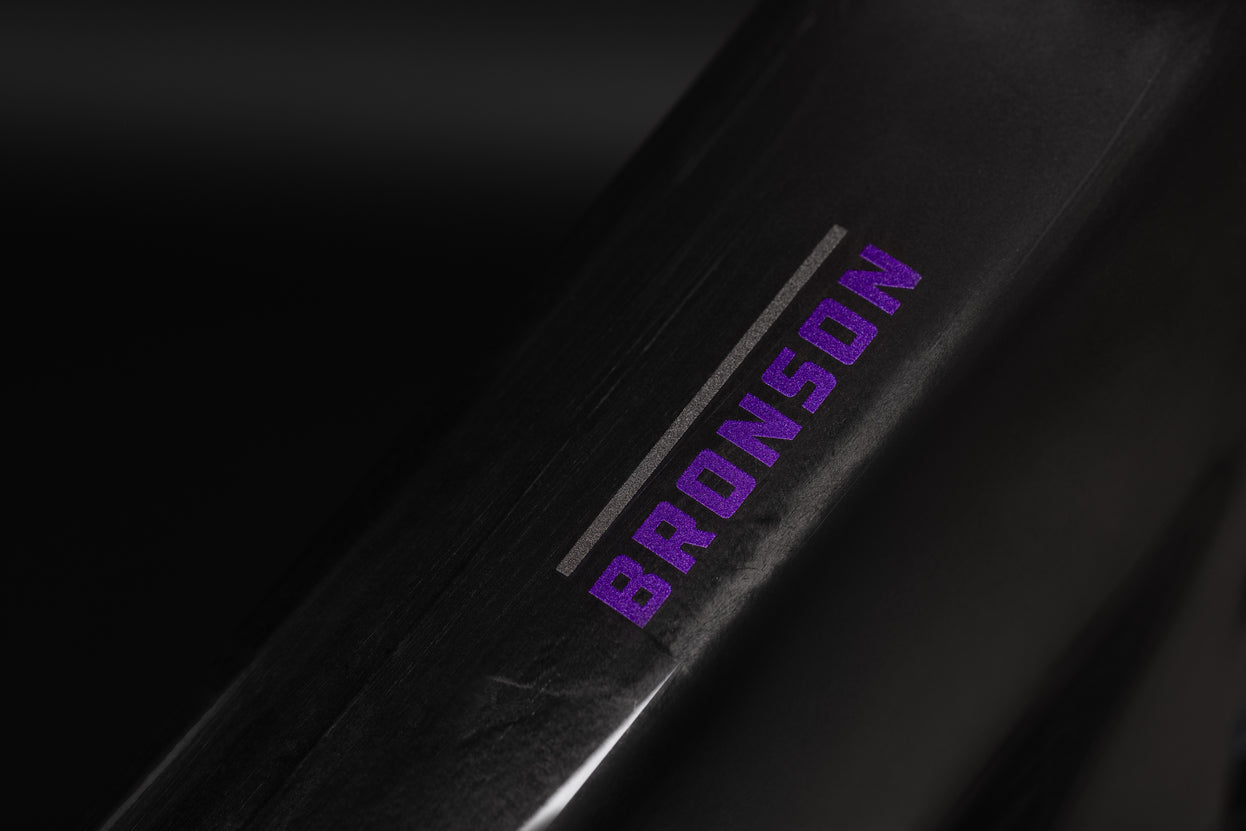

C Carbon Frame
Dig Deep
Build kit& Specs
Geometry& Sizing
Setup& Support
Other Builds
Bronson 70
Base model with same tires and big rotors as all Bronsons. SRAM 70 cable actuated T-Type Transmission.
Bronson 90
Core score upgrade. Upgraded hubs, headset, and dropper post. Upgraded suspension with more adjustment, SRAM 90 cable-operated T-Type Transmission and SRAM Maven brakes.
Bronson GX AXS
The high-performance all-rounder. Full SRAM GX Eagle electronic Transmission, SRAM Maven brakes, and Fox Elite suspension
Bronson R
Base model with same tires and big rotors as all Bronsons. Quality RockShox Lyrik fork and Fox Float Rhythm rear shock suspension, just without all the external tuning dials.
Bronson S
The workhorse. Upgraded hubs, headset, and dropper post. Upgraded suspension with more adjustment, SRAM Eagle cable-operated drivetrain and four-piston SRAM brakes.
Bronson X0 AXS
For the factory Jackson. The lightest CC carbon frame, full SRAM X0 electronic Transmission, Fox 36 Factory suspension and SRAM Maven brakes
