MY26 Vala C MidnightGreen

Vala 1 MY26

Model Specs

Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 151mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Translation missing: en.products.product.specs.seat_post_diameter 31.6mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1

Build Kits

Select a Build Kit

Frame Carbon C MX 150mm Travel, 4-Bar
Travel 150mm
Material Carbon C
Wheel Size MX
Weight 49.14lbs / 22.29kg
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM DB8
Cassette SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Drive Unit Bosch Performance CX BDU38
Fork RockShox Zeb Base, 160mm
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL
Front Rotor SRAM Centerline, 220mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Burgtec Alloy Bar -or- e13 TRS Base Bar
Headset Cane Creek 10 IS Integrated Headset
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL
Rear Rotor SRAM Centerline, 200mm
Shock FOX Float X Performance, 205x60
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
Saddle SDG Bel-Air V3 Max
Seatpost SDG Tellis Dropper, 31.6
Stem OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm
Valves Reserve Fillmore Valves

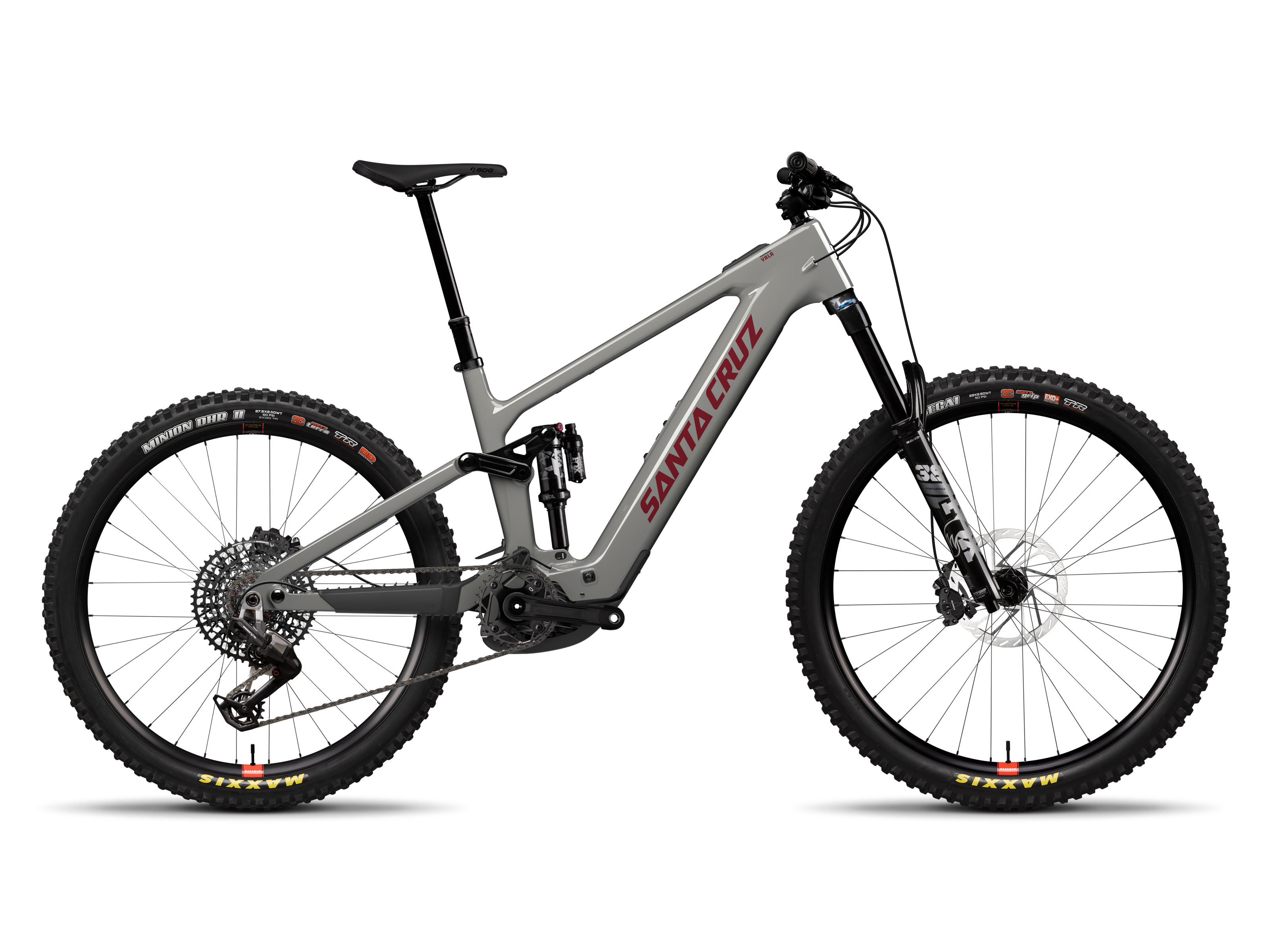

Frame Carbon C MX 150mm Travel, 4-Bar
Travel 150mm
Material Carbon C
Wheel Size MX
Weight 48.93lbs / 22.19kg
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM Maven Base
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Drive Unit Bosch Performance CX BDU38
Fork FOX 38 Float Performance, Grip, 160mm
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL
Front Rotor SRAM HS2 200mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars OneUp Aluminum Bar
Headset Cane Creek 10 IS Integrated Headset
Rear Derailleur SRAM 90 Eagle T-Type, 12spd
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL
Rear Rotor SRAM HS2 200mm
Shock FOX Float X Performance, 205x60
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
Saddle SDG Bel-Air V3, Max Lux-Alloy
Seatpost OneUp Dropper Post, 31.6
Stem OneUp Enduro Stem, 42mm
Valves Reserve Fillmore Valves

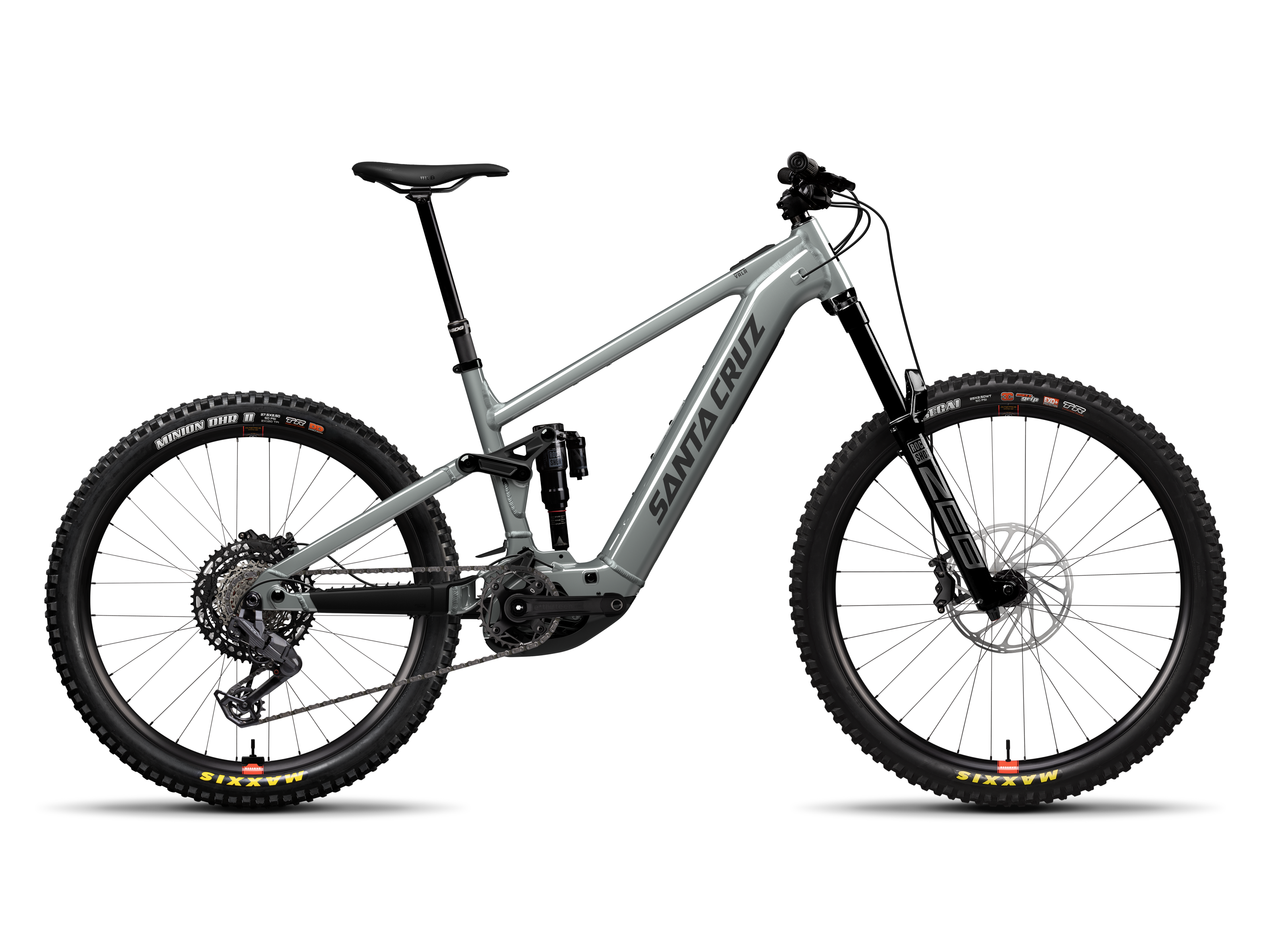

Frame Aluminum MX 150mm Travel, 4-Bar
Travel 150mm
Material Aluminum
Wheel Size MX
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes Shimano Deore M6120
Cassette Shimano Deore 6100, 10-51t
Chain Shimano Deore 6100, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Drive Unit Bosch Performance CX BDU38
Fork RockShox Psylo Gold RC, 160mm
Front Hub WTB Frequency Sport, 15x110, 6-Bolt, 32h
Front Rim WTB ST Tough 30
Front Rotor Shimano RT66, 220mm
Front Tire Maxxis Assegai 29"x2.5", EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise
Headset FSA IS-2/47/42 ACB
Rear Derailleur Shimano Deore M6100, SGS, 12spd
Rear Hub WTB Frequency Sport, 12x148, MicroSpline, 6-Bolt, 32h
Rear Rim WTB ST Tough 30
Rear Rotor Shimano RT66, 203mm
Shock RockShox Deluxe Select, 205x60
Rear Tire Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
Saddle WTB Silverado Medium, Steel
Seatpost SDG Tellis Dropper, 31.6
Stem OneUp Enduro Stem, 42mm
Valves Reserve Fillmore Valves
Frame Aluminum MX 150mm Travel, 4-Bar
Travel 150mm
Material Aluminum
Wheel Size MX
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM DB8
Cassette SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Drive Unit Bosch Performance CX BDU38
Fork RockShox Zeb Base, 160mm
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL
Front Rotor SRAM Centerline, 220mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise
Headset FSA IS-2/47/42 ACB
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL
Rear Rotor SRAM Centerline, 200mm
Shock RockShox Super Deluxe Base, 205x60
Rear Tire Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
Saddle WTB Silverado Medium, Steel
Seatpost SDG Tellis Dropper, 31.6
Stem OneUp Enduro Stem, 42mm
Valves Reserve Fillmore Valves
Frame Carbon C MX 150mm Travel, 4-Bar
Travel 150mm
Material Carbon C
Wheel Size MX
Weight 48.46lbs / 21.98kg
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM Maven Bronze
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM GX Eagle Cranks, 160mm
Drive Unit Bosch Performance CX BDU38
Fork FOX 38 Float Performance Elite, Grip X2, 160mm
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL 6069
Front Rotor SRAM HS2 200mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars OneUp Aluminum Bar, 35mm Rise, 800mm
Headset Cane Creek 50 IS Integrated Headset
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL 6069
Rear Rotor SRAM HS2 200mm
Shock FOX Float X Performance Elite, 205x60
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown
Saddle SDG Bel-Air V3 Max Lux-Alloy Atmos
Seatpost OneUp Dropper Post, 31.6
Stem OneUp Enduro Stem, 42mm
Valves Reserve Fillmore Valves
Frame Carbon CC MX 150mm Travel, 4-Bar
Travel 150mm
Material Carbon CC
Wheel Size MX
Weight 46.53lbs / 21.1kg
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM Maven Silver
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM X0 Eagle Cranks, 160mm
Drive Unit Bosch Performance CX BDU38
Fork FOX 38 Factory, Grip X2, 160mm
Front Hub DT Swiss 350, 15x110, 6-Bolt, 28h
Front Rim Reserve 30|HD Carbon
Front Rotor SRAM HS2 200mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar
Headset Cane Creek 50 IS Integrated Headset
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Rear Hub DT Swiss 350 DEG, 12x148, XD, 6-Bolt, 72t, 28h
Rear Rim Reserve 30|HD Carbon
Rear Rotor SRAM HS2 200mm
Shock FOX Float X Factory, 205x60
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost OneUp Dropper Post, 31.6
Stem OneUp Enduro Stem, 42mm
Valves Reserve Fillmore Valves
Frame Carbon CC MX 150mm Travel, 4-Bar
Travel 150mm
Material Carbon CC
Wheel Size MX
Weight 46.6lbs / 21.13kg
Battery Bosch PowerTube Battery 600Wh
Bottom Bracket N/A
Brakes SRAM Maven Ultimate
Cassette SRAM XX 1297 Eagle T-Type, 10-52t
Chain SRAM XX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM X0 Eagle Cranks, 160mm
Drive Unit Bosch Performance CX BDU38
Fork FOX 38 Factory, Grip X2, 160mm
Front Hub Industry Nine Hydra 2, 15x110, 6-Bolt 28h
Front Rim Reserve 30|HD Carbon
Front Rotor SRAM HS2 200mm
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar
Headset Chris King DropSet 3 Integrated Headset
Rear Derailleur SRAM XX Eagle AXS T-Type, 12spd
Rear Hub Industry Nine Hydra 2, 12x148, XD, 6-Bolt 28h
Rear Rim Reserve 30|HD Carbon
Rear Rotor SRAM HS2 200mm
Shock FOX Float X Factory, 205x60
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown
Saddle WTB Silverado Medium Fusion, Stainless
Seatpost RockShox Reverb AXS
Stem Burgtec Enduro MK3 Machined, 42mm
Valves Reserve Fillmore Valves

Geometry

Flip Chip
All units are in millimeters or degrees.
S M L XL XXL
Reach 435 460 480 500 525
Stack 623 632 641 655 668
Head tube angle 64.2° 64.2° 64.2° 64.2° 64.2°
Head Tube Length 110 120 130 145 160
Rear Center 439 440 443 446 450
Front Center 771 800 825 851 883
BB Height 344 344 344 344 344
BB Drop Front 28 28 28 28 28
BB Drop Rear 11 11 11 11 11
Wheelbase 1210 1240 1268 1297 1333
Top Tube Length 573 601 622 645 673
Seat Tube Length 380 400 420 460 500
Seat Tube Angle 77.5° 77.5° 77.5° 77.5° 77.5°
S M L XL XXL
Reach 432 456 477 497 522
Stack 625 635 643 657 670
Head tube angle 63.9° 63.9° 63.9° 63.9° 63.9°
Head Tube Length 110 120 130 145 160
Rear Center 439 440 443 446 450
Front Center 771 800 825 851 883
BB Height 340 340 340 340 340
BB Drop Front 32 32 32 32 32
BB Drop Rear 15 15 15 15 15
Wheelbase 1210 1240 1268 1297 1333
Top Tube Length 573 601 622 645 673
Seat Tube Length 380 400 420 460 500
Seat Tube Angle 77.2° 77.2° 77.2° 77.2° 77.2°
S M L XL
Reach 433 458 478 498
Stack 625 634 643 656
Head tube angle 64.1° 64.1° 64.1° 64.1°
Head Tube Length 110 120 130 145
Rear Center 440 440 445 445
Front Center 771 800 825 851
BB Height 342 342 342 342
BB Drop Front 30 30 30 30
BB Drop Rear 13 13 13 13
Wheelbase 1211 1241 1270 1297
Top Tube Length 578 606 628 652
Seat Tube Length 380 400 420 460
Seat Tube Angle 76.9° 76.9° 76.8° 76.8°

Size Guide

Small
154cm 5'1" - 165cm 5'5" Reach: 435mm
Medium
165cm 5'5" - 175cm 5'9" Reach: 460mm
Large
175cm 5'9" - 185cm 6'1" Reach: 480mm
X-Large
182cm 6'0" - 193cm 6'4" Reach: 500mm
XX-Large (Carbon Only)
193cm 6'4" - 200cm 6'7" Reach: 525mm

Transmission Setup

Frame Size Flip Chip Setup Key Setup Cog 32T 34T 36T
S - Carbon High A 7 116 118 118
M - Carbon High B 7 118 118 120
L - Carbon High A 7 118 120 120
XL - Carbon High A 7 118 120 120
XXL - Carbon High A 7 118 120 120
S - Carbon Low A 7 116 118 118
M - Carbon Low A 7 116 118 118
L - Carbon Low A 7 118 120 120
XL - Carbon Low A 7 118 120 120
XXL - Carbon Low A 7 118 120 120
S - AL None B 7 118 118 120
M - AL None B 7 118 118 120
L - AL None B 7 118 118 120
XL - AL None B 7 118 118 120

Exploded Diagrams

Carbon - Pivot Bearings
label part_number quantity name blurb
A 26-11612 4 Bearing Dust Shield Apply grease to inner surface
B 11-12218 4 6902-2RS Max Bearing
C 26-17707 1 15x48 Bearing spacer
D 26-17013 1 15x40.25 Bearing Spacer
Exploded Diagram of Vala
Carbon - Controller, Motor, Downtube Protector, and Shuttle Guard
label part_number quantity name blurb torque
A 20-27756 1 Head Tube Badge Clean frame surface, center on headtube
B 26-27915 4 M5x10 BHCS Apply Loctite 242 to threads 9 Nm
C 30-27825 1 Shuttle guard Line up with battery screws
D 72-25239 1 Bosch DU Performance CX Bosch part number EB11.100.00E
E 26-23102 3 M4x16 BHCS Apply grease to threads 0.65 Nm
F 30-27496 1 DU protector Use 30-27495 for size S & M
G 26-21224 2 M6x10 BHCS Apply loctite to threads 3 Nm
H 26-27862 2 Bosch DU mount nut Bosch part number EB11.200.03C
I 26-27479 1 M8x7 Flip Chip Apply grease to outside surface
J 34-20201 1 36.4 Seat Collar
K 26-28150 1 M4x26 Bosch Screw
L 72-25240 1 Bosch TT System Controller Bosch part number EB13.100.000
M 26-27857 1 Bosch TT adapter Bosch part number EB13.200.0AE
Exploded Diagram of Vala
Carbon - Linkage Hardware
label part_number quantity torque name blurb
A 26-15532 2 0.5 Nm M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
B 26-20124 4 M5x16 Water Bottle screw Apply grease to threads
C 08-22343 1 20 Nm Pivot Axle M15x91 Apply Loctite 242 to threads only, apply grease to shaft only
D 26-15633 2 M6 Tapered Washer Apply grease to surface
E 26-11817 2 M6 Washer
F 26-15947 2 9 Nm M6x20 SHCS Apply Loctite 242 to threads
G 26-27480 1 M8x7 Flip Chip Apply grease to outside surface
H 26-20091 1 15.6 Nm M8x45 Lowhead SHCS Apply Loctite 242 to threads
I 26-27867 1 Bosch charge socket holder Bosch part number EB12.120.01A
J 26-27869 2 Bosch MCx14 Screw Bosch part number F04N.002.663
K 26-27868 1 Bosch COB O-ring Bosch part number EB12.120.019
L 72-25237 1 Bosch charge socket Bosch part number EB12.120.048
M 26-27866 1 Bosch charger port cover Bosch part number EB12.120.01B
N 26-29334 2 Bosch DU mount insert sleeve Bosch part number EB11.200.0GK
O 26-27864 1 30 Nm Bosch DU mount bolt front Bosch part number EB11.200.12M
P 26-27865 1 30 Nm Bosch DU mount bolt rear Bosch part number EB11.200.12H
Q 08-16292 1 20 Nm Pivot axle M15x80.5 Apply Loctite 242 to threads only, apply grease to shaft only
R 26-18382 2 0.65 Nm M4x12 BHCS Apply grease to treads
S 30-27475 1 Fender
T 26-27481 2 16 Nm M10x10 trunnion screw Apply Loctite 242 to threads only, apply grease to shaft only
U 11-12681 2 6900-2RS Bearing
V 26-15533 2 M10x3 Washer Apply grease to inner surface
W 26-27484 2 16 Nm M10x20 bolt Apply Loctite 242 to threads
X 11-12218 2 6902-2RS Max Bearing
Y 26-27483 2 Washer Apply grease to inner surface
Z 26-27482 2 M10x2.6 Flip Chip Apply grease to outside surface
AA 26-25329 1 Cable loop FT NDS
BB 26-15939 1 0.1 Nm M3x12 BHCS Apply Loctite 242 to threads
Heckler 10C Exp View
Carbon - Rear Triangle Hardware, Chainguide, and Chainstay Protector
label part_number quantity name blurb torque
A 08-22209 1 Rear axle 12x173.7 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20 Nm
D 26-27487 M10x26 Bolt Apply Loctite 242 to threads only, apply grease to shaft only 16 Nm
E 26-27488 2 Dust Shield Apply grease to inner surface
F 11-27485 6802-2RS Bearing
G 26-27489 2 Bearing spacer Apply grease to shaft
H 26-27486 2 M10x6 Nut Apply grease to inner surface
I 30-27476 Chanistay protector
J 26-15939 M3x12 BHCS Apply Loctite 242 to threads 0.1 Nm
K 26-22938 M4x10 FHCS Apply Loctite 242 to threads 0.65 Nm
L 19-22609 OneUp chainguide
M 26-27839 OneUp chainguide back plate
N 30-27838 Cable Loop Guide
O 26-22358 M3x6 Apply Loctite 242 to threads 0.6 Nm
P 26-22570 M5x12 HHS Apply Loctite 242 to threads 2 Nm
Q 30-21453 Seatstay Protector
Exploded Diagram of Vala
Carbon - Battery
label part_number quantity name torque blurb
A 26-27493 1 Battery mount rear PT600
B 26-28053 4 M4x10 SHCS 1.2 Nm Apply Loctite 242 to threads
C 26-27870 1 Bosch H-Connector
D 78-25241 1 Bosch battery PT600 Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E 26-27494 1 Battery mount front PT600
F 26-27912 1 Battery mount rear PT600
Heckler 10C Exp View
Aluminum - Motor, Shuttle Guard, and Remote
label quantity part_number name blurb torque
A 4 26-27915 M5x10 BHCS Apply Loctite 242 to threads 9 Nm
B 1 30-27825 Shuttle guard Line up with battery screws
C 1 72-25239 Bosch DU Performance CX Bosch part number EB11.100.00E
D 1 30-28663 DU Protector
E 4 26-23102 M4x16 BHCS Apply grease to threads 0.65 Nm
F 2 26-21224 M6x10 BHCS Apply loctite 242 to threads 3 Nm
G 2 26-27862 Bosch DU mount nut Bosch part number EB11.200.03C
H 2 26-20124 M5x16 Water Bottle screw Apply grease to threads
I 1 34-20201 36.4 Seat Collar
J 1 72-25240 Bosch TT System Controller Bosch part number EB13.100.000
K 1 26-18382 M4x12 BHCS Apply grease to treads 0.65 Nm
Technical diagram of a Vala AL bicycle frame with labeled parts on a white background
Aluminum - Motor Mounting Hardware
label quantity part_number name blurb torque
A 2 26-21360 Water Bottle Screw
B 2 26-18382 M4x12 BHCS Apply grease to treads 0.65 Nm
C 2 26-15532 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush 0.5 Nm
D 1 30-28124 PowerMore wire clip Use with Bosch range extender
E 1 26-20091 M8x45 Lowhead SHCS Apply Loctite 242 to threads 22 Nm
F 1 26-27867 Bosch charge socket holder Bosch part number EB12.120.01A
G 1 26-27868 Bosch COB O-ring Bosch part number EB12.120.019
H 1 72-25237 Bosch charge socket Bosch part number EB12.120.048
I 2 26-27869 Bosch MCx14 Screw Bosch part number F04N.002.663
J 1 26-27866 Bosch charger port cover Bosch part number EB12.120.01B
K 1 26-29606 Bosch DU screw wide V2 Bosch part number EB11.200.15J 30 Nm
L 1 26-29605 Bosch insert socket long V2 Bosch part number EB11.200.15H
M 1 26-25329 Cable loop FT NDS
N 1 26-23284 M3x8 BHCS Apply Loctite 242 to threads 0.5 Nm
O 1 26-29607 Bosch insert socket short V2 Bosch part number EB11.200.12F
P 1 26-29608 Bosch DU screw V2 Bosch part number EB11.200.12G 30 Nm
Q 1 30-27475 Fender
R 2 26-18382 M4x12 BHCS Apply grease to treads 0.65 Nm
Technical diagram of a Vala AL bicycle frame with labeled parts on a white background
Aluminum - Linkage Hardware
label quantity part_number name blurb torque
A 1 08-22343 Pivot Axle M15x91 Apply Loctite 242 to threads only, apply grease to shaft only 20 Nm
B 1 26-15633 M6 Tapered Washer Apply grease to surface
C 1 26-11817 M6 Washer
D 1 26-15947 M6x20 SHCS Apply Loctite 242 to threads 9 Nm
E 2 26-15533 M10x3 Washer Apply grease to inner surface
F 2 11-12681 6900-2RS Bearing
G 2 26-27481 M10x10 trunnion screw Apply Loctite 242 to threads only, apply grease to shaft only 16 Nm
H 2 26-28683 SSE Reducer Apply grease to inner surface
I 2 11-12218 6902-2RS Max Bearing
J 2 26-27484 M10x20 bolt Apply Loctite 242 to threads 16 Nm
Technical diagram of a Vala AL bicycle frame with labeled parts on a white background
Aluminum - Rear Triangle Hardware
label quantity part_number name blurb torque
A 1 08-22209 Rear axle 12x173.7 Apply grease to shaft and threads
B 1 23-23491 SCB UDH Interchangeable with Sram UDH
C 1 26-23492 SCB UDH screw Reverse thread 20 Nm
D 2 26-27487 M10x26 Bolt Apply Loctite 242 to threads only, apply grease to shaft only 16 Nm
E 4 26-27488 Dust Shield Apply grease to inner surface
F 4 11-27485 6802-2RS Bearing
G 2 26-27489 Bearing spacer Apply grease to shaft
H 1 30-28664 Chainstay Protector
I 1 26-23284 M3x8 BHCS Apply Loctite 242 to threads 0.5 Nm
J 1 30-27838 Cable Loop Guide
K 1 26-27839 OneUp chainguide back plate
L 2 26-22938 M4x10 FHCS Apply Loctite 242 to threads 0.65 Nm
M 1 19-22609 OneUp chainguide
N 1 26-22570 M5x12 HHS Apply Loctite 242 to threads 2 Nm
O 2 26-22358 M3x6 Apply Loctite 242 to threads 0.6 Nm
P 1 30-21453 Seatstay Protector
Q 1 26-19207 Hose Grommet
Technical diagram of a Vala AL bicycle frame with labeled parts on a white background
Aluminum - Front Triangle Hardware
label quantity part_number name blurb torque
A 4 11-12218 6902-2RS Max Bearing
B 4 26-11612 Bearing Dust Shield Apply grease to inner surface
C 1 26-17707 15x48 Bearing spacer
D 1 08-22343 Pivot Axle M15x91 Apply Loctite 242 to threads only, apply grease to shaft only 20 Nm
E 1 26-17013 15x40.25 Bearing Spacer
F 1 08-16292 Pivot axle M15x80.5 Apply Loctite 242 to threads only, apply grease to shaft only 20 Nm
G 2 26-15633 M6 Tapered Washer Apply grease to surface
H 2 26-11817 M6 Washer
I 2 26-15947 M6x20 SHCS Apply Loctite 242 to threads 9 Nm
Technical diagram of a Vala AL bicycle frame with labeled parts on a white background
Aluminum - Battery
label quantity part_number name blurb torque
A 8 26-28053 M4x10 SHCS Apply Loctite 242 to threads 1.2 Nm
B 1 26-27494 Battery mount front PT600
C 1 78-25241 Bosch battery PT600 Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
D 1 30-28682 Cable Tray
E 1 26-27870 Bosch H-Connector
F 1 26-27912 Battery mount rear PT600
G 1 26-28681 Battery Mount Rear PT600 Type 2
Technical diagram of a Vala AL eMTB Battery

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
