MY24. V10 CC DH X01 GlossBlackSparkle

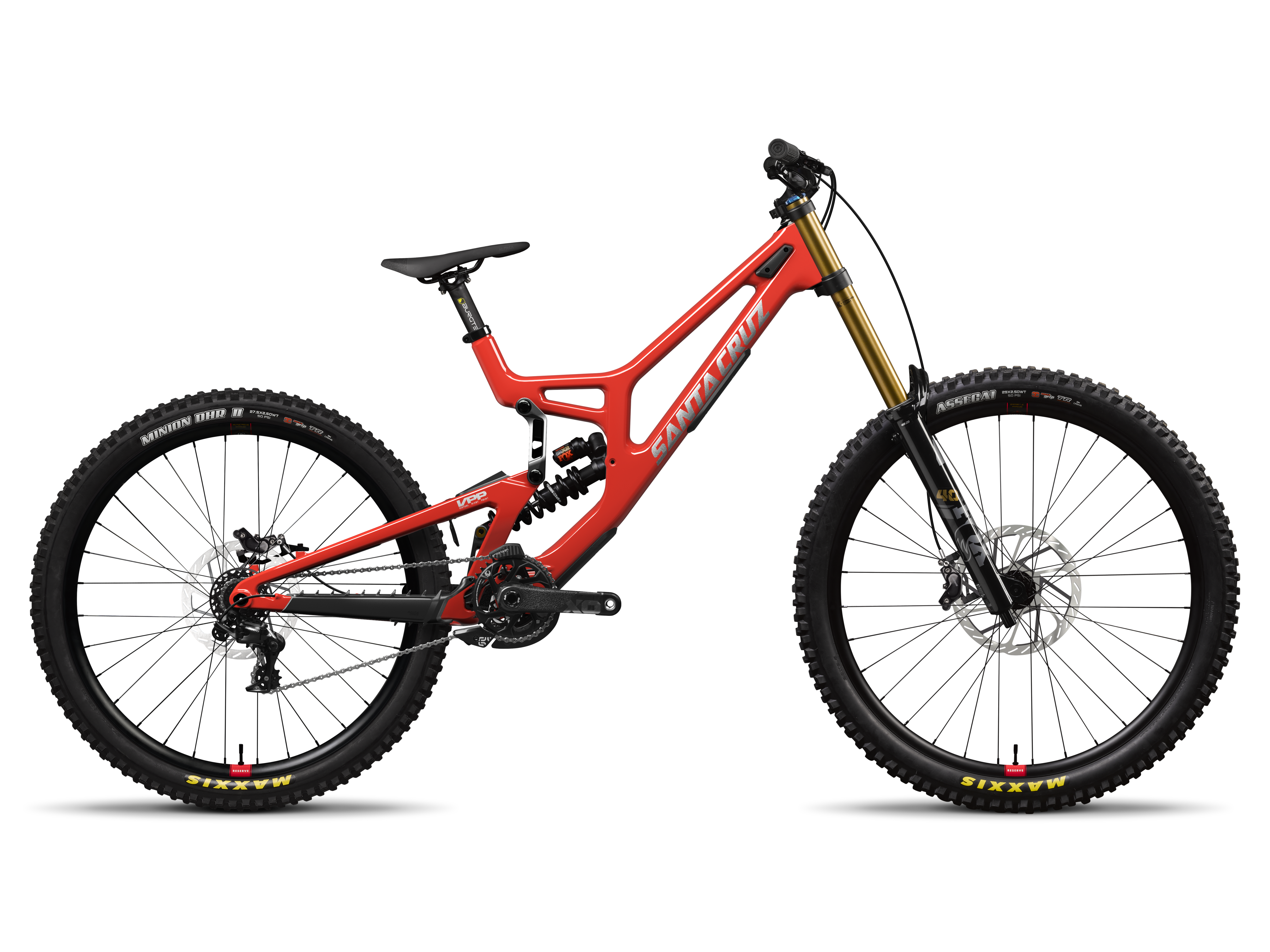

MY24. V10 CC DH X01 GlossRed

V10 8 MY24

2023 - 2024

There's nothing like riding a downhill bike

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there’s no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

Carbon CC
Front (MM) 203
Rear (MM) 208
Wheel Size 29/MX
Shop Spare Parts

Model Specs

Suspension System VPP
Rear Travel 208mm
Front Derailleur Mount No compatibility
Headset IS41 upper/ IS41 lower (Reach Adjust)
Seat Post Diameter 31.6mm
Seat Clamp Diameter 36.4mm
Shock Length 250mm
Shock Stroke 75mm
Fork Compatibility 200-203mm
Bottom Bracket Shell 83mm Threaded
Max Tire Clearance 2.5"
Max Chainring Size 36t
Shock Bushing Size Front 30x8
Shock Bushing Size Rear 30x8
Rear Spacing 157x12
Rear Brake Mount 200mm or 220mm Post
Fork Offset 52mm

Build Kits

Select a Build Kit

Weight 36.81 lbs / 16.69 kg
Material Carbon CC
Travel 208mm
Wheel Size MX (S, M, L) 29 (XL)
Shock FOX DHX2 Performance Elite Coil
Fork FOX 40 Float Performance, 203mm
Rear Derailleur SRAM GX DH, 7spd
Right Shifter SRAM GX, 7spd
Cassette SRAM PG720 DH, 11-25t
Chain SRAM PC1110, 11spd
Chainguide E13 LG1+ Chainguide
Bottom Bracket SRAM DUB 83mm Threaded BB
Headset Cane Creek 40 IS41 Headset 1-1/8"
Rear Tire Maxxis Minion DHR II 27.5"x2.5", 3C, MaxxGrip, DH
Front Tire Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH
Front Hub Industry Nine 1/1 -or- DT 350, 20x110 Boost, 32h
Front Rim Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Rear Hub Industry Nine 1/1 -or- DT 350, 12x157, HG, 32h
Rear Rim Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Front Rotor SRAM HS2 220mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Code Bronze Stealth
Crankset SRAM Descendant DH, 165mm, 36t
Handlebars OneUp Aluminum Bar, 35mm Rise, 800mm -OR- Burgtec RideWide DH Alloy Bar, 30mm Rise, 800mm
Stem Santa Cruz Direct Mount 35x45/50 -OR- OneUp Direct Mount 35x45/50
Saddle Fizik Alpaca Gravita X5 Saddle
Seatpost RaceFace Chester, 31.6
Grips / Bar Tape Burgtec Bartender Pro Grip
Weight 35.6 lbs / 16.15 kg
Material Carbon CC
Travel 208mm
Wheel Size MX (S, M, L) 29 (XL)
Shock Fox DHX2 Factory Coil
Fork FOX 40 Float Factory, 203mm
Rear Derailleur SRAM X01 DH, 7spd
Right Shifter SRAM X01 DH
Cassette SRAM X01 DH, 7spd
Chain SRAM PC1170, 11spd
Chainguide E13 LG1+ Chainguide
Bottom Bracket SRAM DUB 83mm Threaded BB
Headset Cane Creek 40 IS41 Headset 1-1/8"
Rear Tire Maxxis Minion DHR II 27.5"x2.5", 3C, MaxxGrip, DH
Front Tire Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH
Front Hub Industry Nine 1/1 -or- DT 350, 20x110 Boost, 32h
Front Rim Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Rear Hub Industry Nine 1/1 -or- DT 350, 12x157, HG, 32h
Rear Rim Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Front Rotor SRAM HS2 220mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Code Silver Stealth
Crankset SRAM X01 DH, DUB 83, 165mm, 36t
Handlebars OneUp Aluminum Bar, 35mm Rise, 800mm -OR- Burgtec RideWide DH Alloy Bar, 30mm Rise, 800mm
Stem Santa Cruz Direct Mount 35x45/50 -OR- OneUp Direct Mount 35x45/50
Saddle Fizik Alpaca Gravita X5 Saddle
Seatpost Burgtec Aluminum Post, 31.6
Grips / Bar Tape Burgtec Bartender Pro Grip
Weight 9.73 lbs / 4.41 kg
Material Carbon CC
Travel 208mm
Wheel Size MX (S, M, L) 29 (XL)
Shock Fox DHX2 Factory Coil

Geometry

Shock Position
All units are in millimeters or degrees.
s m l xl(29)
Reach short mid long 412-420-428 447-455-463 467-475-483 492-500-508
Stack 624 633 637 642
Head tube angle 63 63 63 63
Head Tube Length 100 110 115 120
Rear Center (Long/Mid/Short) 440-445-450 445-450-455 450-455-460 455-460-465
Front Center 785 825 847 874
BB Height 356 356 356 356
BB Drop Front 17 17 17 17
BB Drop Rear -1 -1 -1 17
Wheelbase 1230 1275 1302 1334
Seat Tube Length 435 445 455 465
Seat Tube Angle 77.9 77.4 77.3 77
Standover Height 729 730 731 731
s m l xl
Reach short mid long 411-419-427 446-454-462 466-474-482 491-499-507
Stack 625 634 638 643
Head tube angle 62.9 62.9 62.9 62.9
Head Tube Length 100 110 115 120
Rear Center (Long/Mid/Short) 440-445-451 446-451-456 451-456-461 456-461-466
Front Center 785 825 847 874
BB Height 353 353 353 353
BB Drop Front 19 19 19 19
BB Drop Rear 1 1 1 19
Wheelbase 1231 1275 1303 1335
Seat Tube Length 435 445 455 465
Seat Tube Angle 77.8 77.3 77.2 76.9
Standover Height 726 728 729 729
s m l xl
Reach short mid long 409-417-425 444-452-460 464-472-480 489-497-505
Stack 626 635 639 644
Head tube angle 62.7 62.7 62.7 62.7
Head Tube Length 100 110 115 120
Rear Center (Long/Mid/Short) 440-445-452 446-451-456 451-456-461 456-461-466
Front Center 785 825 847 874
BB Height 351 351 351 351
BB Drop Front 21 21 21 21
BB Drop Rear 3 3 3 21
Wheelbase 1231 1276 1303 1335
Seat Tube Length 435 445 455 465
Seat Tube Angle 77.6 77.1 77 76.7
Standover Height 724 726 726 726

Size Guide

Small
154cm 5'1" - 167cm 5'6" Reach: 412-425mm
Medium
165cm 5'5" - 175cm 5'9" Reach: 447-467mm
Large
172cm 5'8" - 185cm 6'1" Reach: 467-480mm
X-Large
182cm 6' - 195cm 6'5" Reach: 492-505mm

Exploded Diagrams

Lower Link
label part_number quantity name blurb torque
A 29-26981 1 Lower Link
B 11-17708 4 6902-1ZR Bearing
C 26-11612 4 Bearing Dust Shield Apply grease to inner surface
D 26-19126 1 15x28 Bearing spacer
E 26-20880 1 15x32 Bearing Spacer Apply grease to inner surface
F 26-15532 1 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
G 26-12678 1 M6 Grease Fitting 9 Nm
Exploded Diagram of V10
Upper Link
label part_number quantity name blurb
A 29-26982 1 Upper Link
B 11-12681 4 6900-2RS Bearing
C 26-15533 4 M10x3 Washer Apply grease to inner surface
Exploded Diagram of V10
Rear Triangle Hardware, Brake Mount, and Rear Axle
label part_number quantity name torque blurb
A 30-26670 1 CS Protector
B 26-15634 1 RD Hanger Bolt 12 Nm Apply Loctite 242 to threads
C 23-20089 1 V10 RD Hanger Short
D 23-24890 1 V10 RD Hanger Neutral
E 23-20090 1 V10 RD Hanger Long
F 26-11927 1 M4x4 Set Screw 1 Nm Apply Loctite 242 to threads
G 26-20087 1 V10 NDS DO chip offset
H 23-24889 1 V10 NDS DO Chip Neutral
I 08-24951 1 V10 Rear axle 12x182 Apply grease to shaft and threads
J 26-24963 1 V10 Brake adapter 200
K 26-24962 1 V10 Brake adapter 220
L 26-15947 2 M6x20 SHCS 9 Nm Apply Loctite 242 to threads
M 26-11817 2 M6 Washer
N 26-25330 1 Cable loop FT DS
O 26-25332 1 Cable loop SA DS
P 26-15939 4 M3x12 BHCS 0.5 Nm Apply grease to treads
Q 30-21453 1 Seatstay Protector
Exploded Diagram of V10
Upper and Lower Linkage Hardware
label part_number quantity torque name blurb
A 26-21231 1 22 Nm M8x50 Shock Bolt Apply loctite 242 to threads
B 26-27009 4 16 Nm M8x22 Lowhead SHCS Apply Loctite 242 to threads
C 26-12682 4 V10 Outer Bearing Washer Apply grease to inner surface
D 26-22461 1 20 Nm M8x45 Shock Bolt Apply Loctite 242 to threads
E 26-27123 1 Flip Chip Neutral DS Apply grease to surface
F 26-17065 1 Flip Chip Offset NDS Apply grease to surface
G 26-17064 1 Flip Chip Offset DS Apply grease to surface
H 26-27122 1 Flip Chip Neutral NDS Apply grease to surface
I 08-16291 1 20 Nm Pivot axle M15x68.5 Apply Loctite 242 to threads only, apply grease to shaft only
J 26-15633 2 M6 Tapered Washer Apply grease to surface
K 26-11817 2 M6 Washer
L 26-15947 2 9 Nm M6x20 SHCS Apply Loctite 242 to threads
M 08-20879 1 20 Nm Pivot Axle M15x72 Apply Loctite 242 to threads only, apply grease to shaft only
N 26-25329 1 Cable loop FT NDS
O 26-25331 1 Cable loop SA NDS
P 26-15939 3 0.5 Nm M3x12 BHCS Apply grease to treads
Exploded Diagram of V10
Headset, Downtube Protector, Shuttle Guard, Seat Collar, and Rear Fender
label part_number quantity name blurb torque
A 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
B 26-29286 1 RAHS Upper Offset Apply grease at frame interface
C 26-29288 1 RAHS Upper Neutral Apply grease at frame interface
D 26-29287 1 RAHS Lower Neutral Apply grease at frame interface
E 26-29285 1 RAHS Lower Offset Apply grease at frame interface
F 30-25026 1 Fork Bumper DS
G 30-25025 1 Fork Bumper NDS
H 26-23102 4 M4x16 BHCS Apply grease to threads 0.65 Nm
I 30-22560 1 Shuttle Guard
J 26-18382 4 M4x12 BHC Apply grease to treads 0.65 Nm
K 30-25335 1 Rear Fender
L 30-20093 1 DT Protector
M 26-15939 4 M3x12 BHCS Apply grease to treads 0.5 Nm
N 34-20201 1 36.4 Seat Collar
Exploded Diagram of V10

Manuals & Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.

FAQs

We designed the V10.8 with a 3-position adjustment at the headtube, lower link, and chainstay. We think the bike feels most neutral in the middle position for all three, and therefore is a good place to start.

The leverage curve was designed and optimized for a coil shock, but DH-oriented
air shocks can also work. The Fox Float X2 and Vivid Air shocks fit, as long as the
air valve is oriented correctly. Unfortunately, the Rockshox Super Deluxe AIR shock
does not fit, due to interference with the rebound knob. Rockshox coil shocks fit
no problem.

The V10.8 uses a 157x12 rear hub

The V10 uses standard ISCG-05 tabs and should work with most guides that use that standard. E13 LG1 comes stock on the complete bikes, we've also had good experiences with the MRP G5 and SXG. If you're looking for a minimalist-style guide, the OneUp Bashguide is a good choice.
