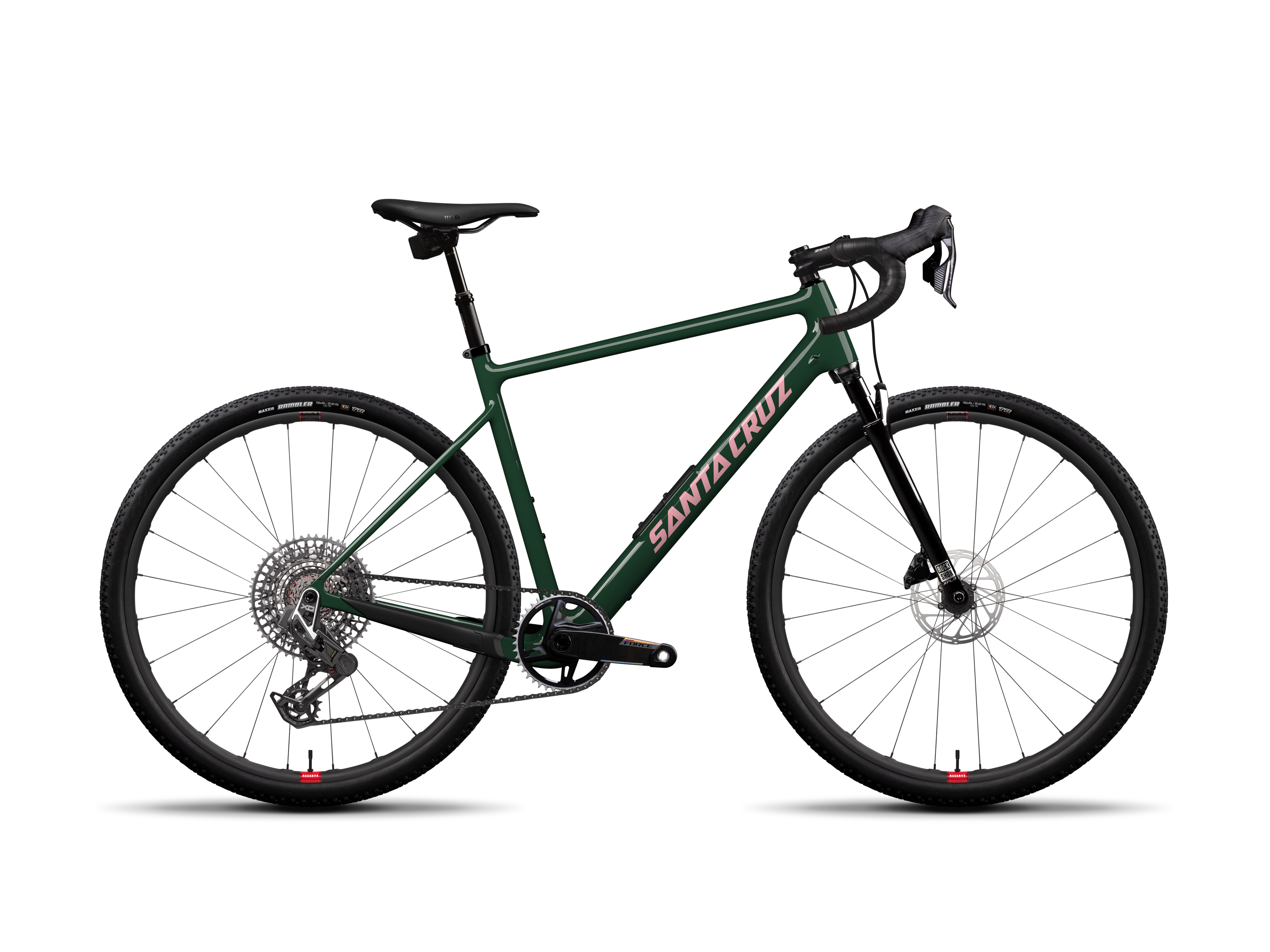

Stigmata Force 1x AXS RSV Rudy 2026

Stigmata 4 MY26

Model Specs

Bottom Bracket Shell Threaded 68mm
Rear Brake Mount 160mm FM
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Clamp On
Headset Integrated (IS41/52)
Max Chainring Size 42t (1x) | 50t (2x)
Max Tire Clearance 50mm (1x) | 45mm (2x)
Rear Spacing 142mm
Seat Clamp Diameter 31.8mm
Translation missing: en.products.product.specs.seat_post_diameter 27.2mm
UDH Compatible Yes
Water Bottle Mounts 3

Build Kits

Select a Build Kit

Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 20.86lbs / 9.46kg
Battery Charger N/A
Bottom Bracket SRAM DUB 68mm Road Wide BB
Brakes SRAM Apex
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM SX Eagle, 12spd
Chainguide N/A
Crankset SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Fork Carbon
Front Hub DT Swiss 370, 12x100, Centerlock, 28h
Front Rim WTB ASYM i25 28h 700c
Front Rotor SRAM Centerline, Centerlock, 160mm
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset FSA IS-2/47/42 ACB
Rear Derailleur SRAM Apex Eagle, 12spd
Rear Hub DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Rim WTB ASYM i25 28h 700c
Rear Rotor SRAM Centerline, Centerlock, 160mm
Shock N/A
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Right Shifter SRAM Apex
Saddle WTB Silverado Medium, CroMo
Seatpost Zipp Service Course, 27.2 All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Valves Reserve Fillmore Valves
Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 20.64lbs / 9.36kg
Battery Charger SRAM eTap Powerpack 1 Battery
Bottom Bracket SRAM DUB 68mm Road Wide BB
Brakes SRAM Rival
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset Rival XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Fork Carbon
Front Hub DT Swiss 370, 12x100, Centerlock, 28h
Front Rim Easton ARC Offset 25 700c
Front Rotor SRAM Centerline, Centerlock, 160mm
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Rear Hub DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Rim Easton ARC Offset 25 700c
Rear Rotor SRAM Centerline, Centerlock, 160mm
Shock N/A
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Right Shifter SRAM Rival AXS
Saddle WTB Silverado Medium, CroMo
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Valves Reserve Fillmore Valves
Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 23.5lbs / 10.66kg
Battery Charger SRAM eTap Powerpack 1 Battery
Bottom Bracket SRAM DUB 68mm Road Wide BB
Brakes SRAM Rival
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset Rival XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Fork RockShox Rudy Base XPLR, 40mm
Front Hub DT Swiss 370, 12x100, Centerlock, 28h
Front Rim Easton ARC Offset 25 700c
Front Rotor SRAM Centerline, Centerlock, 160mm
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Rear Hub DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Rim Easton ARC Offset 25 700c
Rear Rotor SRAM Centerline, Centerlock, 160mm
Shock N/A
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Right Shifter SRAM Rival AXS
Saddle WTB Silverado Medium, CroMo
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Valves Reserve Fillmore Valves

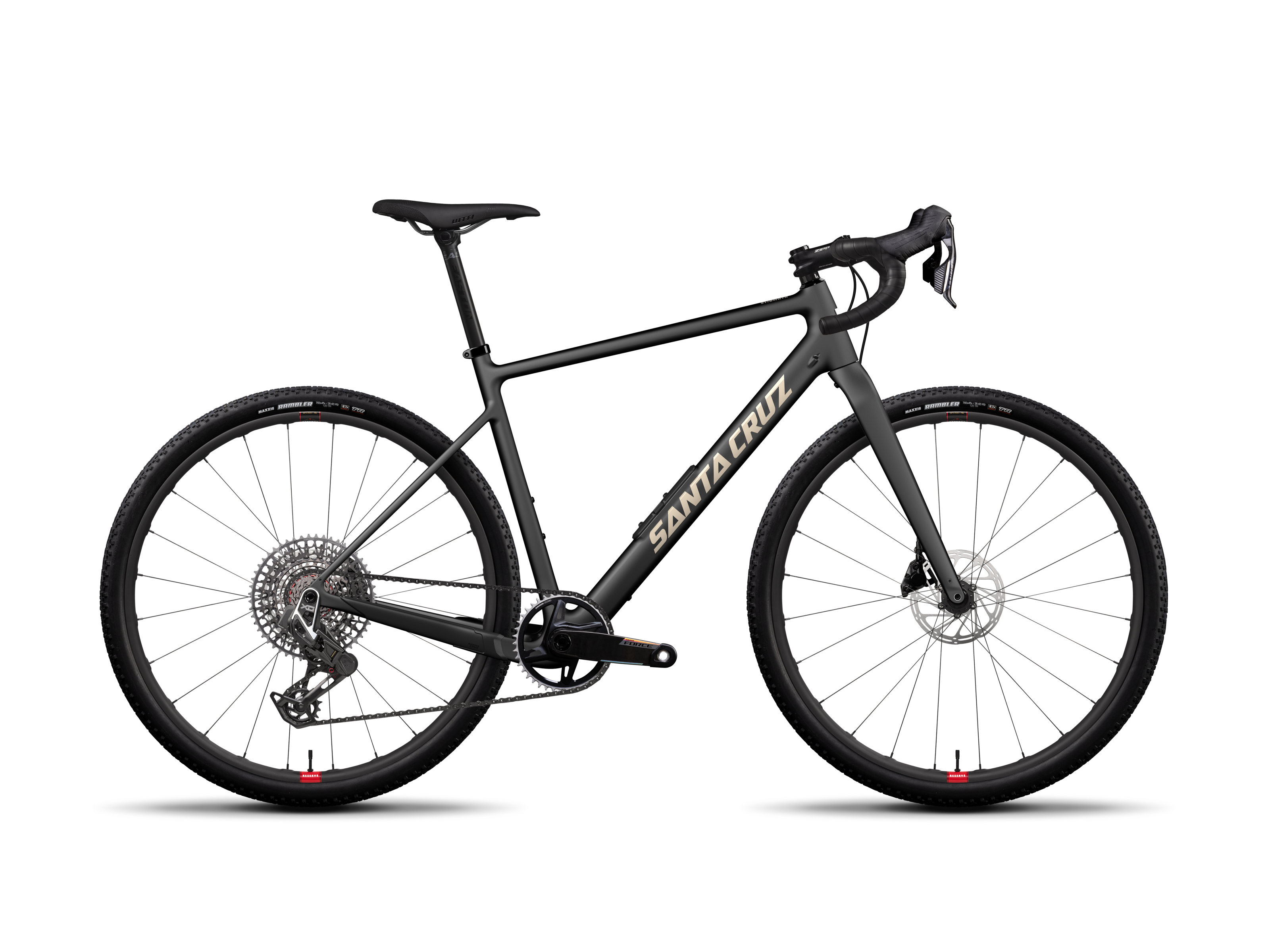

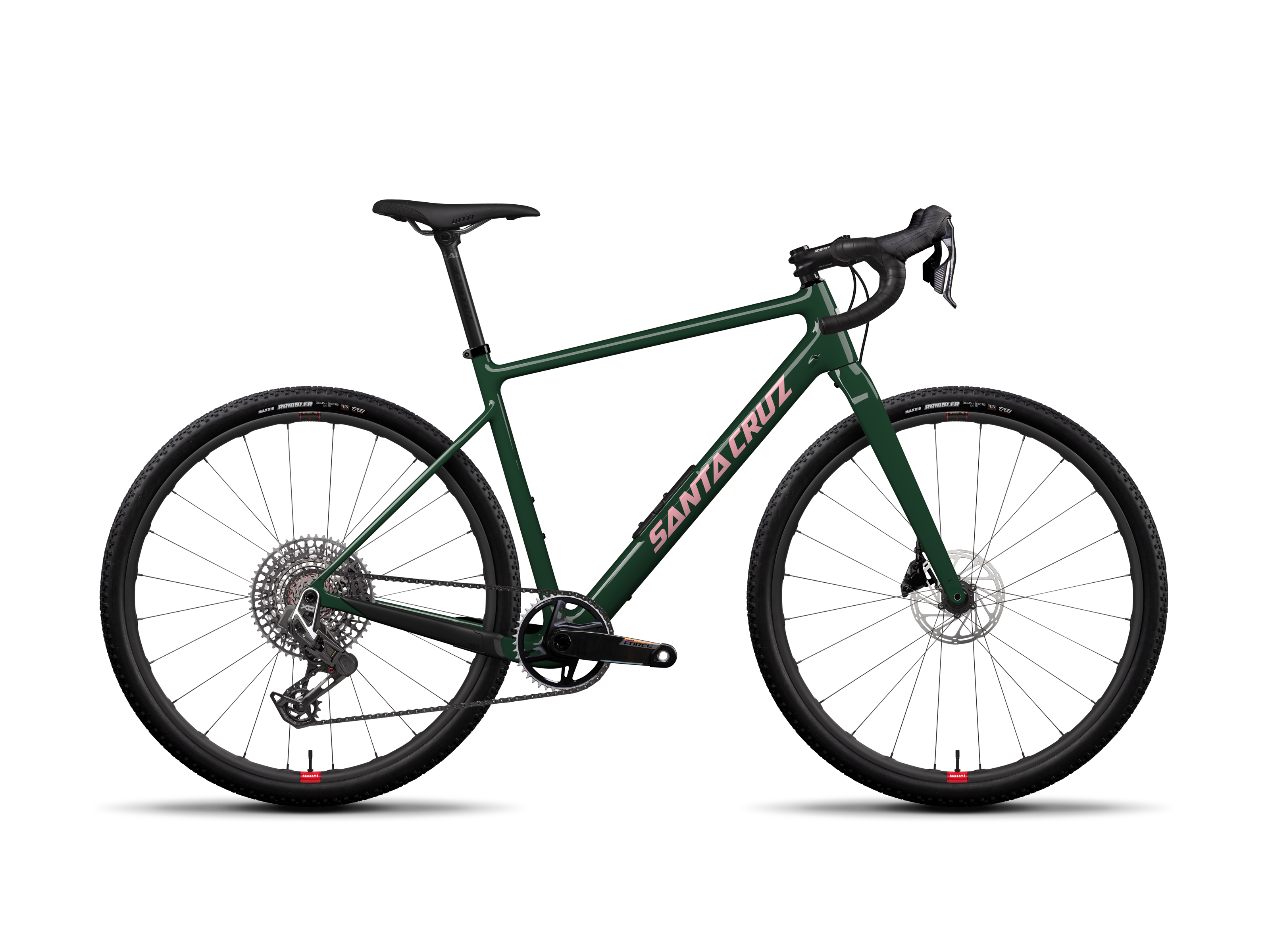

Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 19.14lbs / 8.68kg
Battery Charger SRAM eTap Powerpack 1 Battery
Bottom Bracket SRAM DUB 68mm Road Wide BB
Brakes SRAM Force
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset SRAM Force XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Fork Carbon
Front Hub DT Swiss 350, 12x100, Centerlock, 24h
Front Rim Reserve 25|GR
Front Rotor SRAM Centerline, Centerlock, 160mm
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Rear Hub DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
Rear Rim Reserve 25|GR
Rear Rotor SRAM Centerline, Centerlock, 160mm
Shock N/A
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Right Shifter SRAM Force AXS
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Valves Reserve Fillmore Valves
Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 23lbs / 10.43kg
Battery Charger SRAM eTap Powerpack 2 Battery
Bottom Bracket SRAM DUB 68mm Road Wide BB
Brakes SRAM Force
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset SRAM Force XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Fork RockShox Rudy Ultimate XPLR, 40mm
Front Hub DT Swiss 350, 12x100, Centerlock, 24h
Front Rim Reserve 25|GR
Front Rotor SRAM Centerline, Centerlock, 160mm
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Rear Hub DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
Rear Rim Reserve 25|GR
Rear Rotor SRAM Centerline, Centerlock, 160mm
Shock N/A
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Right Shifter SRAM Force AXS
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost RockShox Reverb AXS XPLR, 27.2 XS/S: 50mm, M/L/XL/XXL: 75mm
Stem Zipp Service Course Stem All Sizes: 70mm
Valves Reserve Fillmore Valves
Frame Carbon CC Gravel
Material Carbon CC
Wheel Size 700c
Weight 4.12lbs / 1.87kg

Geometry

All units are in millimeters or degrees.
XS SM MD LG XL XXL
Reach 375 390 405 420 435 450
Stack 550 564 576 600 612 631
Head tube angle 69.5° 69.5° 69.5° 69.5° 69.5° 69.5°
Head Tube Length 90 105 120 145 160 180
Rear Center 423 423 423 423 423 423
Front Center 605 625 645 668 688 710
BB Height 278 278 280 280 282 282
BB Drop 78 78 76 76 74 74
Wheelbase 1023 1043 1063 1087 1108 1130
Top Tube Length 533 552 570 592 610 631
Seat Tube Length 450 455 485 515 545 575
Seat Tube Angle 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°

Size Guide

X-Small
152cm 5'0" - 160cm 5'3"
Small
160cm 5'3" - 167cm 5'6"
Medium
167cm 5'6" - 175cm 5'9"
Large
175cm 5'9" - 182cm 6'0"
X-Large
182cm 6'0" - 188cm 6'2"
XX-Large
188cm 6'2" - 193cm 6'4"

Transmission Setup

Frame Size Setup Key Setup Cog 34T 36T 38T 40T
Small A 7 116 118 118 120
Medium A 7 116 118 118 120
Large A 7 116 118 118 120
XLarge A 7 116 118 118 120
XXLarge A 7 116 118 118 120

Exploded Diagrams

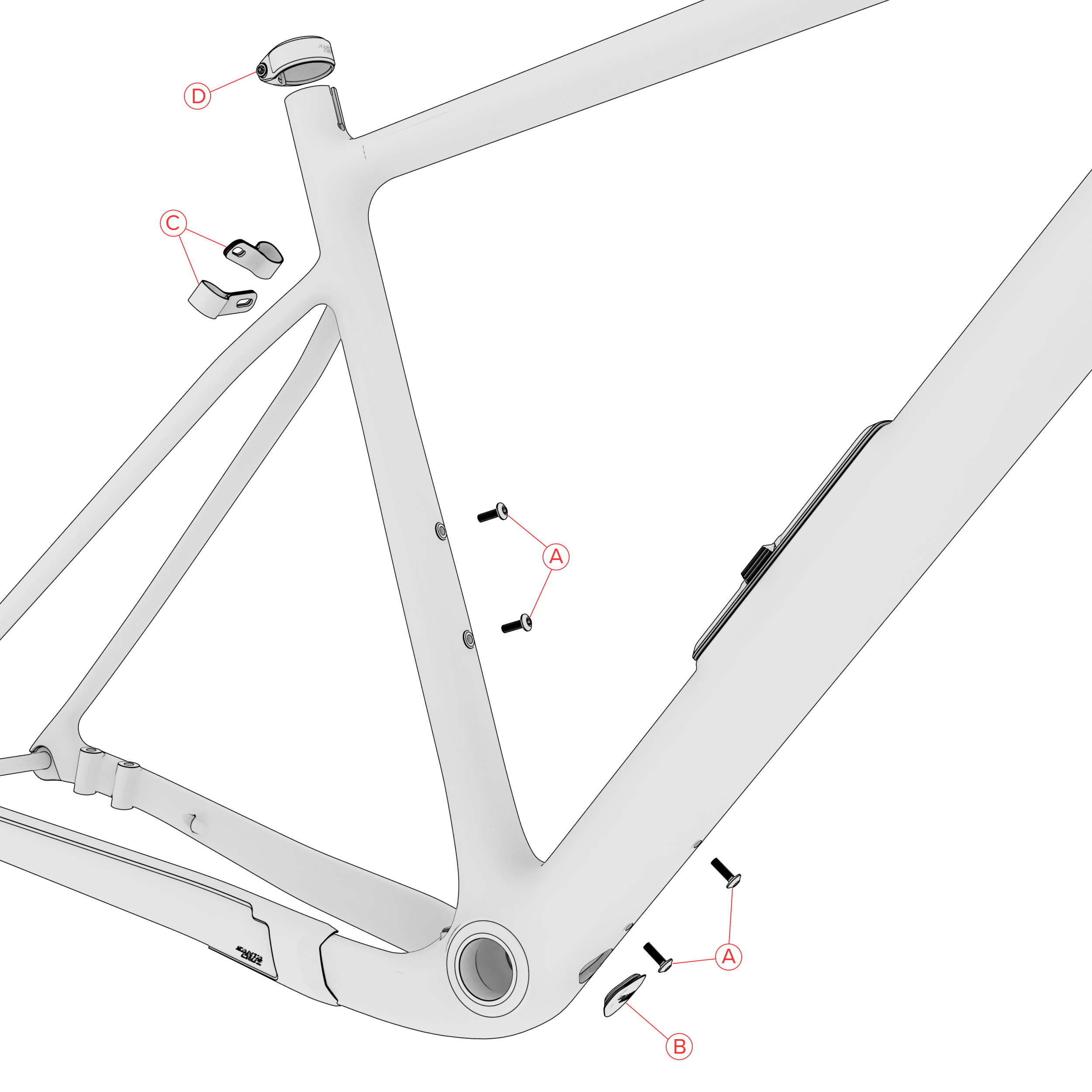

Front Triangle Hardware
label part_number quantity name
A 26-21360 4 Water Bottle Screw
B 26-20104 1 DT Plug
C 26-20195 2 Fender Mount
D 34-20202 1 31.8 Seat Collar
Exploded Diagram of Stigmata

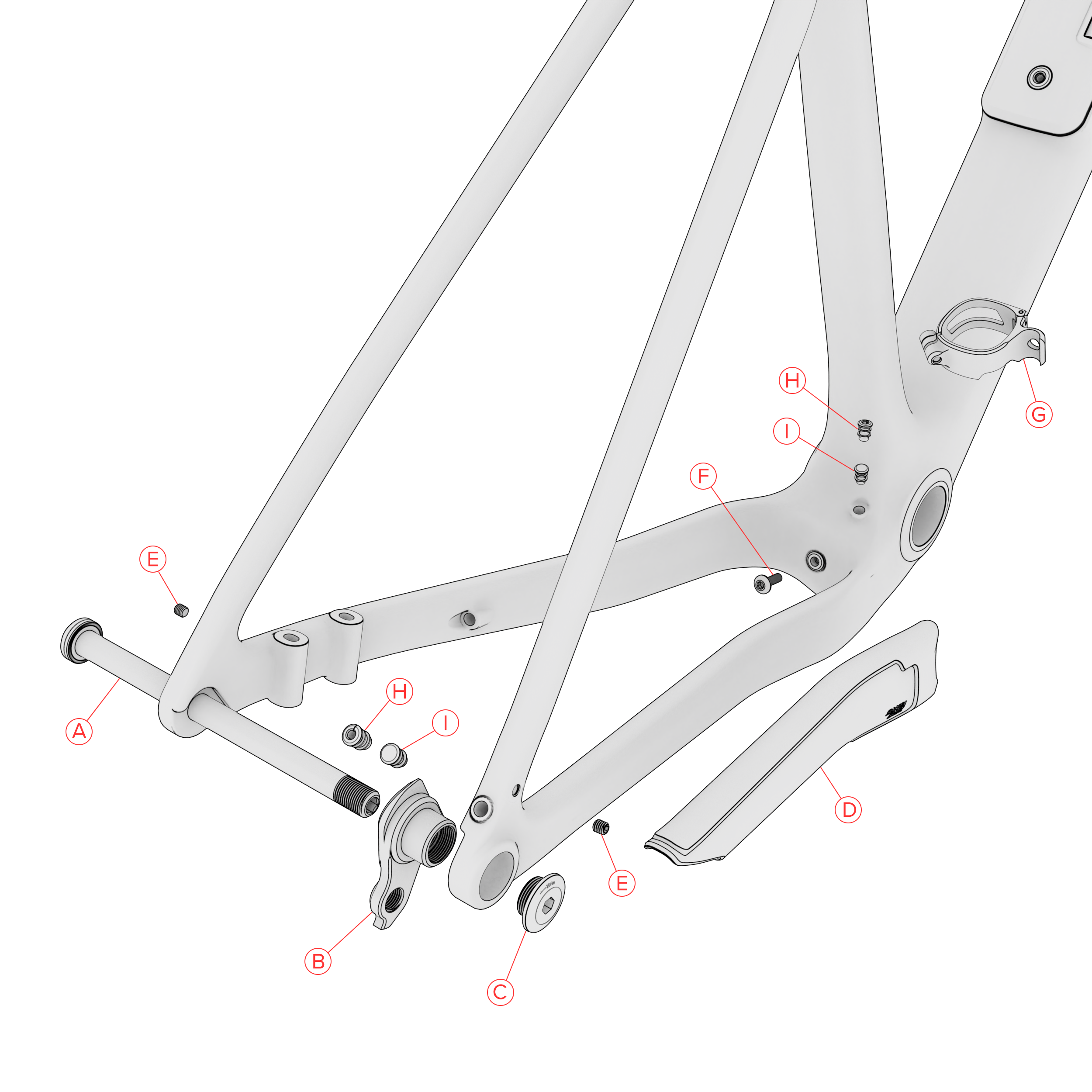

Rear Triangle, Chainstay Protector, and Rear Axle
label part_number quantity name blurb torque
A 08-22208 1 Rear Axle 168.5x12 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20Nm
D 30-20192 1 CS Protector
E 26-15532 2 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
F 26-21360 1 Water Bottle Screw
G 23-20194 1 FD Mount 3Nm
H 26-20864 2 Di2 Plug
I 26-20865 2 Wireless Plug
Exploded Diagram of Stigmata

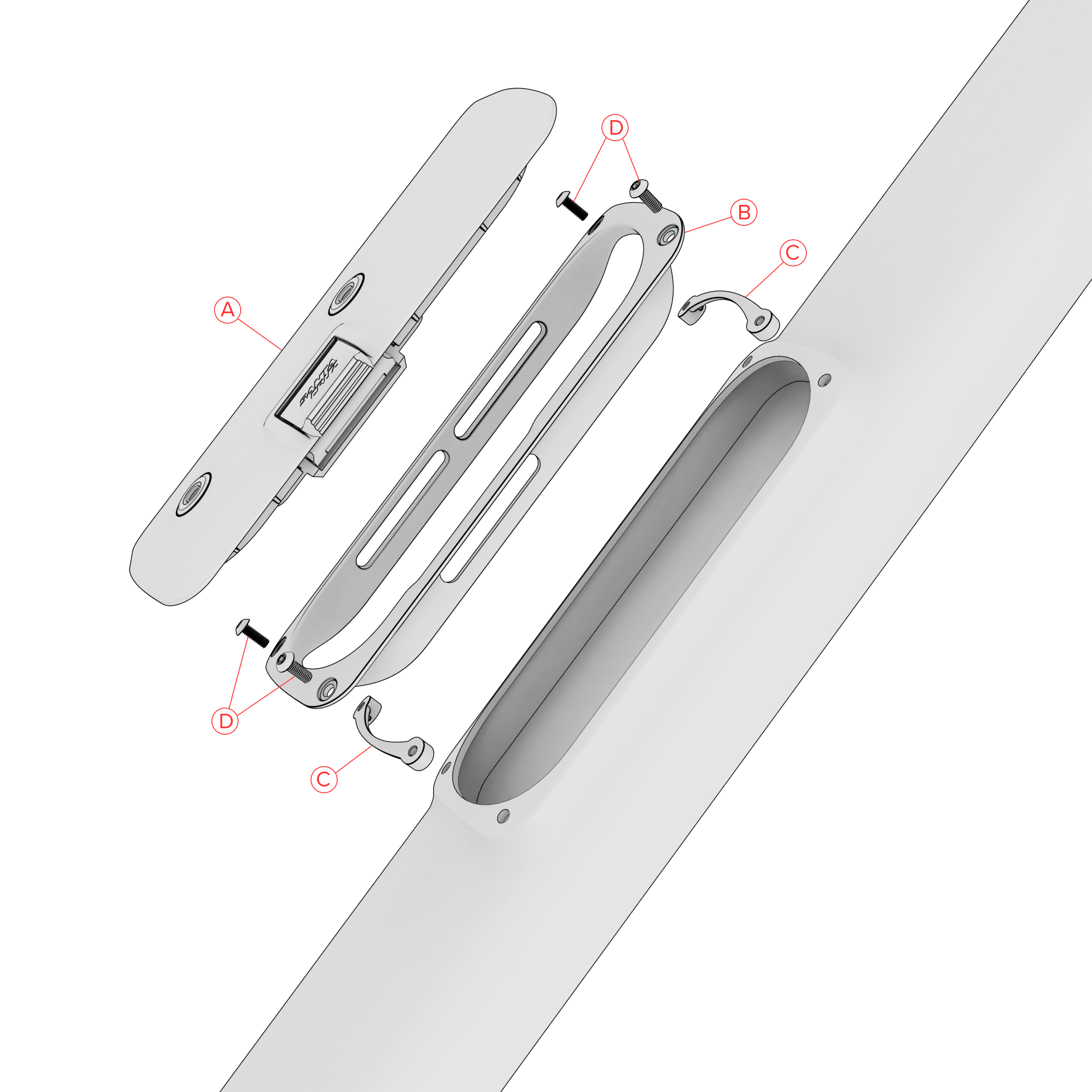

Glovebox
label part_number quantity name torque blurb
A 26-22843 1 Glovebox lid
B 26-25333 1 Glovebox bezel
C 30-23225 2 Glovebox nut
D 26-23284 4 M3x8 BHCS .5Nm Apply Loctite 242 to threads
Exploded Diagram of Stigmata

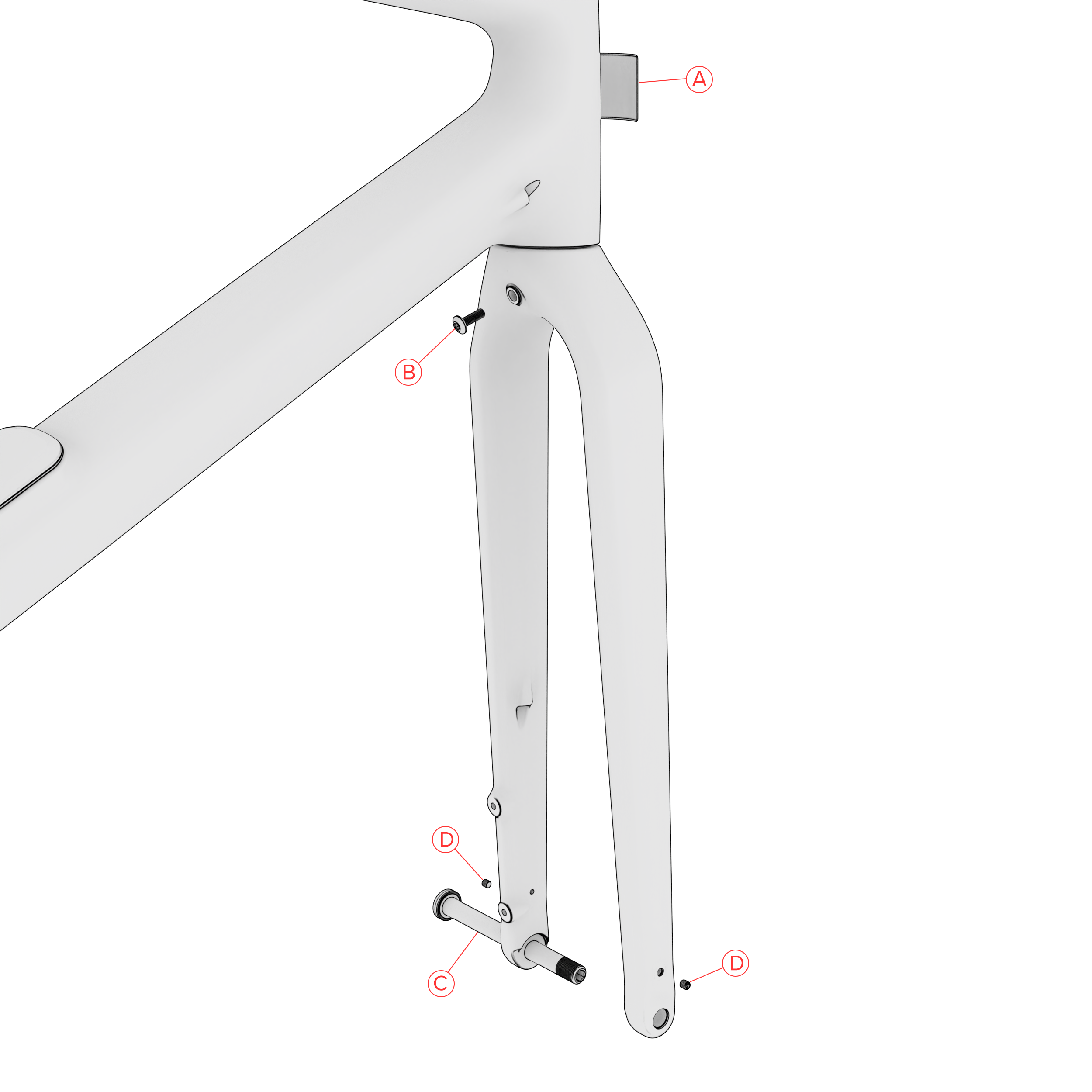

Fork and Front Axle
label part_number quantity name blurb
A 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
B 26-21360 1 Water Bottle Screw
C 08-24964 1 Front Axle 125x12 Apply grease to shaft and threads
D 26-15532 2 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
Exploded Diagram of Stigmata

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
