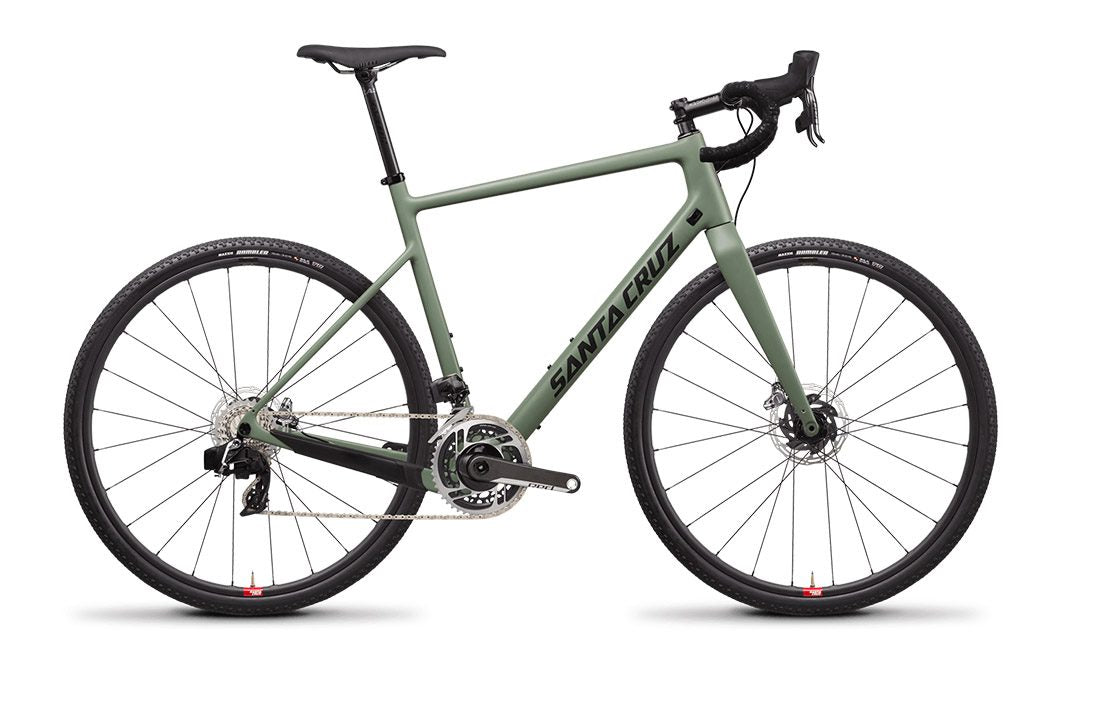

Stigmata 3
2020 - 2023
| Model Version | 3 |
|---|---|
| Production Start | 2019 |
| Production End | - |
| Suspension/Pivot System | N/A (Hardtail) |
| Material | Carbon Fiber |
| Size Range | 52, 54, 56, 58, 60 |
Model Specs
| Headtube/Headset | Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40 |
|---|---|
| Seat Post | 27.2mm - Minimum insertion 100mm |
| BB Shell Width | 68mm - Threaded - ISO |
| Chainline Spec | 43.5mm for a Double Chainring Crankset -


45mm for a Triple Chainring Crankset |
| Recommended Max Tire Size | 2.1 - may vary by tire and rim model |
| Max Brake Rotor Size | 160mm |
| Front Hub | 100mm x 12mm Through-Axle |
| Rear Hub | 142mm x 12mm Through-Axle |
| Seatpost Clamp | 31.8mm |

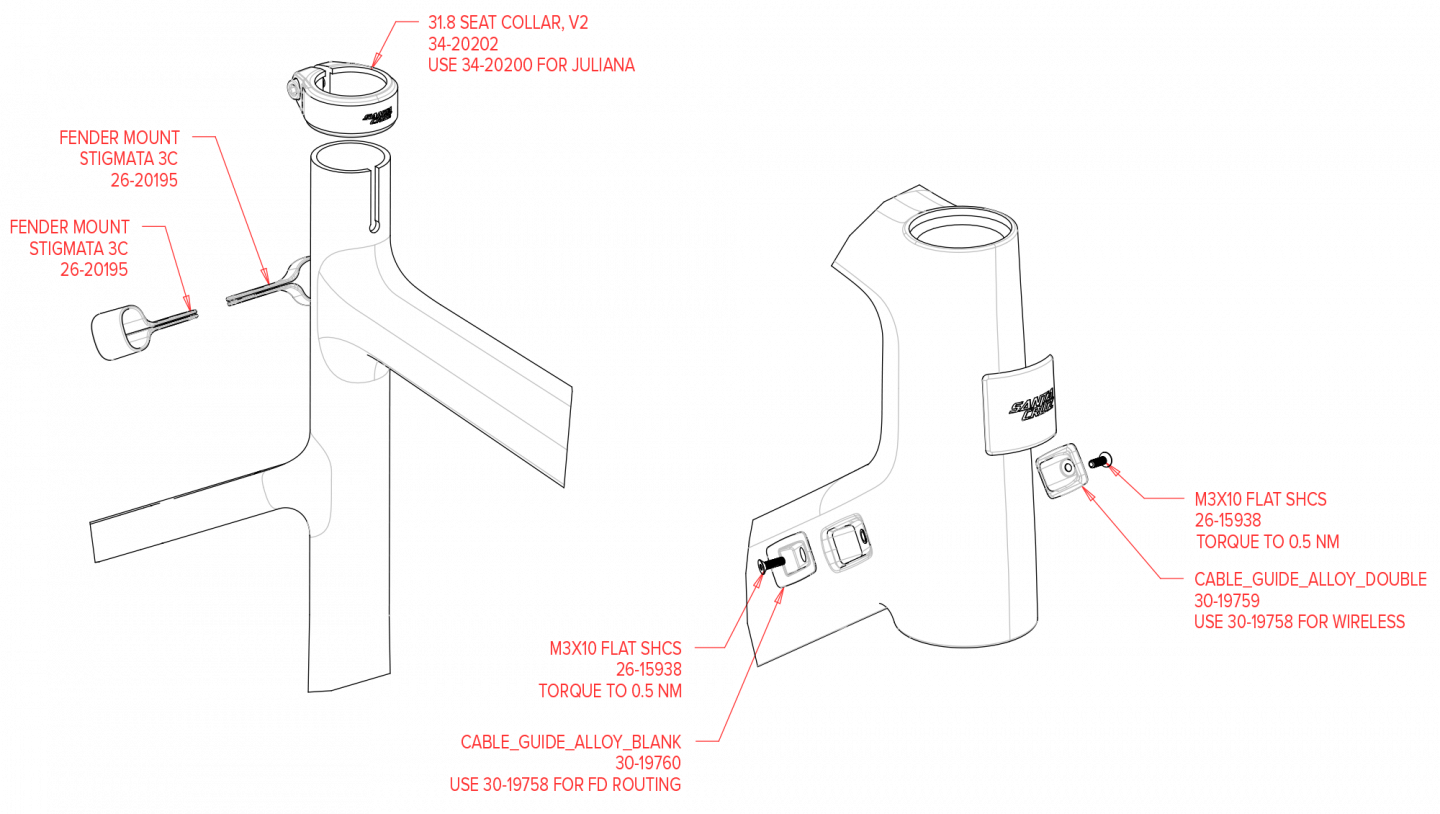

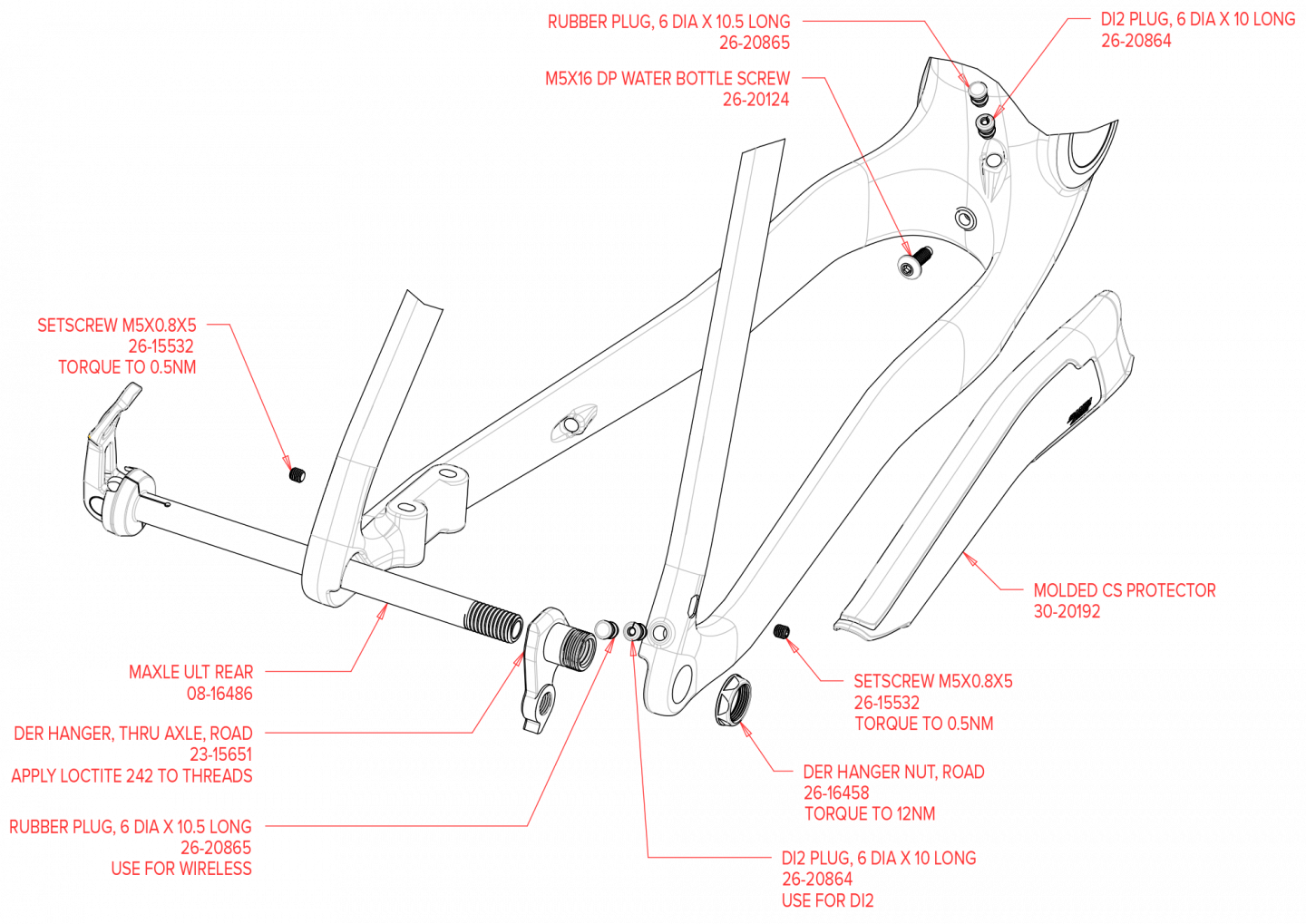

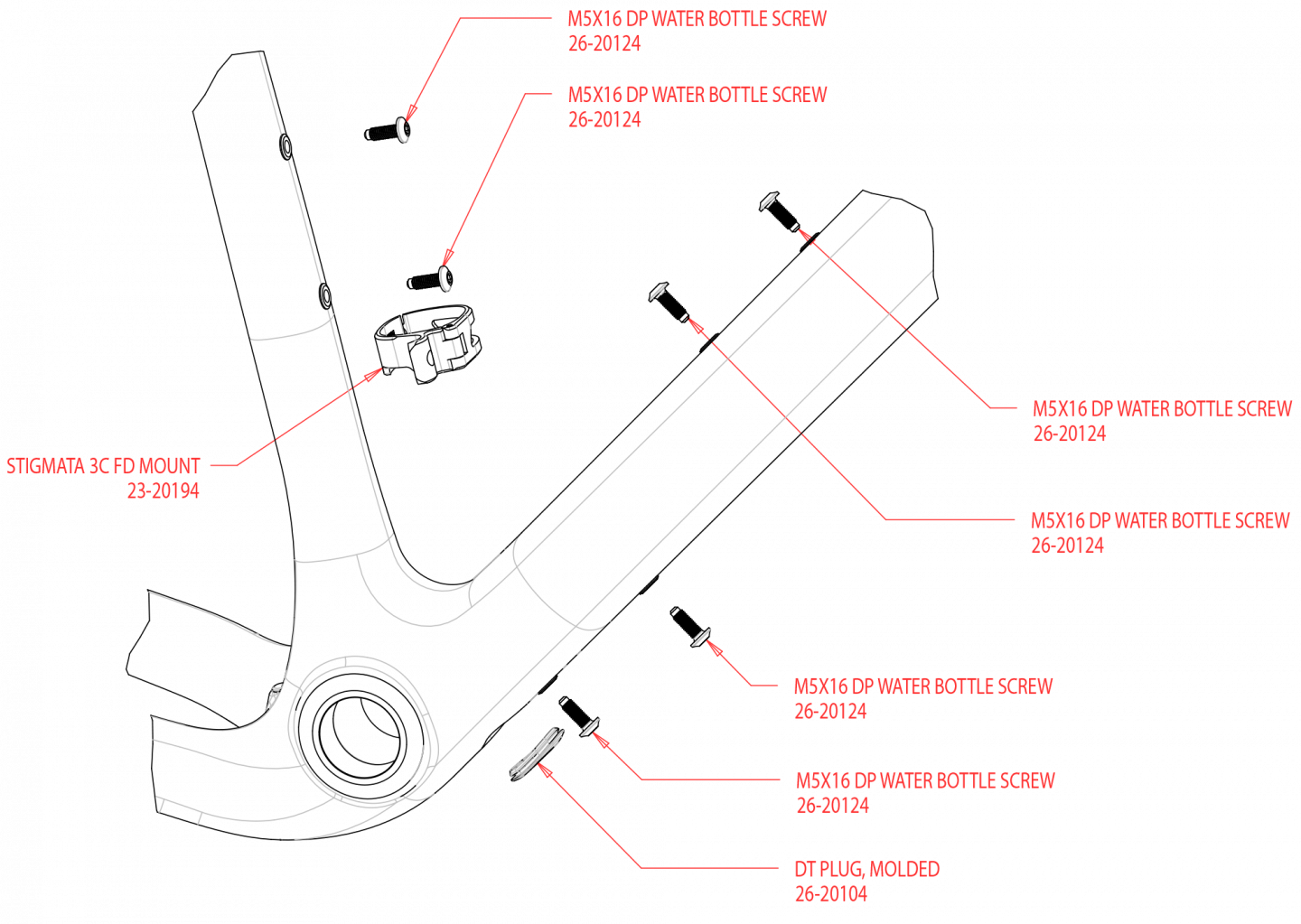

Exploded Diagrams
Loading
Loading
Loading
Loading
Manuals & Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
