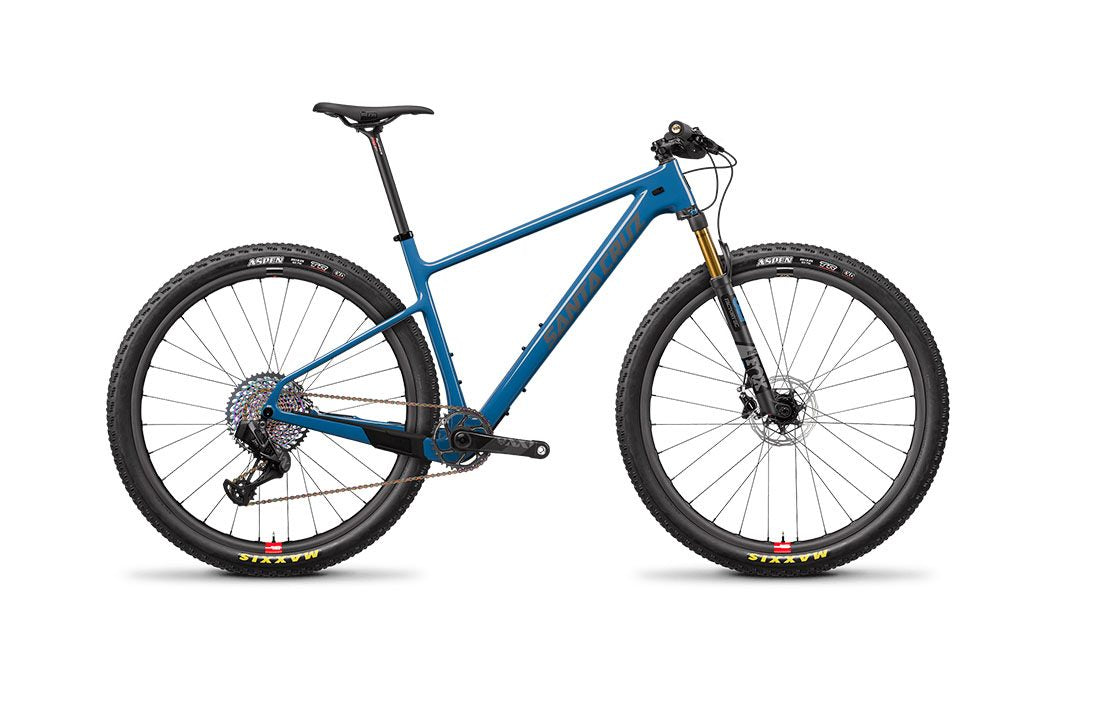

Highball 3 MY22
2018 - 2022
Model Version | 3 |
---|---|
Production Start | 2018 |
Production End | - |
Suspension/Pivot System | N/A (Hardtail) |
Material | Carbon Fiber |
Model Specs
Compatible Forks | 100-120mm |
---|---|
Headtube/Headset | Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40 |
Seat Post | 27.2mm - Minimum insertion 100mm |
Front Derailleur | N/A - Single Front Chainring Only |
BB Shell Width | 73mm - Threaded - ISO |
Chainline Spec | 53mm |
Max Brake Rotor Size | 180mm |
Rear Hub | 148x12mm Through Axle |
Seatpost Clamp | 31.8mm |
Geometry
All units are in millimeters or degrees.
S | M | L | XL | |
---|---|---|---|---|
Reach | 405 | 430 | 450 | 480 |
Stack | 596 | 606 | 615 | 634 |
Head tube angle | 69.5° | 69.5° | 69.5° | 69.5° |
Head Tube Length | 90 | 100 | 110 | 130 |
Rear Center | 426 | 426 | 426 | 426 |
Front Center | 662 | 690 | 714 | 751 |
BB Height | 314 | 314 | 314 | 314 |
BB Drop | 56 | 56 | 56 | 56 |
Wheelbase | 1088 | 1116 | 1140 | 1177 |
Top Tube Length | 587 | 615 | 638 | 674 |
Seat Tube Length | 405 | 430 | 470 | 530 |
Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° |
Standover Height | 708 | 715 | 740 | 756 |

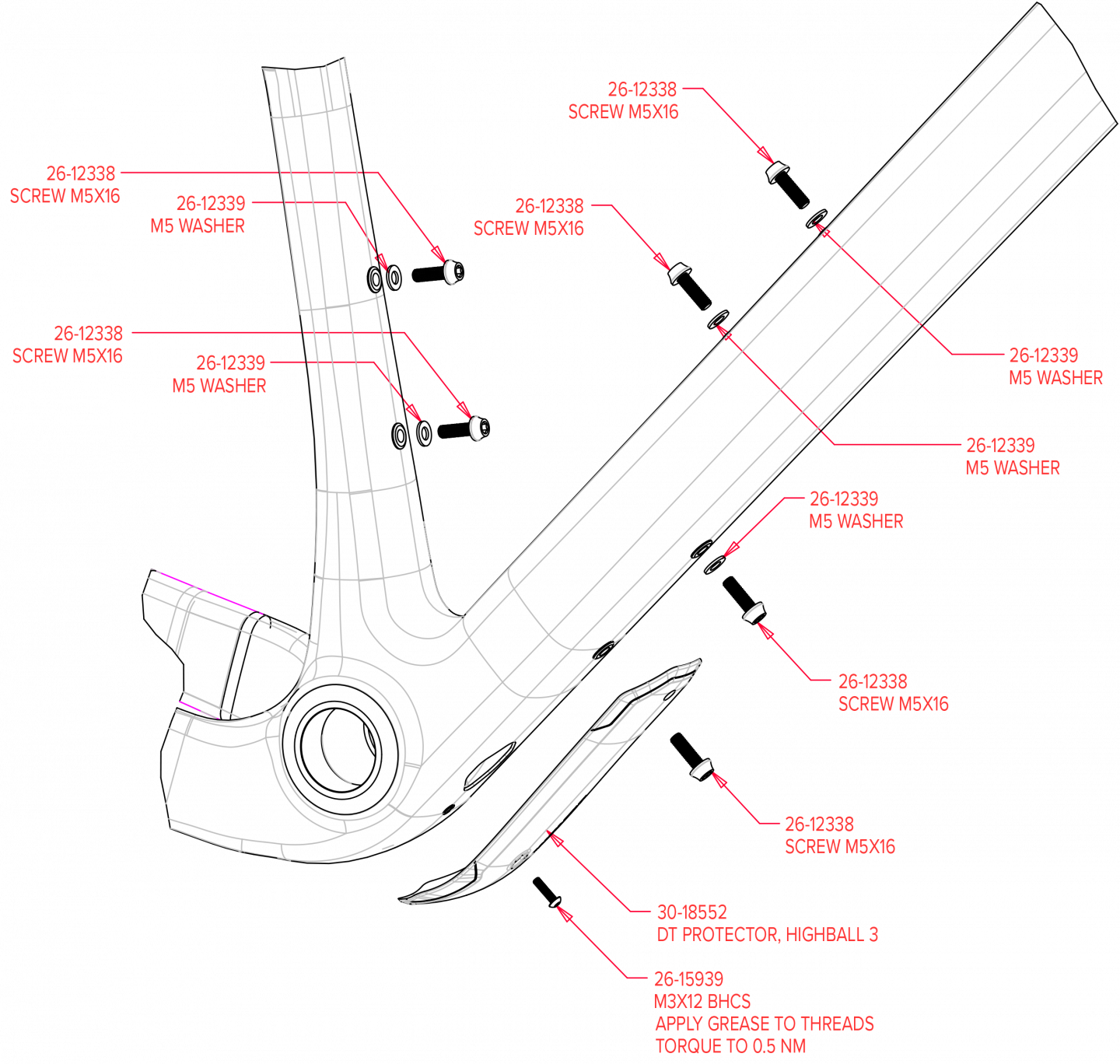

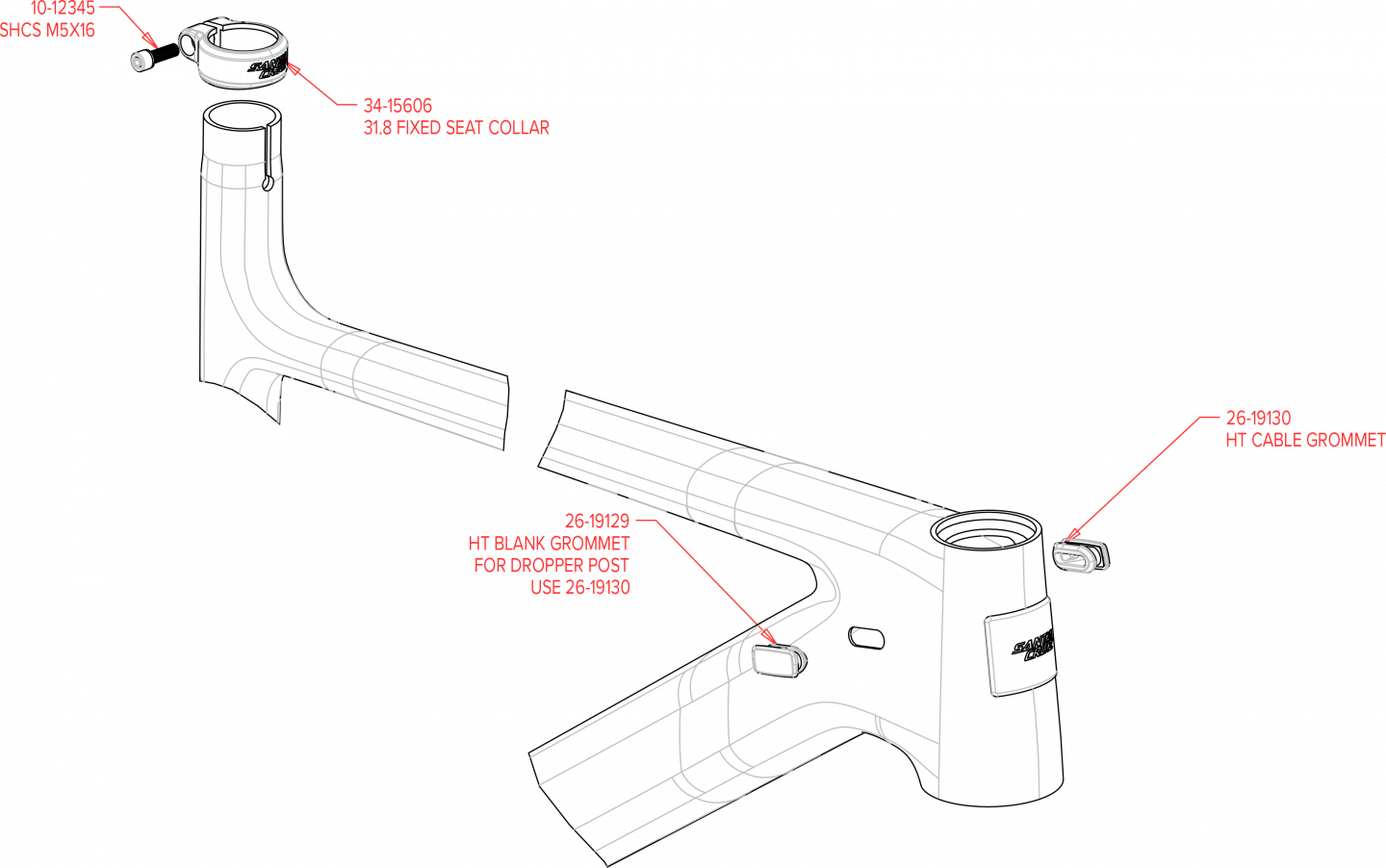

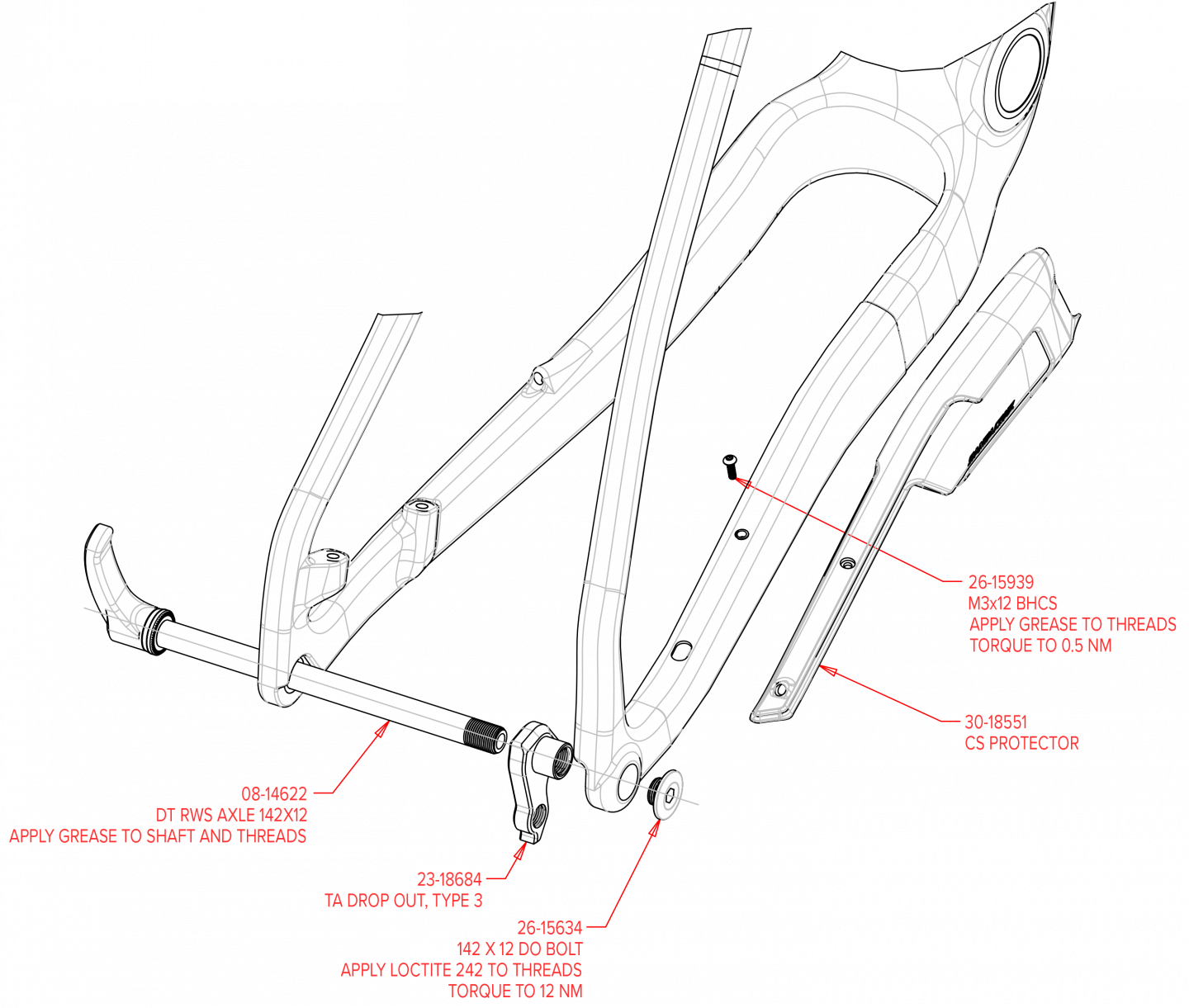

Exploded Diagrams
Loading

Loading

Loading

Manuals & Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
