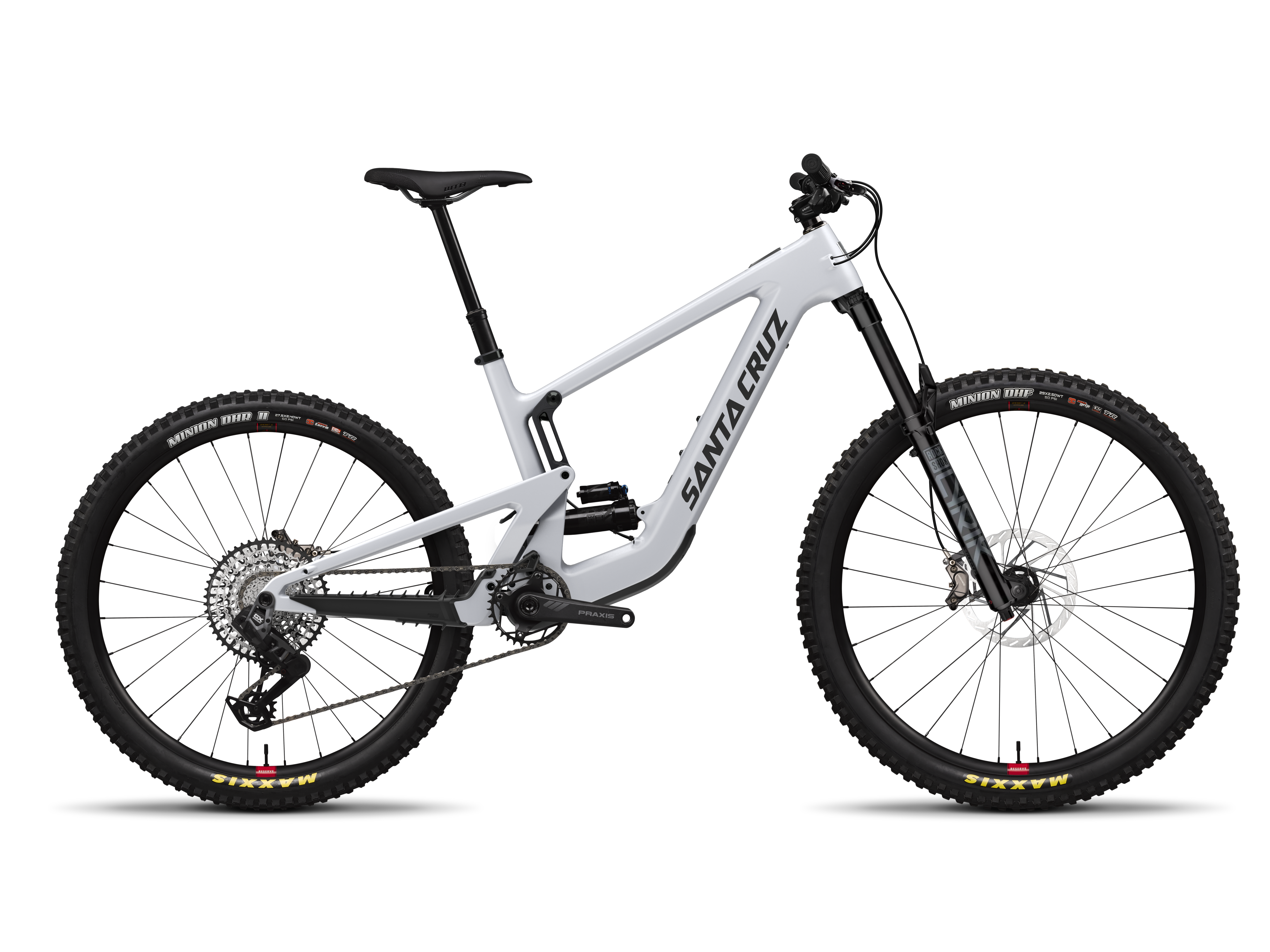

MY24 HecklerSL C GX AXS MatteSilver

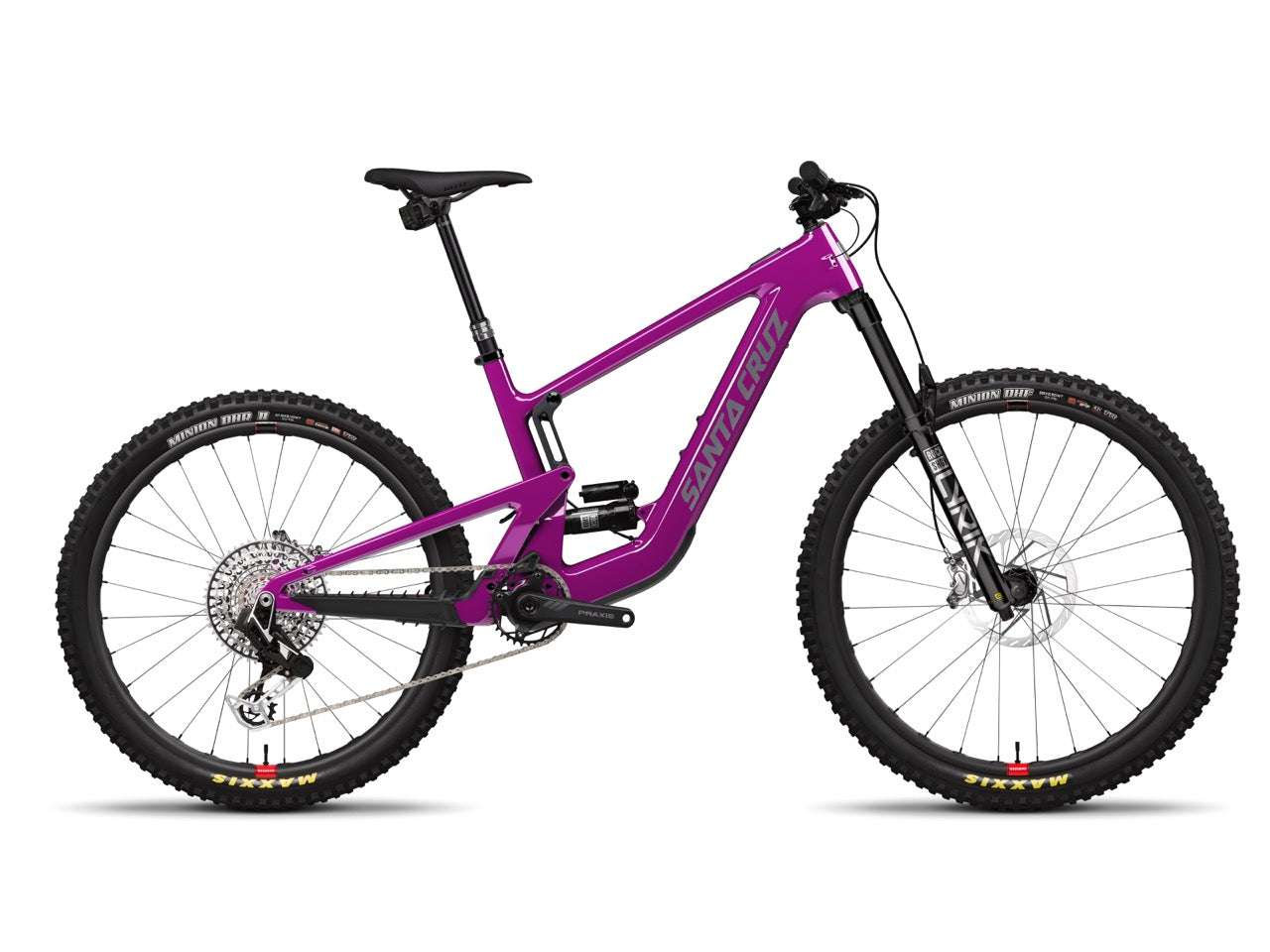

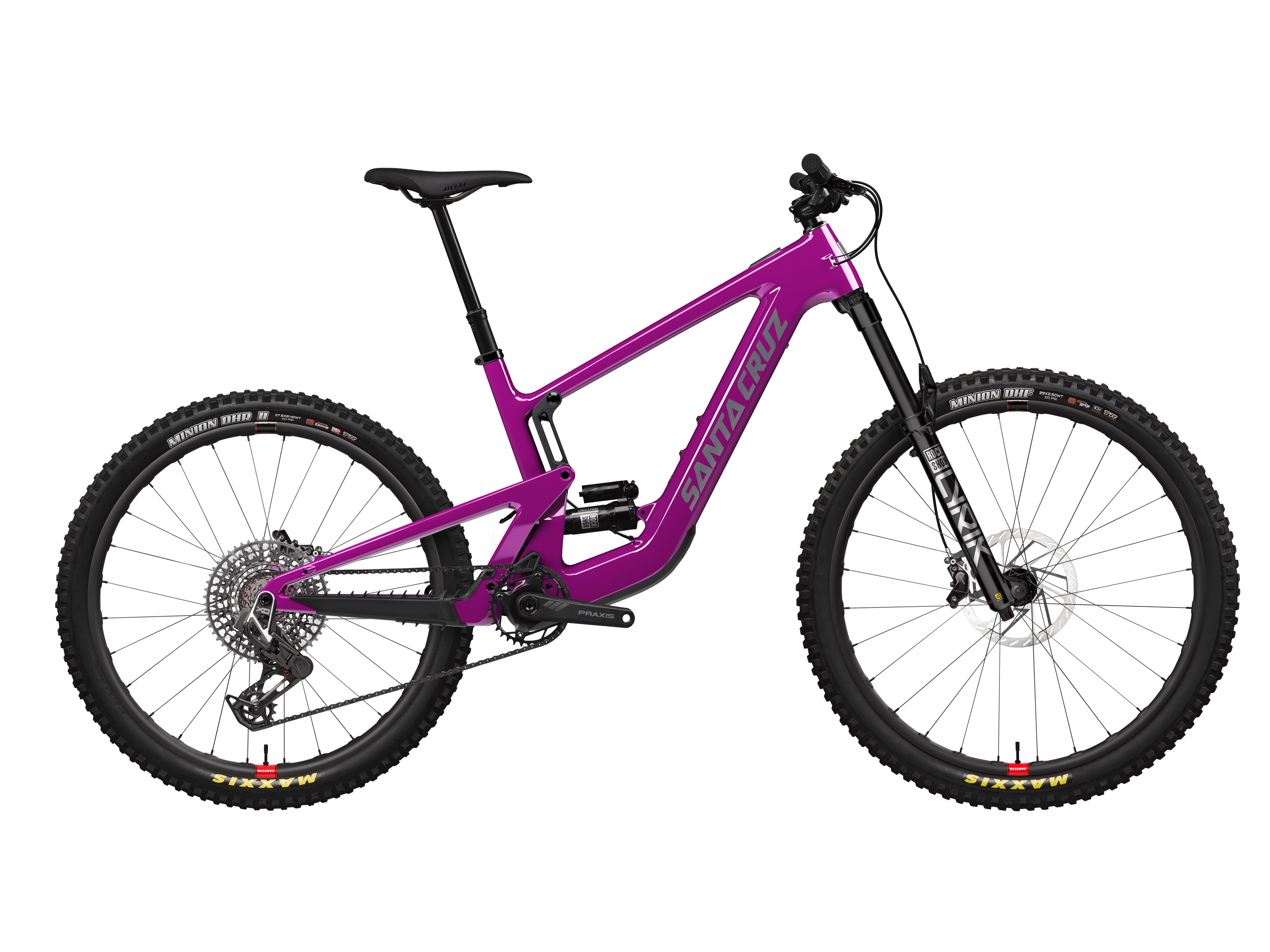

MY24 HecklerSL CC X0 AXS RSV GlossMagenta NoDrop

Heckler SL 1 MY24

2023 - 2024

Fast, light or powerful - choose all three

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPPâ„¢ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Carbon C/CC
Front (MM) 160
Rear (MM) 150
Wheel Size MX
Power (W) 430
Battery (Wh) 430
Drive Unit Fazua

Model Specs

Wheel Size MX
Max Tire Clearance 2.6"
Translation missing: en.products.product.specs.fork_travel 160mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Rear Spacing 148mm
UDH Compatible Yes
Front Derailleur Mount No
Headset IS 41 / IS52
Bottom Bracket Shell Fazua DU w/ E-TOR spindle
Max Chainring Size 36t
Rear Brake Mount PM 200mm
Max Rotor Size 220mm
Shock Length 210mm
Shock Stroke 55mm
Shock Bushing Size Front 30x8
Shock Bushing Size Rear 30x8

Build Kits

Select a Build Kit

Weight 43.11 lbs / 19.55 kg
Material Carbon C
Travel 150mm
Wheel Size MX
Shock RockShox Super Deluxe Select+, 210x55
Fork RockShox Lyrik Select+, 160mm
Rear Derailleur SRAM GX Eagle, 12spd
Right Shifter SRAM GX Eagle Single Click, 12spd or SRAM X01 Eagle Single Click, 12spd
Cassette SRAM XG1275 Eagle, 12spd, 10-50t or SRAM XG1275 Eagle, 12spd, 10-52
Chain SRAM GX Eagle, 12spd or SRAM X01 Eagle, 12spd
Chainguide OneUp Chainguide
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Front Hub DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim RaceFace AR Offset 30, 29"
Rear Hub DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim RaceFace AR Offset 30, 27.5"
Front Rotor Avid Centerline, 200mm
Rear Rotor Avid Centerline, 200mm
Brakes SRAM Code R
Crankset Praxis eTor AL, 104BCD, 165mm
Handlebars Burgtec Alloy Bar
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium, CroMo
Seatpost OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Battery FAZUA 430 Wh Integrated Battery
Drive Unit FAZUA RIDE60
Battery Charger FAZUA Charger
Weight 42.56 lbs / 19.3 kg
Material Carbon C
Travel 150mm
Wheel Size MX
Shock FOX Float Performance, 210x55 or Fox Float DPS Performance, 210x55
Fork RockShox Lyrik Base, 160mm
Rear Derailleur SRAM NX Eagle, 12spd
Right Shifter SRAM NX
Cassette SRAM PG1230, 12spd, 11-50t
Chain SRAM NX Eagle, 12spd
Chainguide OneUp Chainguide
Headset FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Front Hub SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
Front Rim WTB ST i30 TCS 2.0 29"
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim WTB ST i30 TCS 2.0 27.5"
Front Rotor Avid Centerline, 200mm
Rear Rotor Avid Centerline, 200mm
Brakes SRAM DB8
Crankset Praxis eTor AL, 104BCD, 165mm
Handlebars e13 TRS Base
Stem e.13 Base
Saddle WTB Silverado Medium, CroMo
Seatpost SDG Tellis Dropper, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Battery FAZUA 430 Wh Integrated Battery
Drive Unit FAZUA RIDE60
Battery Charger FAZUA Charger
Weight 42.57 lbs / 19.31 kg
Material Carbon C
Travel 150mm
Wheel Size MX
Shock RockShox Super Deluxe Select+, 210x55
Fork RockShox Lyrik Select+, 160mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Bridge
Cassette SRAM GX Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, 12spd
Chainguide OneUp Chainguide
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Front Hub DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim Reserve 30|SL AL 6069 29"
Rear Hub DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim Reserve 30|SL AL 6069 27.5"
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Code Bronze Stealth
Crankset Praxis eTor AL, 104BCD, 165mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium, CroMo
Seatpost OneUp V2 Dropper Post, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Battery FAZUA 430 Wh Integrated Battery
Drive Unit FAZUA RIDE60
Battery Charger FAZUA Charger
Weight 41.92 lbs / 19.01 kg
Material Carbon CC
Travel 150mm
Wheel Size MX
Shock RockShox Super Deluxe Ultimate, 210x55
Fork RockShox Lyrik Ultimate, 160mm
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Bridge
Cassette SRAM X0 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Front Hub Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h
Front Rim Reserve 30|HD 29"
Rear Hub Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h
Rear Rim Reserve 30|HD 27.5"
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Code Silver Stealth
Crankset Praxis eTor AL, 104BCD, 165mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium, Ti
Seatpost OneUp V2 Dropper Post, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Battery FAZUA 430 Wh Integrated Battery
Drive Unit FAZUA RIDE60
Battery Charger FAZUA Charger
Weight 41.74 lbs / 18.93 kg
Material Carbon CC
Travel 150mm
Wheel Size MX
Shock RockShox Super Deluxe Ultimate, 210x55
Fork RockShox Lyrik Ultimate, 160mm
Rear Derailleur SRAM XX Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Ultimate Bridge
Cassette SRAM XX Eagle T-Type, 10-52t
Chain SRAM XX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset Chris King DropSet 3 Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Front Hub Industry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim Reserve 30|HD 29"
Rear Hub Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h
Rear Rim Reserve 30|HD 27.5"
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes Code Ultimate Stealth
Crankset Praxis eTor AL, 104BCD, 165mm
Handlebars Santa Cruz e35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3 Machined, 42mm
Saddle WTB Silverado Medium, Ti
Seatpost RockShox Reverb AXS, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Battery FAZUA 430 Wh Integrated Battery
Drive Unit FAZUA RIDE60
Battery Charger FAZUA Charger

Geometry

All units are in millimeters or degrees.
s m l xl xxl
Reach (Hi/Lo) 435/432.4 460/457.4 480/477.5 500/497.4 525/522.5
Stack 614.9/616.8 624/625.8 633/634.9 651/653 664.5/666.5
Head tube angle 64.3/64 64.3/64 64.3/64 64.3/64 64.3/64
Head Tube Length 100 110 120 140 155
Rear Center 443/443.8 443/443.8 443/443.8 446/446.8 450/450.7
Front Center 766.1/765.9 795.4/795.3 819.7/819.6 848.4/848.3 879.9/879.8
BB Height 344/340.7 344/340.7 344/340.7 344/340.7 344/340.7
BB Drop Front 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8
BB Drop Rear 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3
Wheel base 1209.1/1209.7 1238.4/1239.1 1262.7/1263.4 1294.4/1295.1 1329.9/1330.5
Top Tube Length 569.2/579.6 602.7/602.9 620.6/621.5 641.8/642.7 669.1/670
Seat Tube Length 380/380 405/405 430/430 460/460 500/500
Seat Tube Angle 76.8/76.6 77.1/76.9 77.5/77.2 77.7/77.5 77.8/77.5
Standover Height 720.1/716.2 733/728.8 733.4/729.3 731.7/731.6 741/738.6

Size Guide

Small
154cm 5'1" - 165cm 5'5" Reach: 435mm
Medium
165cm 5'5" - 175cm 5'9" Reach: 460mm
Large
172cm 5'8" - 185cm 6'1" Reach: 480mm
X-Large
182cm 6'0" - 193cm 6'4" Reach: 500mm
XX-Large
190cm 6'3" - 200cm 6'7" Reach: 525mm

Suspension Setup

Rockshox Lyrik Base 160
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed) Compression (from middle)
100 45 55 13 Middle
120 54 65 12 Middle
140 64 75 10 Middle
160 73 85 9 Middle
180 82 95 8 Middle
200 91 105 7 Middle
220 100 115 5 Middle
240 109 125 4 Middle
Fox Float Perf. DPS
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 120 29-31% 9
120 54 145 29-31% 8
140 64 170 29-31% 8
160 73 195 29-31% 7
180 82 220 29-31% 7
200 91 245 29-31% 6
220 100 270 29-31% 6
240 109 295 29-31% 5
260 118 320 29-31% 5
Fox Float Perf.
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 100 29-31%, 7
120 54 120 29-31%, 7
140 64 140 29-31%, 6
160 73 160 29-31%, 6
180 82 180 29-31%, 6
200 91 200 29-31%, 5
220 100 220 29-31%, 4
240 109 240 29-31%, 4
260 118 255 29-31%, 3
Rockshox Lyrik Select + 160
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed) Compression (L/H from middle)
100 45 55 13 Middle/Middle
120 54 65 12 Middle/Middle
140 64 75 11 Middle/Middle
160 73 85 10 Middle/Middle
180 82 95 9 Middle/Middle
200 91 105 8 Middle/Middle
220 100 115 6 Middle/Middle
240 109 125 4 Middle/Middle
Super Deluxe Select +
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 125 29-31%, 9
120 54 145 29-31%, 9
140 64 155 29-31%, 8
160 73 180 29-31%, 7
180 82 200 29-31%, 7
200 91 220 29-31%, 6
220 100 245 29-31%, 5
240 109 265 29-31%, 5
260 118 285 29-31%, 4
Rockshox Lyrik Select + 160
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed) Compression (L/H from middle)
100 45 55 11 Middle/Middle
120 54 65 10 Middle/Middle
140 64 75 9 Middle/Middle
160 73 85 8 Middle/Middle
180 82 95 7 Middle/Middle
200 91 105 6 Middle/Middle
220 100 115 5 Middle/Middle
240 109 125 4 Middle/Middle
Super Deluxe Select +
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 125 29-31%, 9
120 54 145 29-31%, 9
140 64 155 29-31%, 8
160 73 180 29-31%, 7
180 82 200 29-31%, 7
200 91 220 29-31%, 6
220 100 245 29-31%, 5
240 109 265 29-31%, 5
260 118 285 29-31%, 4
Rockshox Lyrik Ultimate 160
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed) Compression (L/H from middle)
100 45 55 13 Middle/Middle
120 54 65 12 Middle/Middle
140 64 75 11 Middle/Middle
160 73 85 10 Middle/Middle
180 82 95 9 Middle/Middle
200 91 105 8 Middle/Middle
220 100 115 6 Middle/Middle
240 109 125 4 Middle/Middle
Super Deluxe Ultimate
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed) Compression (L/H from middle)
100 45 125 29-31%, 9 Middle/-2
120 54 145 29-31%, 9 Middle/-2
140 64 155 29-31%, 8 Middle/-2
160 73 180 29-31%, 7 Middle/-2
180 82 200 29-31%, 7 Middle/-2
200 91 220 29-31%, 6 Middle/-2
220 100 245 29-31%, 5 Middle/-2
240 109 265 29-31%, 5 Middle/-2
260 118 285 29-31%, 4 Middle/-2
Rockshox Lyrik Ultimate 160
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed) Compression (L/H from middle)
100 45 55 13 Middle/Middle
120 54 65 12 Middle/Middle
140 64 75 11 Middle/Middle
160 73 85 10 Middle/Middle
180 82 95 9 Middle/Middle
200 91 105 8 Middle/Middle
220 100 115 6 Middle/Middle
240 109 125 4 Middle/Middle
Super Deluxe Ultimate
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed) Compression (L/H from middle)
100 45 125 29-31%, 9 Middle/-2
120 54 145 29-31%, 9 Middle/-2
140 64 155 29-31%, 8 Middle/-2
160 73 180 29-31%, 7 Middle/-2
180 82 200 29-31%, 7 Middle/-2
200 91 220 29-31%, 6 Middle/-2
220 100 245 29-31%, 5 Middle/-2
240 109 265 29-31%, 5 Middle/-2
260 118 285 29-31%, 4 Middle/-2

Exploded Diagrams

Upper Link
label part_number quantity name blurb
A 29-25028 1 Upper Link
B 11-12681 2 6900-2RS Bearing
C 26-15533 2 M10x3 Washer Apply grease to inner surface
D 11-12218 2 6902-2RS Max Bearing
E 26-11612 2 Bearing Dust Shield Apply grease to inner surface
F 26-17013 1 15x40.25 Bearing Spacer
Exploded Diagram of Hecklersl
Lower Link
label part_number quantity name blurb torque
A 29-25027 1 Lower Link
B 26-11612 4 Bearing Dust Shield Apply grease to inner surface
C 11-17708 4 6902-1ZR Bearing
D 26-17707 1 15x47.7 Bearing Spacer
E 26-17013 1 15x40.25 Bearing Spacer
F 26-15532 1 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
G 26-12678 1 M6 Grease Fitting 9 Nm
Exploded Diagram of Hecklersl
Battery Mounting Hardware
label part_number quantity torque name blurb
A 26-25295 4 1.2 Nm M4x12 SHCS Apply Loctite 242 to threads
B 26-25288 1 Fix 430 mount
C 26-25283 2 9 Nm M6x10 BHCS Apply Loctite 242 to threads
D 78-24791 1 Fazua Energy 430 Fix
E 26-25137 1 Fix 430 mount
F 26-18382 1 0.6 Nm M4x12 BHC Apply grease to treads
Exploded Diagram of Hecklersl
Charging Port
label part_number quantity name torque blurb
A 26-25196 1 Fazua charge port mount
B 72-24768 1 Fazua charge port cap
C 72-24771 1 Fazua Charge port, short wire
D 26-15938 4 M3x10 FHCS 0.5 Nm Apply Loctite 242 to threads
E 26-27112 1 Fazua charge port cover Used with range extender only
Exploded Diagram of Hecklersl
Rear Axle, Derailleur Hanger, and Chainstay Protector
label part_number quantity name blurb torque
A 08-22209 1 Rear axle 173.7 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20 Nm
D 30-25289 1 Chainstay Protector
E 26-15939 2 M3x12 BHCS Apply grease to treads 0.5 Nm
F 30-21453 1 Seatstay Protector
G 72-27041 1 Fazua speed sensor, XL wire
H 26-25140 1 Speed Sensor Cover
Exploded Diagram of Hecklersl
Motor Mounts and Chain Guide
label part_number quantity name torque blurb
A 49-21567 1 Lower Link Fender
B 26-18382 2 M4x12 BHC 0.6 Nm Apply grease to treads
C 26-25294 6 M6x22 BHCS 14 Nm Apply Loctite 242 to threads
D 26-18382 3 M4x12 BHC 0.6 Nm Apply grease to treads
E 30-25292 1 DU protector
F 26-22570 1 M5x12 HHS 2 Nm Apply Loctite 242 to threads
G 26-22571 1 OneUp chainguide back plate
H 26-22572 1 OneUp chainguide mount
I 19-22609 1 OneUp chainguide
J 26-22938 2 M4x10 FHCS 0.65 Nm Apply Loctite 242 to threads
Exploded Diagram of Hecklersl
Frame Mounting Hardware
label part_number quantity name torque blurb
A 26-21360 2 Water Bottle Screw
B 26-20122 2 M10x23 Screw 16 Nm Apply Loctite 242 to threads only, apply grease to shaft only
C 26-25139 1 DT Plug
D 26-25138 1 DT Plug for Range Extender Apply Loctite 242 to threads
E 26-15947 3 M6x20 SHCS 9 Nm
F 26-11817 3 M6 Washer
G 26-15633 3 M6 Tapered Washer Apply grease to surface
H 08-22343 2 Pivot Axle M15x90.75 20 Nm Apply Loctite 242 to threads only, apply grease to shaft only
I 26-22461 2 M8x45 Shock Bolt 20 Nm Apply Loctite 242 to threads
J 26-19207 1 Hose Grommet
K 08-16292 1 Pivot Axle M15x80.5 20 Nm Apply Loctite 242 to threads only, apply grease to shaft only
L 26-21452 1 M8x2 Flip Chip NDS Apply grease to surface
M 26-21451 1 M8x2 Flip Chip DS Apply grease to surface
Exploded Diagram of Hecklersl
Head Badge, Control Unit, and Downtube protector
label part_number quantity name blurb torque
A 72-24784 1 Fazua LED Hub, long wire Insert foam tube 26-17568 onto long wire
B 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
C 30-25291 1 Downtube Protector
D 26-18382 1 M4x12 BHC Apply grease to treads 0.6 Nm
E 34-20201 3 36.4 Seat Collar
Exploded Diagram of Hecklersl

Manuals & Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.

FAQs

Yes, this frame is designed to accept a coild rear shock. We have tested coil shocks from Fox and Rockshox without issue.

Yes. The Fazua battery passes UL-2271, and the electrical system passes UL-2849.

178mm

Learn all about the FAZUA RIDE 60 Drive System here: https://fazua.com/en/support/help-center/fazua-ride-60/ride-60-faqs/

Yes, you can.

Yes you can, you will need lights with the Fazua style power cord and a dealer can help get them installed.

The Fazua Ride 60 battery on the Heckler SL is desgined to be charged while inside the frame, and only removed for service.

Fazua firmware updates can be installed either via the Fazua phone app, through consumer Fazua Toolbox desktop software, or at your local Santa Cruz Bicycles dealer.

Absolutely. Learn more at Fazua's Garmin support page linked below, which includes the latest list of Garmin compatible devices, what data will display on your head unit, and how to connect each.
https://fazua.com/en/support/help-center/bluetooth-connections/fazua-dashboard-garmin-devices/

No, your bike is pre-programmed and ready to ride straight from the factory.

The FAZUA App connects to your bike via Bluetooth, and allows you to view live riding data (I.E. power output, & battery percentate of charge). You're also able to select different assist modes, download new riding profiles, and update your Fazua system's firmware.

Fazua Ride 60 uses cranks with the ETOR spindle interface.

In North America, the Heckler SL will have a pedal assisted max speed of 20mph/32kph.
For Europe, and majority of the world, the pedal assisted max speed is 25kph.

There is no throttle. The Heckler SL is pedal assist only.

Mixed wheels provide the stability and traction of a 29" front wheel with the agility of a 27.5" rear wheel. The smaller rear wheel and its comparatively lower axle height allows the rider to more easily unweight the front wheel- this makes for confident yet agile handling on the steepest of descents. Additionally, on e-bikes specifically, the motorized drive unit does a good job propelling the rear wheel through rough terrain, without hanging up or losing momentum.

The largest compatible rotor diameter is 223mm, and the smallest size is 200mm.

The Heckler SL geometry is optimized for a 44mm fork offset.

29" bikes provide a ton of front wheel grip- this is partially due to the front wheel itself, but also due to the axle height of the rear wheel which works to keep the front end weighted. This creates a natural position on lower-angle terrain but requires body position and/or setup adjustments to achieve any sort of rearward bias.

On an MX bike, the bias is more rearward. This gives a very natural feeling on steep descents, but requires some body position and setup consideration for a balanced feel on flatter terrain. Compared to a 29er, a slightly lower handlebar and a more forward-biased suspension setup will make an MX bike feel more like what you're used to. Additionally, using the Hi BB setting will lend itself to a more front biased feel. Using these tuning parameters will help you find the sweet spot for your terrain and preference.

You'll know you have it dialed when it feels like you're never making large bodyweight shifts to either lift the front end or keep it stuck to the ground.

An MX bike will definitely handle differently than a full 27.5 bike. The main difference you'll feel is a more stable and confident front end. The turning will be a bit slower than a 27.5, but the payoff is a more secure feeling in corners and more traction. Due to the taller front axle height and improved roll-over of the large wheel, your chances of stuffing the front wheel or going over the bars is vastly diminished. Use this security to ride challenging terrain with a more aggressive and dynamic body position.

The chainstay length change occurs in the front triangles- we vary the pivot locations fore and aft to achieve the different lengths while using a single size swingarm. So no- you cannot get the chainstay length of the small on your size large, for instance.

Yes.

These bikes are designed specifically to use mixed wheels. We do not recommend a 27.5 front wheel for geometry reasons.
