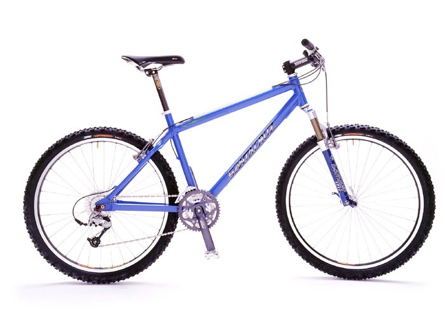

Chameleon 2
2000 - 2003
| Model Version | 2 |
|---|---|
| Production Start | 2000 |
| Production End | 2003 |
| Suspension/Pivot System | N/A (Hardtail) |
| Size Range | S,M,L,XL |
Model Specs
| Compatible Forks | 80mm to 125mm total travel - 125mm travel max |
|---|---|
| Headtube/Headset | 1-1/8" Straight - External. S.H.I.S EC34/28.6 EC34/30 |
| Seat Post | 27.2mm - Minimum insertion 100mm |
| Front Derailleur | 31.8mm Top Pull/Top Swing (Low Clamp) |
| BB Shell Width | 68mm - Threaded - ISO |
| Chainline Spec | 50mm |
| Recommended Max Tire Size | 2.2 - may vary by tire and rim model |
| Brakes | Rim Brake and ISO Disc Brake Mounts |
| Max Brake Rotor Size | 160mm |
| Rear Hub | 135mm x 10mm (QR style) |
| Seatpost Clamp | 31.8mm |
| Component Notes | Disc brake mount is bolt on adaptor - https://shop.santacruzbicycles.com/parts-and-tools/by-model/chameleon/disc-brake-kit-chameleon-3-0.html |

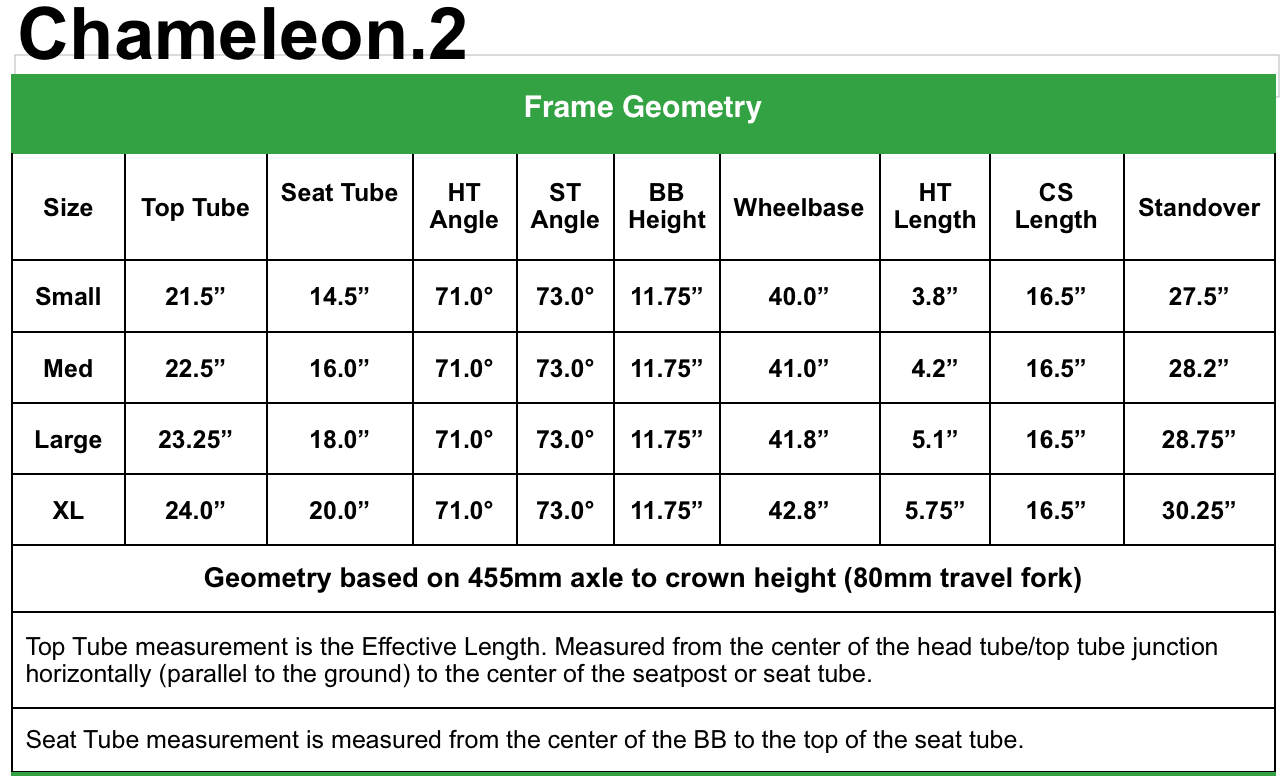

Geometry
Manuals & Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
