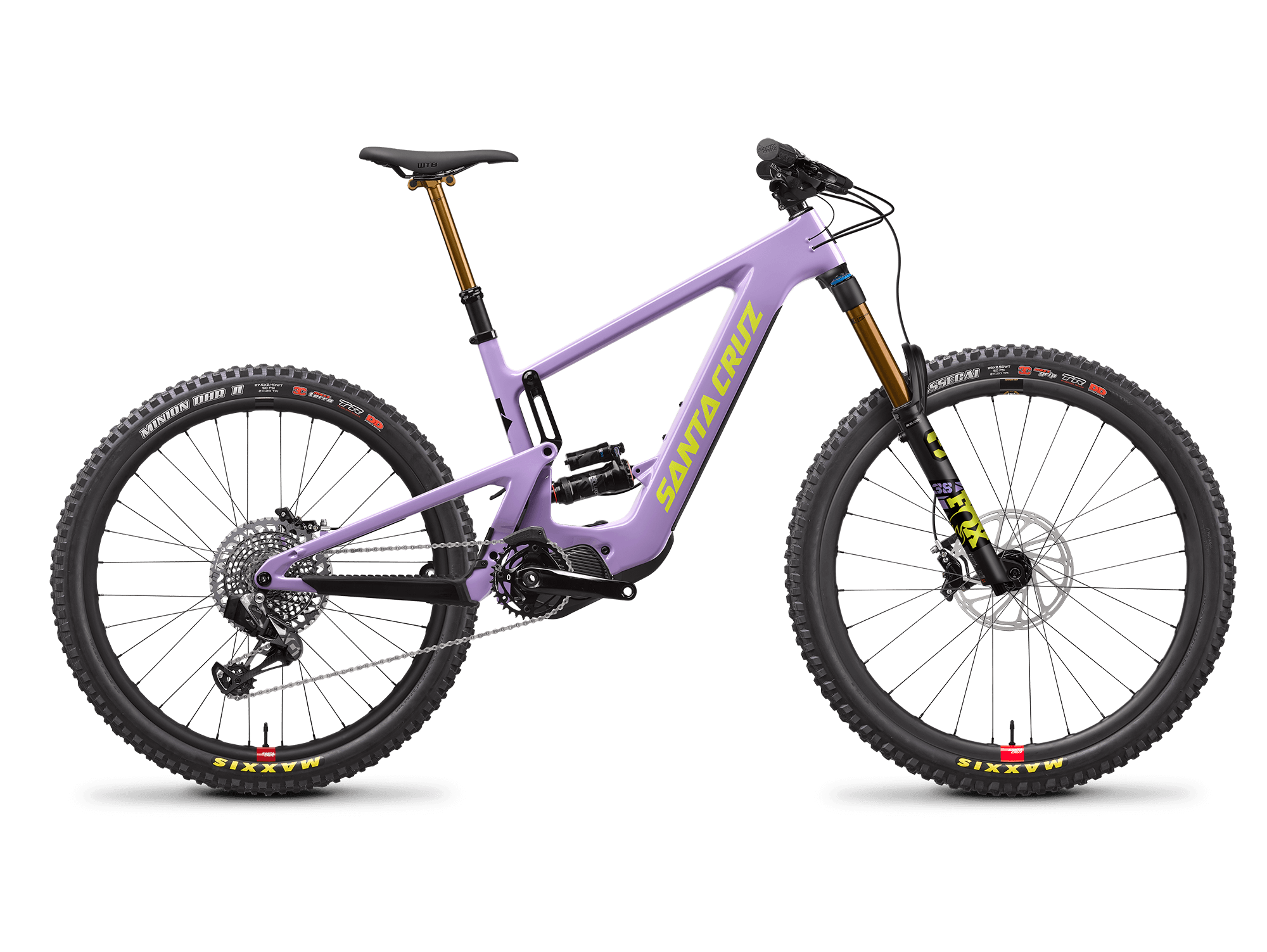

Bullit 3 MY22
2021 - 2022
What goes up, loves coming down
The Bullit is an electric mountain bike designed for tackling the steepest and deepest of trails in both directions. Imagine the kinds of rooty, rocky, horror fests usually reserved for the biggest-hitting bikes. Then imagine what lies beyond that. The Bullit takes a no limits approach. 170mm travel, a 38mm-diameter fork and DoubleDown tires reflect the smashability of this platform. This is a bike for riders who seek downhill bike trails that are out of range of any chairlift or shuttle road.
Carbon
C/CC
Front (MM)
170
Rear (MM)
170
Wheel Size
MX
Power (W)
630
Build Kits
Select a Build Kit
| Weight | 49.75 lbs / 22.57 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Select |
| Fork | RockShox Zeb, 170mm |
| Rear Derailleur | SRAM NX Eagle, 12spd |
| Shifters | SRAM NX |
| Cassette | SRAM PG1230, 12spd, 11-50t |
| Chain | SRAM NX Eagle, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 10 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | SRAM MTH 716, 15x110, Torque Cap, 32h |
| Front Rim | WTB ST i30 TCS 2.0 29" Rims |
| Rear Hub | SRAM MTH 746, 12x148, 32h |
| Rear Rim | WTB ST i30 TCS 2.0 27.5" Rims |
| Front Rotor | Avid Centerline 220mm |
| Rear Rotor | Avid Centerline 200mm |
| Brakes | SRAM Guide RE |
| Crankset | Shimano EM600 Crank Arms 165mm |
| Handlebars | e13 TRS Base |
| Stem | e.13 Base |
| Saddle | WTB Silverado Race Saddle |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
| Weight | 49.54 lbs / 22.47 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Select+ |
| Fork | FOX 38 Float Performance, 170mm |
| Rear Derailleur | SRAM GX Eagle, 12spd |
| Shifters | SRAM GX Eagle Single Click, 12spd |
| Cassette | SRAM XG1275 Eagle, 12spd, 10-50t |
| Chain | SRAM GX Eagle, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | DT Swiss 370, 15x110, 6 bolt, 32h |
| Front Rim | RaceFace ARC HD 30 29" Rims |
| Rear Hub | DT Swiss 370, 12x148, XD, 32h |
| Rear Rim | RaceFace ARC HD 30 27.5" Rims |
| Front Rotor | Avid Centerline 220mm |
| Rear Rotor | Avid Centerline 200mm |
| Brakes | SRAM Code R |
| Crankset | Shimano EM600 Crank Arms 165mm |
| Handlebars | Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise |
| Stem | Burgtec Enduro MK3 |
| Saddle | WTB Silverado Medium Cromoly SL Fusion Saddle |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
| Weight | 48.48 lbs / 21.99 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Select+ |
| Fork | FOX 38 Float Performance Elite, 170mm |
| Rear Derailleur | Shimano XT M8100, 12spd |
| Shifters | Shimano XT M8100, 12spd |
| Cassette | Shimano XT M8100, 12spd, 10-51t |
| Chain | Shimano XT, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | DT Swiss 350, 15x110, Centerlock, 32h |
| Front Rim | RaceFace ARC HD 30 29" Rims |
| Rear Hub | DT 350, 12x148, MicroSpline, 32h |
| Rear Rim | RaceFace ARC HD 30 27.5" Rims |
| Front Rotor | Shimano XT, Ice Tech, Centerlock, 203mm |
| Rear Rotor | Shimano XT, Ice Tech, Centerlock, 203mm w/ Magnet |
| Brakes | Shimano XT 8120 |
| Crankset | Shimano XT M8150 Crank Arms 165mm |
| Handlebars | Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise |
| Stem | Burgtec Enduro MK3 |
| Saddle | WTB Silverado Medium Cromoly SL Fusion Saddle |
| Seatpost | FOX Transfer Performance Elite Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
| Weight | 49.58 lbs / 22.49 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Coil Select+ |
| Fork | FOX 38 Float Performance Elite, 170mm |
| Rear Derailleur | Shimano XT M8100, 12spd |
| Shifters | Shimano XT M8100, 12spd |
| Cassette | Shimano XT M8100, 12spd, 10-51t |
| Chain | Shimano XT, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | DT Swiss 350, 15x110, Centerlock, 32h |
| Front Rim | RaceFace ARC HD 30 29" Rims |
| Rear Hub | DT 350, 12x148, MicroSpline, 32h |
| Rear Rim | RaceFace ARC HD 30 27.5" Rims |
| Front Rotor | Shimano XT, Ice Tech, Centerlock, 203mm |
| Rear Rotor | Shimano XT, Ice Tech, Centerlock, 203mm w/ Magnet |
| Brakes | Shimano XT 8120 |
| Crankset | Shimano XT M8150 Crank Arms 165mm |
| Handlebars | Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise |
| Stem | Burgtec Enduro MK3 |
| Saddle | WTB Silverado Medium Cromoly SL Fusion Saddle |
| Seatpost | FOX Transfer Performance Elite Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
| Weight | 49.08 lbs / 22.26 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Ultimate |
| Fork | FOX 38 Float Factory, 170mm |
| Rear Derailleur | SRAM X01 Eagle AXS, 12spd |
| Shifters | SRAM GX AXS Shifter |
| Cassette | SRAM XG1295 Eagle, 12spd, 10-50t |
| Chain | SRAM X01 Eagle, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | Industry Nine 1/1, 110x15, 6 Bolt, 28h |
| Front Rim | Reserve 30 29" Carbon Rims |
| Rear Hub | Industry Nine 1/1, 148x12, XD, 6 Bolt, 32h |
| Rear Rim | Reserve DH 27.5" Carbon Rims |
| Front Rotor | Avid Centerline 220mm |
| Rear Rotor | Avid Centerline 200mm |
| Brakes | SRAM Code RSC |
| Crankset | Shimano EM900 HollowTech Crank Arms 165mm |
| Handlebars | Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise |
| Stem | Burgtec Enduro MK3 |
| Saddle | WTB Silverado Medium Stainless Fusion Saddle |
| Seatpost | FOX Transfer Factory Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
| Weight | 49.85 lbs / 22.61 kg |
|---|---|
| Material | Carbon CC |
| Shock | RockShox Super Deluxe Ultimate Coil |
| Fork | FOX 38 Float Factory, 170mm |
| Rear Derailleur | SRAM X01 Eagle AXS, 12spd |
| Shifters | SRAM GX AXS Shifter |
| Cassette | SRAM XG1295 Eagle, 12spd, 10-50t |
| Chain | SRAM X01 Eagle, 12spd |
| Chainguide | E13 E-Spec+ AL |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4, 3C, DoubleDown, EXO, TR |
| Front Tire | Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Double Down, TR |
| Sealant | Stan's Sealant |
| Front Hub | Industry Nine 1/1, 110x15, 6 Bolt, 28h |
| Front Rim | Reserve 30 29" Carbon Rims |
| Rear Hub | Industry Nine 1/1, 148x12, XD, 6 Bolt, 32h |
| Rear Rim | Reserve DH 27.5" Carbon Rims |
| Front Rotor | Avid Centerline 220mm |
| Rear Rotor | Avid Centerline 200mm |
| Brakes | SRAM Code RSC |
| Crankset | Shimano EM900 HollowTech Crank Arms 165mm |
| Handlebars | Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise |
| Stem | Burgtec Enduro MK3 |
| Saddle | WTB Silverado Medium Stainless Fusion Saddle |
| Seatpost | FOX Transfer Factory Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz House Grips |
| Battery | Shimano 630Wh Integrated |
| Drive Unit | Shimano Drive Unit DU-EP800 |
| Travel | 170/170mm |
| Wheel Size | MX |
Transmission Setup
| Frame Size | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|
| Medium | A | 6 | 118 | 120 | 120 |
| Large | A | 6 | 118 | 120 | 120 |
| XLarge | A | 6 | 118 | 120 | 120 |
| XXLarge | A | 6 | 118 | 120 | 120 |
Exploded Diagrams

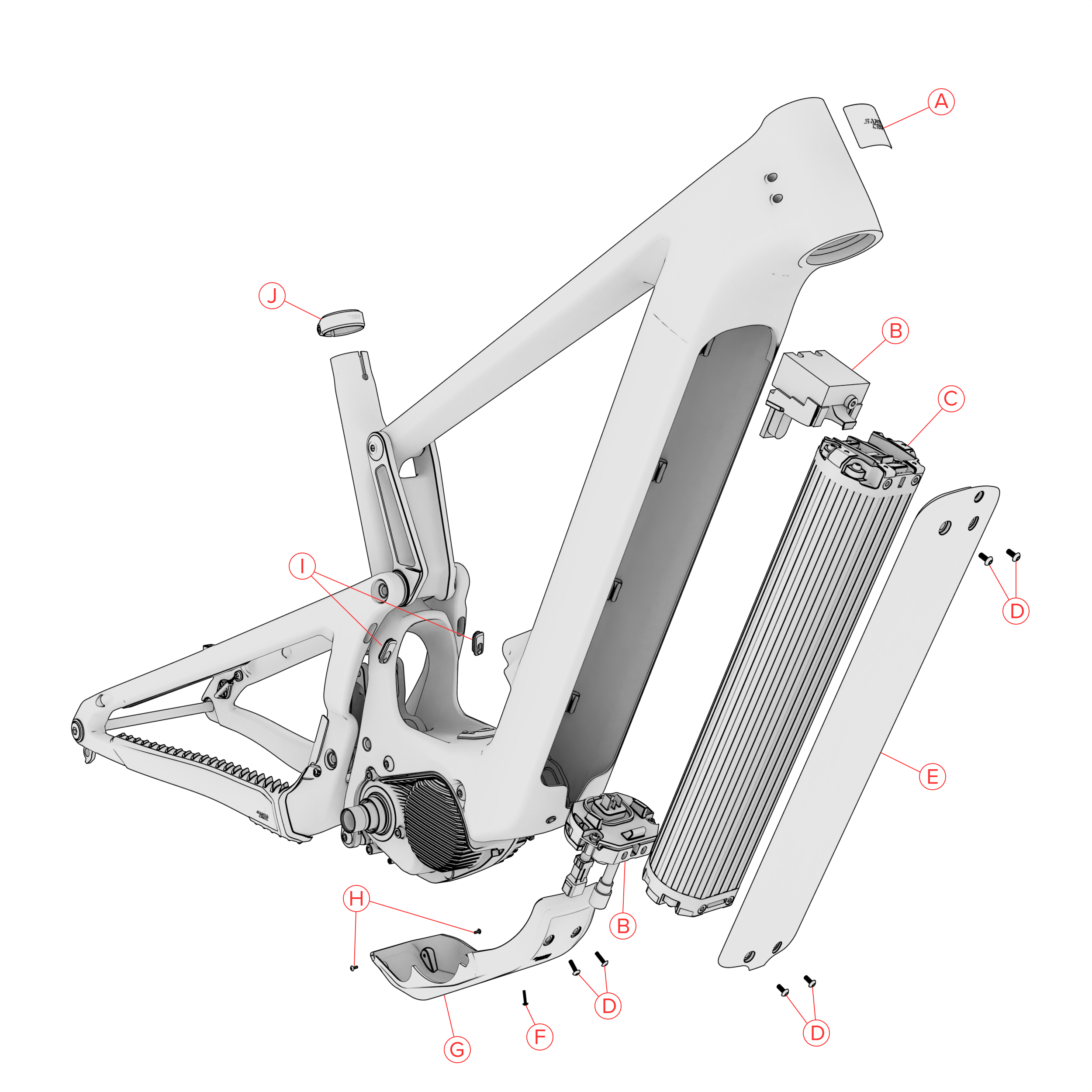

Battery Cover, Seat Collar, Downtube Protector, and Headbadge
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 72-21292 | 1 | Shimano BM-E8030 | For EP801 use battery mount BM-EN801 (72-24168) | |
| C | 78-21554 | 1 | Shimano BT-E8036 | For EP801 use battery BT-EN806 (78-24169) | |
| D | 26-18382 | 6 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| E | 30-22329 | 1 | Bullit 3C battery cover | ||
| F | 26-15939 | 2 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| G | 30-22358 | 1 | DU Protector | ||
| H | 26-22358 | 1 | M3x6 | Apply Loctite 242 to threads | 0.6 Nm |
| I | 26-19207 | 2 | Hose Grommet | ||
| J | 34-20201 | 2 | 36.4 Seat Collar |
Loading

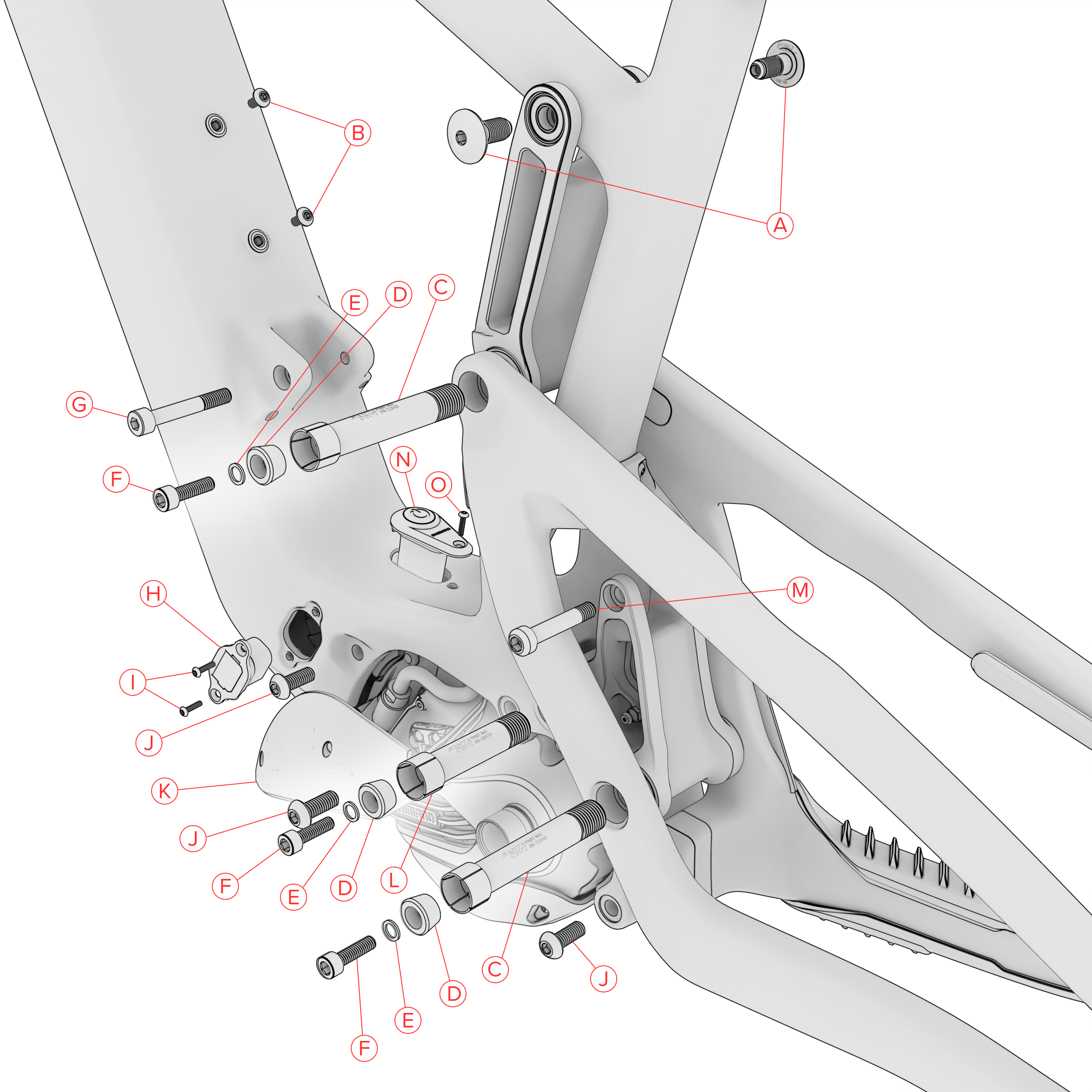

Upper and Lower Linkage Bolts
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 26-21360 | 2 | Water Bottle Screw | ||
| C | 08-22343 | 2 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| D | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| E | 26-11817 | 3 | M6 Washer | ||
| F | 26-15947 | 3 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| G | 26-21231 | 1 | 22 Nm | M8x50 Shock Bolt | Apply loctite 242 to threads |
| H | 72-21270 | 1 | Shimano EW-CP100 | Charge port for EP8 & EP801 | |
| I | 26-15939 | 2 | 0.1 Nm | M3x12 BHCS | Apply Loctite 242 to threads |
| J | 26-21223 | 1 | 12.5 Nm | M8x20 BHCS | Apply Loctite 242 to threads |
| K | 72-21559 | 1 | Shimano DC-EP800 | For EP801 use DC-EP801 (72-24172) | |
| L | 08-20879 | 1 | 20 Nm | Pivot Axle M15x72 | Apply Loctite 242 to threads only, apply grease to shaft only |
| M | 26-21231 | 1 | 22 Nm | M8x50 Shock Bolt | Apply loctite 242 to threads |
Loading

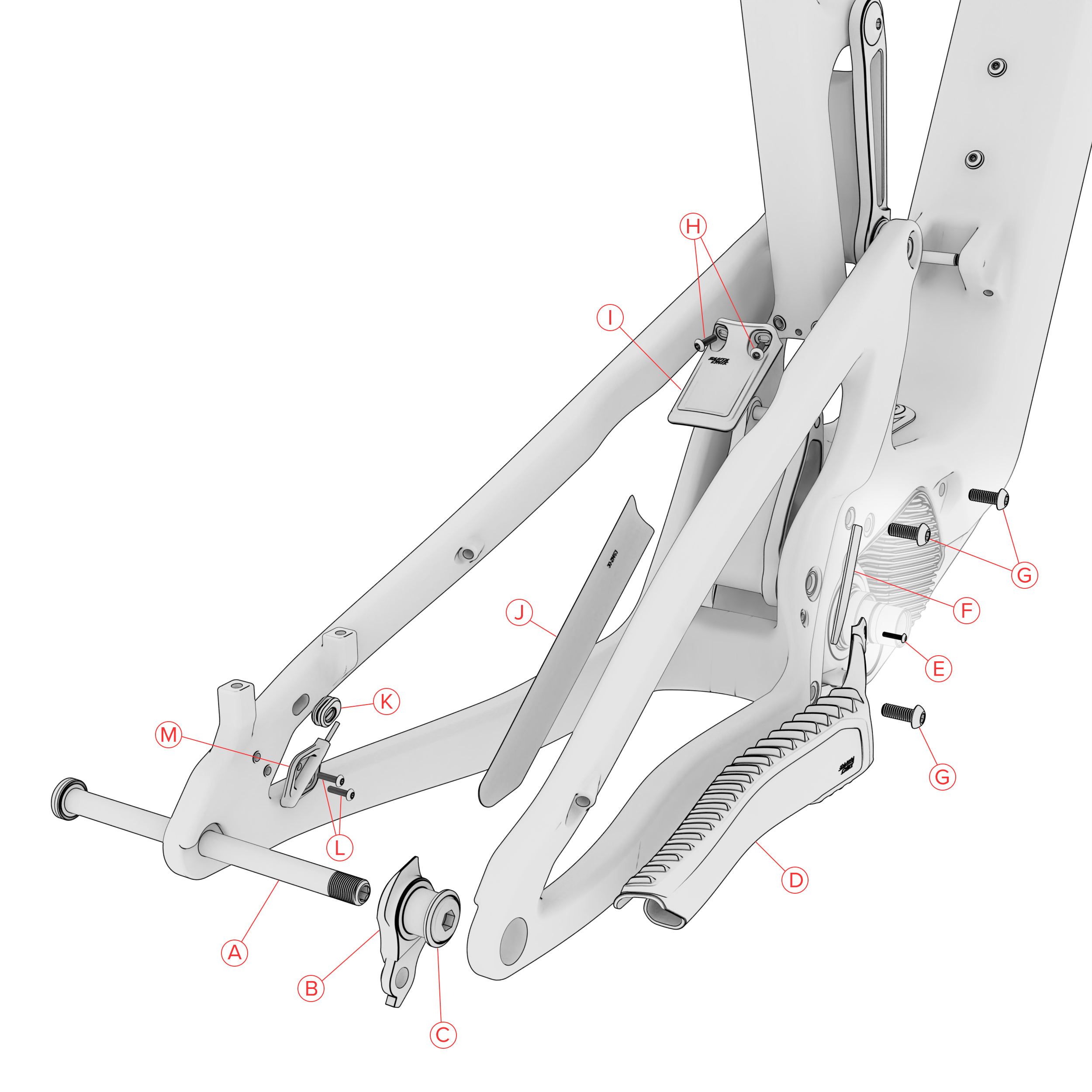

Rear Axle, Derailleur Hanger, and Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-21226 | 1 | Chainstay Protector | ||
| E | 26-15939 | 1 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| F | 30-20189 | 1 | Chainstay Protector | ||
| G | 26-21223 | 3 | M8x20 BHCS | Apply Loctite 242 to threads | 12.5 Nm |
| H | 26-18382 | 2 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| I | 49-21567 | 1 | Lower Link Fender | ||
| J | 30-21453 | 1 | Seatstay Protector | ||
| K | 26-21361 | 1 | Hose Grommet Single | ||
| L | 26-15939 | 1 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| M | 72-22286 | 1 | Shimano Speed Sensor | Use for both EP8 & EP801 |
Loading

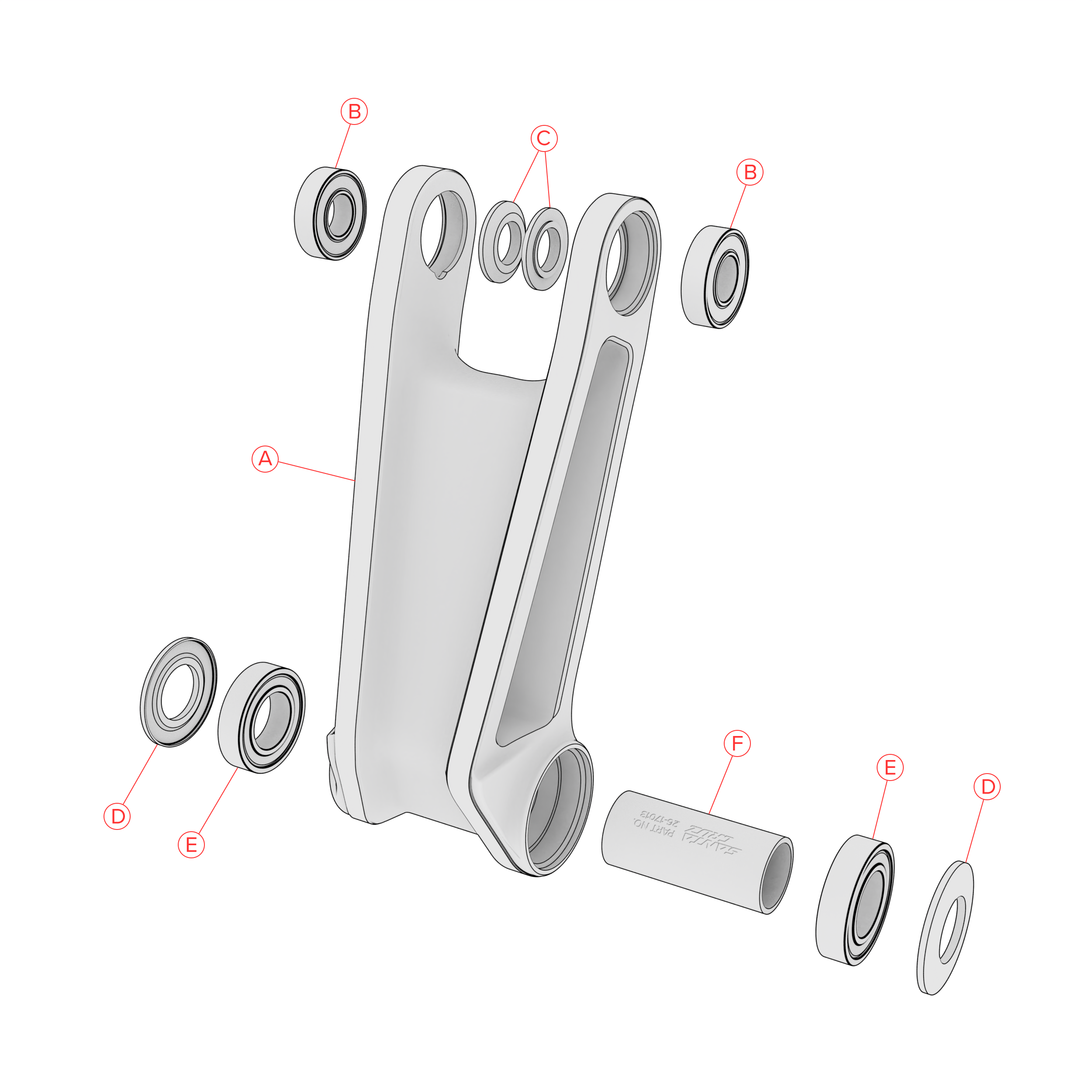

Upper Link
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 29-22342 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| E | 11-12218 | 2 | 6902-2RS Max Bearing | |
| F | 26-17013 | 1 | 15x40.25 Bearing Spacer |
Loading

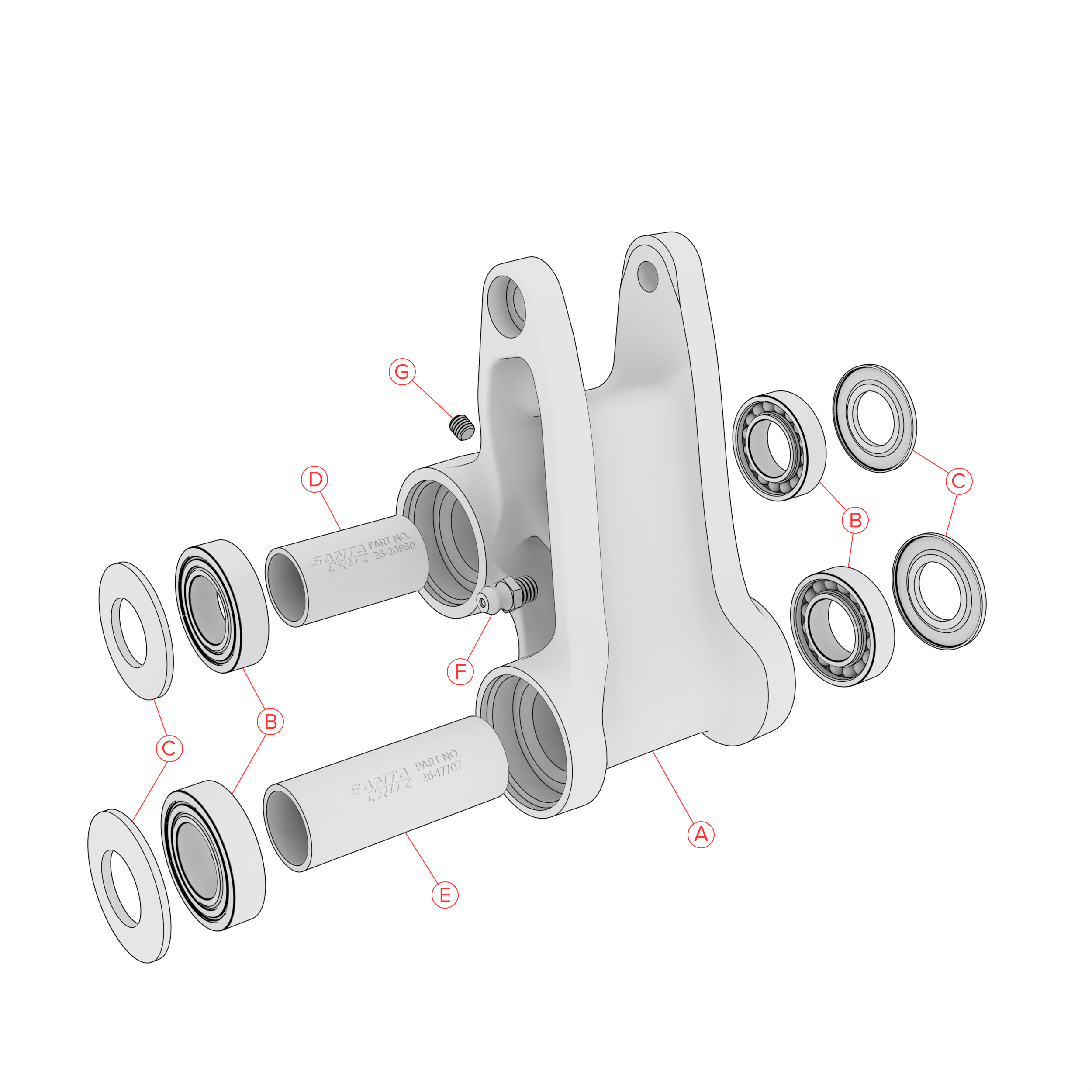

Lower Link
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 29-22341 | 1 | Lower Link | ||
| B | 11-17708 | 4 | 6902-1ZR Bearing | ||
| C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 26-20880 | 1 | 15x32 Bearing Spacer | ||
| E | 26-17707 | 1 | 15x48 Bearing spacer | ||
| F | 26-12678 | 1 | M6 Grease Fitting | 9 Nm | |
| G | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 0.5 Nm |
Loading
Manuals & Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
