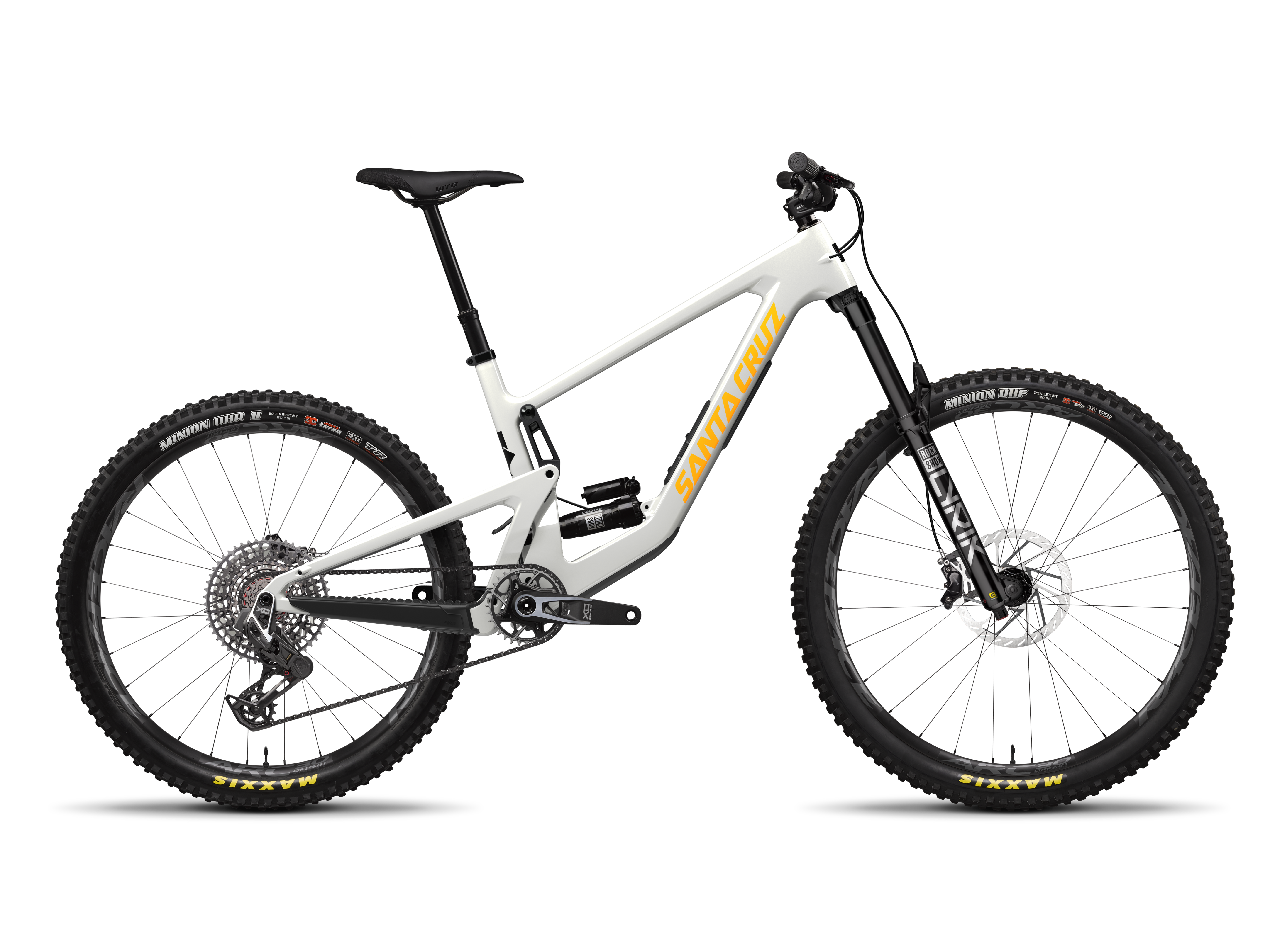

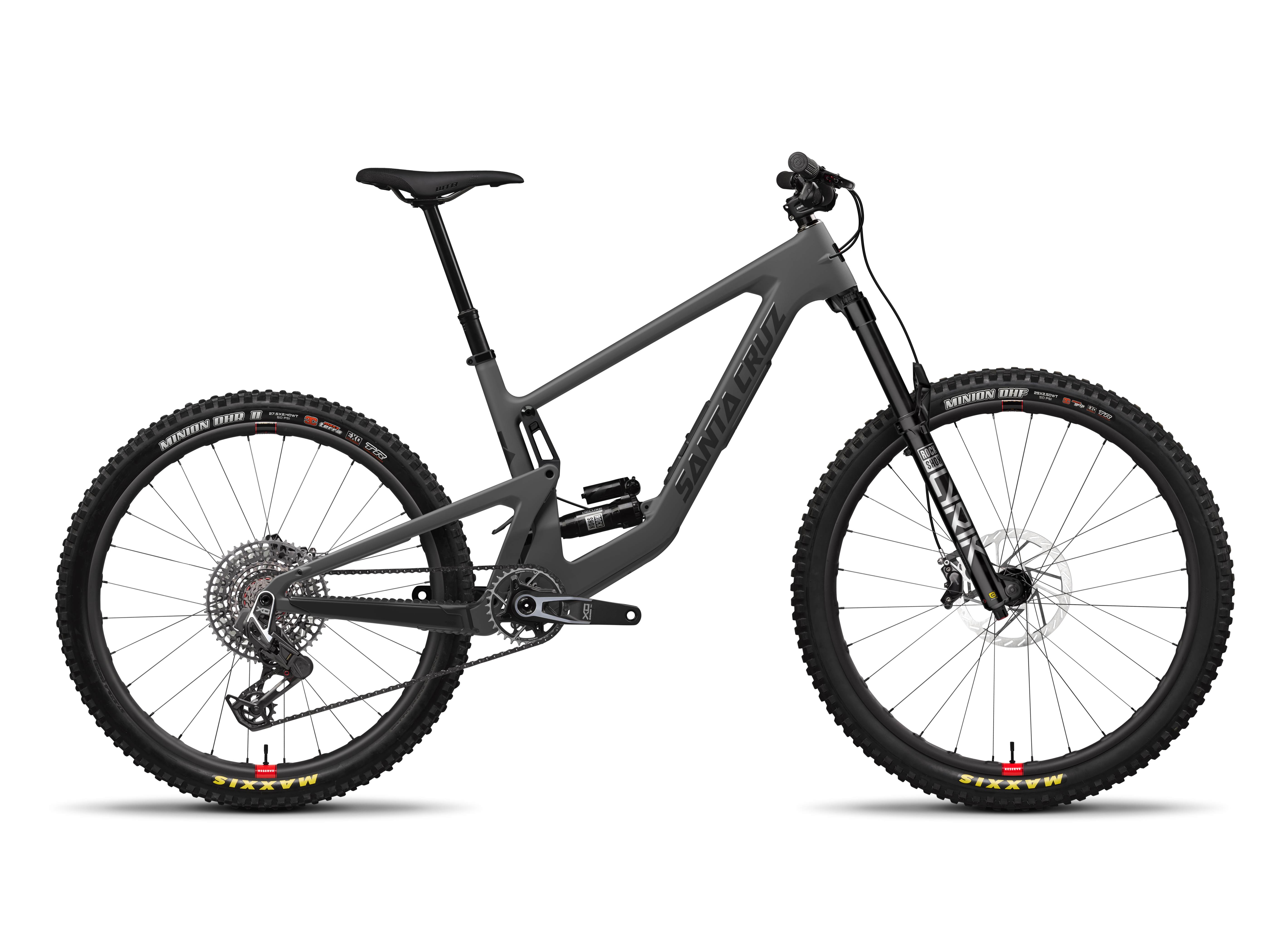

Bronson 4 MY24
2023 - 2024
If in doubt, take a Bronson out
The 150mm-travel bike can go deep on any landing and the VPP™ suspension design makes sure that there’s no wasted energy when heading back up for another go. If you value style at speed or want to have fun feeling fast, then mixed wheels (29” up front, 27.5” out back) are the right choice. The larger front wheel provides more traction and stability that’ll make you feel more confident squaring off the turns and diving for the inside lines. But a 27.5-inch tire in the rear means this bike still loves getting up on the back wheel and into the air.
Carbon
C/CC
Front (MM)
160
Rear (MM)
150
Wheel Size
MX
Model Specs
| Suspension System | VPP |
|---|---|
| Front Derailleur Mount | No compatibility |
| Headset | Integrated (IS41/52) |
| Seat Post Diameter | 31.6mm |
| Seat Clamp Diameter | 36.4mm |
| Shock Length | 230mm |
| Shock Stroke | 60mm |
| Fork Compatibility | 160mm |
| Bottom Bracket Shell | 73mm Threaded |
| Max Tire Clearance | 2.6" |
| Max Chainring Size | 36t |
| Water Bottle Mounts | 1 |
| Shock Bushing Size Front | 30x8 (standard bushing) |
| Shock Bushing Size Rear | 30x8 (roller bearing) |
| Rear Brake Mount | 180 PM |
| Fork Offset | 37mm (XS) | 44mm (S-XL) |
Build Kits
Select a Build Kit
| Weight | 32.53 lbs / 14.76 kg |
|---|---|
| Material | Carbon C |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Select+, 230x60 |
| Fork | FOX 36 Float Performance, 160mm |
| Rear Derailleur | SRAM GX Eagle, 12spd |
| Right Shifter | SRAM GX Eagle, 12spd |
| Cassette | SRAM XG1275 Eagle, 12spd, 10-50t |
| Chain | SRAM GX Eagle, 12spd |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | DT Swiss 370, 15x110, 6-Bolt, 28h |
| Front Rim | RaceFace AR Offset 30, 29", (27.5" Size XS) |
| Rear Hub | DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Rim | RaceFace AR Offset 30, 27.5" |
| Front Rotor | Avid Centerline, 200mm |
| Rear Rotor | Avid Centerline, 180mm |
| Brakes | SRAM Code R |
| Crankset | SRAM GX Eagle 148 DUB 32t |
| Handlebars | Burgtec RideWide Alloy |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado, CroMo |
| Seatpost | OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6 |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Weight | 33.02 lbs / 14.98 kg |
|---|---|
| Material | Carbon C |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | FOX Float X Performance, 230x60 |
| Fork | RockShox Lyrik Base, 160mm |
| Rear Derailleur | SRAM NX Eagle, 12spd |
| Right Shifter | SRAM NX Eagle, 12spd |
| Cassette | SRAM PG1230, 12spd, 11-50t |
| Chain | SRAM NX Eagle, 12spd |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h |
| Front Rim | RaceFace AR Offset 30, 29", (27.5" Size XS) |
| Rear Hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rear Rim | RaceFace AR Offset 30, 27.5" |
| Front Rotor | Avid Centerline, 200mm |
| Rear Rotor | Avid Centerline, 200mm |
| Brakes | SRAM G2 R |
| Crankset | SRAM Descendant Eagle 148 DUB 32t |
| Handlebars | Burgtec RideWide Alloy |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado, CroMo |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Weight | 32.04 lbs / 14.53 kg |
|---|---|
| Material | Carbon C |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Select+, 230x60 |
| Fork | RockShox Lyrik Select+, 160mm -or- Fox 36 Performance Elite |
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Bridge |
| Cassette | SRAM GX Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h |
| Front Rim | RaceFace ARC Offset 30 29", (27.5" Size XS) |
| Rear Hub | DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Rim | RaceFace ARC Offset 30 27.5" |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Brakes | SRAM Code Bronze Stealth |
| Crankset | SRAM GX Eagle DUB T-Type Crankset, 32t |
| Handlebars | Santa Cruz Carbon |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado Medium, CroMo |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Battery Charger | SRAM eTap Powerpack 1 Battery |
| Weight | 31.96 lbs / 14.49 kg |
|---|---|
| Material | Carbon C |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Select+, 230x60 |
| Fork | RockShox Lyrik Select+, 160mm -or- Fox 36 Performance Elite |
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Bridge |
| Cassette | SRAM GX Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h |
| Front Rim | Reserve 30|HD 29", (27.5" Size XS) |
| Rear Hub | DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Rim | Reserve 30|HD 27.5" |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Brakes | SRAM Code Bronze Stealth |
| Crankset | SRAM GX Eagle DUB T-Type Crankset, 32t |
| Handlebars | Santa Cruz Carbon |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado Medium, CroMo |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Battery Charger | SRAM eTap Powerpack 1 Battery |
| Weight | 31.55 lbs / 14.31 kg |
|---|---|
| Material | Carbon CC |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Ultimate, 230x60 |
| Fork | RockShox Lyrik Ultimate, 160mm -or- FOX 36 Float Factory |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Bridge |
| Cassette | SRAM X0 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h |
| Front Rim | RaceFace ARC Offset 30 29", (27.5" Size XS) |
| Rear Hub | Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h |
| Rear Rim | RaceFace ARC Offset 30 27.5" |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Brakes | SRAM Code Silver Stealth |
| Crankset | SRAM X0 Eagle DUB T-Type Crankset, 32t |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado Medium, Ti |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Battery Charger | SRAM eTap Powerpack 1 Battery |
| Weight | 31.46 lbs / 14.27 kg |
|---|---|
| Material | Carbon CC |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Ultimate, 230x60 |
| Fork | RockShox Lyrik Ultimate, 160mm -or- FOX 36 Float Factory |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Bridge |
| Cassette | SRAM X0 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, (27.5" Size XS) |
| Front Hub | Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h |
| Front Rim | Reserve 30|HD 29", (27.5" Size XS) |
| Rear Hub | Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h |
| Rear Rim | Reserve 30|HD 27.5" |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Brakes | SRAM Code Silver Stealth |
| Crankset | SRAM X0 Eagle DUB T-Type Crankset, 32t |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado Medium, Ti |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Battery Charger | SRAM eTap Powerpack 1 Battery |
| Weight | 6.84 lbs / 3.1 kg |
|---|---|
| Material | Carbon CC |
| Travel | 150mm |
| Wheel Size | MX |
| Shock | RockShox Super Deluxe Ultimate, 230x60 |
Geometry
All units are in millimeters or degrees.
| xs | s | m | l | xl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 405/402 | 430/427 | 455/452 | 475/472 | 500/497 |
| Stack (Hi/Lo) | 594/595 | 617/619 | 626/628 | 635/637 | 649/651 |
| Head Tube Angle (Hi/Lo) | 64.7°/64.5° | 64.7°/64.5° | 64.7°/64.5° | 64.7°/64.5° | 64.7°/64.5° |
| Seat Tube Length (Hi/Lo) | 370/370 | 380/380 | 405/405 | 430/430 | 460/460 |
| Front Center (Hi/Lo) | 722/722 | 757/757 | 786/786 | 811/810 | 842/842 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 10/13 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 10/13 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase (Hi/Lo) | 1149/1154 | 1188/1189 | 1221/1222 | 1249/1249 | 1284/1285 |
| Rear Center (Hi/Lo) | 427/432 | 431/432 | 435/436 | 438/439 | 442/443 |
| Head Tube Length (Hi/Lo) | 110/110 | 100/100 | 110/110 | 120/120 | 135/135 |
| Top Tube Length (Hi/Lo) | 536/542 | 570/575 | 599/604 | 623/627 | 653/657 |
| Seat Tube Angle (Hi/Lo) | 77.6°/76.9° | 77.2°/76.7° | 77.1°/76.6° | 76.9°/76.5° | 76.7°/76.4° |
| Standover Height (Hi/Lo) | 701/698 | 709/706 | 731/727 | 729/726 | 728/725 |
Size Guide
X-Small
Small
Medium
Large
X-Large
142cm
4'8"
-
154cm
5'1"
Reach: 405mm
154cm
5'1"
-
165cm
5'5"
Reach: 430mm
165cm
5'5"
-
175cm
5'9"
Reach: 455mm
175cm
5'9"
-
185cm
6'1"
Reach: 475mm
185cm
6'1"
-
193cm
6'4"
Reach: 500mm
Suspension Setup
Rockshox Lyrik Base 160
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 40 | 14 |
| 120 | 54 | 50 | 13 |
| 140 | 64 | 60 | 12 |
| 160 | 73 | 70 | 11 |
| 180 | 82 | 80 | 11 |
| 200 | 91 | 90 | 10 |
| 220 | 100 | 100 | 9 |
| 240 | 109 | 110 | 8 |
Fox Float X Performance
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 115 | 28-32%, 16.5-19mm | 8 |
| 120 | 54 | 135 | 28-32%, 16.5-19mm | 7 |
| 140 | 64 | 155 | 28-32%, 16.5-19mm | 7 |
| 160 | 73 | 175 | 28-32%, 16.5-19mm | 7 |
| 180 | 82 | 195 | 28-32%, 16.5-19mm | 6 |
| 200 | 91 | 215 | 28-32%, 16.5-19mm | 6 |
| 220 | 100 | 235 | 28-32%, 16.5-19mm | 6 |
| 240 | 109 | 255 | 28-32%, 16.5-19mm | 5 |
| 260 | 118 | 275 | 28-32%, 16.5-19mm | 5 |
Fox 36 Performance 160
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 120 | 54 | 66 | 13 |
| 130 | 59 | 70 | 12 |
| 140 | 64 | 74 | 11 |
| 150 | 68 | 78 | 10 |
| 160 | 73 | 82 | 9 |
| 170 | 77 | 86 | 8 |
| 180 | 82 | 89 | 7 |
| 190 | 86 | 94 | 6 |
| 200 | 91 | 99 | 5 |
| 210 | 95 | 104 | 4 |
| 220 | 100 | 109 | 3 |
| 230 | 104 | 113 | 2 |
Rockshox Super Deluxe Select Plus
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 85 | 28-32%, 16.5-19mm | 7 |
| 120 | 54 | 105 | 28-32%, 16.5-19mm | 6 |
| 140 | 64 | 130 | 28-32%, 16.5-19mm | 6 |
| 160 | 73 | 145 | 28-32%, 16.5-19mm | 6 |
| 180 | 82 | 170 | 28-32%, 16.5-19mm | 5 |
| 200 | 91 | 190 | 28-32%, 16.5-19mm | 5 |
| 220 | 100 | 215 | 28-32%, 16.5-19mm | 5 |
| 240 | 109 | 235 | 28-32%, 16.5-19mm | 4 |
| 260 | 118 | 260 | 28-32%, 16.5-19mm | 4 |
MY24 Rockshox Lyrik Select Plus 160
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 40 | 15 |
| 120 | 54 | 50 | 13 |
| 140 | 64 | 60 | 12 |
| 160 | 73 | 70 | 11 |
| 180 | 82 | 80 | 10 |
| 200 | 91 | 90 | 9 |
| 220 | 100 | 100 | 8 |
| 240 | 109 | 110 | 6 |
| 260 | 113 | 120 | 5 |
Rockshox Super Deluxe Select Plus
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 85 | 28-32%, 16.5-19mm | 7 |
| 120 | 54 | 105 | 28-32%, 16.5-19mm | 6 |
| 140 | 64 | 130 | 28-32%, 16.5-19mm | 6 |
| 160 | 73 | 145 | 28-32%, 16.5-19mm | 6 |
| 180 | 82 | 170 | 28-32%, 16.5-19mm | 5 |
| 200 | 91 | 190 | 28-32%, 16.5-19mm | 5 |
| 220 | 100 | 215 | 28-32%, 16.5-19mm | 5 |
| 240 | 109 | 235 | 28-32%, 16.5-19mm | 4 |
| 260 | 118 | 260 | 28-32%, 16.5-19mm | 4 |
Rockshox Lyrik Ultimate
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) | Compression (L/H from middle) |
|---|---|---|---|---|
| 100 | 45 | 40 | 15 | -2,middle |
| 120 | 54 | 50 | 13 | -2,middle |
| 140 | 63 | 60 | 12 | -2,middle |
| 160 | 72 | 70 | 11 | -2,middle |
| 180 | 81 | 80 | 10 | -2,middle |
| 200 | 90 | 90 | 9 | -2,middle |
| 220 | 99 | 100 | 8 | -2,middle |
| 240 | 108 | 110 | 6 | -2,middle |
| 260 | 117 | 120 | 5 | -2,middle |
Rockshox Super Deluxe Ultimate
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) | Compression (L/H from middle) |
|---|---|---|---|---|---|
| 100 | 45 | 85 | 28-32%, 16.5-19mm | 7 | -1/-1 |
| 120 | 54 | 105 | 28-32%, 16.5-19mm | 6 | -1/-1 |
| 140 | 63 | 130 | 28-32%, 16.5-19mm | 6 | -1/-1 |
| 160 | 72 | 150 | 28-32%, 16.5-19mm | 6 | -1/-1 |
| 180 | 81 | 175 | 28-32%, 16.5-19mm | 5 | -1/-1 |
| 200 | 90 | 195 | 28-32%, 16.5-19mm | 5 | -1/-1 |
| 220 | 99 | 220 | 28-32%, 16.5-19mm | 5 | -1/-1 |
| 240 | 108 | 240 | 28-32%, 16.5-19mm | 4 | -1/-1 |
| 260 | 117 | 265 | 28-32%, 16.5-19mm | 4 | -1/-1 |
Transmission Setup
| Frame Size | Flip Chip | Setup Key | Setup Cog | 30T | 32T | 34T | 36T |
|---|---|---|---|---|---|---|---|
| XSmall | High | B | 7 | 114 | 114 | 116 | 116 |
| Small | High | B | 7 | 114 | 116 | 116 | 118 |
| Medium | High | B | 7 | 116 | 116 | 118 | 118 |
| Large | High | B | 7 | 116 | 116 | 118 | 118 |
| XLarge | High | B | 7 | 116 | 118 | 118 | 120 |
| XSmall | Low | B | 7 | 114 | 116 | 116 | 118 |
| Small | Low | B | 7 | 114 | 116 | 116 | 118 |
| Medium | Low | B | 7 | 116 | 116 | 118 | 118 |
| Large | Low | B | 7 | 116 | 116 | 118 | 118 |
| XLarge | Low | B | 7 | 116 | 118 | 118 | 120 |
Exploded Diagrams
Front Triangle, Headtube Badge, Glovebox
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 30-22560 | 1 | Shuttle Guard | ||
| C | 30-23750 | 1 | Shuttle Guard Mount | ||
| D | 26-21249 | 2 | M4x8 BHCS | Apply grease to threads | 0.65 Nm |
| E | 30-23718 | 1 | Downtube Protector | For Bronson without Glovebox, use 30-21457 | |
| F | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
| G | 30-23225 | 2 | Glovebox nut | ||
| H | 26-25333 | 1 | Glovebox bezel | ||
| I | 26-23284 | 4 | M3x8 BHCS | Apply Loctite 242 to threads | 0.5 Nm |
| J | 26-22843 | 1 | Glovebox lid | ||
| K | 26-22358 | 1 | M3x6 | Apply Loctite 242 to threads | 0.6 Nm |
| L | 30-22620 | 1 | Storage Bulkhead | Install inside Downtube | |
| M | 34-20201 | 1 | 36.4 Seat Collar |
Loading
Linkage Hardwear
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 26-22461 | 2 | 20 Nm | M8x45 Shock Bolt | Apply Loctite 242 to threads |
| C | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| D | 08-16291 | 1 | 20 Nm | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| E | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| F | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| G | 26-11817 | 3 | M6 Washer | ||
| H | 26-15947 | 3 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| I | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| J | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| K | 26-19207 | 2 | Hose Grommet |
Loading
Rear Axle, Shock Fender, Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-20361 | 1 | Chainstay Protector | ||
| E | 26-15939 | 1 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| F | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
| G | 49-21567 | 1 | Lower Link Fender | ||
| H | 30-21453 | 1 | Seatstay Protector |
Loading
Upper Link
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 29-22534 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 11-12218 | 2 | 6902-2RS Max Bearing | |
| E | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| F | 26-17012 | 1 | 15x34.25 Bearing Spacer |
Loading
Lower Link
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 29-22533 | 1 | Lower Link | ||
| B | 11-17708 | 4 | 6902-1ZR Bearing | ||
| C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 26-19126 | 1 | 15x28 Bearing spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| G | 26-12678 | 1 | M6 Grease Fitting | 9 Nm |
Loading
Manuals & Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
