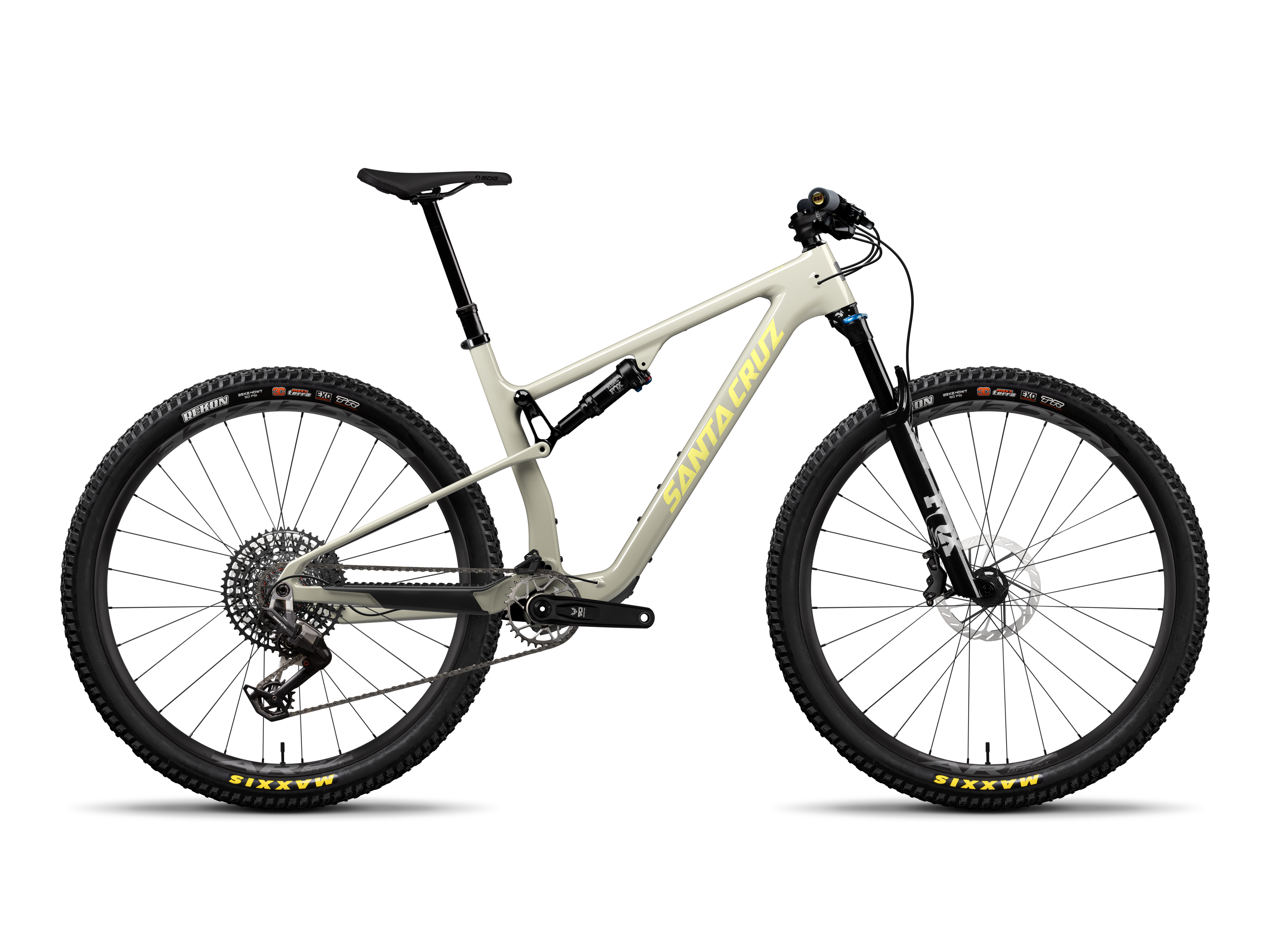

MY26 Blur C GlossFog
MY26 Blur C GlossLightTeal
MY25 Blur CC XX FA AXS RSV GlossDarkTeal

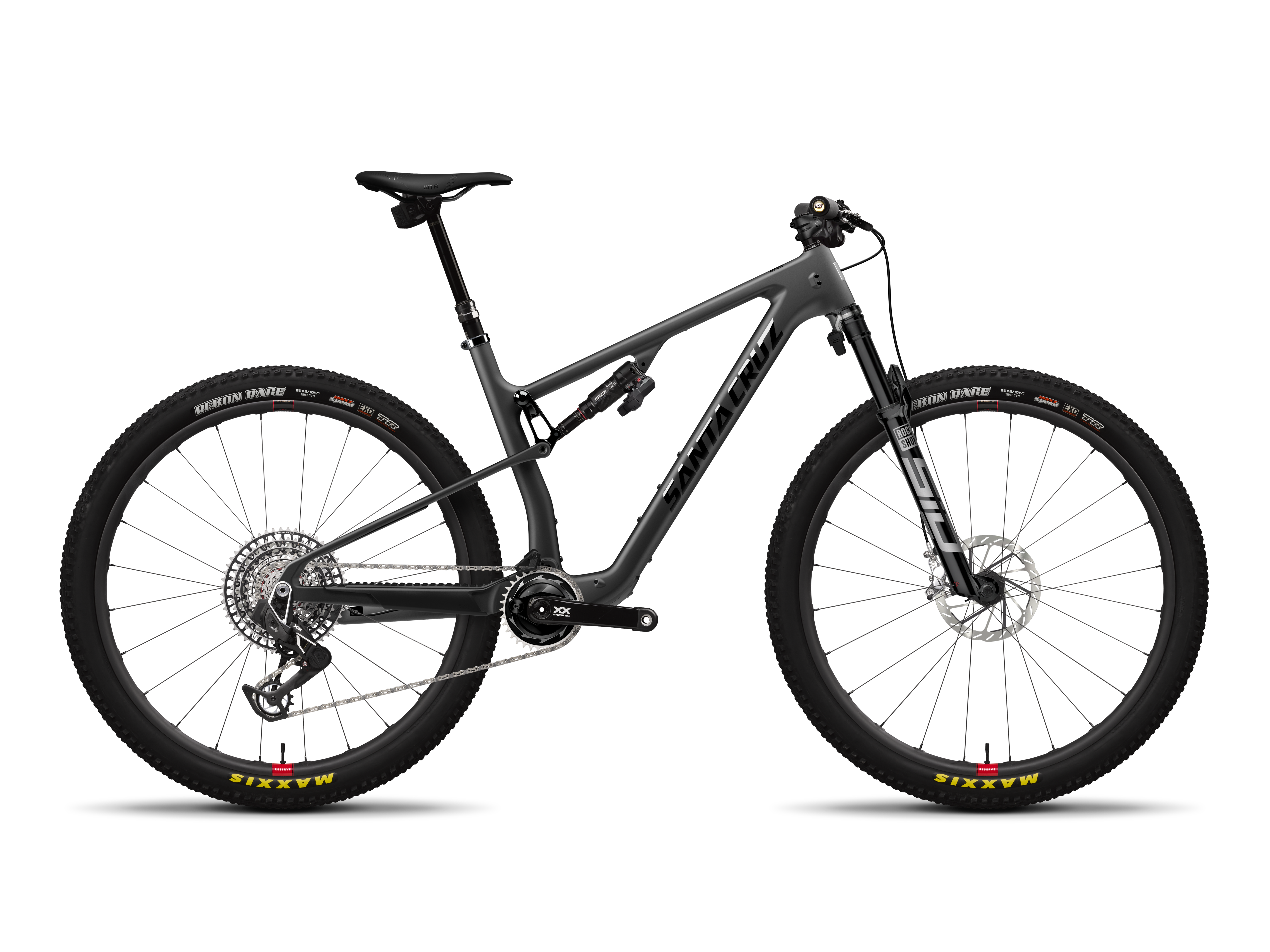

MY25 Blur CC XX FA AXS RSV MatteCarbon

Blur 4 MY26

2025 - Present

ARRIVAL OF THE FITTEST

We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes and added the super-efficient Superlight™ suspension to make a World Cup-winning XC race bike. The Blur isn’t guaranteed to make you a race winner but being the lightest, full-suspension carbon XC bike we’ve ever made, it might be the difference between claiming first place...or just crossing the line.

Carbon C/CC
Front (MM) 120
Rear (MM) 115
Wheel Size 29
Shop Spare Parts

Model Specs

Suspension System Superlightâ„¢
Front Derailleur Mount No compatibility
Headset Integrated (IS41/52)
Seat Post Diameter 31.6mm
Seat Clamp Diameter 36.4mm
Shock Length 190mm
Shock Stroke 42.5mm (XC) | 45mm (TR)
Fork Compatibility 100-120mm
Bottom Bracket Shell 73mm Threaded
Max Tire Clearance 2.4"
Max Chainring Size 36t
Water Bottle Mounts 2 inside main triangle | 1 under downtube
Shock Bushing Size Front 20x8
Shock Bushing Size Rear 20x8
Rear Brake Mount 160 PM
Fork Offset 44mm

Build Kits

Select a Build Kit

Frame Carbon C 29" 115mm Travel Superlightâ„¢
Wheel Size 29"
Weight 29.75lbs / 13.5 kg
Shock FOX Rhythm, 190x45
Fork RockShox Sid Base, 120mm, w/ 3-Position Lever
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Right Shifter SRAM 90 Eagle T-Type, 12spd
Cassette SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Headset Cane Creek 10 IS Integrated Headset
Rear Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Rim RaceFace AR Offset 27 29"
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim RaceFace AR Offset 27 29"
Front Rotor SRAM Centerline, 180mm
Rear Rotor SRAM Centerline, 180mm
Front Brakes SRAM DB8
Crankset SRAM 70 Eagle DUB T-Type Crankset, 34t
Handlebars RaceFace Ride, 10mm Rise, 35x760mm
Stem RaceFace Ride, 60mm
Saddle SDG Bel-Air V3, Steel
Seatpost SDG Tellis Dropper, 31.6
Grips / Bar Tape ESI Chunky Grips
Frame Carbon C 29" 115mm Travel Superlightâ„¢
Wheel Size 29"
Weight 28.1lbs / 12.75 kg
Shock FOX Float SL Performance, 190x45
Fork FOX 34 SL Float Performance, Grip, 120mm
Rear Derailleur SRAM 90 Eagle T-Type, 12spd
Right Shifter SRAM 90 Eagle T-Type, 12spd
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Headset Cane Creek 50 IS Integrated Headset
Rear Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Tire Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO
Front Hub DT Swiss 370, 15x110, 6-Bolt, 28h
Front Rim RaceFace AR Offset 27 29"
Rear Hub DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim RaceFace AR Offset 27 29"
Front Rotor SRAM HS2 180mm
Rear Rotor SRAM HS2 180mm
Front Brakes SRAM DB8
Crankset SRAM 90 Eagle DUB T-Type Crankset, 34t
Handlebars SRAM Atmos Flat Bar, 31.8x760
Stem SRAM Atmos Stem, 60mm
Saddle SDG Bel-Air V3 Lux-Alloy
Seatpost OneUp Dropper Post, 31.6
Grips / Bar Tape ESI Chunky Grips

Geometry

All units are in millimeters or degrees.
S M L XL
Reach 412 438 458 483
Stack 587 597 607 621
Head tube angle 67.1 67.1 67.1 67.1
Head Tube Length 90 100 110 125
Seat Tube Angle 75.1 75.0 74.9 74.8
Seat Tube Length 405 430 470 520
Rear Center 431 433 436 438
Front Center 695 724 747 778
BB Height 340 340 340 339
BB Drop 33 33 33 33
Wheelbase 1126 1157 1183 1216
Top Tube Length 568 597 621 652
Standover Height 744 746 745 750

Size Guide

Small
154cm 5'1" - 165cm 5'5" Reach: 425mm
Medium
165cm 5'5" - 175cm 5'9" Reach: 450mm
Large
175cm 5'9" - 185cm 6'1" Reach: 470mm
X-Large
185cm 6'1" - 195cm 6'5" Reach: 495mm

Transmission Setup

Blur 4 xc
Frame Size Setup Key Setup Cog 32T 34T 36T
Small B 7 116 116 118
Medium B 7 116 118 118
Large B 7 116 118 118
XLarge B 7 116 118 118
Blur 4 TR
Frame Size Setup Key Setup Cog 32T 34T 36T
Small B 7 116 116 118
Medium B 7 116 118 118
Large B 7 116 118 118
XLarge B 7 116 118 118

Exploded Diagrams

Upper Link
label part_number quantity name blurb
A 29-22532 1 Upper Link
B 11-12681 2 6900-2RS Bearing
C 26-15533 2 M10x3 Washer Apply grease to inner surface
D 26-22561 1 10x35.25 Bearing spacer
E 26-18690 2 Bearing Dust Shield Apply grease to inner surface
F 11-12681 2 6900-2RS Bearing
Exploded Diagram of Blur
Lower Pivot Bearings
label part_number quantity name blurb
A 26-22531 1 15x38.25 Bearing spacer
B 11-12218 2 6902-2RS Max Bearing
C 26-11612 2 Bearing Dust Shield Apply grease to inner surface
Exploded Diagram of Blur
Rear Axle, Chainstay Protector, Derailleur Hanger, and Chainguide
label part_number quantity name blurb torque
A 08-22209 1 Rear axle 12x173.7 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20 Nm
D 30-20189 1 Chainstay Protector
E 30-20189 1 Chainstay Protector
F 30-21453 1 Seatstay Protector
G 26-22570 1 M5x12 HHS Apply Loctite 242 to threads 2 Nm
H 26-22571 1 OneUp chainguide back plate
I 26-22572 1 OneUp chainguide mount
J 26-22938 2 M4x10 FHCS Apply Loctite 242 to threads 0.65 Nm
K 19-22609 1 OneUp chainguide
Exploded Diagram of Blur
Upper Link and Lower Pivot Hardware
label part_number quantity torque name blurb
A 26-20122 2 16 Nm M10x23 Screw Apply Loctite 242 to threads only, apply grease to shaft only
B 26-22662 2 20 Nm M8x35 Shock Bolt Apply Loctite 242 to threads
C 08-23720 1 13.6 Nm Pivot Axle M10x81 Apply Loctite 242 to threads only, apply grease to shaft only
D 26-15632 1 M5 Tapered Washer Apply grease to surface
E 26-12652 1 M5 Washer
F 26-15946 1 5.6 Nm M5x20 SHCS Apply Loctite 242 to threads
G 08-22530 1 20 Nm Pivot axle M15x90.75 Apply Loctite 242 to threads only, apply grease to shaft only
H 26-15633 1 M6 Tapered Washer Apply grease to surface
I 26-11817 1 M6 Washer
J 26-15947 1 9 Nm M6x20 SHCS Apply Loctite 242 to threads
Exploded Diagram of Blur
Downtube Protector, Bottle Cage Bolts, Seat Collar, and Headbadge
label part_number quantity name blurb torque
A 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
B 26-20124 7 M5x16 Water Bottle screw Apply grease to threads
C 30-22562 1 Downtube Protector
D 26-18382 1 M4x12 BHC Apply grease to treads 0.65 Nm
E 34-20201 1 36.4 Seat Collar
Exploded Diagram of Blur

Manuals & Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.

FAQs

Blur is the model name, Superlightâ„¢ is our new pivot system employed on the Blur.4. You can read more about that HERE

We offer the Blur.4 in 2 travel options: 'XC' - 110mm travel front and 107mm rear travel. This option uses a 40mm stroke rear shock. 'TR' - 120mm front and 115mm rear travel. This option uses a 45mm stroke shock. All Blur.4 frames accommodate both shock sizes.

Yes, there are a limited number of Blur.4 frame-only options available. Contact your local dealer for more info.

No, 29" wheels only, front and rear

On sizes M, L, XL there are three bottle mounts- two on the inside of the front triangle, and a third underneath the downtube. The small size does not have the third one underneath the downtube, but does have the other two.
