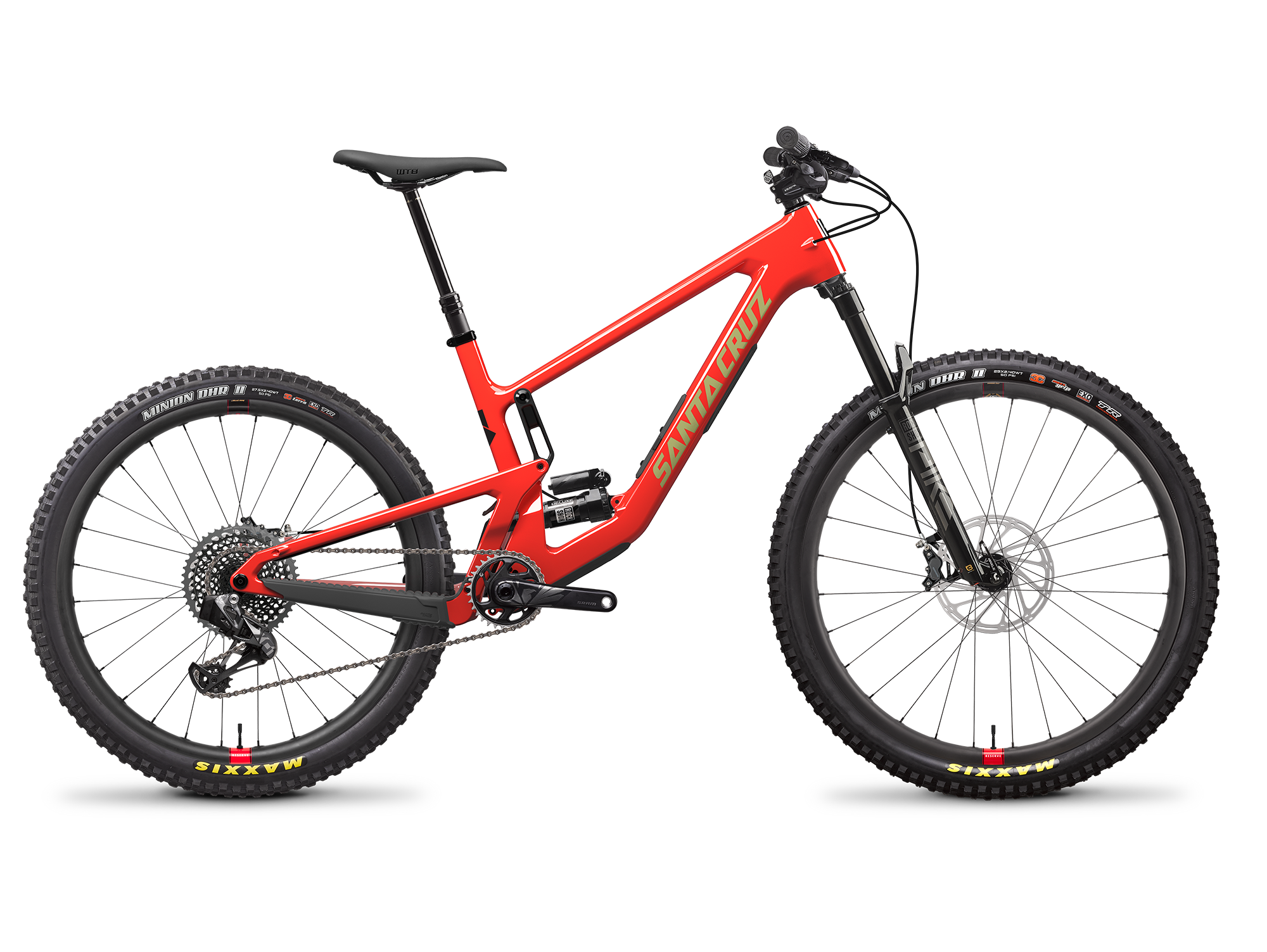

MY23 CC X01 AXS RSV GlossRed

5010 5 MY23

2022 - 2023

The best handling trail bike ever

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

Carbon C/CC
Front (MM) 140
Rear (MM) 130
Wheel Size MX

Model Specs

Suspension System VPP
Headset Integrated (IS41/52)
Seat Post Diameter 31.6mm
Seat Clamp Diameter 36.4mm
Shock Length 210mm
Shock Stroke 50mm
Fork Compatibility 140mm
Fork Offset 44mm
Rear Brake Mount PM 180mm
Bottom Bracket Shell 73mm Threaded
Max Tire Clearance 2.5"
Max Chainring Size 34t
Water Bottle Mounts 1
Shock Bushing Size Front 30x8
Shock Bushing Size Rear 30x8 (bearing compatible)

Build Kits

Select a Build Kit

Weight 31.02 lbs / 14.07 kg
Material Carbon C
Shock FOX Float Performance DPS, 210x50
Fork RockShox Pike Base, 140mm
Rear Derailleur SRAM NX Eagle, 12spd
Shifters SRAM NX Eagle, 12spd
Cassette SRAM PG1230, 12spd, 11-50t
Chain SRAM NX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 10 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub SRAM MTH 716, 15x110, Torque Cap, 32h
Front Rim RaceFace AR Offset 30 29"
Rear Hub SRAM MTH 746, 12x148, 32h
Rear Rim RaceFace AR Offset 30 27.5"
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM Guide T
Crankset SRAM Descendant Eagle 148 DUB, 32t
Handlebars Burgtec RideWide Alloy Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium CroMo
Seatpost SDG Tellis Dropper, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 31.23 lbs / 14.16 kg
Material Carbon C
Shock RockShox Super Deluxe Select+, 210x50
Fork RockShox Pike Select+, 140mm
Rear Derailleur SRAM GX Eagle, 12spd
Shifters SRAM GX Eagle, 12spd
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub DT Swiss 370, 15x110, Torque Cap, 28h
Front Rim RaceFace AR Offset 30 29"
Rear Hub DT Swiss 370, 12x148, XD, 36t, 28h
Rear Rim RaceFace AR Offset 30 27.5"
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM G2 R
Crankset SRAM GX Eagle 148 DUB, 32t
Handlebars Burgtec RideWide Alloy Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium CroMo
Seatpost SDG Tellis Dropper, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 30.76 lbs / 13.95 kg
Material Carbon C
Shock RockShox Super Deluxe Select+, 210x50
Fork RockShox Pike Select+, 140mm
Rear Derailleur SRAM GX AXS Eagle, 12spd
Shifters SRAM GX Eagle AXS Controller 2 Button
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub i9 1/1, 15x110, Torque Cap, 28h
Front Rim RaceFace ARC Offset 30 29"
Rear Hub i9 1/1, 12x148, XD, 28h
Rear Rim RaceFace ARC Offset 30 27.5"
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM G2 RS
Crankset SRAM GX Eagle 148 DUB, 32t
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium CroMo
Seatpost RockShox Reverb Stealth, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 30.68 lbs / 13.92 kg
Material Carbon C
Shock RockShox Super Deluxe Select+, 210x50
Fork RockShox Pike Select+, 140mm
Rear Derailleur SRAM GX AXS Eagle, 12spd
Shifters SRAM GX Eagle AXS Controller 2 Button
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub i9 1/1, 15x110, Torque Cap, 28h
Front Rim Reserve 30|HD 29", 28h
Rear Hub i9 1/1, 12x148, XD, 28h
Rear Rim Reserve 30|HD 27.5", 28h
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM G2 RS
Crankset SRAM GX Eagle 148 DUB, 32t
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium CroMo
Seatpost RockShox Reverb Stealth, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 30.33 lbs / 13.76 kg
Material Carbon CC
Shock RockShox Super Deluxe Ultimate, 210x50
Fork RockShox Pike Ultimate, 140mm
Rear Derailleur SRAM X01 Eagle, 12spd
Shifters SRAM X01 Eagle, 12spd
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub i9 1/1, 15x110, Torque Cap, 28h
Front Rim RaceFace ARC Offset 30 29"
Rear Hub i9 1/1, 12x148, XD, 28h
Rear Rim RaceFace ARC Offset 30 27.5"
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM G2 RSC
Crankset SRAM X1 Eagle Carbon 148 DUB, 32t
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium Ti
Seatpost RockShox Reverb Stealth, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 30.13 lbs / 13.67 kg
Material Carbon CC
Shock RockShox Super Deluxe Ultimate, 210x50
Fork RockShox Pike Ultimate, 140mm
Rear Derailleur SRAM X01 Eagle AXS, 12spd
Shifters SRAM GX Eagle AXS Controller 2 Button
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Front Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Sealant Reserve Tubeless Sealant
Front Hub i9 1/1, 15x110, Torque Cap, 28h
Front Rim Reserve 30|HD 29", 28h
Rear Hub i9 1/1, 12x148, XD, 28h
Rear Rim Reserve 30|HD 27.5", 28h
Front Rotor Avid Centerline 200mm
Rear Rotor Avid Centerline 180mm
Brakes SRAM G2 RSC
Crankset SRAM X1 Eagle Carbon 148 DUB, 32t
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem Burgtec Enduro MK3, 42mm
Saddle WTB Silverado Medium Ti
Seatpost RockShox Reverb Stealth, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Travel 140/130mm
Wheel Size MX
Weight 6.51 lbs / 2.95 kg
Material Carbon CC
Shock RockShox Super Deluxe Ultimate, 210x50

Geometry

All units are in millimeters or degrees.
xs s m l xl xxl
Reach (Hi/Lo) 410/406 434/431 459/456 479/476 499/496 524/521
Stack (Hi/Lo) 599/601 608/610 622/624 631/633 649/651 662/664
Head Tube Angle (Hi/Lo) 65.2/64.9 65.2/64.9 65.2/64.9 65.2/64.9 65.2/64.9 65.1/64.9
Head Tube Length 90 100 115 125 145 160
Seat Tube Angle (Hi/Lo) 77.4/77.1 77.4/77.1 77.4/77.1 77.1/76.8 77.3/77 77.3/77.1
Seat Tube Length 370 380 405 430 460 500
Rear Center (Hi/Lo) 428/429 430/431 433/434 436/437 439/440 442/443
Front Center (Hi/Lo) 719/718 748/748 779/779 803/803 832/832 863/863
BB Height (Hi/Lo) 338/335 338/335 338/334 338/334 338/334 338/335
BB Drop Front (Hi/Lo) 35/38 35/38 35/38 35/38 35/38 35/38
BB Drop Rear (Hi/Lo) 16/19 16/19 16/19 16/19 16/19 16/19
Wheelbase (Hi/Lo) 1147/1147 1178/1178 1212/1213 1239/1240 1271/1271 1305/1306
Top Tube Length (Hi/Lo) 544/544 570/571 598/599 624/625 645/646 673/674
Standover Height (Hi/Lo) 694/688 703/698 706/700 708/703 711/706 717/712

Suspension Setup

Rockshox Pike Base 140
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed)
100 45 40 12
120 54 50 11
140 64 60 11
160 73 70 9
180 82 80 8
200 91 90 8
220 100 100 7
240 109 110 6
Fox Float Performance Series
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 130 29-32%, 14-16mm 8
120 54 155 29-32%, 14-16mm 7
140 63 175 29-32%, 14-16mm 7
160 72 195 29-32%, 14-16mm 7
180 81 220 29-32%, 14-16mm 6
200 90 240 29-32%, 14-16mm 6
220 99 260 29-32%, 14-16mm 5
240 108 285 29-32%, 14-16mm 5
260 117 305 29-32%, 14-16mm 4
Rockshox Pike Select Plus 140
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed)
100 45 40 12
120 54 50 11
140 64 60 11
160 73 70 9
180 82 80 8
200 91 90 8
220 100 100 7
240 109 110 6
Rockshox Super Deluxe Select Plus
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 110 29-32%, 14-16mm 6
120 54 135 29-32%, 14-16mm 6
140 63 155 29-32%, 14-16mm 5
160 72 175 29-32%, 14-16mm 5
180 81 200 29-32%, 14-16mm 5
200 90 220 29-32%, 14-16mm 4
220 99 240 29-32%, 14-16mm 4
240 108 265 29-32%, 14-16mm 4
260 117 285 29-32%, 14-16mm 3
Rockshox Pike Select Plus 140
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed)
100 45 40 12
120 54 50 11
140 64 60 11
160 73 70 9
180 82 80 8
200 91 90 8
220 100 100 7
240 109 110 6
Rockshox Super Deluxe Select Plus
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed)
100 45 110 29-32%, 14-16mm 6
120 54 135 29-32%, 14-16mm 6
140 63 155 29-32%, 14-16mm 5
160 72 175 29-32%, 14-16mm 5
180 81 200 29-32%, 14-16mm 5
200 90 220 29-32%, 14-16mm 4
220 99 240 29-32%, 14-16mm 4
240 108 265 29-32%, 14-16mm 4
260 117 285 29-32%, 14-16mm 3
Rockshox Pike Ultimate 140
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Rebound (from closed)
100 45 40 12
120 54 50 11
140 64 60 9
160 73 70 9
180 82 80 8
200 91 90 7
220 100 100 5
240 109 110 4
Rockshox Super Deluxe Ultimate
Rider Weight (lbs) Rider Weight (kgs) Pressure (psi) Sag Rebound (from closed) Compression (L/H from middle)
100 45 110 29-32%, 14-16mm 6 minus 1 / minus 1
120 54 135 29-32%, 14-16mm 6 minus 1 / minus 1
140 63 155 29-32%, 14-16mm 5 minus 1 / minus 1
160 72 175 29-32%, 14-16mm 5 minus 1 / minus 1
180 81 200 29-32%, 14-16mm 5 minus 1 / minus 1
200 90 220 29-32%, 14-16mm 4 minus 1 / minus 1
220 99 240 29-32%, 14-16mm 4 minus 1 / minus 1
240 108 265 29-32%, 14-16mm 4 minus 1 / minus 1
260 117 285 29-32%, 14-16mm 3 minus 1 / minus 1

Exploded Diagrams

Seat Collar, Downtube Protector, and Shuttle Guard
label part_number quantity name blurb torque
A 67-19217 1 Head Tube Badge Clean frame surface, center on headtube
B 30-23750 1 Shuttle Guard Mount
C 30-22560 1 Shuttle Guard
D 26-21249 2 M4x8 BHCS Apply grease to threads 0.65 Nm
E 30-23880 1 Downtube Protector
F 26-18382 2 M4x12 BHC Apply grease to treads 0.65 Nm
G 34-20201 1 36.4 Seat Collar
Exploded Diagram of
Upper Link and Lower Link Hardware
label part_number quantity torque name blurb
A 26-20122 2 16 Nm M10x23 Screw Apply Loctite 242 to threads only, apply grease to shaft only
B 26-22461 1 20 Nm M8x45 Shock Bolt Apply Loctite 242 to threads
C 26-18289 1 20 Nm M8x43 Shock Bolt Apply Loctite 242 to threads
D 26-21452 1 M8x2 Flip Chip NDS Apply grease to surface
E 26-21451 1 M8x2 Flip Chip DS Apply grease to surface
F 08-23720 2 13.6 Nm Pivot Axle M10x81 Apply Loctite 242 to threads only, apply grease to shaft only
G 26-15946 3 5.6 Nm M5x20 SHCS Apply Loctite 242 to threads
H 26-12652 3 M5 Washer
I 26-15946 3 5.6 Nm M5x20 SHCS Apply Loctite 242 to threads
J 08-23721 1 Pivot Axle M10x69 Apply Loctite 242 to threads only, apply grease to shaft only
Exploded Diagram of
Rear Triangle Components
label part_number quantity name blurb torque
A 08-22209 1 Rear axle 12x173.7 Apply grease to shaft and threads
B 23-23491 1 SCB UDH Interchangeable with Sram UDH
C 26-23492 1 SCB UDH screw Reverse thread 20 Nm
D 30-20361 1 Chainstay Protector
E 26-15939 1 M3x12 BHCS Apply grease to treads 0.5 Nm
F 30-21453 1 Seatstay Protector
G 30-23094 1 Lower Link Fender
H 26-18382 2 M4x12 BHC Apply grease to treads 0.65 Nm
Exploded Diagram of
Glovebox
label part_number quantity name torque blurb
A 26-22843 1 Glovebox lid
B 26-25333 1 Glovebox bezel
C 26-23284 4 M3x8 BHCS 0.5 Nm Apply Loctite 242 to threads
D 30-23225 2 Glovebox nut
E 26-22358 1 M3x6 0.6 Nm Apply Loctite 242 to threads
F 30-22620 1 Storage Bulkhead Install inside Downtube
Exploded Diagram of
Lower Link
label part_number quantity name blurb torque
A 29-24192 1 Lower Link
B 11-18385 4 6900-1ZR Bearing
C 26-18690 4 Bearing Dust Shield Apply grease to inner surface
D 26-18691 1 10x30.5 Bearing spacer
E 26-18692 1 10x41.5 Bearing Spacer
F 26-12678 1 M6 Grease Fitting 9 Nm
G 26-15532 1 M5x5 Set Screw Apply Loctite 242 to threads, titghten until flush
Exploded Diagram of
Upper Link
label part_number quantity name blurb
A 29-23958 1 Upper Link
B 11-12681 2 6900-2RS Bearing
C 26-15533 2 M10x3 Washer Apply grease to inner surface
D 26-18690 2 Bearing Dust Shield Apply grease to inner surface
E 11-12681 2 6900-2RS Bearing
F 26-22561 1 10x35.25 Bearing spacer
Exploded Diagram of

Manuals & Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
