Bullit Podium

Rear (MM) 170

Wheel Size MX

Drive Unit Bosch

Battery (Wh) 600

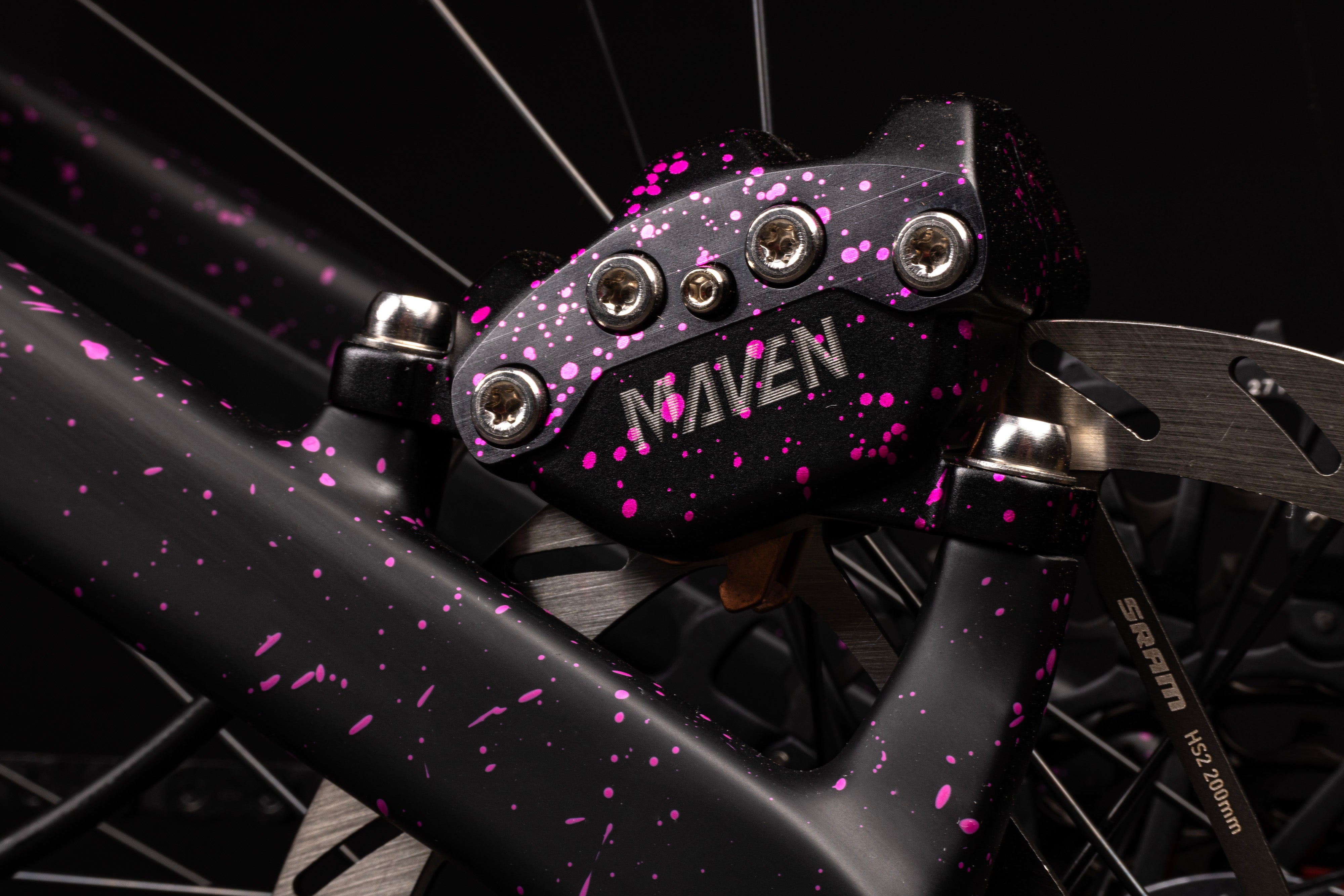

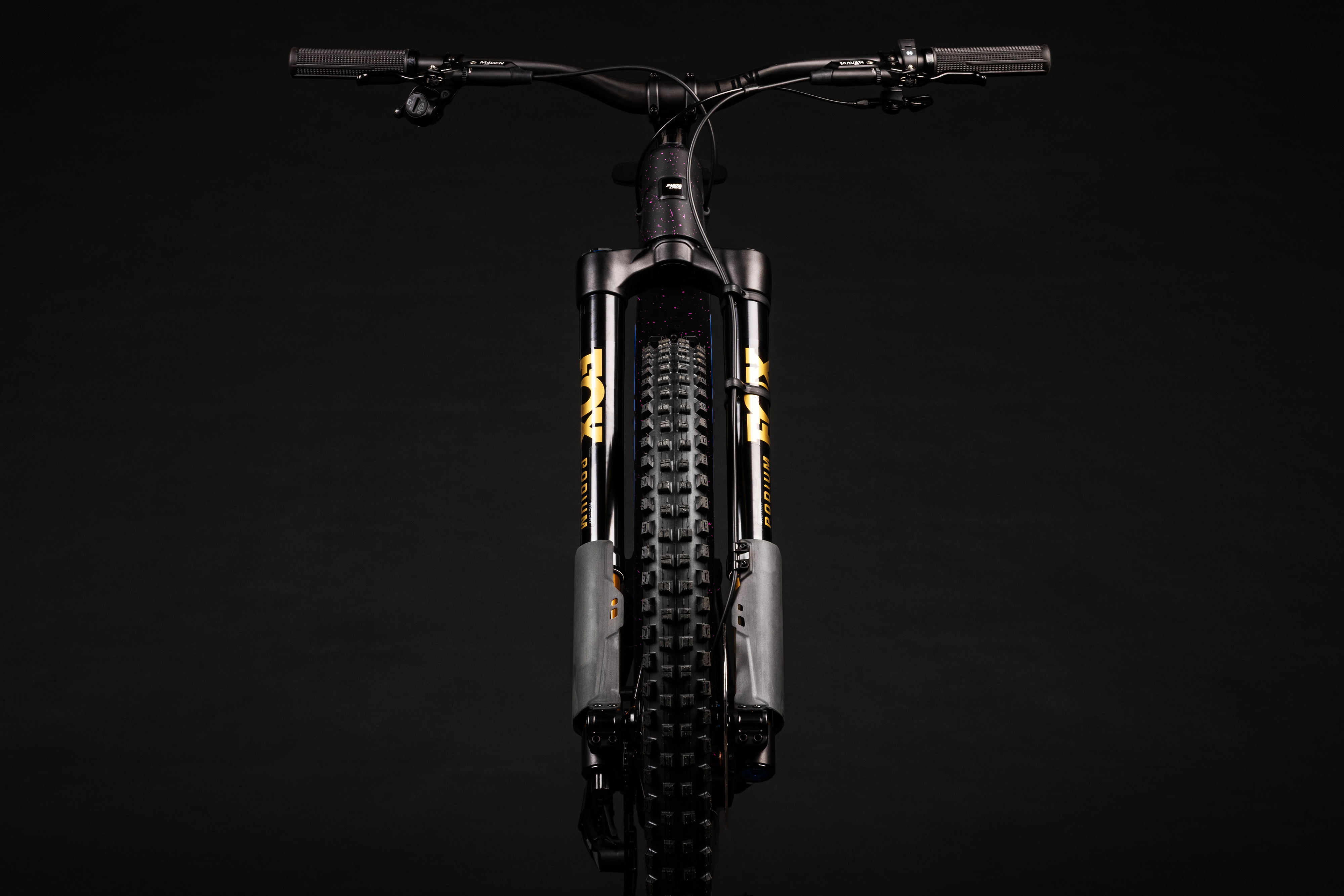

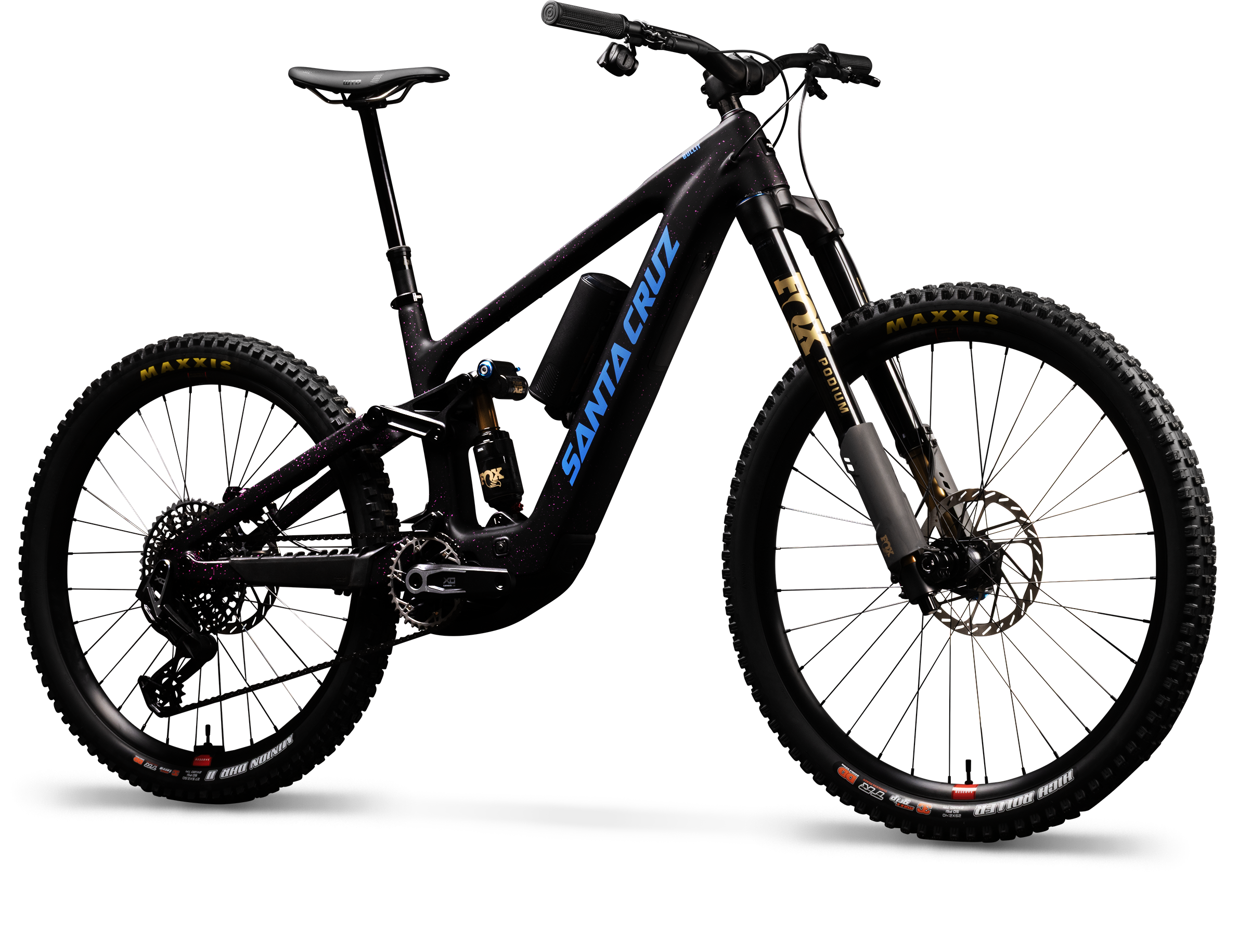

The ultra-limited Bullit Podium delivers everything you could want in a top-tier ebike—special-edition paint with color-matched SRAM Maven brakes, an e13 Kickback hub, the PowerMore 250 Wh range extender, and of course, its namesake Fox Podium fork. All that in addition to the Santa Cruz Bullit frame, which has proven to be the ebike of choice for big days in the big mountains. It's powered by the same Bosch Performance Line CX motor and backed by Santa Cruz's legendary Lifetime Warranty on the frame and bearings.

HIGHLIGHT REEL

Carbon Mastery

Choose between our top-end, lightweight Carbon CC frame or the value-minded Carbon C frame. Both come with a lifetime warranty.

Learn More

Design details of Design Details BoschApp VA BU

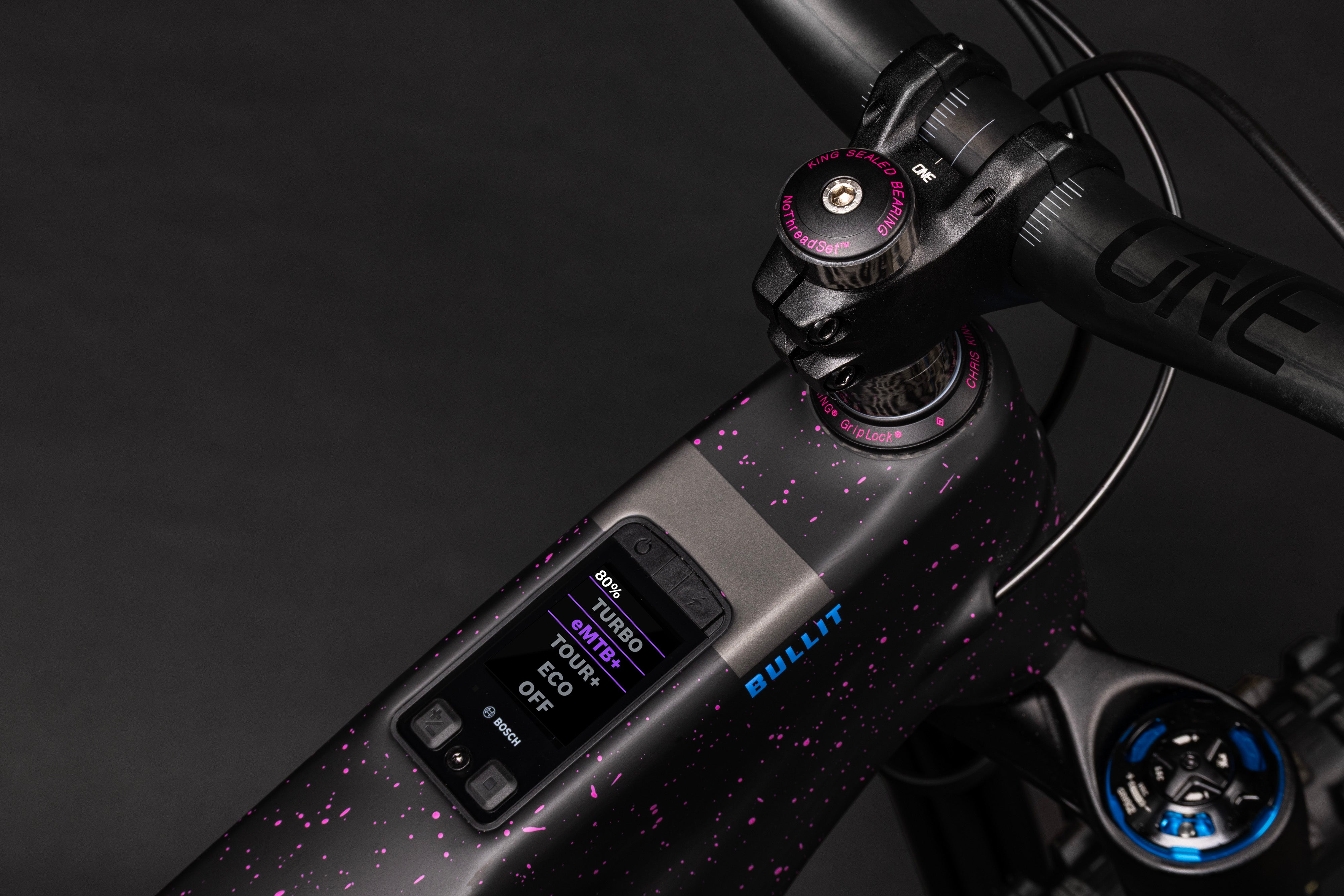

Bosch Flow App

Connect your bike experience. Customize modes, upload routes, track rides, and let the Range Control select modes for you.

Built to Last

Bikes aren't throwaway items, but they get thrown around. From the tough frames to free bearings for life, Santa Cruz bikes are built to last.

Design details of Design Details Hardware VA BU

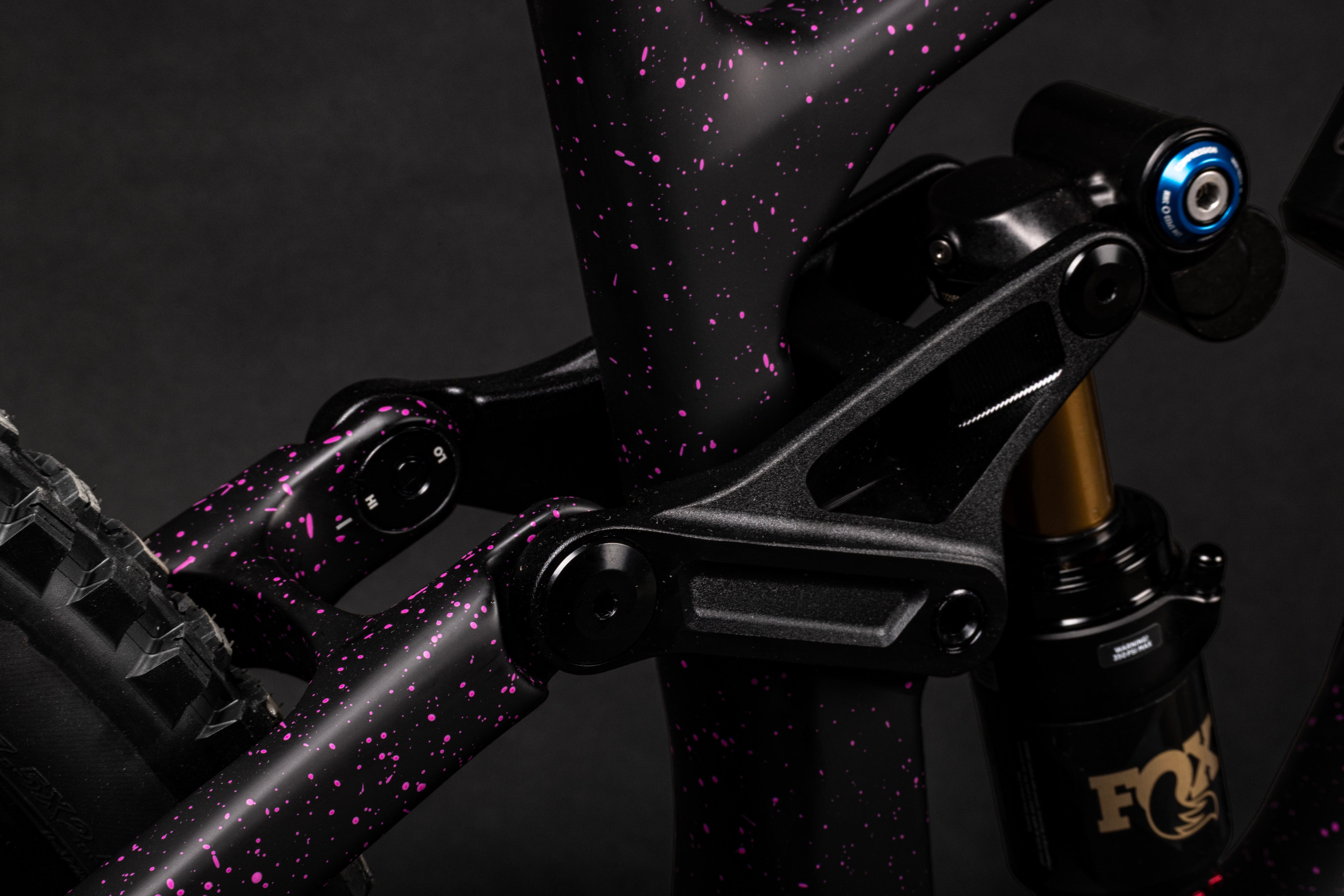

Hard-wearing hardware

Like all Santa Cruz bikes, the pivots and links are tough, reliable, and easy to maintain. Plus, owners get lifetime replacement bearings.

Learn More

Design details of Design Details Adjust VA

Independently Adjustable

The geo chip raises or lowers the BB 4mm, and adjusts the headtube angle 0.3-degrees. The progression chip changes the progression from 26-29%.

Learn More

Choose Your Build

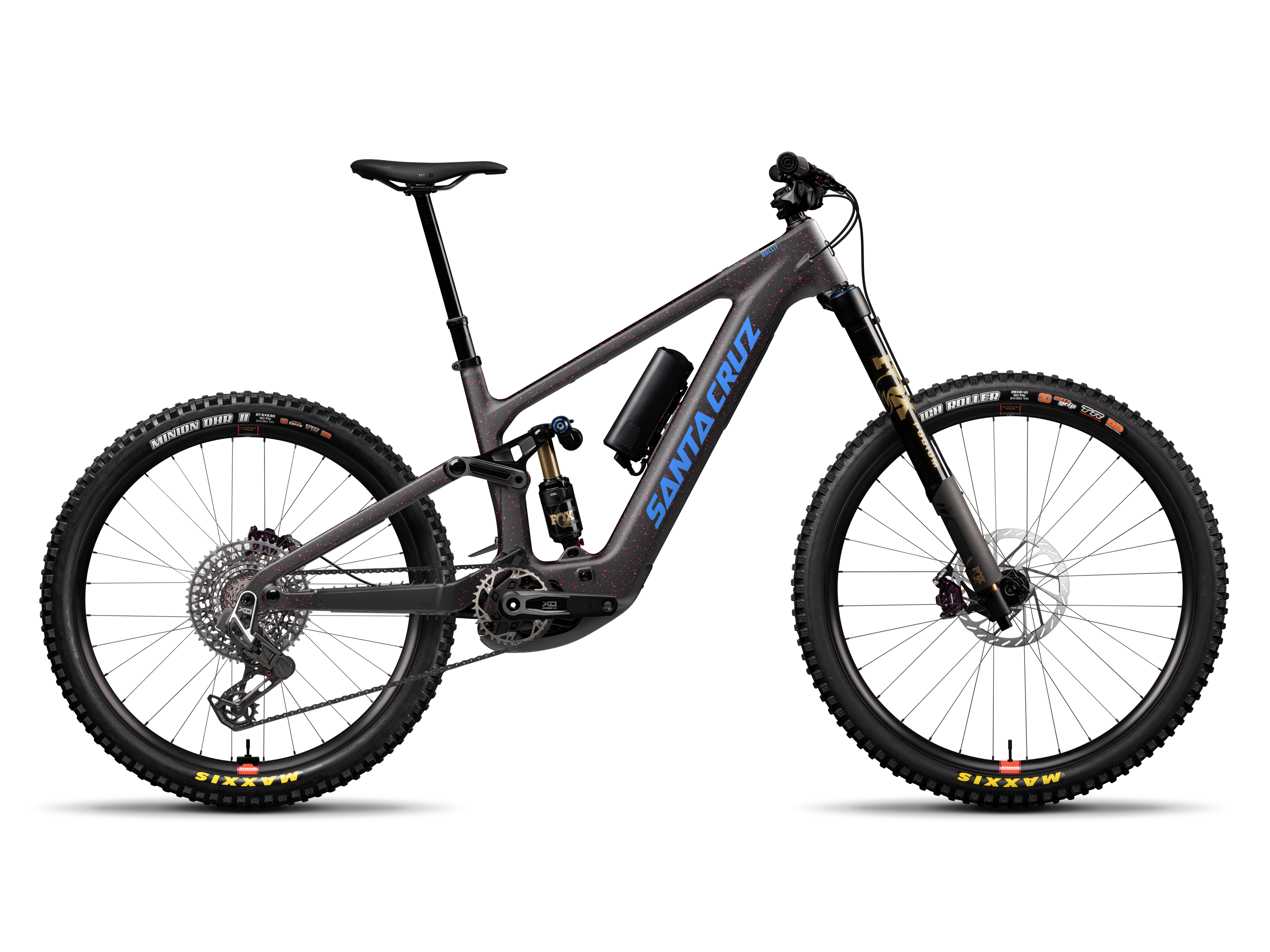

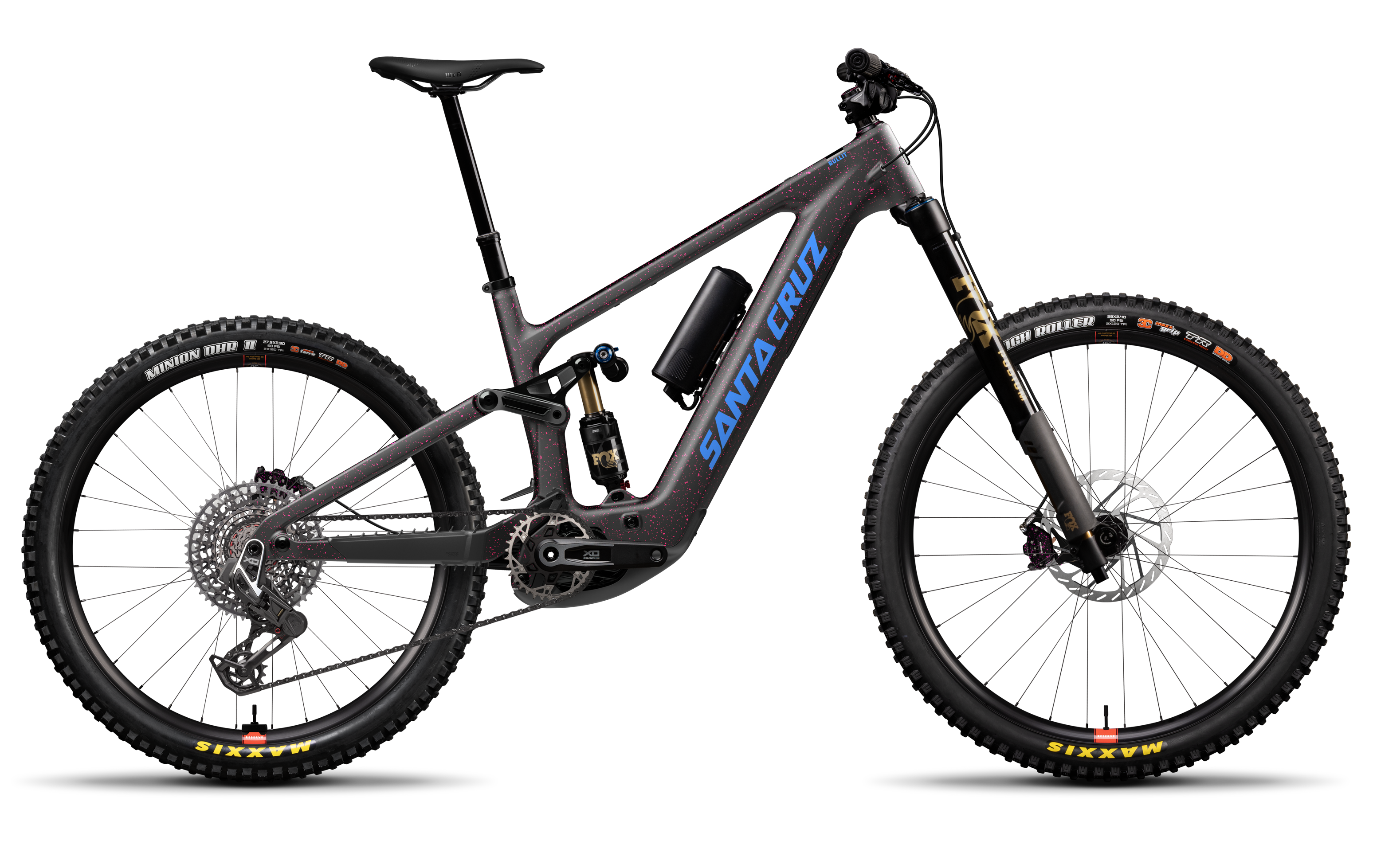

Bullit Podium

Carbon CC

The best of everything, in limited quantities. CC Carbon frame with a Black/Pink Splatter paint job, Fox’s Podium inverted fork, color-matched SRAM Maven brakes, and more.

$13,249

new

Compare

Bullit X0 AXS RSV

Carbon CC

High-tech, high performance, all the goodies. CC carbon frame, SRAM X0 AXS Transmission drivetrain, the latest FOX Float Factory suspension, and carbon Reserve HD/DH rims on DT Swiss hubs.

$12,349

new

Compare

Bullit GX AXS

Carbon C

Elite performance, flying under the radar. FOX Float Performance Elite suspension front and rear, electronic SRAM GX Eagle AXS Transmission and powerful SRAM Maven brakes.

$9,949

new

Compare

DROOL-WORTHY DETAILS

	M	L	XL
Reach	460	480	500
Stack	631	640	654
Head tube angle	63.6°	63.6°	63.6°
Head Tube Length	110	120	135
Rear Center	443	446	449
Front Center	809	834	860
BB Height	346	346	346
BB Drop Front	27	27	27
BB Drop Rear	9	9	9
Wheelbase	1252	1280	1309
Top Tube Length	596	617	640
Seat Tube Length	400	420	460
Seat Tube Angle	78.7°	78.7°	78.7°

	M	L	XL
Reach	457	477	497
Stack	635	643	656
Head tube angle	63.3°	63.3°	63.3°
Head Tube Length	110	120	135
Rear Center	444	447	450
Front Center	809	834	860
BB Height	342	342	342
BB Drop Front	31	31	31
BB Drop Rear	13	13	13
Wheelbase	1253	1280	1310
Top Tube Length	597	618	641
Seat Tube Length	400	420	460
Seat Tube Angle	78.4°	78.4°	78.4°

Rider Weight (lbs)	Rider Weight (kgs)	Pressure (psi)	Rebound (L/H from closed)	Compression (L/H from closed)
100	45	50	14/8	2/2
120	54	61	13/7	2/2
140	64	73	11/6	2/2
160	73	84	8/5	2/2
180	82	96	6/4	2/2
200	91	108	4/3	2/2
220	100	119	2/1	2/2
240	109	128	1/0	2/2

Rider Weight (lbs)	Rider Weight (kgs)	Pressure (psi)	Sag	Rebound (L/H from closed)	Compression (L/H from closed)
100	45	130	28-30%,	14/6	6/3
120	54	150	28-30%,	13/5	6/3
140	64	170	28-30%,	13/4	6/3
160	73	190	28-30%,	12/3	6/3
180	82	210	28-30%,	11/3	6/3
200	91	230	28-30%,	11/2	6/3
220	100	250	28-30%,	9/2	6/3
240	109	270	28-30%,	7/1	6/3

label	name	quantity	part_number	blurb	torque
A	Head Tube Badge	1	20-27756	Clean frame surface, center on headtube
B	M5x10 BHCS	4	26-27915	Apply Loctite 242 to threads	9 Nm
C	Shuttle guard	1	30-27825	Line up with battery screws
D	Bosch DU Performance CX	1	72-25239	Bosch part number EB11.100.00E
E	M4x16 BHCS	3	26-23102	Apply grease to threads	0.65 Nm
F	DU Protector	1	30-27495
G	M6x10 BHCS	2	26-21224	Apply loctite 242 to threads	3 Nm
H	Bosch DU mount nut	2	26-27862	Bosch part number EB11.200.03C
I	M8x7 Flip Chip	1	26-27480	Apply grease to outside surface
J	36.4 Seat Collar	1	34-20201
K	M4x26 Bosch Screw	1	26-28150
L	Bosch TT System Controller	1	72-25240	Bosch part number EB13.100.000
M	Bosch TT adapter	1	26-27857	Bosch part number EB13.200.0AE

label	name	quantity	torque	part_number	blurb
A	M5x5 Set Screw	2	0.5 Nm	26-15532	Apply Loctite 242 to threads, titghten until flush
B	Water Bottle Screw	2		26-21360
C	Pivot Axle M15x91	1	20 Nm	08-22343	Apply Loctite 242 to threads only, apply grease to shaft only
D	M6 Tapered Washer	2		26-15633	Apply grease to surface
E	M6 Washer	2		26-11817
F	M6x20 SHCS	2	9 Nm	26-15947	Apply Loctite 242 to threads
G	M8x7 Flip Chip	1		26-27480	Apply grease to outside surface
H	M8x45 Lowhead SHCS	1	15.6 Nm	26-20091	Apply Loctite 242 to threads
I	Bosch charge socket holder	1		26-27867	Bosch part number EB12.120.01A
J	Bosch MCx14 Screw	2		26-27869	Bosch part number F04N.002.663
K	Bosch COB O-ring	1		26-27868	Bosch part number EB12.120.019
L	Bosch charge socket	1		72-25237	Bosch part number EB12.120.048
M	Bosch charger port cover	1		26-27866	Bosch part number EB12.120.01B
N	Bosch DU Insert Sleeve	1		26-29334	Bosch part number EB11.200.0GK
O	Bosch DU mount bolt front	1	30 Nm	26-27864	Bosch part number EB11.200.12M
P	Bosch DU mount bolt rear	1	30 Nm	26-27865	Bosch part number EB11.200.12H
Q	Pivot axle M15x80.5	1	20 Nm	08-16292	Apply Loctite 242 to threads only, apply grease to shaft only
R	M4x8 BHCS	2	0.65 Nm	26-21249	Apply grease to threads
S	Fender	1		30-27475
T	M10x10 trunnion screw	2	16 Nm	26-27481	Apply Loctite 242 to threads only, apply grease to shaft only
U	6900-2RS Bearing	2		11-12681
V	M10x3 Washer	2		26-15533	Apply grease to inner surface
W	M10x20 bolt	2	16 Nm	26-27484	Apply Loctite 242 to threads
X	6902-2RS Max Bearing	2		11-12218
Y	Washer	2		26-27483	Apply grease to inner surface
Z	M10x2.6 Flip Chip	2		26-27482	Apply grease to outside surface

label	name	quantity	part_number	blurb	torque
A	Rear axle 12x173.7	1	08-22209	Apply grease to shaft and threads
B	SCB UDH	1	23-23491	Interchangeable with Sram UDH
C	SCB UDH screw	1	26-23492	Reverse thread	20 Nm
D	M10x26 Bolt	2	26-27487	Apply Loctite 242 to threads only, apply grease to shaft only	16 Nm
E	Dust Shield	4	26-27488	Apply grease to inner surface
F	6802-2RS Bearing	4	11-27485
G	Bearing spacer	2	26-27489	Apply grease to shaft
H	M10x6 Nut	2	26-27486	Apply grease to inner surface
I	Chanistay protector	1	30-27476
J	M3x12 BHCS	1	26-15939	Apply Loctite 242 to threads	0.1 Nm
K	M4x10 FHCS	2	26-22938	Apply Loctite 242 to threads	0.65 Nm
L	OneUp chainguide	1	19-22609
M	OneUp chainguide back plate	1	26-27839
N	Cable Loop Guide	1	30-27838
O	M3x6	2	26-22358	Apply Loctite 242 to threads	0.6 Nm
P	M5x12 HHS	1	26-22570	Apply Loctite 242 to threads	2 Nm
Q	Seatstay Protector	1	30-21453

label	name	quantity	part_number	torque	blurb
A	Battery mount rear PT600	1	26-27493
B	M4x10 SHCS	8	26-28053	1.2 Nm	Apply Loctite 242 to threads
C	Bosch H-Connector	1	26-27870
D	Bosch battery PT600	1	78-25241		Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E	Battery mount front PT600	1	26-27494

label	name	quantity	part_number	blurb
A	Bearing Dust Shield	4	26-11612	Apply grease to inner surface
B	6902-2RS Max Bearing	4	11-12218
C	15x48 Bearing spacer	1	26-17707
D	15x40.25 Bearing Spacer	1	26-17013
E	Cable loop FT NDS	1	26-25329
F	M3x12 BHCS	1	26-15939	Apply Loctite 242 to threads

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
M	High	B	7	118	118	118
L	High	A	7	118	118	120
XL	High	A	7	118	120	120
M	Low	A	7	118	118	120
L	Low	A	7	118	120	120
XL	Low	A	7	118	120	120
