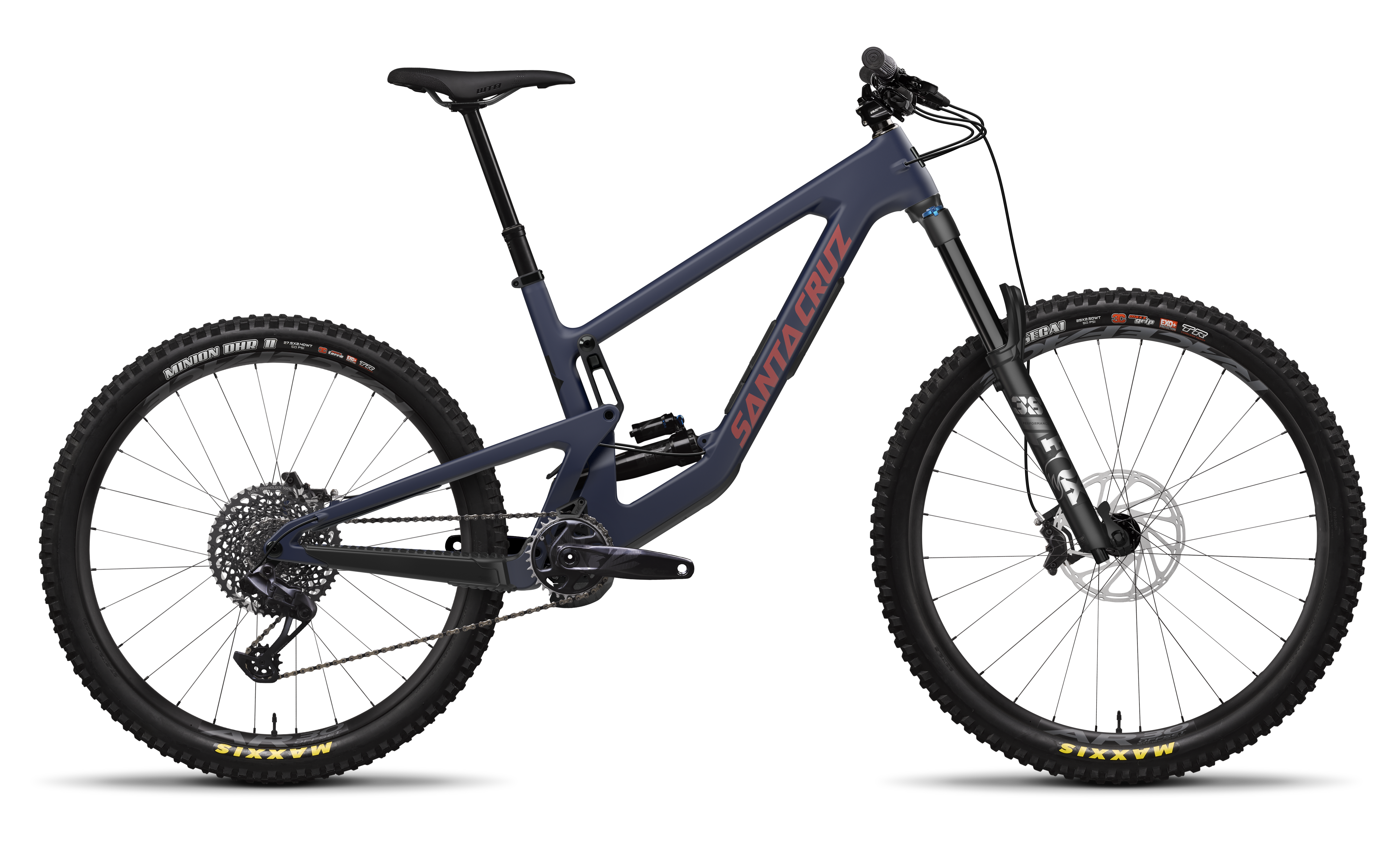

Nomad S
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Range Extender | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Front Spacing | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Nomad S
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large
154cm
5'1"
-
165cm
5'5"
Reach: 430mm
165cm
5'5"
-
175cm
5'9"
Reach: 455mm
175cm
5'9"
-
185cm
6'1"
Reach: 475mm
185cm
6'1"
-
193cm
6'4"
Reach: 495mm
193cm
6'4"
-
200cm
6'7"
Reach: 520mm
All units are in millimeters or degrees.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
| Stack (Hi/Lo) | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
| Head Tube Angle (Hi/Lo) | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 |
| Seat Tube Angle (Hi/Lo) | 77.2/77 | 77.4/77.2 | 77.9/77.6 | 77.8/77.5 | 77.7/77.5 |
| Wheelbase (Hi/Lo) | 1209/1209 | 1239/1240 | 1269/1270 | 1301/1302 | 1336/1337 |
| Front Center (Hi/Lo) | 770/770 | 799/799 | 826/826 | 855/855 | 886/886 |
| Rear Center (Hi/Lo) | 439/440 | 440/441 | 443/444 | 446/447 | 450/451 |
| BB Height (Hi/Lo) | 346/343 | 346/343 | 346/343 | 346/343 | 346/343 |
| BB Drop Front (Hi/Lo) | 27/30 | 27/30 | 27/30 | 27/30 | 27/30 |
| BB Drop Rear (Hi/Lo) | 8/11 | 8/11 | 8/11 | 8/11 | 8/11 |
| Standover Height (Hi/Lo) | 709/705 | 716/713 | 723/719 | 722/717 | 725/720 |
| Head Tube Length | 90/90 | 100/100 | 115/115 | 135/135 | 150/150 |
| Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| Top Tube Length (Hi/Lo) | 570/571 | 594/594 | 612/613 | 637/638 | 666/667 |
Nomad S
Setup & Support
Whether you’re the proud owner of a Nomad or are just digging deep into the details you’ll find it all here.
Fox 38 Performance 170
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 120 | 54 | 72 | 13 |
| 130 | 59 | 76 | 12 |
| 140 | 64 | 80 | 11 |
| 150 | 68 | 84 | 10 |
| 160 | 73 | 89 | 9 |
| 170 | 77 | 93 | 8 |
| 180 | 82 | 97 | 7 |
| 190 | 86 | 102 | 6 |
| 200 | 91 | 106 | 5 |
| 210 | 95 | 110 | 4 |
| 220 | 100 | 114 | 3 |
| 230 | 104 | 119 | 2 |
Rockshox Super Deluxe Select Plus
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 90 | 29-32%, 19-21mm | 7 |
| 120 | 54 | 115 | 29-32%, 19-21mm | 7 |
| 140 | 64 | 135 | 29-32%, 19-21mm | 6 |
| 160 | 73 | 155 | 29-32%, 19-21mm | 6 |
| 180 | 82 | 180 | 29-32%, 19-21mm | 5 |
| 200 | 91 | 200 | 29-32%, 19-21mm | 5 |
| 220 | 100 | 220 | 29-32%, 19-21mm | 4 |
| 240 | 109 | 245 | 29-32%, 19-21mm | 4 |
| 260 | 118 | 265 | 29-32%, 19-21mm | 3 |
Fox Float X Performance
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 125 | 29-31%, | 9 |
| 120 | 54 | 145 | 29-31%, | 8 |
| 140 | 64 | 165 | 29-31%, | 7 |
| 160 | 73 | 185 | 29-31%, | 6 |
| 180 | 82 | 210 | 29-31%, | 5 |
| 200 | 91 | 230 | 29-31%, | 4 |
| 220 | 100 | 250 | 29-31%, | 3 |
| 240 | 109 | 270 | 29-31%, | 2 |
| 260 | 118 | 290 | 29-31%, | 1 |
Upper Link
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 29-23753 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| E | 11-12218 | 2 | 6902-2RS Max Bearing | |
| F | 26-17013 | 1 | 15x40.25 Bearing Spacer |
Loading
Lower Link
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 29-23751 | 1 | Lower Link | ||
| B | 11-17708 | 4 | 6902-1ZR Bearing | ||
| C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 26-19126 | 1 | 15x28 Bearing spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-12678 | 1 | M6 Grease Fitting | 9 Nm | |
| G | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush |
Loading
Glovebox Door, Bezel, and Hardware
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-22843 | 1 | Glovebox lid | ||
| B | 26-25333 | 1 | Glovebox bezel | ||
| C | 26-23284 | 4 | M3x8 BHCS | 0.5 Nm | Apply Loctite 242 to threads |
| D | 30-23225 | 2 | Glovebox nut | ||
| E | 26-22358 | 1 | M3x6 | 0.6 Nm | Apply Loctite 242 to threads |
| F | 30-22620 | 1 | Storage Bulkhead | Install inside Downtube |
Loading
Rear Axle, Deraillaur Hanger, and Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22208 | 1 | Rear axle 12x168.5 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-20361 | 1 | Chainstay Protector | ||
| E | 26-15939 | 1 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 49-21567 | 1 | Lower Link Fender | ||
| H | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
Loading
Upper Link and Lower Link Hardware
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 26-22461 | 2 | 20 Nm | M8x45 Shock Bolt | Apply Loctite 242 to threads |
| C | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| D | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface | |
| E | 26-15947 | 2 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| F | 26-11817 | 2 | M6 Washer | ||
| G | 26-15633 | 2 | M6 Tapered Washer | Apply grease to surface | |
| H | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| I | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| J | 08-16291 | 1 | 20 Nm | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
Loading
Seatpost Collar, Downtube Protector and Shuttle Guard
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 30-23750 | 1 | Shuttle Guard Mount | ||
| C | 30-22560 | 1 | Shuttle Guard | ||
| D | 26-21249 | 2 | M4x8 BHCS | Apply grease to threads | 0.65 Nm |
| E | 30-23718 | 1 | Downtube Protector | ||
| F | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
| G | 34-20201 | 1 | 36.4 Seat Collar |
Loading
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
Nomad S
$4,699.00
USD
Regular price
$5,899.00
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
Material
C
Front (MM)
170
Rear (MM)
170
Wheel Size
MX
33.41
15.15
Weight (lbs)
33.41
Weight (kg)
15.15
Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.
