Stigmata htSQD
From Unbound to SBT Gravel, to Big Sugar and Around The Bay, and thousands of miles in between, the Santa Cruz htSQD puts their Stigmatas to the test. Our elite multi-disciplinarians of endurance reach for the Stigmata on race day, training day, and recovery days alike. Keegan may have reached for the Highball to win Marathon World Champs, but he tuned the motor aboard his Stigmata. Stigmata is designed to be versatile, to go seamlessly from oversized knobbies and a suspension fork to skinny, smooth tires and the rigid fork, ready for whatever terrain you're tackling. This limited-edition htSQD colorway celebrates the success of the team, but also just looks pretty damn cool.
Find a Dealer
Another Bike Shop
2361 Mission St, Santa Cruz, California, 95060, United States
Phone: (831) 427-2232
Sizes: M, L
Breakaway Bicycles
4235 Montgomery Drive, Santa Rosa, California, 95405, United States
Phone: 7075863400
Sizes: XL
Mike's Bikes HQ
55 Leveroni Ct., Novato, California, 94949, United States
Phone: 4154546921
Sizes: M, L
Pedal
2640 W. Belleview Ave, Bldg F Ste 100, Littleton, Colorado, 80123, United States
Phone: (303) 798-5033
Sizes: L
Cycle Fix
2121 Kassold Drive , Lawrence, Kansas, 66047, United States
Phone: 785-842-6363
Sizes: L
One Star Bicycles
2402 South Mill Street, Kansas City, Kansas, 66103, United States
Phone: (816) 756-5510
Sizes: L, XL
Cycles Etc. Manchester
450 Second Street, #1, Manchester, New Hampshire, 03102, United States
Phone: 603.669.7993
Sizes: L
Bikeway
1581 Route 376, Wappingers Falls, New York, 12590, United States
Phone: (845) 463-7433
Sizes: L
Pine Mountain Sports
255 S.W. Century Drive, Bend, Oregon, 97702, United States
Phone: (541) 385-8080
Sizes: M, L
River City Bicycles
706 SE Martin Luther King Jr Blvd, Portland, Oregon, 97214, United States
Phone: 15032335973
Sizes: M
BackCountry.Com
1678 W, Redstone Center Dr. #210, Park City, Utah, 84098, United States
Phone: 8017467580
Sizes: S, M, L, XL
Contender Bicycles
989 East 900 South, Salt Lake City, Utah, 84102, United States
Phone: (801) 364-0344
Sizes: S
Pacific Bike and Ski - Duvall
15635 Main St. NE, Duvall, Washington , 98019, United States
Phone: (425) 844-0485
Sizes: L, XL
Link Cycling
263 N. 3rd St. , Laramie, Wyoming, 82072, United States
Phone: 307-399-2211
Sizes: M

A GRAVEL BIKE THAT CAN RAIL A TURN
The Stigmata is an off-road speed bike (think swift, not Zwift). Its singletrack prowess stems from progressive geometry, plenty of room for big tires, and decades of designing the best mountain bikes. It’s the drop-bar bike for riders who expect to shred.
THE HEAT MAP
Choose Your Build

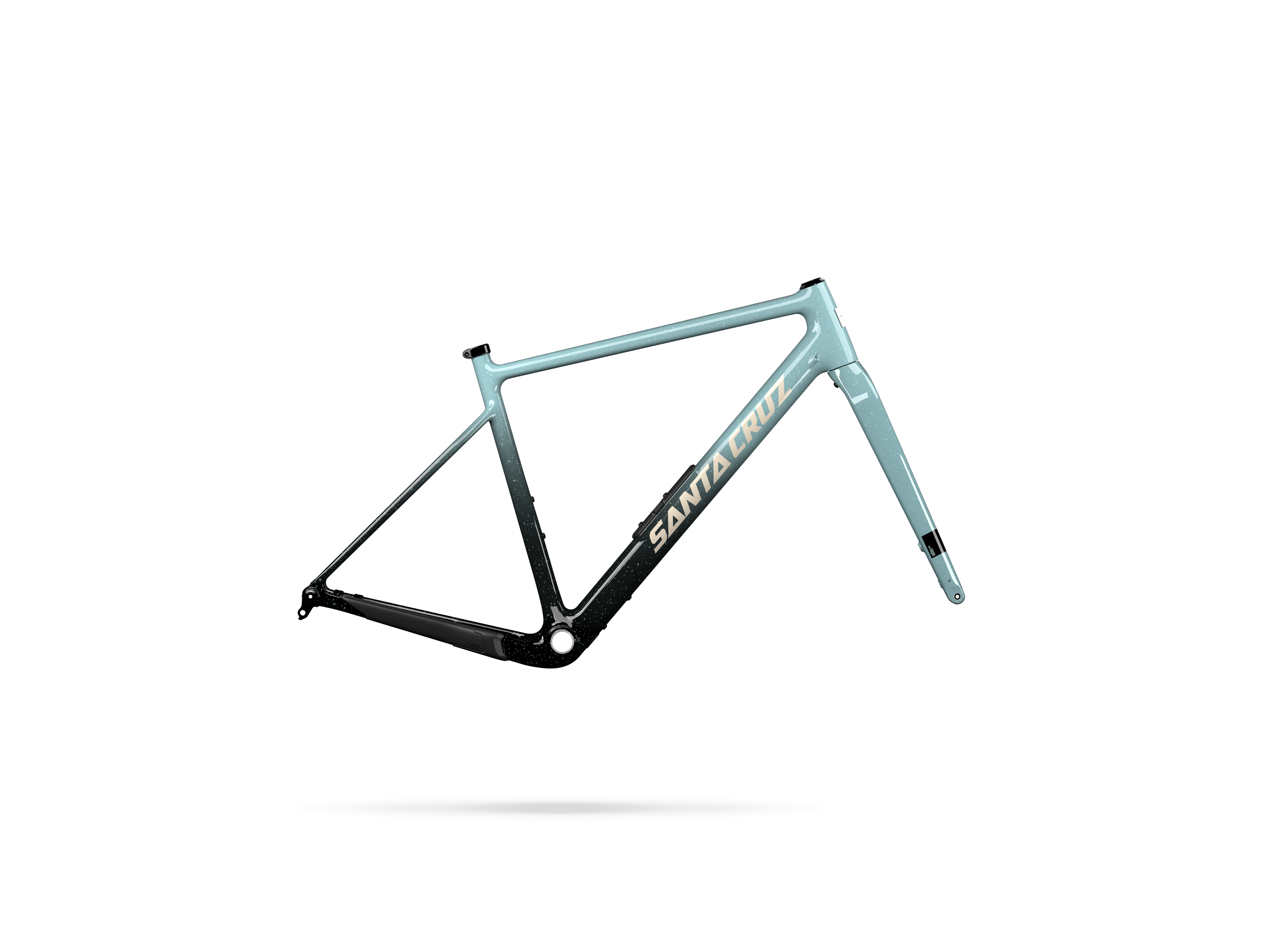

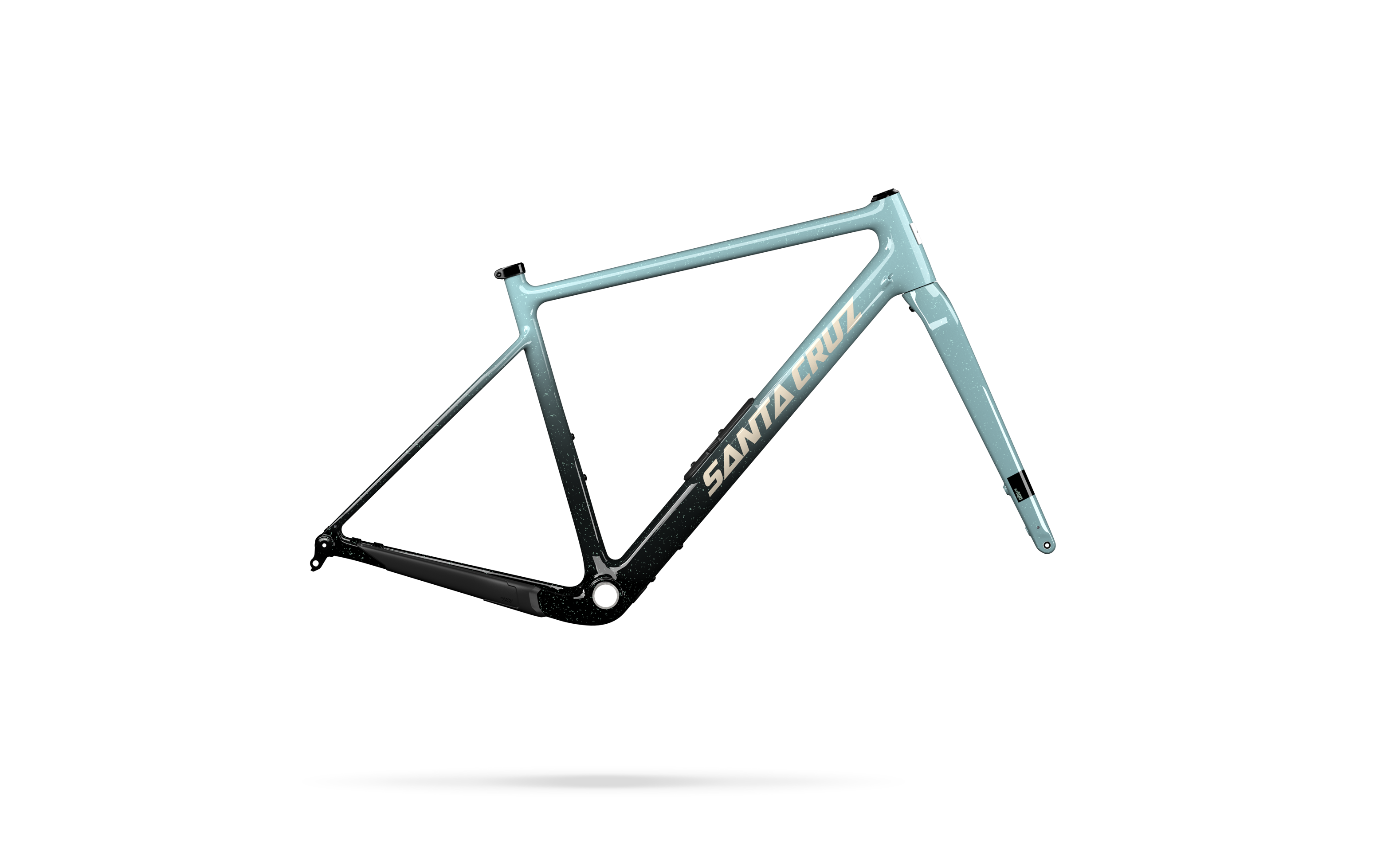

Stigmata htSQD Frame
An ultra-limited frameset in htSQD livery. Comes with the rigid fork, but can be built up any way you dream...
Stigmata htSQD
Taglie e Geometrie
Se sei a cavallo tra due misure consigliate, la cosa migliore sarebbe quella di provarle entrambe. Ma la prima cosa da fare è di controllare le misure di stack/reach della tua bici attuale e confrontale con quelle del nuovo modello che stai valutando. Questo ti permette di avere un'idea della misura che ti si avvicina di più. Se non hai la possibilità di provare la bici, considera quanto segue.
XS | SM | MD | LG | XL | XXL | |
---|---|---|---|---|---|---|
Reach | 375 | 390 | 405 | 420 | 435 | 450 |
Stack | 550 | 564 | 576 | 600 | 612 | 631 |
Head tube angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
Head Tube Length | 90 | 105 | 120 | 145 | 160 | 180 |
Rear Center | 423 | 423 | 423 | 423 | 423 | 423 |
Front Center | 605 | 625 | 645 | 668 | 688 | 710 |
BB Height | 278 | 278 | 280 | 280 | 282 | 282 |
BB Drop | 78 | 78 | 76 | 76 | 74 | 74 |
Wheelbase | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
Top Tube Length | 533 | 552 | 570 | 592 | 610 | 631 |
Seat Tube Length | 450 | 455 | 485 | 515 | 545 | 575 |
Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
Stigmata htSQD
Configurazione & assistenza
Che tu sia l'orgoglioso proprietario di una Stigmata o che tu stia semplicemente approfondendo i dettagli, qui troverai tutto quello che stai cercando.

label | part_number | quantity | name | blurb |
---|---|---|---|---|

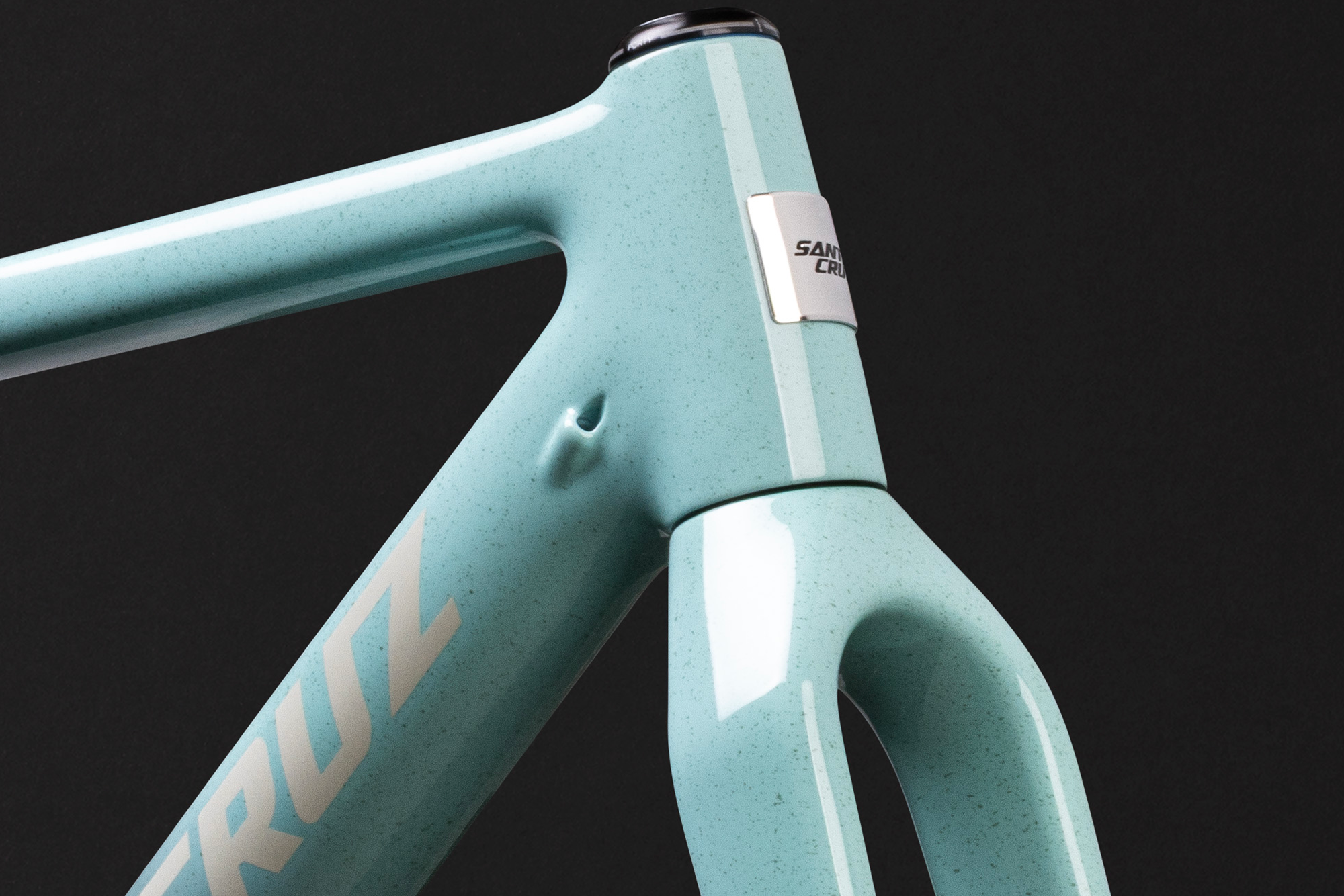

A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube |
B | 26-21360 | 1 | Water Bottle Screw | |
C | 08-24964 | 1 | Front Axle 125x12 | Apply grease to shaft and threads |
D | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush |

label | part_number | quantity | name | torque | blurb |
---|---|---|---|---|---|

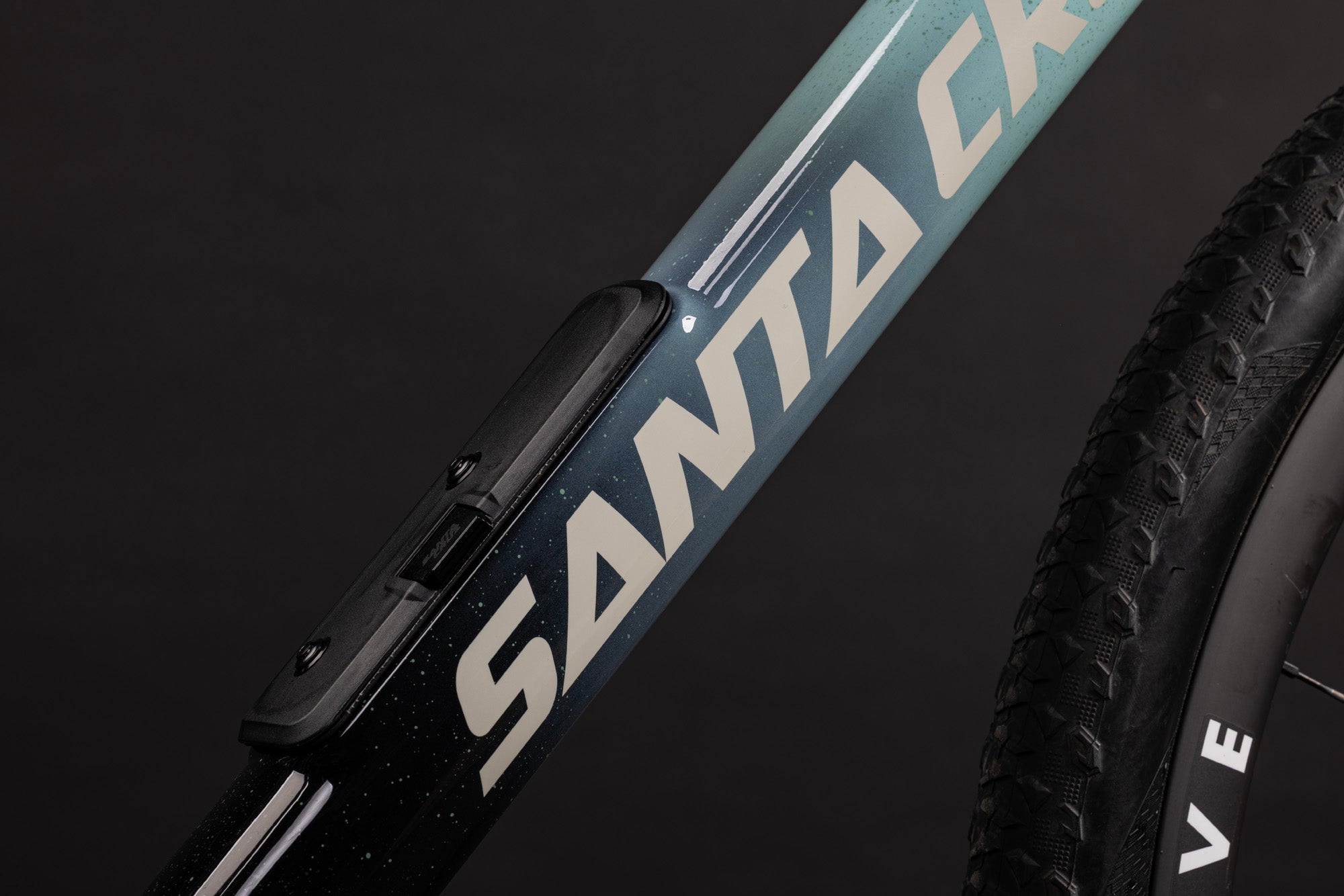

A | 26-22843 | 1 | Glovebox lid | ||
B | 26-25333 | 1 | Glovebox bezel | ||
C | 30-23225 | 2 | Glovebox nut | ||
D | 26-23284 | 4 | M3x8 BHCS | .5Nm | Apply Loctite 242 to threads |

label | part_number | quantity | name | blurb | torque |
---|---|---|---|---|---|

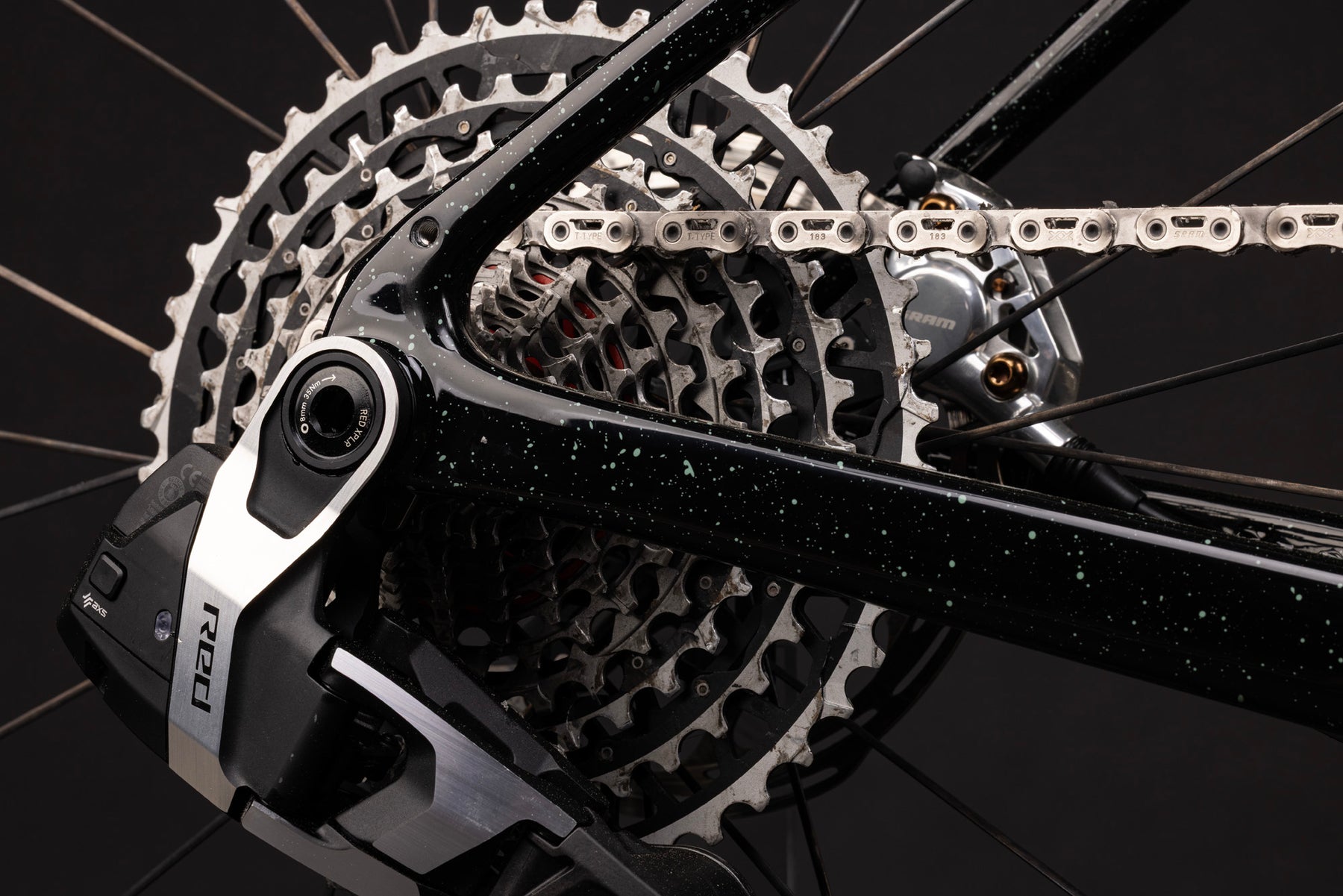

A | 08-22208 | 1 | Rear Axle 168.5x12 | Apply grease to shaft and threads | |
B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20Nm |
D | 30-20192 | 1 | CS Protector | ||
E | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
F | 26-21360 | 1 | Water Bottle Screw | ||
G | 23-20194 | 1 | FD Mount | 3Nm | |
H | 26-20864 | 2 | Di2 Plug | ||
I | 26-20865 | 2 | Wireless Plug |

label | part_number | quantity | name |
---|---|---|---|
A | 26-21360 | 4 | Water Bottle Screw |
B | 26-20104 | 1 | DT Plug |
C | 26-20195 | 2 | Fender Mount |
D | 34-20202 | 1 | 31.8 Seat Collar |

Frame Size | Setup Key | Setup Cog | 34T | 36T | 38T | 40T |
---|---|---|---|---|---|---|
Small | A | 7 | 116 | 118 | 118 | 120 |
Medium | A | 7 | 116 | 118 | 118 | 120 |
Large | A | 7 | 116 | 118 | 118 | 120 |
XLarge | A | 7 | 116 | 118 | 118 | 120 |
XXLarge | A | 7 | 116 | 118 | 118 | 120 |
Dig Deep
Sizing and support for the Stigmata htSQD

Geometry& Sizing
